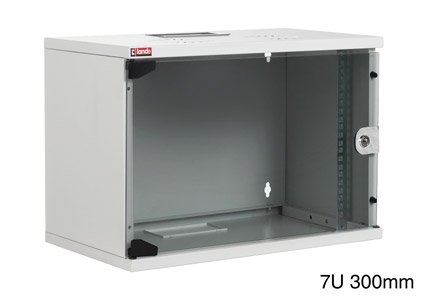

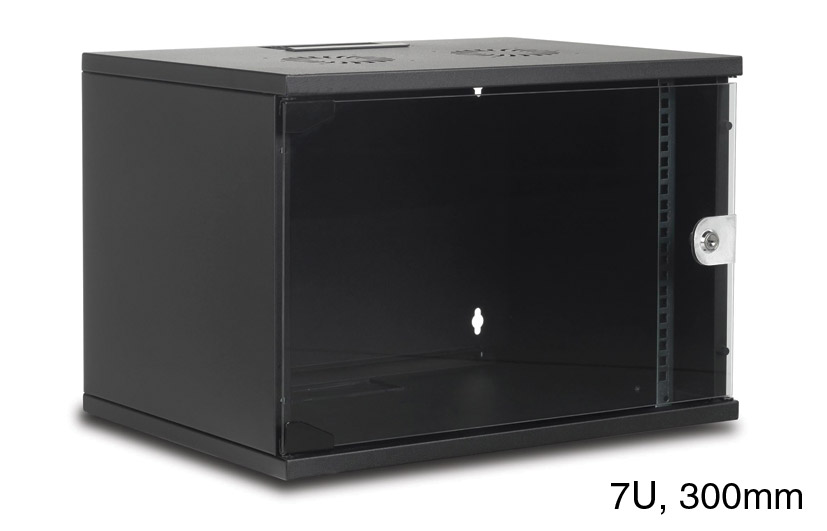

The Lande Netbox Soho series of 19-inch wall-mounting rack cabinets have been specifically designed to provide a cost-effective solution for network distribution applications such as small offices either at work or at home. With lightweight, steel construction they are available in three heights, two depths and two colours. They are supplied complete with a lockable glass door and are shipped flat-packed as standard.

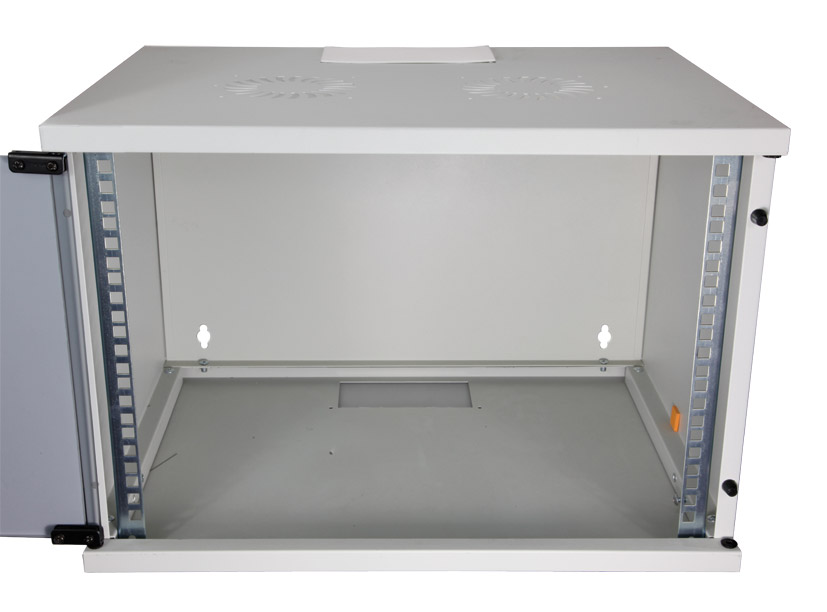

The cabinet top, base, rear and sides are constructed with folded sheet steel and are secured together tightly by the supplied M5 x 10 fixing hardware. Top and base both have cable entry cut-outs; the top is fitted with a brush strip, the base with a PVC gland plate. Also found on the cabinet top are perforated grills suitable for fitting single 120mm diameter fans or optional fan modules to implement forced ventilation. Front 19-inch mounting-profiles fix to the side panels, and are adjustable through three positions at the front of the cabinet.
The front doors are full-length, shatterproof, smoked glass with a single-point barrel-lock. The doors are held at top and bottom in painted steel channels which are integral with the hinges; the opening direction may be changed by removing the hinges and the screws which secure the glass.
|Maximum equipment depth:
|Nominal depth less 30mm.
|Light grey, RAL 7035 or black, RAL 9005, powder coat.
For all other accessories, including blank panels, brush strips, fasteners, power distribution units, rack drawers and shelves, see Rack accessories and hardware.
