CANFORD CAN-DIO DANTE TO AES/EBU DIGITAL CONVERTER Bi-directional

Stock code
20-073
Brand
Canford
Model number
  • CAN-DIO
GTIN
5056704792722
CANFORD CAN-DIO DANTE TO AES/EBU DIGITAL CONVERTER Bi-directional
CANFORD CAN-DIO DANTE TO AES/EBU DIGITAL CONVERTER Bi-directionalCANFORD CAN-DIO DANTE TO AES/EBU DIGITAL CONVERTER Bi-directional

CANFORD DANTE INTERFACES

These Canford Dante adapters provide an alternative to the existing Audinate and Amphenol in-line adapters and avoiding captive cables. They are simple stereo audio adapters to convert between either analogue or digital, to or from Dante.

Three models, with two housing options, provide different audio connectivity options. The range consists of three standalone/desktop units and three units designed to mount in the Canford Universal Modular Connector Panel (UMCP) . Each unit is powered by PoE (Power over Ethernet), no external power is required.

Housed in a robust Canford extruded box, the adapters offer superior performance in analogue audio conversion and rugged connectivity through Neutrik Ethercon and XLR connectors. Above the Ethercon connector are two LED's. Link status is indicated by the left LED, once power has been supplied to the unit the link status LED turns Red. The link status LED turns amber when a link is established with a link speed of 100 Mbps. Network activity is shown by the right Green LED, solid colour when connected, blinking when there is network activity.


CAN-AI

This is a 2 channel analogue audio to Dante converter. Inputs are on balanced, Neutrik XLR 3-pin female connectors.


CAN-AO

This is a Dante to 2 channel analogue audio converter. Outputs are on balanced, Neutrik XLR 3-pin male connectors.

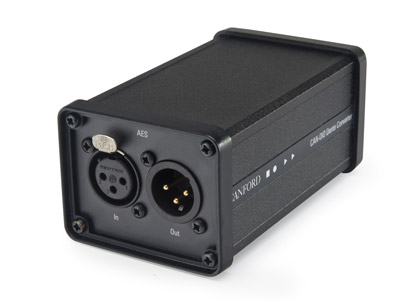

CAN-DIO

This bi-directional unit converts Dante to and from AES/ EBU digital signals. Transformer balanced input and output signals are handled by Neutrik XLR 3-pin male and female connectors.

Models and housing options:

Model Standalone/Desktop UMCP Rack mounting
CAN-AO 20-071 20-074
CAN-AI 20-072 20-075
CAN-DIO 20-073 20-076
General: 24-bit@44.1, 48 and 96KHz. Asynchronous sample rate conversion. Sample rate converter bypass via internal jumper.
Analogue Audio Input Performance
Input Impedance: >20K ohm balanced
0dBFS line-up: +18dBU
Frequency Response: 20Hz to 20KHz, +0/-0.2dB
THD + N: <-100dBFS, -12dBU. 20Hz to 20KHz, 20KHz BW
Noise: <-100dBFS, 20KHz BW. Rs=200 ohms
Crosstalk: <-90dB
Common Mode Rejection: >60dB@1KHz
Digital Audio Input Performance
Input Impedance: 110 ohms
Sample Rate Conversion: 32 – 192KHz to 32KHz – 96KHz. (Set in device config. menu in Dante controller.)
Analogue Audio Output Performance
Output Impedance: <50 ohm balanced
0dBFS line-up: +18dBU
Frequency Response: 20Hz to 20KHz, +0/-0.5dB
THD + N: <-82dBu, -30dBFS, 20Hz to 20KHz, 20KHz BW
Noise: <-82dBu, 20KHz BW.
Crosstalk: <-90dB
Digital Audio Output Performance
Output Impedance: 110 ohms
Output Sample Rates: 32KHz – 96KHz. (Set in device config menu in Dante controller.)
