RDL AV INTERFACES - D Series - Dante enabled

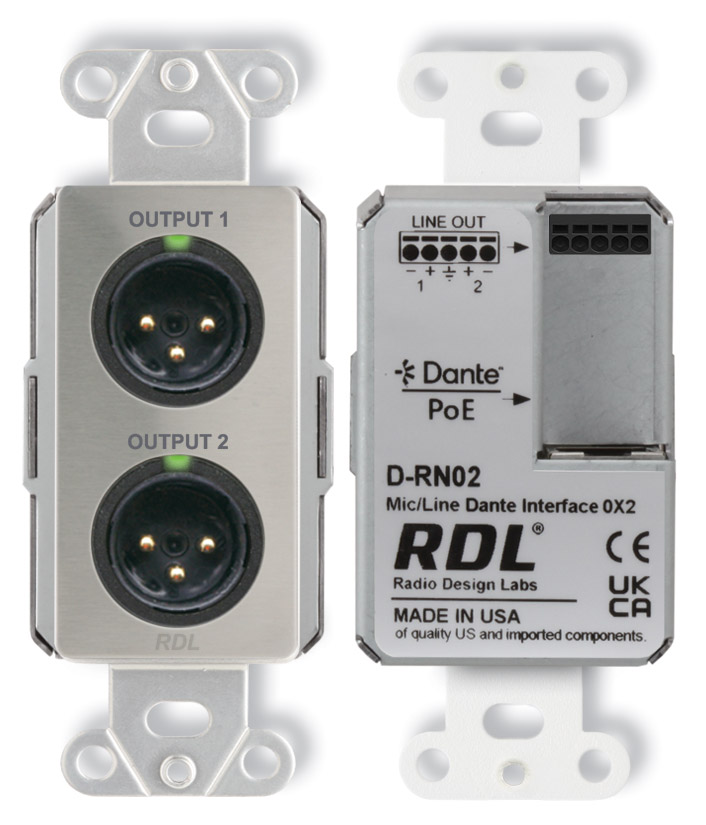

RN02 Output, 2x 3-pin XLR, mic/line

RN02 is a wall-mounted Dante or AES67 audio network interface. It features two balanced XLR mic or line outputs on the front panel and on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. Two Dante or AES67 audio channels are converted to balanced line level feeding front-panel XLR jacks and a rear-panel detachable wiring block. Each output provides balanced +4dBu for a network digital audio level of -18dBFS. Each front-panel output is equipped with a software-controlled mic/line output attenuator pad. When an output is set to mic level, the step attenuator reduces the mic output in 1dB steps to a maximum attenuation of 63dB below mic level, then OFF.

Valid PoE power and synchronisation to the Dante network are indicated by green LEDs visible from the front of the unit. RN02 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centres. Weight: 195g

BN22 Bi-directional, 2x2 Mic/Line, XLR

BN22 module enables the user to interface two audio inputs with Dante network protocol, and Dante to two audio outputs, with the analogue connections by way of 3-pin XLR. Microphone input gain is switch-selectable between 40/48/62dB, with switchable +48V phantom power; whilst line level input is switch-selectable between 12dB and 19dB. BN22 utilises 24bit A/D and D/A conversion with a 100Mbps transmission rate and 44.1 or default 48kHz sample rate. Green LEDs indicate synchronisation with compatible Dante network.

Input gain: 40dB, LO, 48dB, MED, 62dB, HI, mic; Unity, LO, 8dB, MED, 19dB, HI, line. Input Level (+4dBu/-20dBFS): -36dBu, LO, -44dBu, MED, -58dBu, HI, mic; +4dBu, LO, -8dBu, MED, -15dBu, HI, line. Input Level (maximum): -16dBu, LO, -24dBu, MED, -38dBu, HI, mic; +24dBu, LO, +12dBu, MED, +5dBu, HI, line. Frequency Response: 20Hz – 20 kHz, +/-0.5dB. Colour options: White: DD-BN22, Black: DDB-BN22, Silver: DDS-BN22. Weight: 424.1g

BN2ML Bi-directional, 2x2 Mic/Line, XLR/3.5mm Jack

BN2ML module has similar properties to the DD-BN22 however the inputs are by way of single 3-pin XLR and single 3.5mm jack connector. Outputs are by way of terminal block on the rear panel. Colour options: White: DD-BN2ML, Black: DDB-BN2ML, Silver: DDS-BN2ML. Weight: 383.3g

BN2M Bi-directional, 2x2 Mic/Line, XLR

As DD-BN2ML however inputs are both 3-pin XLR connectors. Colour options: White: DD-BN2M, Black: DDB-BN2M, Silver: DDS-BN2M. Weight: 396.9g

BN31 Bi-directional, 2x2 Mic/Line, XLR/3.5mm Jack

BN31 has two front panel 3-pin XLR inputs, one front panel 3.5mm jack input, and one 3.5mm jack output. Two further outputs can be accessed via terminal block on the rear panel. Colour options: White: DD-BN31, Black: DDB-BN31, Silver: DDS-BN31. Weight: 403.7g

BN40 Bi-directional, 4x2 Mic/Line, XLR

BN40 has four front panel 3-pin XLR inputs and two terminal block, line-level outputs on the rear panel. Each of the four balanced XLR inputs is converted to a separate Dante transmission channel, whilst two Dante audio channels are converted to balanced line level, each with +4dBu provision. A switch is provided for each of the outputs to change to an unbalanced level with attenuation to -10dBV. These switches are located on the top panel of the chassis and are designed to be set by the technician prior to installation.

Input gain: 40dB, LO, 48dB, MED, 62dB, HI, mic; Unity, LO, 8dB, MED, 19dB, HI, line. Input Level (+4dBu/-20dBFS): -36dBu, LO, -44dBu, MED, -58dBu, HI, mic; +4dBu, LO, -8dBu, MED, -15dBu, HI, line. Input Level (maximum): -16dBu, LO, -24dBu, MED, -38dBu, HI, mic; +24dBu, LO, +12dBu, MED, +5dBu, HI, line. Frequency response: 20Hz – 20 kHz, +/-0.5dB. Dimensions (WxHxD): 89.4 x 104.4 x 53.1mm. Colour options: White: DD-BN40, Black: DDB-BN40, Silver: DDS-BN40. Weight: 435.4g

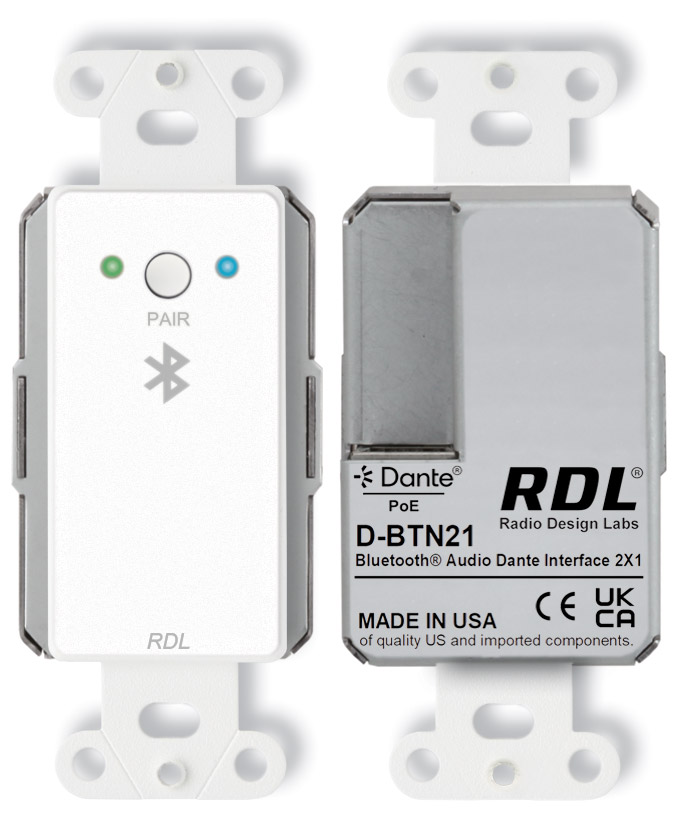

BTN21 Bi-directional, Bluetooth

BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software and are controllable by compatible remote controls or software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software, compatible RDL remote controls and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. A single Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.

Compatible RDL remote controls may be configured to control from one to eight BTN21 modules. Controllable Bluetooth functions include pairing or un-pairing, media source track selection (play, pause, next track, last track) and level adjustment from the originating Bluetooth device. Remote controls equipped with a screen may display the track title and artist. The installer can customize the module Bluetooth name using RDL CONSOLE software. Additional settings include the LED dim intensity and the timeout to dim the LEDs. As default the timeout is 30 seconds. BTN21 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60mm distance screw hole mounting centres. BTN21 is PoE powered. Weight: 166g

EU-BTN21 Bi-directional, Bluetooth

EU-BTN21 is a PoE powered, Dante or AES67 networked, wall-mounted audio interface that provides bidirectional Bluetooth audio. The module is compatible with standard UK/European 60mm deep junction box, and is configurable using RDL CONSOLE software. EU-BTN21 can multicast Bluetooth media data and module function status for use with RDL CONSOLE software and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication. Along with additional settings including the LED dim intensity and the timeout to dim the LEDs, the installer can customize the module Bluetooth name using RDL CONSOLE software. Weight: 170g

Ordering note: A white faceplate laminate is pre-installed, however a field-replaceable black laminate is included. Black cover plate is not included, however RDL recommend Legrand Matt Black Mosaic cover plate (Part No: 0 790 42L).

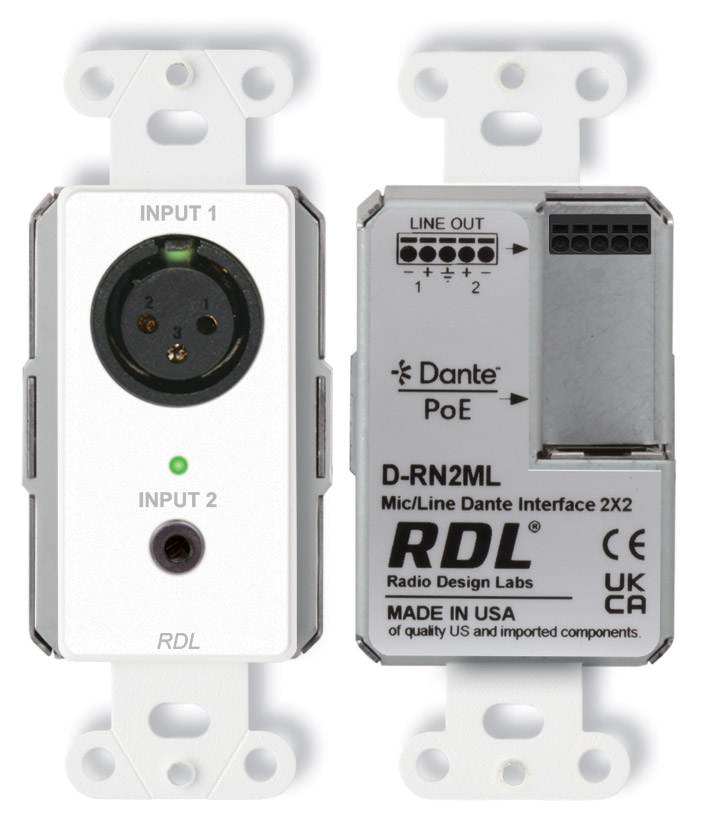

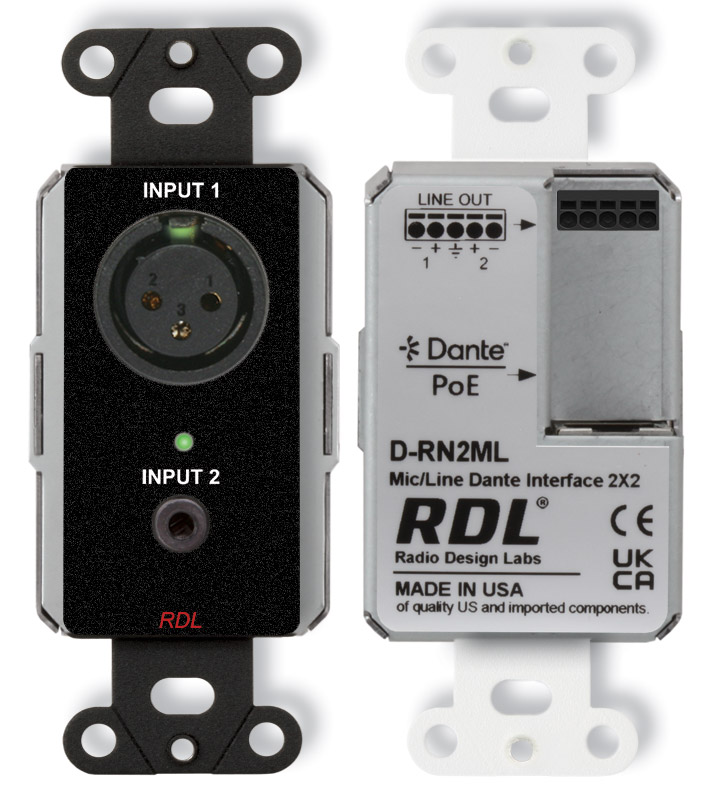

RN2ML Bi-directional, 2x2 Mic/Line, XLR/3.5mm Jack

RN2ML is a wall-mounted Dante or AES67 audio network interface that features 1x XLR mic/line input on the front panel, 1x stereo 3.5mm jack line-level input summed to mono on the front panel, and 2x balanced line outputs on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The XLR input is converted to a Dante network transmit channel. Five gain settings are software-selectable for the XLR input. Three gain settings are provided to match condenser or dynamic microphones. Two gain settings are provided to match standard line levels. P48 phantom voltage may be software enabled when the XLR input is set for mic level. The Mini-jack input is converted to one Dante network transmit channel. The left and right Mini-jack inputs are actively summed. Three software-controlled gain settings are provided to increase or decrease the gain by 5dB from the normal gain setting, optimized for an input level of -10dBV. Weight: 204g

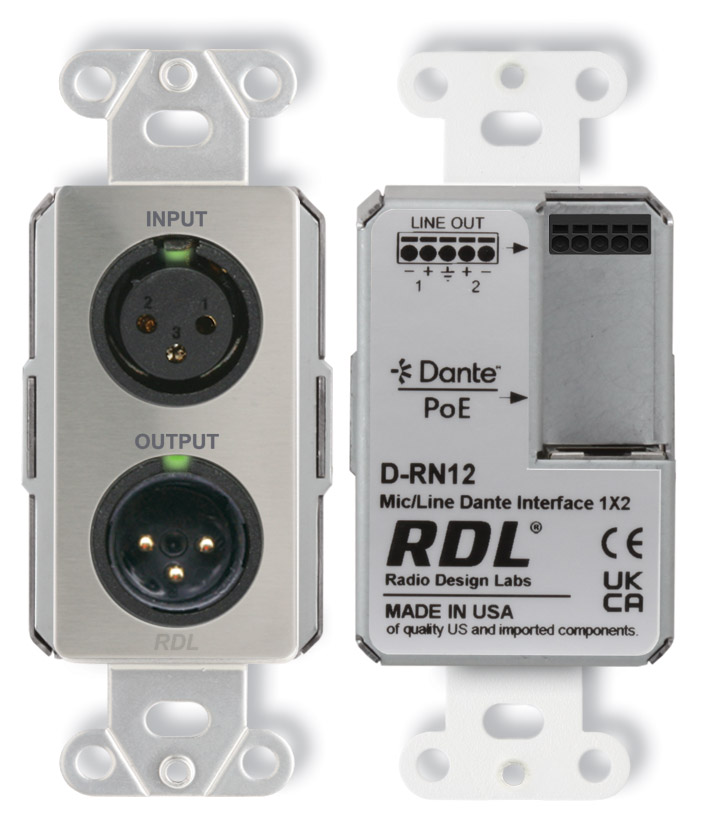

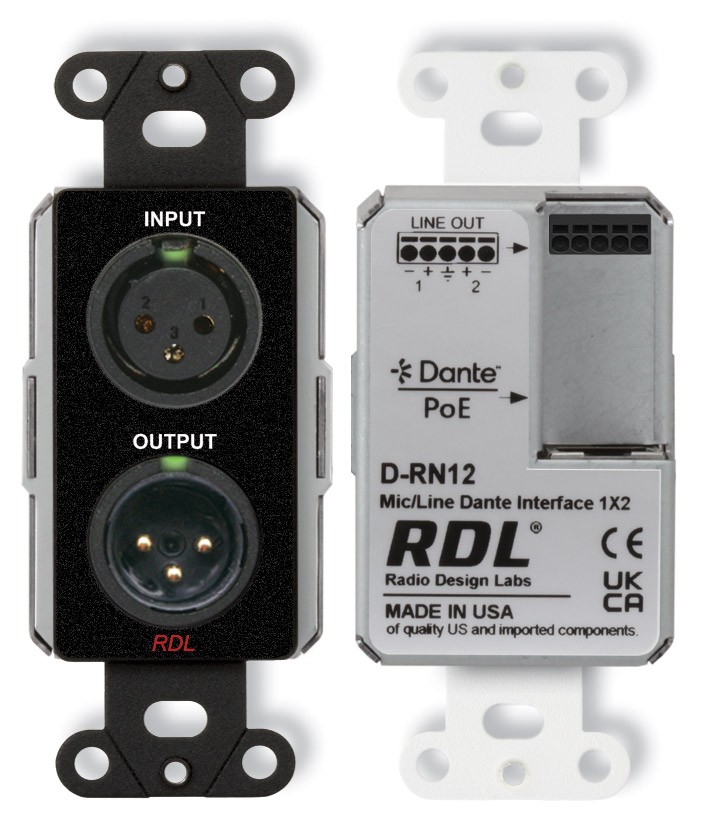

RN12 Bi-Directional, 1x2, XLR in, XLR out

RN12 is a wall-mounted Dante or AES67 audio network interface that features 1x XLR mic or line input on the front panel, 1x balanced mic/line output on a front-panel XLR jack, and 2x balanced line outputs on a rear-panel detachable wiring block. One of the rear-panel wired outputs is the line-level signal from the front-panel XLR output. The other rear-panel wired output is a separate network audio channel. The module is configured and adjusted using RDL CONSOLE or other network control software. Weight: 197g

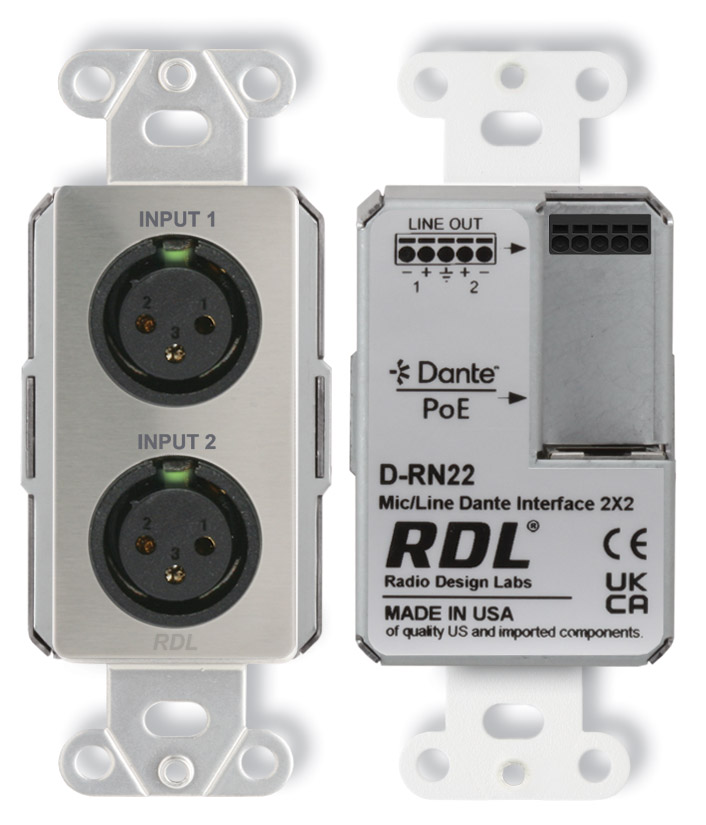

RN22 Bi-Directional, 2x2, 2x XLR in

RN22 is a Dante or AES67 audio network interface that features 2x XLR mic/line inputs on the front panel and 2x balanced line outputs on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. Weight: 199g

RN31 Bi-directional, 4x4 Mic/Line, XLR/RCA/3.5mm Jack/terminal

RN31 has two balanced mic/line 3-pin XLR inputs, left/right unbalanced stereo RCA (phono) inputs, and single 3.5mm jack line level input on the front facing panel. A single 3.5mm jack output is also positioned on the front panel whilst outputs 3 and 4 via terminal connection on the rear facing panel. Dante network connection and PoE is via single RJ45 cable. Colour options: White: DD-RN31, Black: DDB-RN31, Silver: DDS-RN31. Weight: 347.00g

RN40 Bi-directional, 4x2 Mic/Line, XLR/terminal

RN40 has four balanced mic/line 3-pin XLR inputs located on the front panel, and two balanced outputs on the rear facing panel via terminal connections. Dante network connection and PoE is via single RJ45 cable. Colour options: White: DD-RN40, Black: DDB-RN40, Silver: DDS-RN40. Weight: 344.73g

RN42 Bi-directional, 4x2 Mic/Line, XLR/terminal

RN42 has two balanced mic/line 3-pin XLR inputs located on the front panel, two balanced 3-pin XLR outputs on the front panel, and two further balanced inputs on the rear facing panel via terminal connections. Dante network connection and PoE is via single RJ45 cable. Colour options: White: DD-RN42, Black: DDB-RN42, Silver: DDS-RN42. Weight: 327.95g

BTN44 Bi-directional Dante Interface

A PoE device allowing bi-directional audio from connected Bluetooth devices, or via the stereo 3.5mm jack or dual RCA (phono) connectors. A stereo audio output can be taken via 3.5mm stereo jack socket. The terminal block on the rear panel allows the connection of a balanced or unbalanced output from a single Dante network channel. Bluetooth is synced using front panel button. BTN44 is available in white (DD-BTN44), black (DB-BTN44), and stainless steel (DS-BTN44) finishes. Network connector: RJ45 with link and speed indicators.

Dante transmission rate: 100Mbps. Sample rates: 44.1/48kHz. Bit depth: 24bits. Audio levels: -20dBFS = +4dBu, balanced; -10dBV, unbalanced. Frequency response: 20Hz – 20kHz. Weight: 353.80g

NLC1 Network remote, button control, LEDs

Available in white (D-NLC1), black (DB-NLC1), or stainless steel (DS-NLC1), NLC1 is a volume controller that allows the user to adjust levels remotely over a digital network for RDL DD-RN bi-directional interfaces. It is also compatible with RDL RU-NMP44 network mixing processor to control Dante streams produced by third party equipment. A 15-segment LED string illustrates the volume selected, with up and down buttons to adjust. A third button can be used to mute the system. The LEDs dim when adjustments are not being made and return to normal intensity when further adjustment is made. NLC1 can also be automatically lock enabled after a period of 30 seconds. Weight: 140g

NLC1R Network remote, rotary control, LEDs

As NLC1 however in place of the up/down and mute buttons, a single rotary encoder allows for volume adjustment. Weight: 168g

NMC1 Network remote, button control, with LCD

NMC1 has the same functionality as NLC1 however it features a full colour LCD display in place of LEDs. Along with a mute button and up down buttons, NMC1 has left and right directional buttons to assist menu navigation. NMC1 is available in black (DB-NMC1), white (D-NMC1), and stainless steel (DS-NMC1) finishes and can control up to eight sources. Weight: 140g

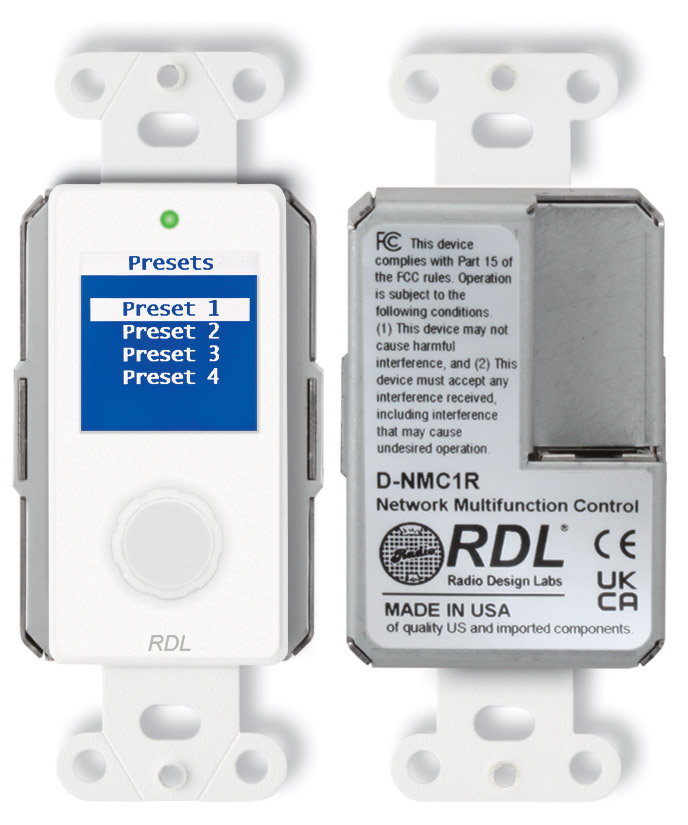

NMC1R Network remote, rotary control, with LCD

As NMC1 however in place of the up/down and mute buttons, a single rotary encoder allows for volume adjustment. Weight: 168g

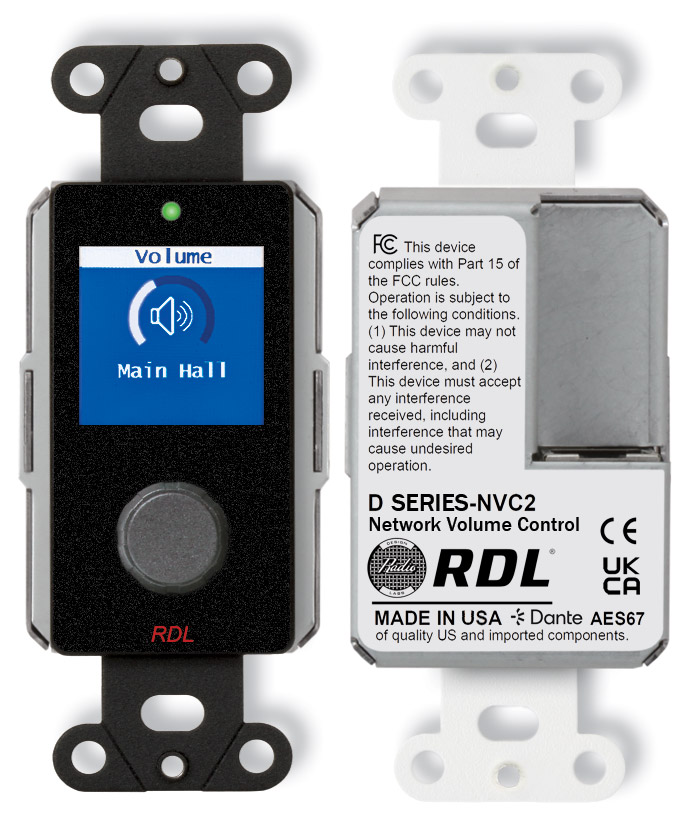

NVC2 Network remote, rotary control, with LCD

NVC2 is a rotary control that provides volume control and muting on one or two Dante/AES67 network audio channels. One or two mono audio sources or one stereo audio source may be routed to NVC2, then from NVC2 to a network destination, typically a power amplifier. Audio level adjustment is performed digitally in NVC2. The installer has the option of setting the unit to sum the left and right channels of a stereo source with the mono sum feeding both outputs. The level of each output channel may be adjusted separately or together. If two or more user adjustment controls are desired in the same zone, an RDL NMC1R may be used to remote control NVC2, allowing adjustment by either unit. Network bandwidth typically supports up to 4x remote controls per zone. Weight: 168g
