RADIAL NETWORK INTERFACES - Dante

2 items
RADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitter
RADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitterRADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiverRADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiver+4RADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiverRADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiverRADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiverRADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiver

A series of analogue to digital converter that allow the connection of line level sources to a Dante or AES67-compliant network.

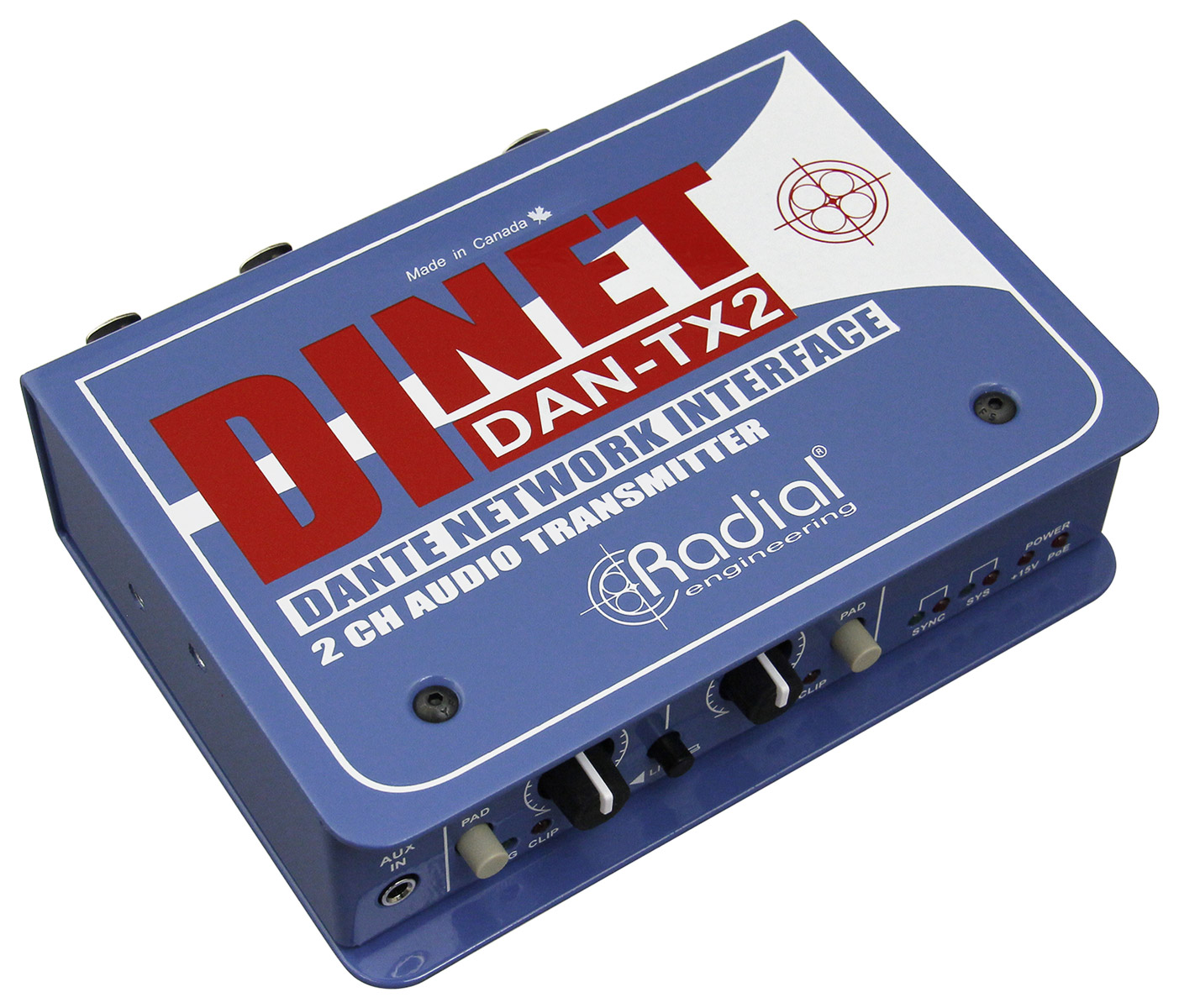

DiNET DAN-TX2 analogue to Dante network, line level

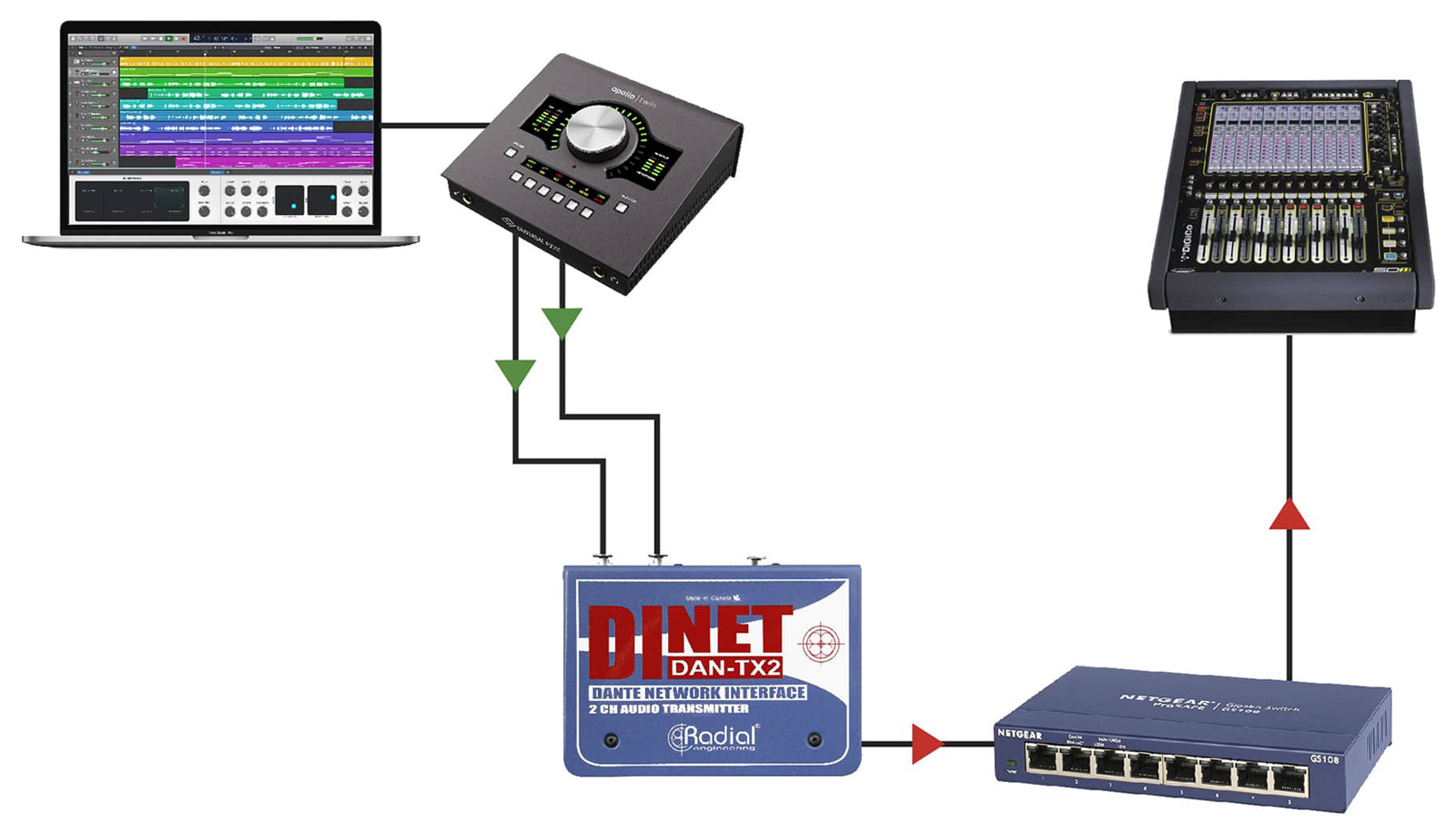

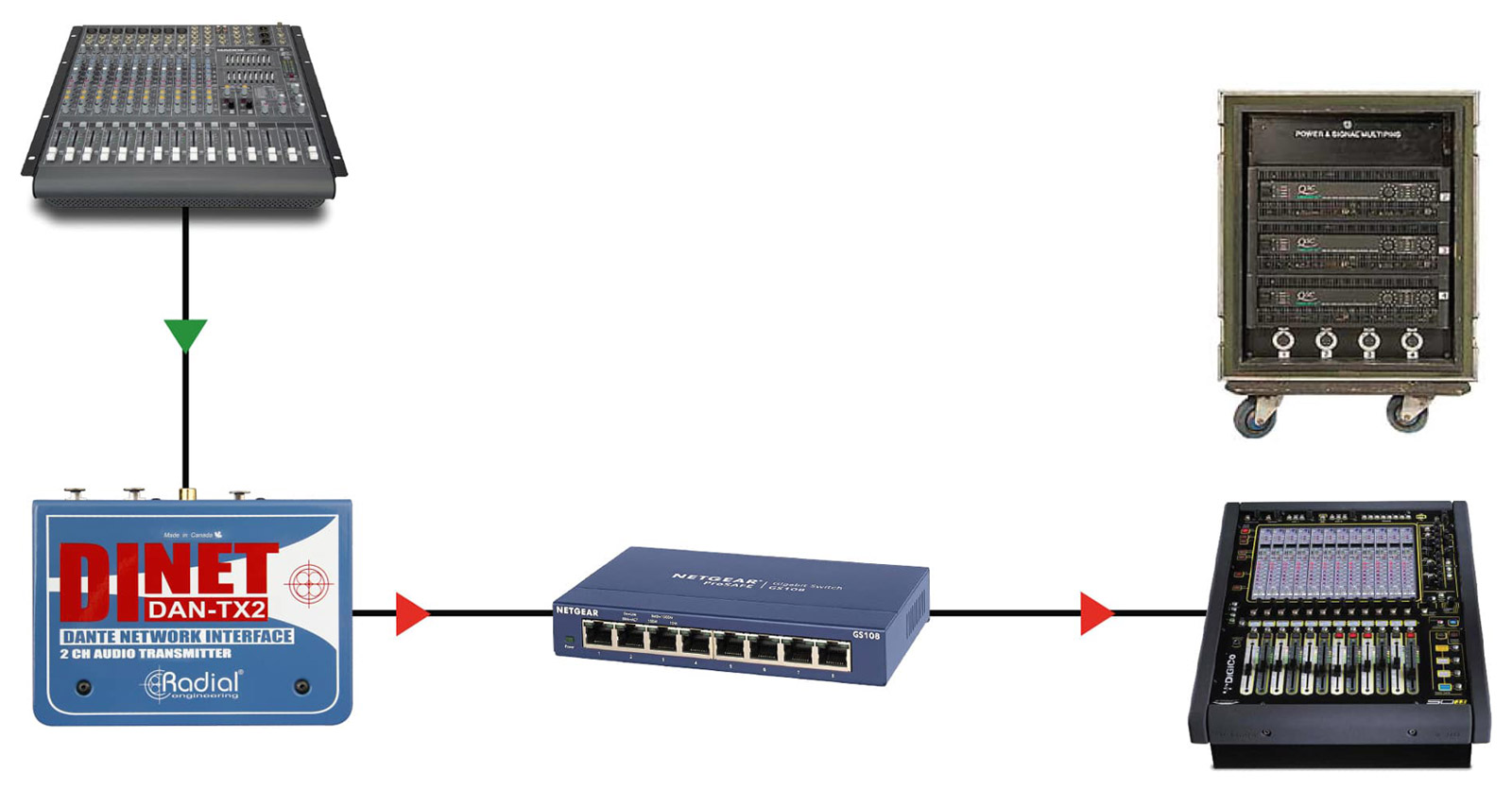

DiNET DAN-TX2 has been designed to simplify the transmission of two channels of analogue audio over a Dante or AES67-compliant network with 24bit/96kHz conversion.

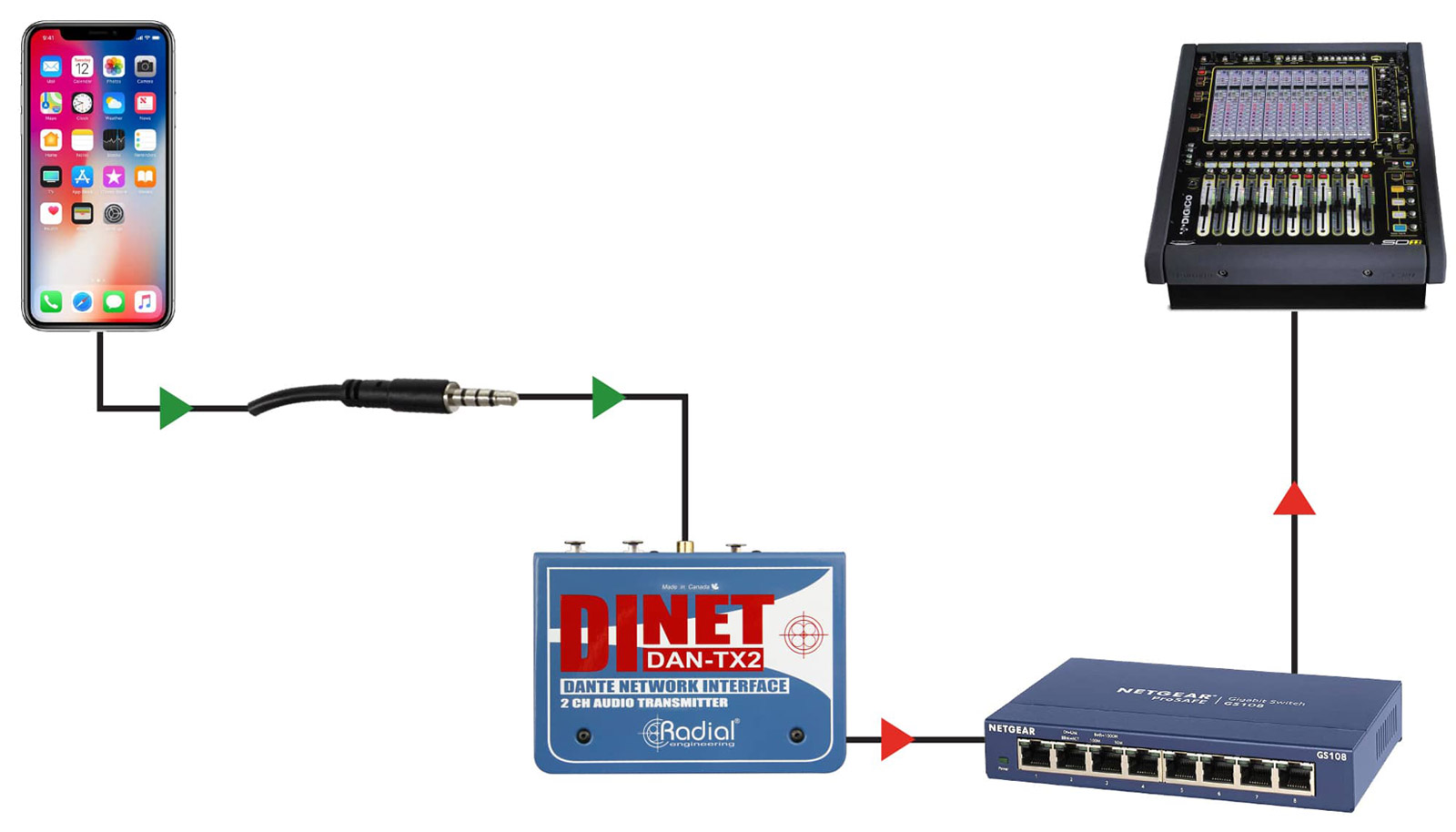

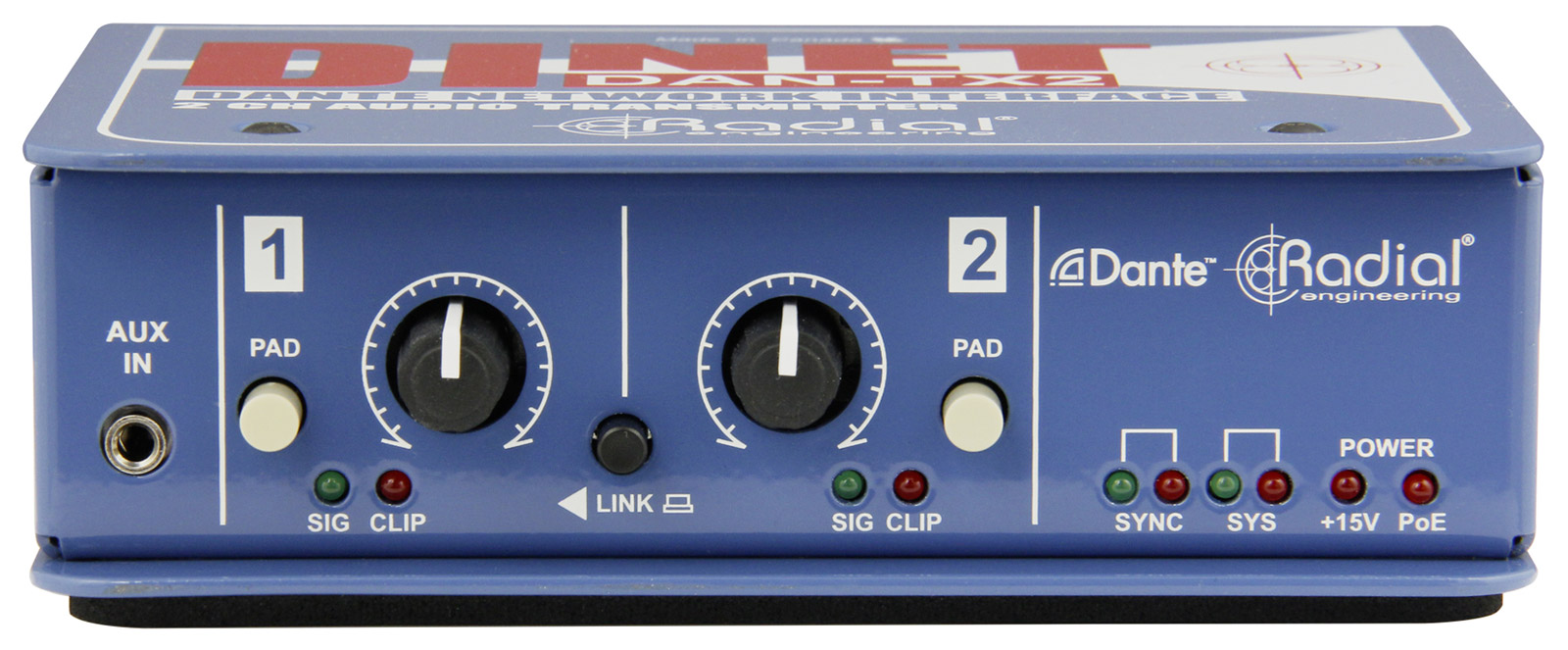

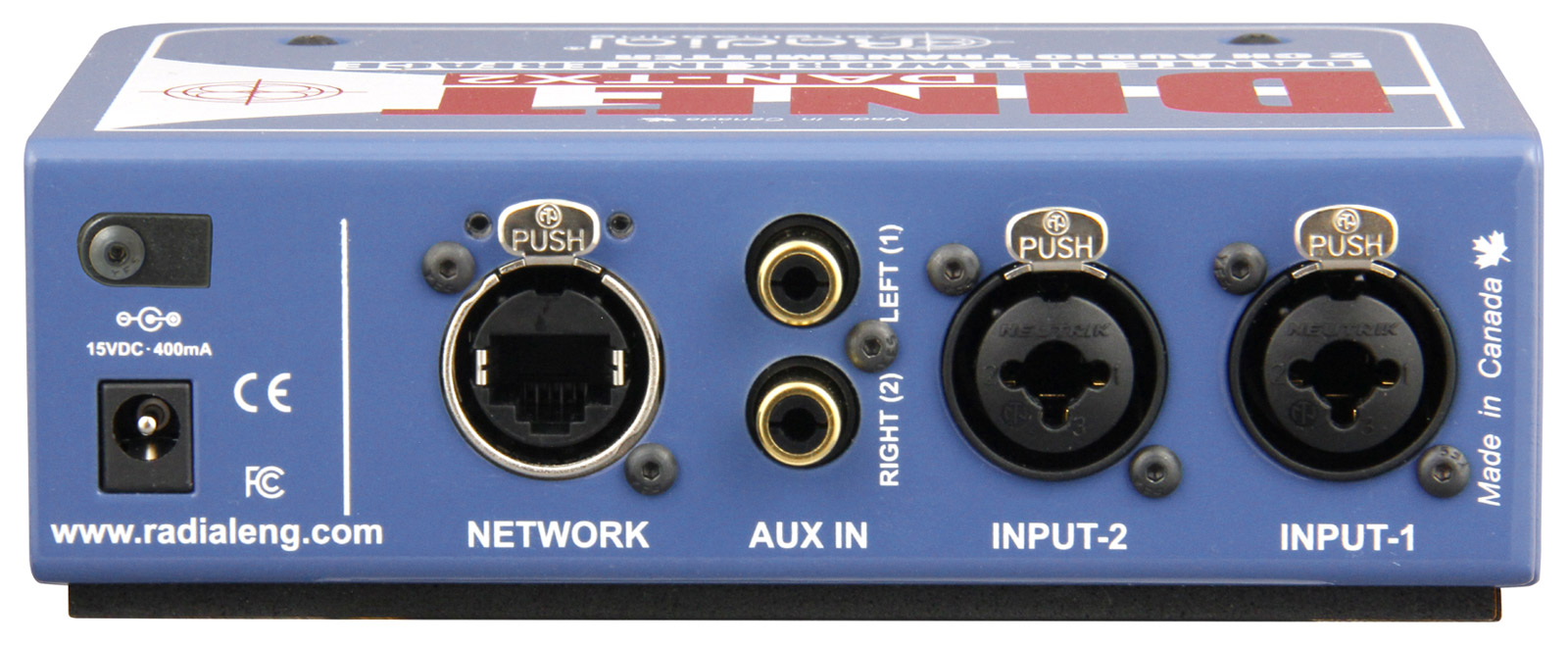

Multiple input options are provided including balanced 3-pin XLR/TRS jack combination inputs, and a 3.5mm jack aux input for connection to laptops, smartphones, and compatible tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection provided is compatible with Neutrik etherCON connectors to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using both the included external power supply (R800 9415) and PoE simultaneously.

DAN-TX2 can be mounted in 19-inch equipment racks with the optional SA series rackmount adaptor kit.

Frequency response: 20Hz - 20kHz. Dynamic range: Greater than 103dB. Total harmonic distortion: 0.008%. Input impedance: 40kOhm, balanced; 20kOhm, unbalanced. Equivalent noise level: -98dB. Maximum input: +28dBu. Sample rates: 44.1/48/88/96kHz. Dimensions (LxWxD): 121 x 6 x 147mm.

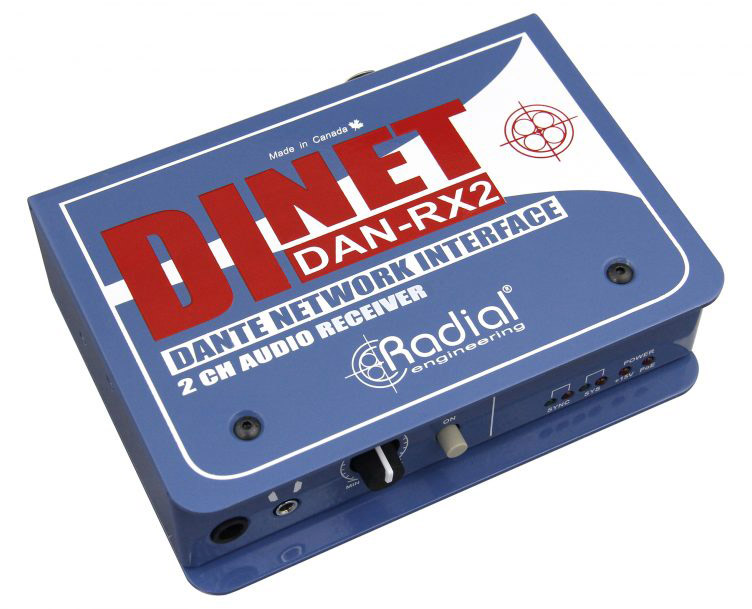

DiNET DAN-RX2 Dante network to analogue, line level

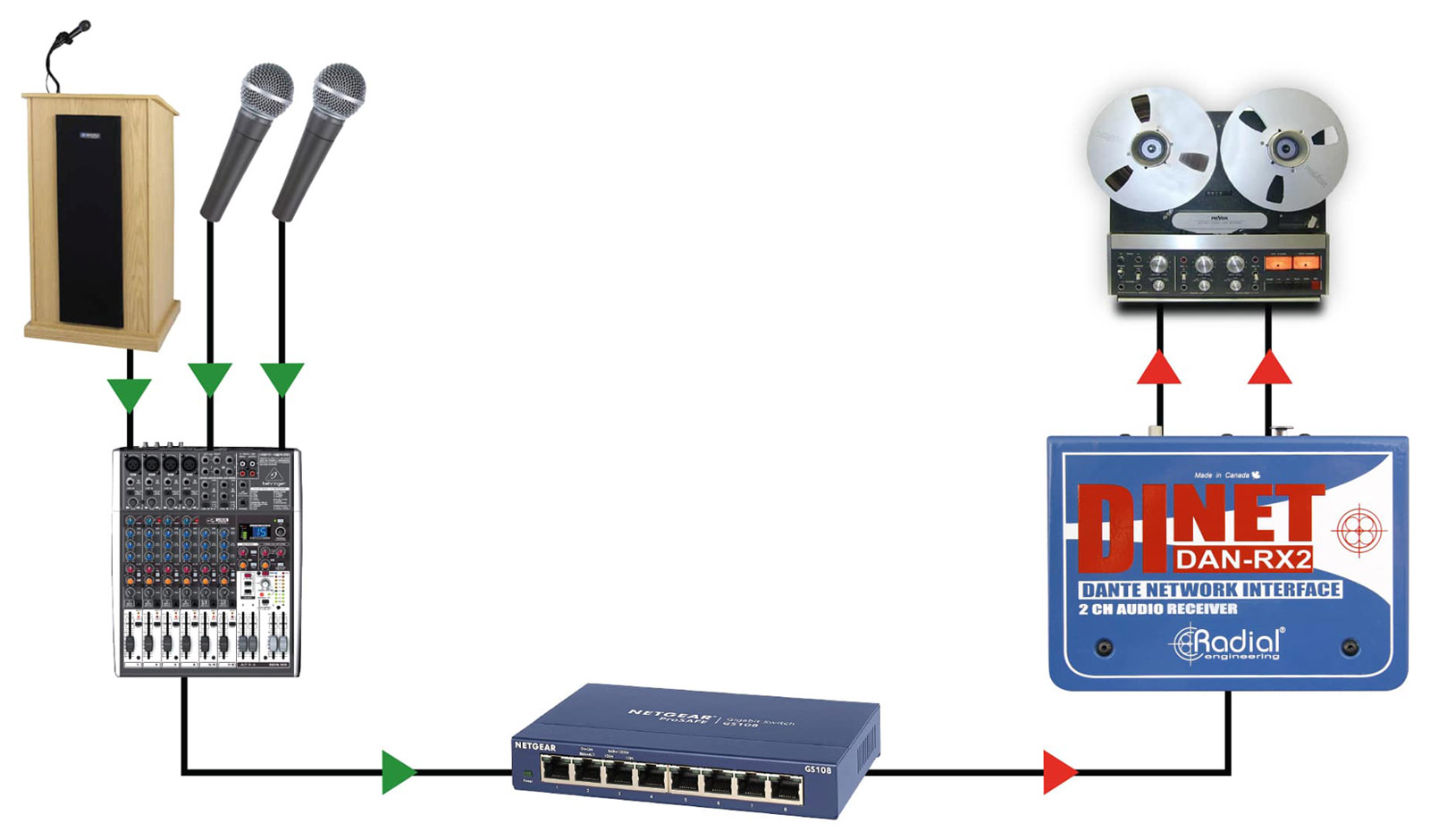

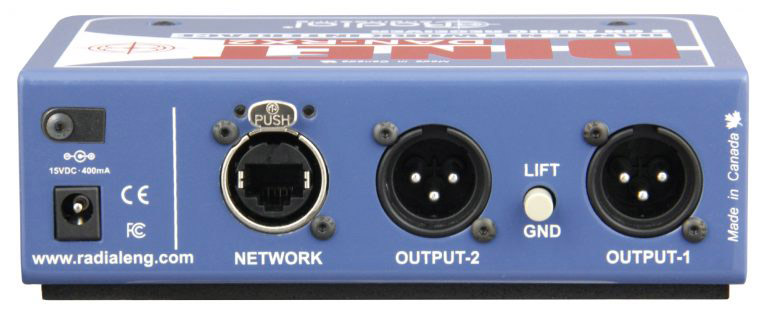

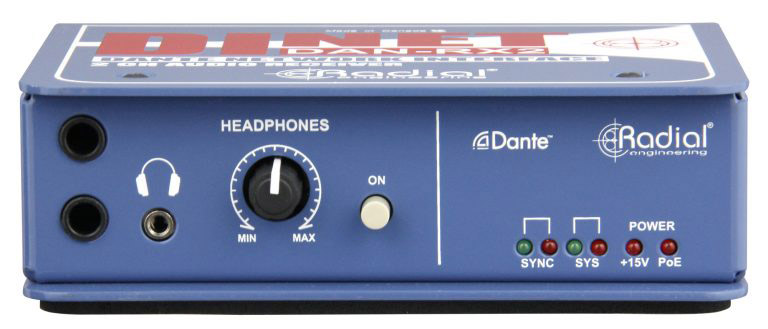

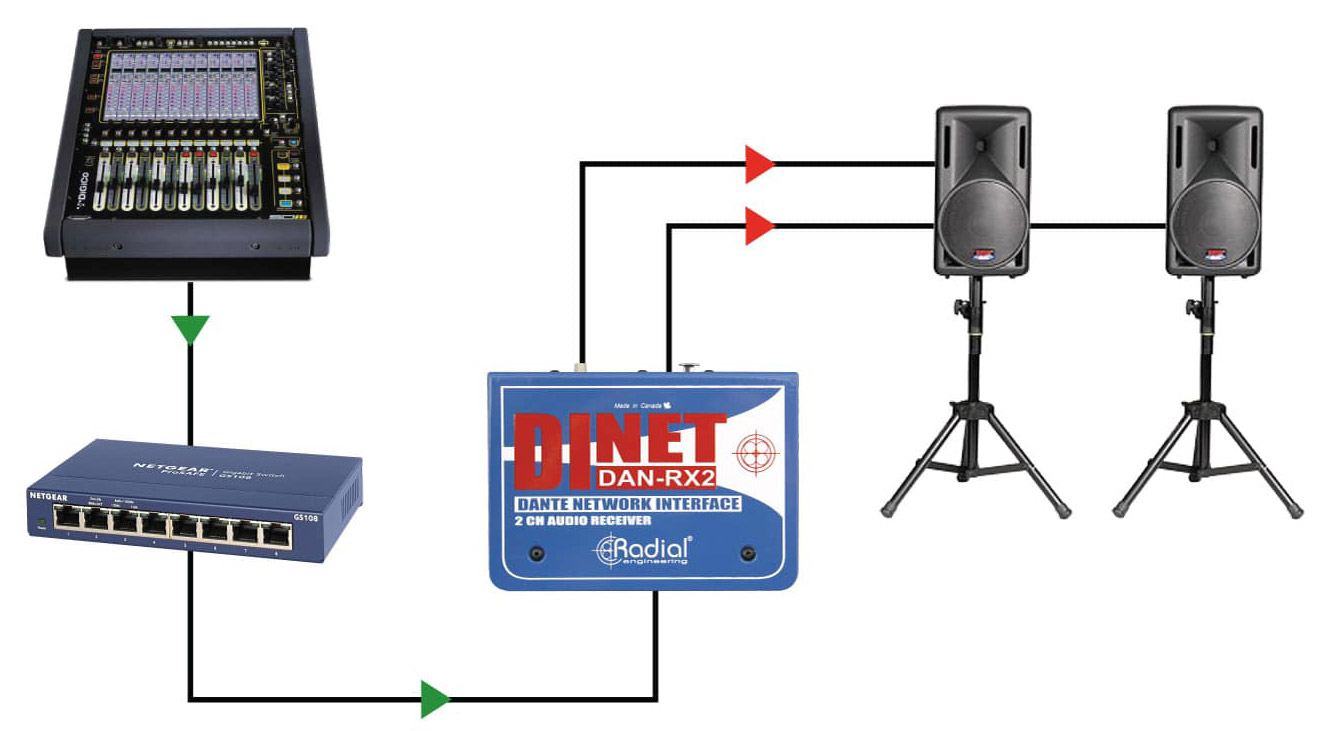

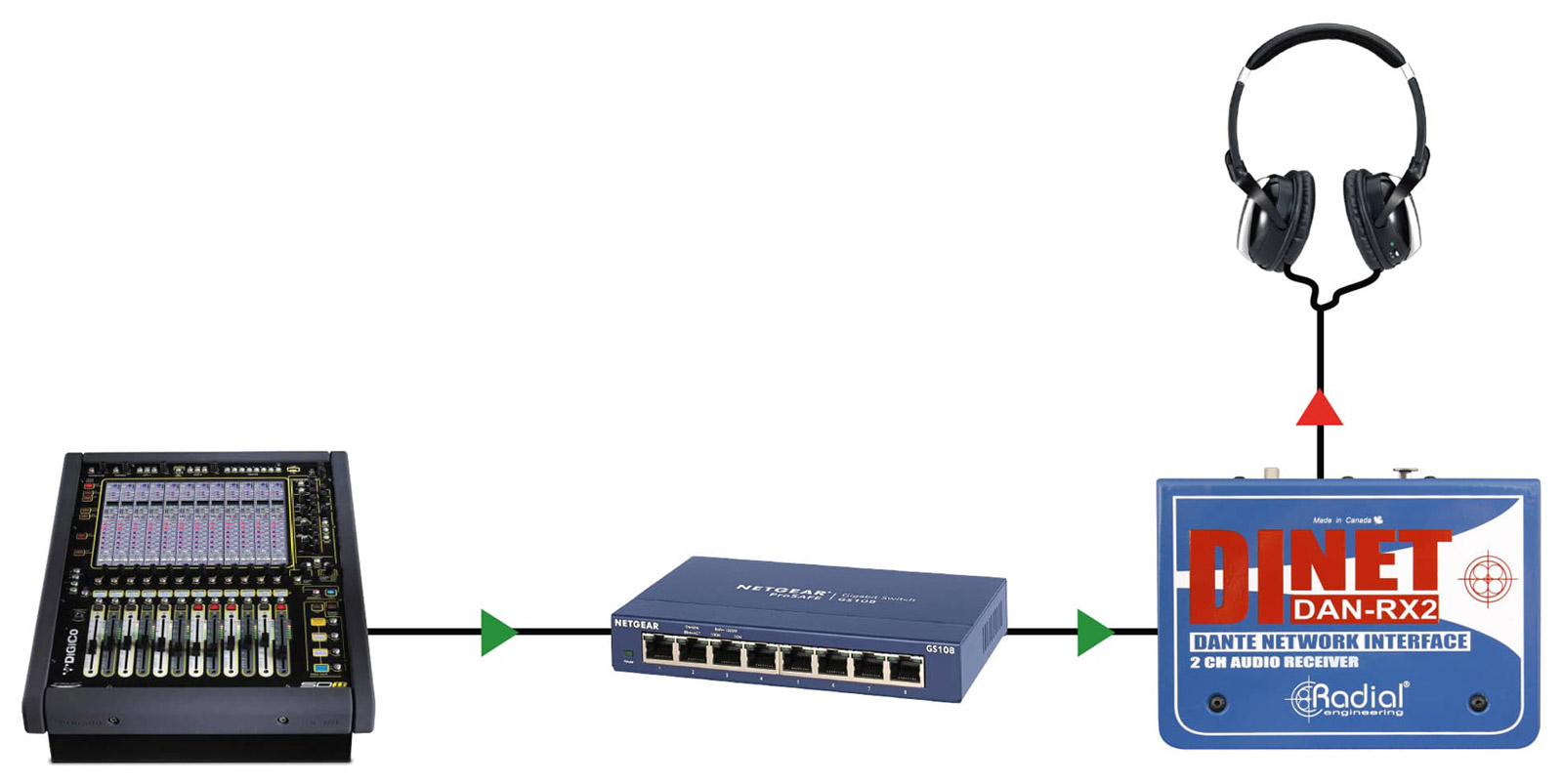

DAN-RX2 is the receiving version of DiNET DAN-TX2 transmitter. It offers two channels of analogue audio output from a Dante or AES-67 compliant network. Balanced 3-pin XLR outputs include a ground lift and a separate headphone amp with its own level control. Headphones output connections are by way single 3.5mm TRS jack socket and 2x 6.35mm TRS jack connections with associated headphone output volume controller. A single switch activates the headphones amplifier.

Frequency response: 20Hz - 20kHz. Dynamic range: Greater than 100dB. Total harmonic distortion: 0.007%. Output impedance: 150Ohm. Sample rates: 44.1/48/88/96kHz. Dimensions (LxWxD): 121 x 6 x 147mm.

Description Price £
 Add to basket
RADIAL DiNET DAN-TX2 NETWORK INTERFACE 2-channel analogue to Dante network, line level, transmitter Stock code: 20-0061
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£547.00
RADIAL DiNET DAN-RX2 NETWORK INTERFACE 2-channel Dante network to analogue, line level, receiver Stock code: 20-0062
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£547.00
