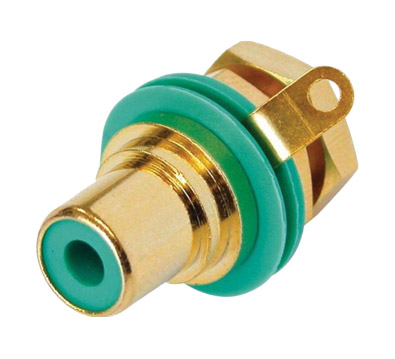

REAN NYS367-5 RCA (PHONO) PANEL SOCKET Gold contacts, green ring

Stock code
43-5065
Brand
Rean
Model number
  • NYS367-5
  • NYS367
Colour
  • GoldGold
  • GreenGreen
REAN NYS367-5 RCA (PHONO) PANEL SOCKET Gold contacts, green ring
REAN NYS367-5 RCA (PHONO) PANEL SOCKET Gold contacts, green ring

Order

VAT / Delivery
$2.49
each (ex. VAT)
10+ $2.27
50+ $2.14
100+ $1.89
6 in stock Need more?
RoHS Compliant

REAN RCA (PHONO) CONNECTORS - Cable and panel types

The Rean range of RCA (phono) connectors offer a variety of cable connector designs and finishes.

Rean is a brand of Neutrik AG.

Plugs

NYS352

All metal construction, with solid tip and wrap-over type cable clamp. Maximum cable diameter 6.5mm. Available with nickel, gold or black plated shells, and nickel or gold plated contacts.

NYS373

Diecast metal shell, with gold plated solid brass tip and outer contact, black plated body and black strain relief. Chuck type cable clamp and rubber strain relief bush. Colour coding ring in body. Suitable for cable diameters 4.0mm - 6.0mm.

In-line sockets

NYS372

All metal construction, with wrap-over type cable clamp. Maximum cable diameter 6.5mm. Available with nickel or black plated shells, and nickel or gold plated contacts.

Panel sockets

NYS367

Panel mounting turned brass socket, gold plated, nut fixing and coloured insert. Supplied complete with coloured washer set for isolation from chassis ground. Panel hole 10.0mm when isolating washers are used, 8.0mm (7.2mm across flats) when not used. Mounting washer diameter 15.5mm. Maximum panel thickness 3.0mm.
