SHURE A96F IMPEDANCE CONVERTER Low to high impedance adaptor

Stock code
20-102
Brand
Shure
Model number
  • A96F
SHURE A96F IMPEDANCE CONVERTER Low to high impedance adaptor

A96F Camcorder Interface

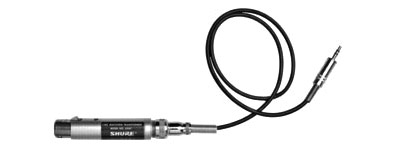

The A96F transformer connects microphones with an XLR-type connector to the 3.5 mm (9/64 inch) inputs found on camcorders and other recording devices. It increases the signal level from the microphone, provides a balanced input, and prevents distortion due to the d.c. bias typically found in camcorder microphone inputs.

The A96F can be modified for microphones rated at 150 ohms. This modification is only necessary if the output level from the A96F is insufficient for your recording device.

A96F - Camcorder Interface, Low-to-Medium Line Matching Transformer, Low Impedance Female XLR to Medium Impedance Mini Plug on Attached 2-foot (0.6 m) Cable, DC Bias Filter

Specifications

Frequency Response
20 to 20,000 Hz +- 2 dB
Impedance
Low impedance: 600 ohms(supplied) or 150 ohms
Medium impedance: 2,500 ohms
DC Resistance
Low impedance:
600 ohms winding: 56 ohms
150 ohms winding: 28 ohms
Medium impedance:
Open Circuit
Voltage Ratio
Voltage Ratio 600 ohms 150 ohms
Low impedance to medium impedance: +6 dB +12 dB
Maximum Recommended Input Levels
Source Impedance Winding Being Driven Maximum Level
150 ohms 150 ohms 0.5 V
600 Ohms 600 Ohms 1.0 V
2,500 ohms 2,500 ohms 2.0 V
Case
Full magnetic shield, steel with gray enamel finish
Dimensions
19 mm (3/4 in.) diameter; 89 mm (3 1/2 in.) long
