CANFORD SDV-F-HD CABLE Violet

Stock code
36-587
Brand
Canford
Model number
  • SDV-F-HD
Colour
  • VioletViolet

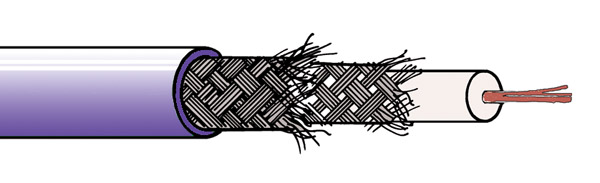

CANFORD SDV-F-HD CABLE Violet
CANFORD SDV-F-HD CABLE Violet

CANFORD SDV-F-HD - HDTV DIGITAL VIDEO CABLE (1.2L/4.8Dz) Flexible, heavy duty

A cable designed specifically for deployable applications where HDTV or SDI signals are to be carried. The construction is optimised for extremely high flexibility, and the polyurethane jacket provides resistance to abrasion and durability. This is the HDTV cable that handles like the softest of microphone cables - the rigger’s dream!

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Not in Canford scheme
Inner conductor: 7/0.36mm (0.71mm sq.) plain copper
Dielectric: Foamed polyethylene, 4.8mm OD
Screen 1: Tinned copper braid
Screen 2: Tinned copper braid
Jacket: PUR, extra flexible, 7.2mm OD, black, violet
Impedance: 75 ohms +/-1%
Capacitance: 56pF/m nominal
Return loss: Greater than 26dB, 50-300MHz
Greater than 22dB, 300-3000MHz
Greater than 18dB, 3000-3500MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 1.9 8.0 21.0 32.0 49.0 72.8
Weight: 8.0kg/100m
Reel length: 1000 metres
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5070 COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-L-UHD, SDV-F-HD
COAX Connectors 48-5080 COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-F-HD (pk of 100)

BNC Male - 3G

Brand Code Description
Neutrik 48-617 NEUTRIK NBNC75BWU13 BNC 3G Male cable, rear twist, Canford SDV-F-HD
Telegartner 48-784 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, for Canford SDV-F-HD (pack of 100)
