CANFORD SDV-L-LFH CABLE Eca, turquoise

Stock code
36-536
Brand
Canford
Model number
  • SDV-L-LFH
GTIN
5056704713949
Colour
  • TurquoiseTurquoise

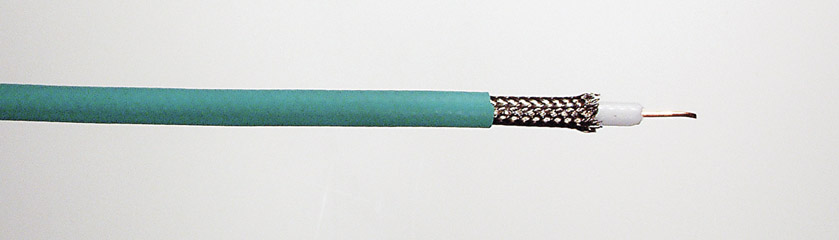

CANFORD SDV-L-LFH CABLE Eca, turquoise

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD SDV-L-LFH CABLE Eca, turquoiseCANFORD SDV-L-LFH CABLE Eca, turquoise

Order

VAT / Delivery
$3.23
per metre (ex. VAT)
100+ $2.59
500+ $2.52
1,000+ $2.43
15983 in stock Need more?

CANFORD SDV-L-LFH - HDTV DIGITAL VIDEO CABLE (1.0/4.8) Low loss, low fire hazard

Low-loss coaxial 75 ohm cable specifically for 3GHz HDTV and serial digital video signals.

Wiring specifications for many public buildings now call for LFH cables to be used in certain areas, notably in corridors etc. Under combustion circumstances LFH cables have a significantly reduced smoke emission and the gaseous products contain no toxic halogens.

SDV-L-LFH is technically identical to standard SDV-L, except that insulation and jacket materials are replaced by LFH (low fire hazard) materials. This makes no difference to the electrical properties, but the cable is a little stiffer.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Y
Inner conductor: 1.0mm plain copper
Dielectric: Gas injected foam high density polyethylene, 4.8mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Screening efficiency: 95%
Construction: Coaxial cable
Jacket: LFH compound (FRNC to IEC60332-1), black, turquoise or violet
Overall diameter: 6.8mm
CPR Euroclass: Eca
Minimum bend radius: 35mm indoor, 70mm outdoor
Impedance: 75 ohms +/-1%
Capacitance: 56pF/m
Return loss: 26dB: 50-300MHz
22dB: 300-3000MHz
18dB: 3000-3500MHz
15dB: 3500-5000MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 2.0 6.7 9.2 18.4 26.5 38.3 56.8 69.6 80.3
Weight: 6.9kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6026 CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y
COAX Connectors 48-5063 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors 48-5073 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)
Neutrik 48-6376 NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

BNC Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5082 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors 48-5092 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-458 CANARE BCP-B53 BNC Male cable, group Y
Canare 48-459 CANARE BCP-B53 BNC Male cable, group Y (pack of 100)
COAX Connectors 48-5043 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors 48-5053 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik 48-615 NEUTRIK NBNC75BWS11 BNC 3G Male cable, rear twist, group Y
Neutrik 48-6304 NEUTRIK NBNC75BUU11 BNC 3G Male cable, rear twist, Draka 1.0/4.8AF / group Y
Neutrik 48-6315 NEUTRIK NBNC75BWS11-D BNC 3G Male cable, rear twist, group Y (pack of 100, disassembled)
Telegartner 48-788 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner 48-778 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-714 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y
Telegartner 48-774 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Female, panel mount - 3G

Brand Code Description
Neutrik 48-7991 NEUTRIK NBNB75GUU11 BNC 3G Female panel, grounded, crimp, group Y

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5026 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y
COAX Connectors 48-5036 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5006 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors 48-5016 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)

MUSA - 3G

Brand Code Description
Canford 48-4436 CANFORD MUSA 3G HD Female, cable, group Y

MUSA Metrology grade

Brand Code Description
Canford 48-4486 CANFORD MUSA Metrology grade, silver, female, cable, group Y

F Connector

Brand Code Description
Canare 48-878 CANARE FP-C53A F CONNECTOR Male cable, group Y
Canare 48-879 CANARE FP-C53A F CONNECTOR Male cable, group Y (pack of 100)
Telegartner 48-8282 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y
Telegartner 48-8292 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y (pack of 100)

RCA Phono

Brand Code Description
Canare 43-069 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y
Canare 43-070 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y (bulk pack of 100)
