B-TECH BT7885 FLAT SCREEN MOUNT Wall, with pull-down AV tray, up to VESA 600x400, black

A selection of flat screen wall mounts with hide/reveal storage tray, designed for boardroom, conference room, or function room where unsightly computers, video or audio playback equipment is preferred to be out of sight.

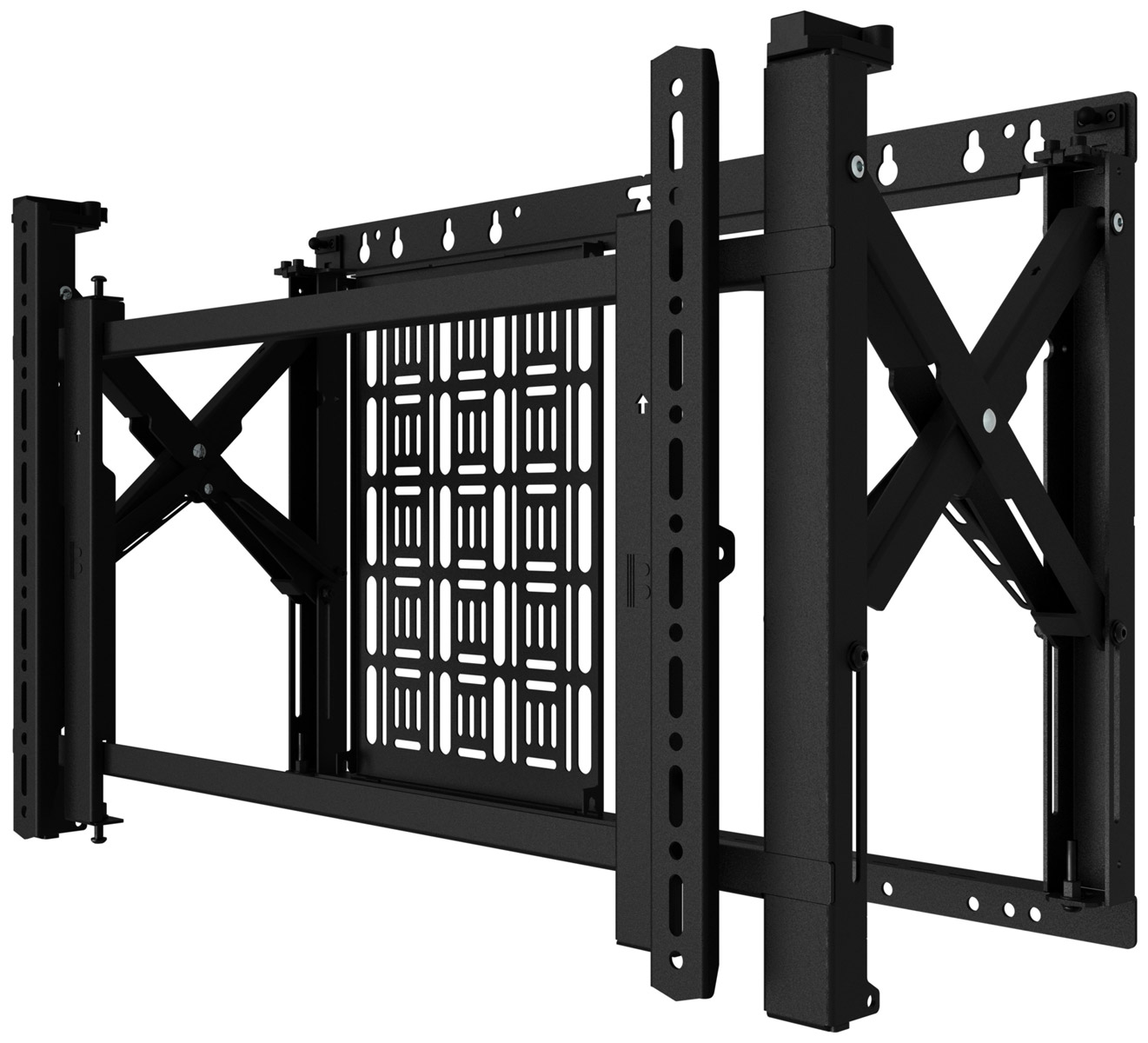

BT7896 with removable AV tray

BT7896 is a pull-out wall mount designed for medium to large screens. Push-to-release arms allow for quick rear access without removing the screen, while adjustable depth, tilt, and swivel provide precise positioning. An integrated AV tray can be removed, re-positioned laterally inside the wall bracket, or mounted to the side to avoid mains sockets and cable inputs etc. The mount's slim profile makes it suitable for low-profile or recessed installations, and features such as cable management and levelling adjustment ensure a clean, professional finish.

Screen size: up to 75 inch. Maximum load: 70kg. Distance from wall: 91-371mm. Compatibility: Up to 600x400, VESA. Maximum equipment dimensions (HxWxD): 392 x 271 x 31mm, mounted inside; 392 x 271 x 82mm, mounted on side.

BT7883 with slide out AV tray

B-Tech BT7883 has been designed for mounting both flat screen and AV equipment on a wall or B-Tech System 2 pole system. The mount is suitable for screens measuring 46 to 75-inches and weighing up to 70kg. The AV storage tray can be pulled out from the side of the mount, revealing the equipment stored. The tray mechanism is tool-less and can be locked in open or closed position with an optional padlock. A cable management system is included to prevent tangling or pinching during the pull-out process. The storage tray can be positioned for left or right opening, and additional trays can be purchased for quick changing of AV equipment.

Screen size: 46-75 inch. Maximum load: 70kg. Distance from wall: 100mm. Compatibility: Up to 600x400, VESA. Maximum equipment dimensions (HxWxD): 424 x 335 x 65mm. Maximum tray extension: 850mm

BT7885 with pull down AV tray

B-Tech BT7885 has been designed for mounting both flat screen and AV equipment on a wall or B-Tech System 2 pole system. The mount is suitable for screens measuring 49 to 86-inches and weighing up to 70kg. A sprung pin allows operation of the AV storage tray, which is revealed from the bottom of the mount, allowing access to the equipment stored. The tray mechanism is tool-less and can be locked in open or closed position with an optional padlock. A cable management system is included to prevent tangling or pinching during the pull-out process.

Screen size: 49-86 inch. Maximum load: 70kg. Distance from wall: 100mm. Compatibility: Up to 600x400, VESA. Maximum equipment dimensions (HxWxD): 361 x 575 x 60mm. Maximum tray extension: 1192mm
