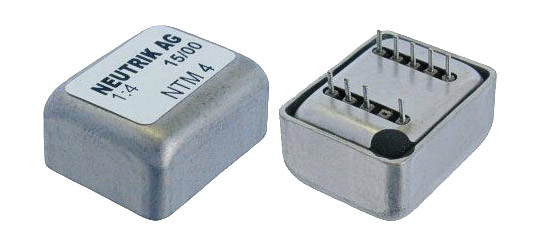

NEUTRIK NTM4 TRANSFORMER Analogue audio, PCB, microphone input

Stock code
23-002
Brand
Neutrik
Model number
  • NTM4
NEUTRIK NTM4 TRANSFORMER Analogue audio, PCB, microphone input
NEUTRIK NTM4 TRANSFORMER Analogue audio, PCB, microphone input

Order

VAT / Delivery
Discontinued. Please contact Technical Support for alternatives.
RoHS Compliant

NEUTRIK AUDIO TRANSFORMERS

A range of high quality PCB mounting transformers. A complete set of performance graphs and circuit application notes is available free on request, order code 02-018.

Turns Frequency response with 200 ohm Max. input level for
Type Application ratio source and bridging load 1% THD at 50Hz
NTM1 Mic input 1:1 15 - 25000 Hz ±0.5dB 1.5V
NTM4 Mic input 1:4 15 - 25000 Hz ±0.5dB 1.5V
NTL1 Line input 1:1 Depends on circuit +24dBu
