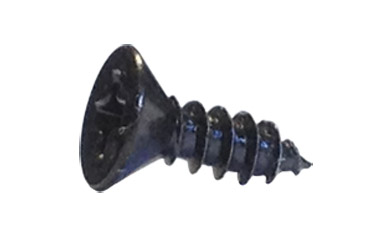

CANFORD SPARE SCREW For DMH220/225/320/325, SMH210/310 headset, M2.2 x 6.5 csk

Stock code
27-810
Brand
Canford
GTIN
5056704715776
CANFORD SPARE SCREW For DMH220/225/320/325, SMH210/310 headset, M2.2 x 6.5 csk
CANFORD SPARE SCREW For DMH220/225/320/325, SMH210/310 headset, M2.2 x 6.5 cskCANFORD SPARE SCREW For DMH220/225/320/325, SMH210/310 headset, M2.2 x 6.5 cskCANFORD SPARE SCREW For DMH220/225/320/325, SMH210/310 headset, M2.2 x 6.5 csk

CANFORD AND TECPRO HEADPHONE AND HEADSET SPARE PARTS - 200 Series

Spare parts for the Canford/Tecpro DMH205, DMH220, DMH225, DMH285 and SMH210 headphones and headsets.

Ref. on Description Code
Drawing
1 Ear loudspeaker, 400 ohms (DMH205, DMH220, DMH225, SMH210) 27-801
1 Ear loudspeaker, 300 ohms (DMH285 only) 27-800
2 Mic capsule, dynamic, 200 ohms 27-802
3 Cable bush 27-803
4 Cable ring, brass 27-804
5 Steel cable, straight (standard) 27-805
6 Headband cushion (DMH220, DMH225, DMH205, DMH285) 27-806
6 Headband cushion (SMH210) 27-837
7 Headband holder – outer 27-807
8 Headband holder – inner 27-808
9 Screw, M2.2×9.5 csk 27-809
10 Screw, M2.2×6.5 csk 27-810
11 Headband, spring steel bow 27-811
12 Earphone cable 27-812
13 Bellows 27-813
14 Housing (left) (SMH210, DMH220, DMH225) 27-814
14 Housing (left) (DMH205, DMH285) 27-838
15 Housing (right) (DMH220, DMH225, DMH205, DMH285) 27-815
16 Sliding part, headband 27-816
17 Washer 27-817
18 Mic boom cable 27-818
19 Wire insert, mic boom 27-819
21 Mic housing, lower part 27-821
22 Mic housing, dynamic, upper part 27-866
23 Mic housing, sleeve 27-823
25 Mic system, felt washer 27-825
27 Protective cloth for ear loudspeaker 27-827
28 Circumaural earpad (Left side SMH210, DMH220, DMH225) 27-849
29 Circumaural earpad (Right side DMH220, DMH225; both sides DMH205, DMH285) 27-840
28 Supra-aural earpad (Left side SMH210, DMH220, DMH225) 27-828
29 Supra-aural earpad (Right side DMH220, DMH225; both sides DMH205, DMH285) 27-829
28/29 Heavy-duty earpad (all models) 27-839
30 Clip insert 27-830
31 Screw, M2.2×9.5 csk 27-809
Foam pad holder (SMH210) 27-834
Foam pad (SMH210) 27-835
