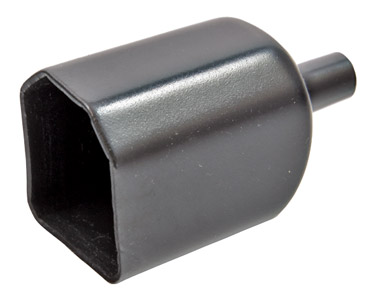

IEC MAINS Insulating cover for male panel with fuse type

Stock code
42-149
IEC MAINS Insulating cover for male panel with fuse type

BULGIN IEC 60320 (CEE22) AC MAINS POWER CONNECTORS

AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz and 16 amp 250VAC 50/60Hz rated, meeting IEC 60320. Approvals: IEC/EN, VDE, UL and CSA.

Cable types

Rewireable mains connectors, with good retention in sockets. Female connectors available in standard C13, 10 amp (uprated from 6 amp) and 16 amp, C19 versions without keyways. Male C14 connector 10 amp rated, shrouded pins, without keyway.


PX0587 Cable type

Female (mains outlet) C13 type, cable connector. Rear cable entry.


PX0588 Cable type

Female (mains outlet) C13 type, cable connector. Vertical side cable entry.


PX0587/SE Cable type

Female (mains outlet) C13 type, cable connector. Horizontal side cable entry.


PX0686 Cable type

Male (mains inlet) C14 type, cable connector. Rear cable entry.


PX0686/SE Cable type

Male (mains inlet) C14 type, cable connector. Horizontal side cable entry.


PX0599 Cable type

Female (mains outlet) C19 type, cable connector. Rear cable entry.

Panel types


PX0580/28 Flange type

Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, mounting hole centres 40.00mm. 2.9mm solder terminals.


PF0001/28 Flange type

Male (mains inlet) C14 type with integral 20mm fuse holder, panel cutout 27.3 ×31.2mm, mounting hole centres 36.0mm. 2.9mm solder terminals. Fuse not supplied.


PX0575/15/28 Snap-in type

Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.


PX0675/28 Flange type

Female (mains outlet) C13 type, panel cutout 32.3 ×24.8mm, mounting hole centres 40.0mm. 2.9mm solder terminals.


PX0695/15/28 Snap-in type

Female (mains outlet) C13 type, unshuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.


PX0783/15/28 Snap-in type

Female (mains outlet) C13 type, shuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.


PX0592/15/63 Snap-in type

Female (mains outlet) C19 type, panel cutout 37.6 x 29.65mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.


PX0596/48 Flange type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 4.8mm tab termination. Suitable for use with 1.5mm panel thickness.


PX0596/63 Flange type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.


PX0598/15/63 Snap-in type

Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.

Optional accessories: Moulded PVC insulating covers for rear of panel connectors, stock code 42-159 (C14, male), 42-148 (C13, female), 42-149 (C14, male with fuse) and 42-217 (C20, Male).

Note: sometimes referred to as CEE22, this was the former standard before being eventually incorporated into IEC 60320.

  Description Price £
ex. VAT
Add to basket
Delivery
BULGIN PX0587 IEC MAINS CONNECTOR C13 type, female, cable Stock code: 42-154
1568 in stock. Need more?
1+ £2.64
10+ £2.52
50+ £2.40
100+ £2.28
BULGIN PX0588 IEC MAINS CONNECTOR C13 type, female, cable, vertical side entry Stock code: 42-145
33 in stock. Need more?
1+ £5.18
10+ £4.95
50+ £4.71
100+ £4.48
BULGIN PX0587/SE IEC MAINS CONNECTOR C13 type, female, cable, horiz. side entry Stock code: 42-146
70 in stock. Need more?
1+ £4.29
10+ £4.10
50+ £3.90
100+ £3.71
BULGIN PX0686 IEC MAINS CONNECTOR C14 type, male, cable Stock code: 42-153
248 in stock. Need more?
1+ £3.82
10+ £3.65
50+ £3.48
100+ £3.30
BULGIN PX0686/SE IEC MAINS CONNECTOR C14 type, male, cable, horiz. Side entry Stock code: 42-211
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £7.89
10+ £7.54
50+ £7.18
100+ £6.82
BULGIN PX0599 IEC MAINS CONNECTOR C19 type, female, cable Stock code: 42-212
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £9.93
10+ £9.48
50+ £9.04
100+ £8.59
BULGIN PX0580/28 IEC MAINS CONNECTOR C14 type, male, panel Stock code: 42-151
19 in stock. Need more?
1+ £1.71
10+ £1.63
50+ £1.56
100+ £1.48
BULGIN PX0575/15/28 IEC MAINS CONNECTOR C14 type, male, panel, snap-in fixing Stock code: 42-158
142 in stock. Need more?
1+ £1.16
10+ £1.11
50+ £1.06
100+ £1.00
BULGIN PF0001/28 IEC MAINS CONNECTOR C14 type, male, panel, with fuse Stock code: 42-150
18 in stock. Need more?
1+ £4.67
10+ £4.46
50+ £4.25
100+ £4.04
BULGIN PX0675/28 IEC MAINS CONNECTOR C13 type, female, panel Stock code: 42-152
23 in stock. Need more?
1+ £1.87
10+ £1.79
50+ £1.70
100+ £1.62
BULGIN PX0695/15/28 IEC MAINS CONNECTOR C13 type, female, panel, un-shuttered, snap-in fixing Stock code: 42-157
1597 in stock. This item is discontinued, available only while stocks last.
£1.07
Clearance
£0.03
BULGIN PX0783/15/28 IEC MAINS CONNECTOR C13 type, female, panel, shuttered, snap-in fixing Stock code: 42-147
This item is discontinued. Please contact Technical Support for advice on alternatives.
BULGIN PX0596/63 IEC MAINS CONNECTOR C20 type, male, panel Stock code: 42-215
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £3.33
10+ £3.18
50+ £3.03
100+ £2.88
BULGIN PX0592/15/63 IEC MAINS CONNECTOR C19 type, female, panel, snap-in-fixing Stock code: 42-213
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £3.40
10+ £3.25
50+ £3.09
100+ £2.94
BULGIN PX0596/48 IEC MAINS CONNECTOR C20 type, male, panel Stock code: 42-214
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £3.04
10+ £2.90
50+ £2.77
100+ £2.63
BULGIN PX0598/15/63 IEC MAINS CONNECTOR C20 type, male, panel, snap-in-fixing Stock code: 42-216
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £3.33
10+ £3.18
50+ £3.03
100+ £2.88
CANFORD REAR INSULATING COVER For IEC AC mains male panel connector Stock code: 42-159
506 in stock. Need more?
1+ £0.90
10+ £0.88
50+ £0.86
100+ £0.83
IEC MAINS Insulating cover for male panel with fuse type Stock code: 42-149
155 in stock. Need more?
1+ £1.50
10+ £1.43
50+ £1.37
100+ £1.30
IEC MAINS Insulating cover for female panel types Stock code: 42-148
843 in stock. Need more?
1+ £0.75
10+ £0.72
50+ £0.68
100+ £0.65
IEC MAINS Insulating cover for C20 male panel types Stock code: 42-217
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £3.44
10+ £3.29
50+ £3.13
100+ £2.98
