REAN POWER CONNECTORS - X series

6 items
REAN RCAC3F-X-000 POWER CONNECTOR Outdoor power input cable connector, 16A, IP65
REAN RCAC3F-X-000 POWER CONNECTOR Outdoor power input cable connector, 16A, IP65REAN RCAC3M-X-000 POWER CONNECTOR Outdoor power output cable connector, 16A, IP65REAN RRAC3F-X-000 POWER CONNECTOR Outdoor power output panel connector, 16A, IP65REAN RRAC3M-X-000 POWER CONNECTOR Outdoor power input panel connector, 16A, IP65REAN RA-X-003 SEALING COVER For RRAC3F-X-000REAN RA-X-003 SEALING COVER For RRAC3F-X-000REAN RA-X-001 SEALING COVER For RRAC3M-X-000

IP65 mains power connectors from Rean offering 16 amp rating (20 amp at their peak) with secure twist lock retention and suitability for cables with outer diameters of 6 - 12mm. Designed for outdoor applications with weather resistant IP65 protection. The connectors also have breaking capacity (CBC), enabling them to be connected or disconnected under load.

The power inlet connector has the standard Neutrik 'D' series housing dimensions with 24mm cutout and fits cutouts on Canford "universal series" panels; the power outlet uses a larger housing with 28.7mm cutout and will NOT fit cutouts on Canford "universal series" panels. Cable connectors have screw terminals (wire size 1.0 to 2.5mm / 12 AWG), panel connectors have 6.35 x 0.8mm flat tabs and have two plain holes for M3 screws and bolts.

Cable connector contacts: Copper alloy, Ag plating. Panel connector contacts: Copper alloy, Ag plating. Temperature range: -30 degrees Celsius to +80 degrees Celsius. Flammability: UL94 V-0. Lifetime: 5000 mating cycles. Rated to IP65 when connectors are mated or in combination with a sealing cover.

Description Price $
ex. VAT
Add to basket
Delivery
REAN RCAC3F-X-000 POWER CONNECTOR Outdoor power input cable connector, 16A, IP65 Stock code: 42-561
Out of stock but available to backorder, stock expected: 28/11/2024.
1+ $7.99
10+ $7.26
50+ $6.87
100+ $6.07
REAN RCAC3M-X-000 POWER CONNECTOR Outdoor power output cable connector, 16A, IP65 Stock code: 42-562
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $7.71
10+ $7.01
50+ $6.63
100+ $5.86

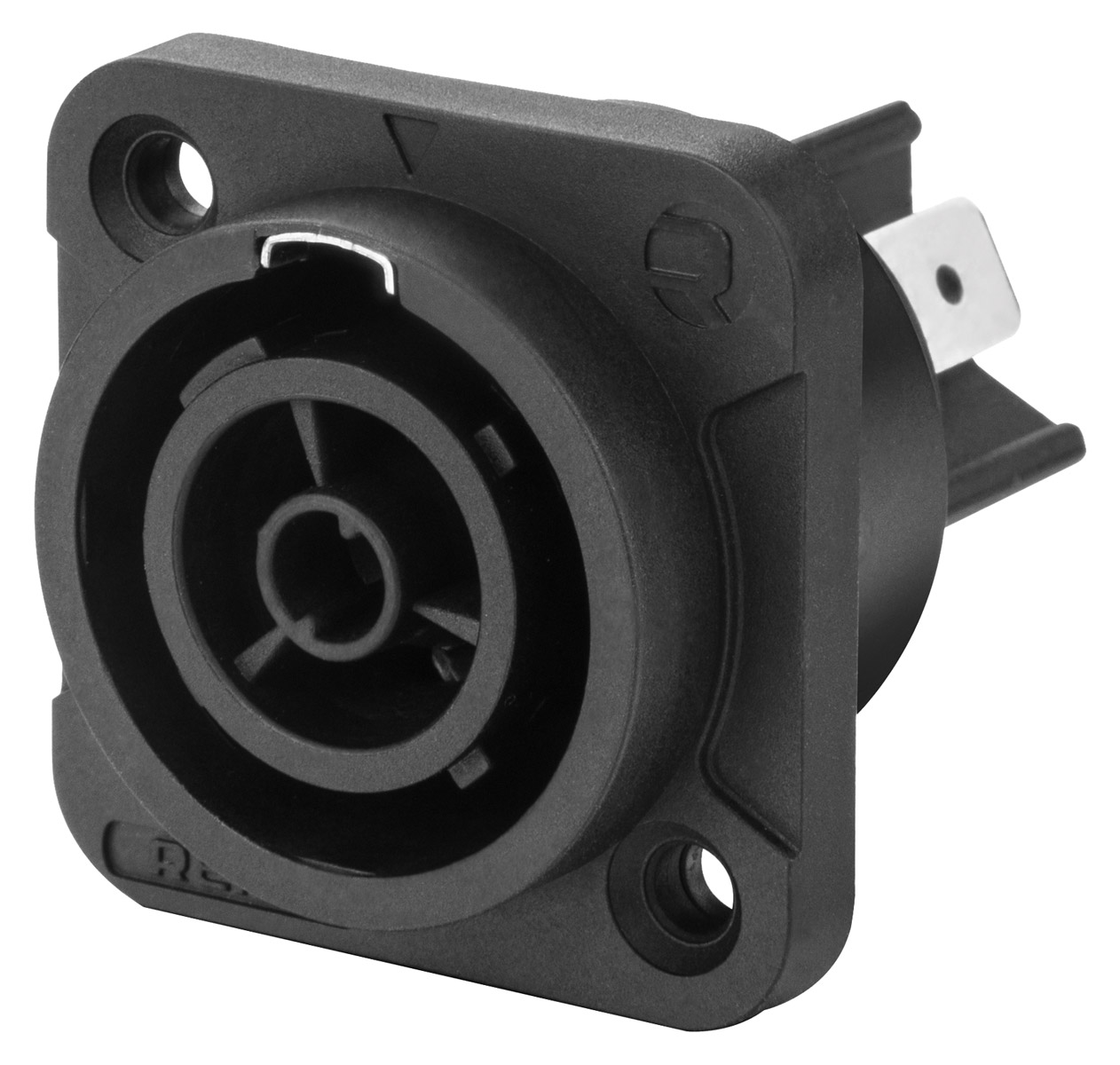

REAN RRAC3F-X-000 POWER CONNECTOR Outdoor power output panel connector, 16A, IP65 Stock code: 42-563
50 in stock Need more?
1+ $4.69
10+ $4.27
50+ $4.03
100+ $3.56

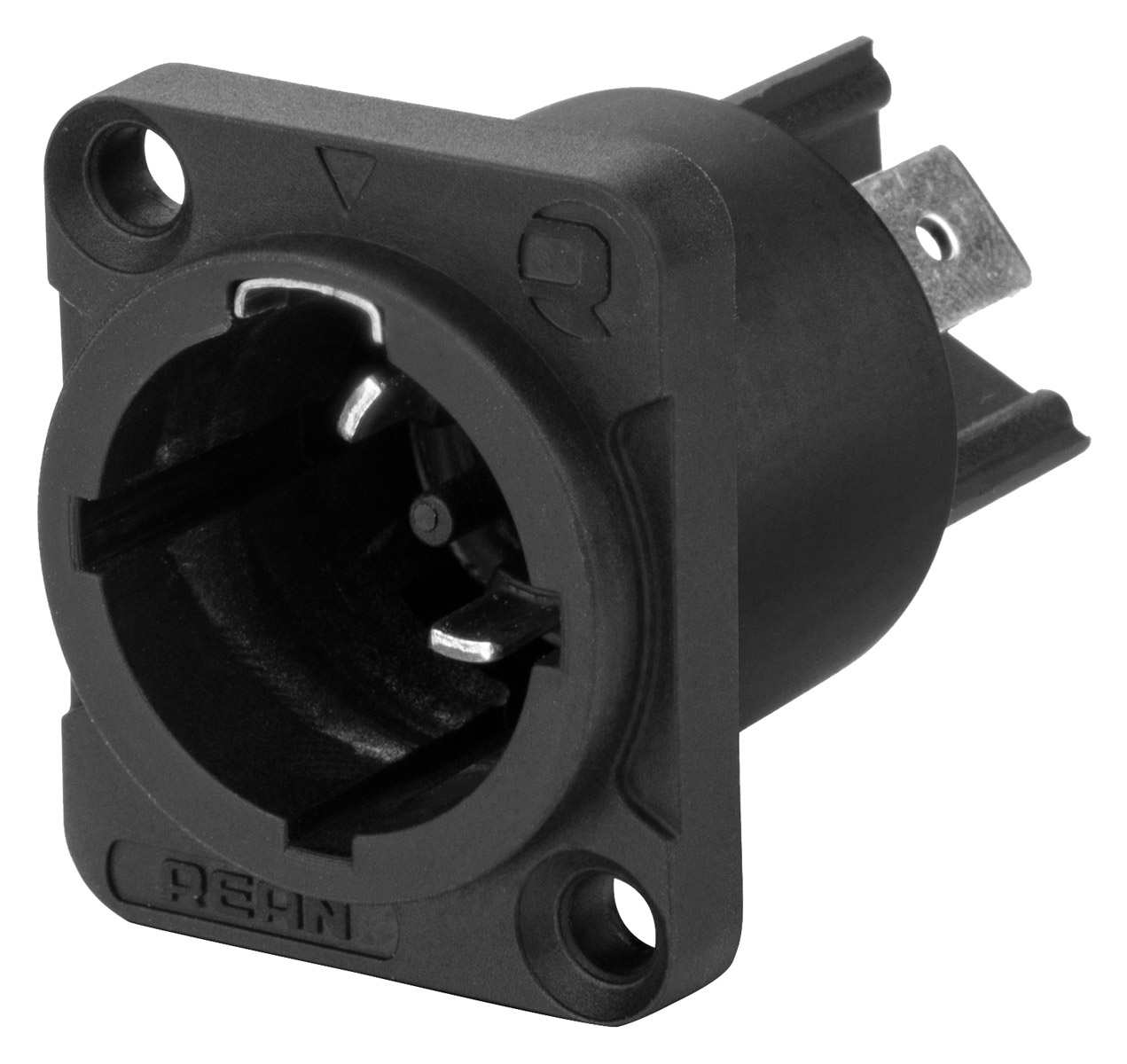

REAN RRAC3M-X-000 POWER CONNECTOR Outdoor power input panel connector, 16A, IP65 Stock code: 42-564
44 in stock Need more?
1+ $2.76
10+ $2.51
50+ $2.37
100+ $2.10

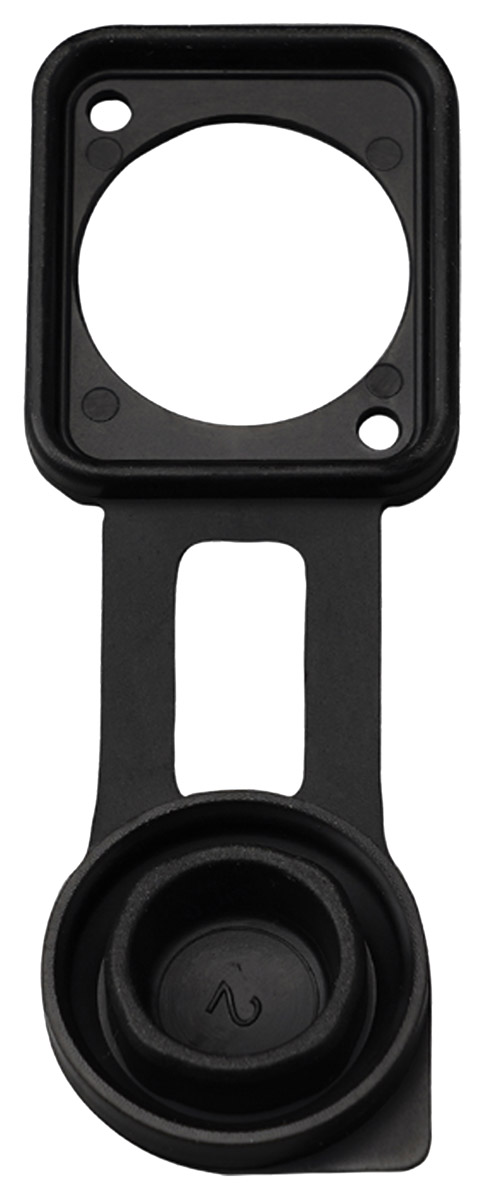

REAN RA-X-003 SEALING COVER For RRAC3F-X-000 Stock code: 42-565
50 in stock Need more?
1+ $1.18
10+ $1.07
50+ $1.02
100+ $0.90
REAN RA-X-001 SEALING COVER For RRAC3M-X-000 Stock code: 42-566
46 in stock Need more?
1+ $1.02
10+ $0.92
50+ $0.87
100+ $0.78
