NEUTRIK POWERCON TRUE1 AC MAINS POWER CONNECTORS - True outdoor protection - 16 Amp

The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are UL50E rated and protected to IP65 in mated or unmated condition in combination with a sealing cover.

The Powercon True1 TOP is a locking 16 Amp mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector also has breaking capacity (CBC), enabling it to be connected or disconnected under load.

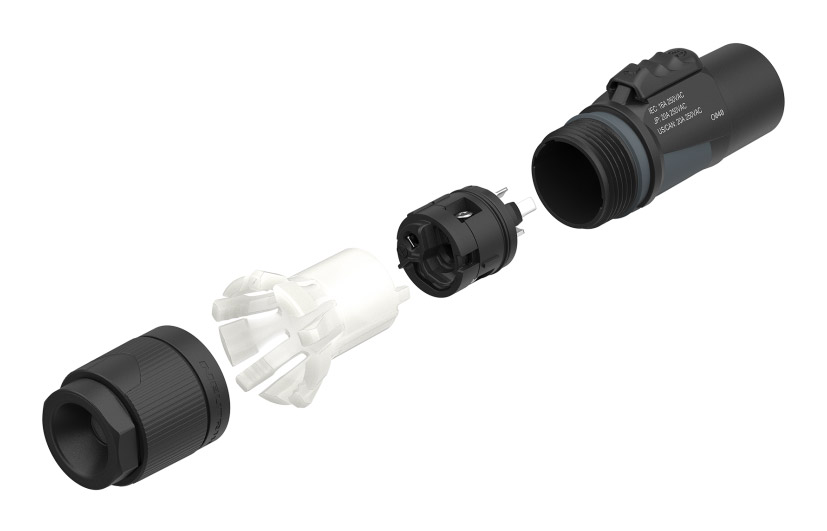

The cable connectors have screw-terminal connections, large latch-release button and the proven Neutrik cable gland retention. They accept cables 6mm - 12mm diameter, with wire sizes 1.0 - 2.5 mm.sq.

The NAC3MPX-TOP power inlet has the standard Neutrik 'D' series housing dimensions; the NAC3FPX-TOP power outlet uses a larger housing. The inlet is supplied with 6.3mm spade terminals, the outlet is available with 6.3mm spade terminals or screw terminals. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles.

The NAC3PX-TOP is a dual, panel connector, with inlet and outlet in the same unit.

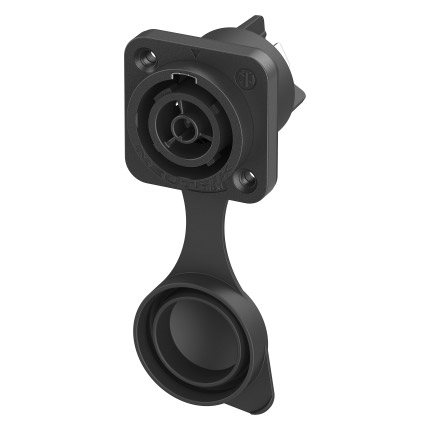

Moulded covers offering protection to IP65 are offered for all panel connectors, these mount under the flange and have an attached cover.

  Description Price (£) Add to basket
NEUTRIK NAC3FX-W-TOP POWERCON TRUE1 Power input cable connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £7.60
10+ £6.92
50+ £6.54
100+ £5.78
NEUTRIK NAC3MX-W-TOP POWERCON TRUE1 Power output cable connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £7.60
10+ £6.92
50+ £6.54
100+ £5.78

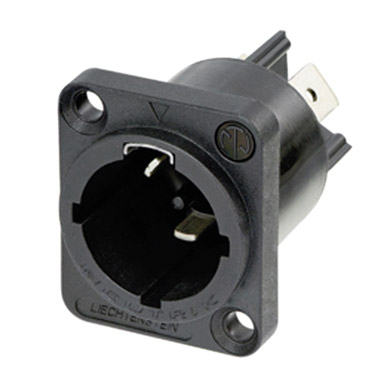

NEUTRIK NAC3MPX-TOP POWERCON TRUE1 Power input panel connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £3.32
10+ £3.02
50+ £2.86
100+ £2.52
NEUTRIK NAC3FPX-TOP POWERCON TRUE1 Power output panel connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £6.00
10+ £5.46
50+ £5.16
100+ £4.56
NEUTRIK NAC3FPX-ST-TOP POWERCON TRUE1 Power output panel, screw terminals, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £9.96
10+ £9.06
50+ £8.57
100+ £7.57
NEUTRIK NAC3MPX-WOT-TOP POWERCON TRUE1 Power input panel connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £3.32
10+ £3.02
50+ £2.86
100+ £2.52
NEUTRIK NAC3FPX-WOT-TOP POWERCON TRUE1 Power output panel connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £6.94
10+ £6.32
50+ £5.97
100+ £5.27
NEUTRIK NAC3PX-TOP POWERCON TRUE1 Power input/output dual panel connector, true outdoor protection   Stock code:
Please login for stock availability and lead times.
1+ £8.10
10+ £7.37
50+ £6.97
100+ £6.16
NEUTRIK SCNAC-MPX POWERCON TRUE1 Sealing cover for NAC3MPX and NAC3MPX-TOP   Stock code:
Please login for stock availability and lead times.
1+ £1.14
10+ £1.04
50+ £0.98
100+ £0.87
NEUTRIK SCNAC-FPX POWERCON TRUE1 Sealing cover for NAC3FPX and NAC3FPX-TOP   Stock code:
Please login for stock availability and lead times.
1+ £1.14
10+ £1.04
50+ £0.98
100+ £0.87
NEUTRIK SCNAC-PX POWERCON TRUE1 Sealing cover for NAC3PX and NAC3PX-TOP   Stock code:
Please login for stock availability and lead times.
1+ £1.16
10+ £1.06
50+ £1.00
100+ £0.88
