AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz and 16 amp 250VAC 50/60Hz rated, meeting IEC 60320. Approvals: IEC/EN, VDE, UL and CSA.
Cable types
Rewireable mains connectors, with good retention in sockets. Female connectors available in standard C13, 10 amp (uprated from 6 amp) and 16 amp, C19 versions without keyways. Male C14 connector 10 amp rated, shrouded pins, without keyway.
Female (mains outlet) C13 type, cable connector. Rear cable entry.
Female (mains outlet) C13 type, cable connector. Vertical side cable entry.
Female (mains outlet) C13 type, cable connector. Horizontal side cable entry.
Male (mains inlet) C14 type, cable connector. Rear cable entry.
Male (mains inlet) C14 type, cable connector. Horizontal side cable entry.
Female (mains outlet) C19 type, cable connector. Rear cable entry.
Panel types
PX0580/28 Flange type

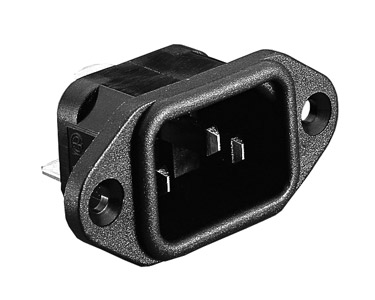

Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, mounting hole centres 40.00mm. 2.9mm solder terminals.
Male (mains inlet) C14 type with integral 20mm fuseholder, panel cutout 27.3 ×31.2mm, mounting hole centres 36.0mm. 2.9mm solder terminals. Fuse not supplied.
Male (mains inlet) C14 type, panel cutout 27.4 ×19.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.
Female (mains outlet) C13 type, panel cutout 32.3 ×24.8mm, mounting hole centres 40.0mm. 2.9mm solder terminals.
Female (mains outlet) C13 type, unshuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.
Female (mains outlet) C13 type, shuttered, panel cutout 32.3 ×24.8mm, snap-in fixing. 2.9mm solder terminals. Suitable for use with 1.5mm panel thickness.
Female (mains outlet) C19 type, panel cutout 37.6 x 29.65mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.
Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 4.8mm tab termination. Suitable for use with 1.5mm panel thickness.
Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.
Male (mains inlet) C20 type, panel cutout 32.3 x 24.30mm, snap-in fixing. 6.3mm tab termination. Suitable for use with 1.5mm panel thickness.
Optional accessories: Moulded PVC insulating covers for rear of panel connectors, stock code 42-159 (C14, male), 42-148 (C13, female), 42-149 (C14, male with fuse) and 42-217 (C20, Male).
Note: sometimes referred to as CEE22, this was the former standard before being eventually incorporated into IEC 60320.
