CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, black

Stock code
42-9362
Brand
Canford
Model number
  • MDU6
Colour
  • GreenGreen
  • BlackBlack
CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, black

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, blackCANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, black

Videos

  1. Canford Mains Distribution Units for Broadcast and Pro AV

CANFORD MDU AC MAINS POWER DISTRIBUTION UNITS - Standard models

This range of twelve, fourteen, fifteen or Twin 7 way, IEC or Powercon outlet, AC mains power distribution panels are housed in a compact 1U rackmount case. Loop-out feature models, provide an un-switched, direct loop-through power outlet to supply equipment that must remain powered when the MDU is switched off, or to supply to a second MDU. All versions have on the front panel an un-switched neon power present indicator, fuse and LED indication of power status for each of the output channels. Inlet, outlets and Earth connection are on the rear panel

NOTE: Current drawn from the ‘loop-output’ must be included in the total current calculation. Care must be taken not to exceed the maximum total load of the MDU. See table below for individual units current rating.

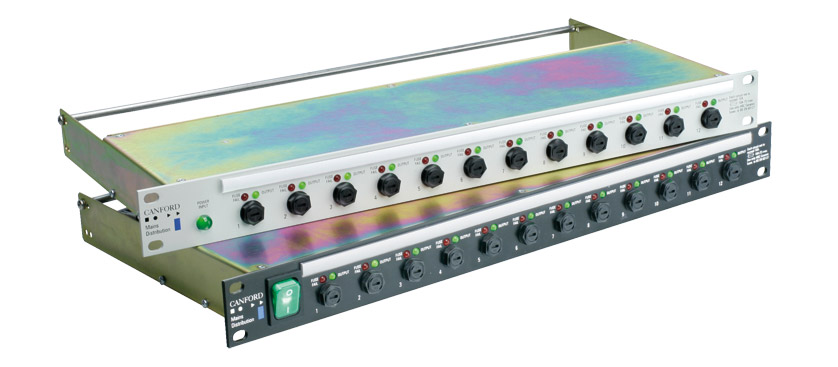

The fuses on the front panel have either adjacent green and red LEDs or a bi-colour LED. Green illuminated indicates that the circuit is powered correctly. Red illuminated (green off) indicates that the fuse has failed.

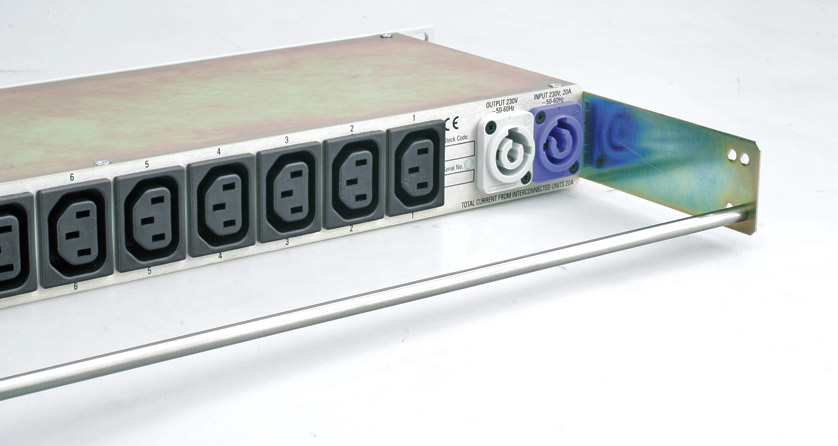

All outputs are numbered front and rear for easy identification and a designation- strip holder with snap-on cover is fitted on the front panel. The paper strips supplied may be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Spare designation-strip inserts (not suitable for printers) 45-3082 and spare clear covers 45-3092 are available.

IEC Outlets
MDU Input Output Max Outlet Max Total Black Panel, Black Panel, Grey Panel, Grey Panel,
Model Connectors Connectors Load Load Green Neon Red Neon Green Neon Red Neon
MDU1 10A IEC, IEC 'loop-out' 15x 10A IEC Outlets 10A 10A 42-9112 42-9114
MDU2 20A Powercon, Powercon 'loop-out' 15x 10A IEC Outlets 10A 20A 42-9122 42-9124
MDU3 20A,unterminated, fixed-lead 12x 10A IEC Outlets 10A 20A 42-9332 42-9334 42-9331 42-9333
MDU4 20A screw-terminal block cable-gland 12x 10A IEC Outlets 10A 20A 42-9342 42-9344 42-9341 42-9343
MDU5 10A IEC, IEC 'loop-out' 12x 10A IEC Outlets 10A 10A 42-9352 42-9354 42-9351 42-9353
MDU6 20A Powercon, Powercon 'loop-out' 12x 10A IEC Outlets 10A 20A 42-9362 42-9364 42-9361 42-9363
MDU8 20A Powercon, Powercon 'loop-out' 14x 10A IEC Outlets 10A 20A 42-9382 42-9384 42-9381 42-9383
MDU11 Twin 10A IEC Twin 7x 10A IEC Outlets 10A 10A for each section 42-8312 42-8314 42-8311 42-8313
MDU12 Twin 20A Powercon Twin 7x 10A IEC Outlets 10A 20A for each section 42-8322 42-8324 42-8321 42-8323
MDU13 Twin 20A, unterminated, fixed-lead Twin 7x 10A IEC Outlets 10A 20A for each section 42-8332 42-8334 42-8331 42-8333
MDU15 10A IEC 12x 10A Locking IEC Outlets 10A 10A 42-8352 42-8354 42-8351 42-8353
MDU16 20A Powercon 12x 10A Locking IEC Outlets 10A 20A 42-8362 42-8364 42-8361 42-8363
MDU17 20A,unterminated, fixed-lead 12x 10A Locking IEC Outlets 10A 20A 42-8372 42-8374 42-8371 42-8373
Powercon Outlets
MDU Input Output Max Outlet Max Total Black Panel, Black Panel, Grey Panel, Grey Panel,
Model Connectors Connectors Load Load Green Neon Red Neon Green Neon Red Neon
MDU7 20A Powercon, Powercon 'loop-out' 12x 20A Powercon Outlets 10A 20A 42-9372 42-9374 42-9371 42-9373
MDU9 32A, unterminated, fixed-lead 12x 20A Powercon Outlets 10A 32A 42-9392 42-9394 42-9391 42-9393
MDU10 32A Powercon 12x 20A Powercon Outlets 10A 32A 42-9302 42-9304 42-9301 42-9303

With the exception of MDU1 and MDU2, which are only available in Black. All types are available finished in Dawn Grey or Black front panels, with either red or green ‘input power present’ neon indicator on the front panel.

Lacing Bars

A single-rod lacing-bar is fitted, which can be moved to an alternative fixing position if desired.

Mating connectors are NOT included and should be ordered separately as required.

Required accessories

Input connectors
42-154 BULGIN PX0587 IEC MAINS CONNECTOR C13 type, female, cable
42-051 SCHURTER IEC MAINS CONNECTOR, C13 type, female, cable
42-3200 IEC-LOCK IEC MAINS CONNECTOR C13 type, female cable
42-021 NEUTRIK NAC3FCA POWERCON Mains input cable connector, 20 Amp
42-026 NEUTRIK NAC3FC-HC POWERCON Mains input cable connector, 32 Amp
Loop-out/Output connectors
42-153 BULGIN PX0686 IEC MAINS CONNECTOR E type, male, cable
42-054 SCHURTER IEC MAINS CONNECTOR, E type, male, cable
42-022 NEUTRIK NAC3FCB POWERCON Mains output cable connector, 20 Amp

Optional accessories

Moulded mains leads: A large range are offered, see AC Mains Power Leads.
Locking, moulded, mains leads: Patented, locking IEC leads, see AC Mains Power Leads - IEC-Lock.
Additional lacing bar kit.

Technical Specification:

Voltage: 198-254V AC
Outlet fuses: 10A (T) HBC ceramic, to BS EN 60127
Depth (Excl lacing bar): 130mm
Depth (incl lacing bar): 230mm
Weight: 1.7kg
All types: 1U, 19-inch rack mounting, 44 x 483 (h x w) mm
  Description Price £
ex. VAT
Add to basket
Show carriage
CANFORD MDU1 AC MDU 15x IEC out, IEC loop-out in, Economy, green, black GreenBlack Stock code: 42-9112
Please login for stock availability and lead times.
1+ £148.50
10+ £141.10
CANFORD MDU1 AC MDU 15x IEC out, IEC loop-out in, Economy, red, black RedBlack Stock code: 42-9114
Please login for stock availability and lead times.
1+ £148.50
10+ £141.10
CANFORD MDU2 AC MDU 15x IEC out, Powercon loop-out in, Economy, green, black GreenBlack Stock code: 42-9122
Please login for stock availability and lead times.
1+ £152.50
10+ £144.90
CANFORD MDU2 AC MDU 15x IEC out, Powercon loop-out in, Economy, red, black RedBlack Stock code: 42-9124
Please login for stock availability and lead times.
1+ £152.50
10+ £144.90
CANFORD MDU3 AC MDU 12x IEC out, 3m fixed lead in, green, black GreenBlack Stock code: 42-9332
Please login for stock availability and lead times.
1+ £192.70
10+ £183.00
CANFORD MDU3 AC MDU 12x IEC out, 3m fixed lead in, green, grey GreenGrey Stock code: 42-9331
Please login for stock availability and lead times.
1+ £192.40
10+ £182.80
CANFORD MDU3 AC MDU 12x IEC out, 3m fixed lead in, red, black RedBlack Stock code: 42-9334
Please login for stock availability and lead times.
1+ £216.20
10+ £205.30
CANFORD MDU3 AC MDU 12x IEC out, 3m fixed lead in, red, grey RedGrey Stock code: 42-9333
Please login for stock availability and lead times.
1+ £212.80
10+ £202.10
CANFORD MDU4 AC MDU 12x IEC out, Terminal block in, green, black GreenBlack Stock code: 42-9342
This product is temporarily unavailable. Please contact Canford Sales if you would like to order.
1+ £192.00
10+ £182.40
CANFORD MDU4 AC MDU 12x IEC out, Terminal block in, green, grey GreenGrey Stock code: 42-9341
Please login for stock availability and lead times.
1+ £192.20
10+ £182.60
CANFORD MDU4 AC MDU 12x IEC out, Terminal block in, red, black RedBlack Stock code: 42-9344
Please login for stock availability and lead times.
1+ £212.80
10+ £202.20
CANFORD MDU4 AC MDU 12x IEC out, Terminal block in, red, grey RedGrey Stock code: 42-9343
Please login for stock availability and lead times.
1+ £212.60
10+ £202.00
CANFORD MDU5 AC MDU 12x IEC out, IEC loop-out in, green, black GreenBlack Stock code: 42-9352
Please login for stock availability and lead times.
1+ £189.60
10+ £180.10
CANFORD MDU5 AC MDU 12x IEC out, IEC loop-out in, green, grey GreenGrey Stock code: 42-9351
Please login for stock availability and lead times.
1+ £189.30
10+ £179.90
CANFORD MDU5 AC MDU 12x IEC out, IEC loop-out in, red, black RedBlack Stock code: 42-9354
Please login for stock availability and lead times.
1+ £209.90
10+ £199.40
CANFORD MDU5 AC MDU 12x IEC out, IEC loop-out in, red, grey RedGrey Stock code: 42-9353
Please login for stock availability and lead times.
1+ £209.70
10+ £199.20
CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, black GreenBlack Stock code: 42-9362
Please login for stock availability and lead times.
1+ £195.50
10+ £185.70
CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, green, grey GreenGrey Stock code: 42-9361
Please login for stock availability and lead times.
1+ £195.20
10+ £185.50
CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, red, black RedBlack Stock code: 42-9364
Please login for stock availability and lead times.
1+ £215.80
10+ £205.00
CANFORD MDU6 AC MDU 12x IEC out, Powercon loop-out in, red, grey RedGrey Stock code: 42-9363
Please login for stock availability and lead times.
1+ £215.60
10+ £204.80
CANFORD MDU7 AC MDU 12x Powercon out, Powercon loop-out in, green, black GreenBlack Stock code: 42-9372
Please login for stock availability and lead times.
1+ £242.00
10+ £229.90
CANFORD MDU7 AC MDU 12x Powercon out, Powercon loop-out in, green, grey GreenGrey Stock code: 42-9371
Please login for stock availability and lead times.
1+ £243.80
10+ £231.60
CANFORD MDU7 AC MDU 12x Powercon out, Powercon loop-out in, red, black RedBlack Stock code: 42-9374
Please login for stock availability and lead times.
1+ £263.90
10+ £250.70
CANFORD MDU7 AC MDU 12x Powercon out, Powercon loop-out in, red, grey RedGrey Stock code: 42-9373
Please login for stock availability and lead times.
1+ £263.70
10+ £250.50
CANFORD MDU8 AC MDU 14x IEC out, Powercon loop-out in, green, black GreenBlack Stock code: 42-9382
Please login for stock availability and lead times.
1+ £220.70
10+ £209.60
CANFORD MDU8 AC MDU 14x IEC out, Powercon loop-out in, green, grey GreenGrey Stock code: 42-9381
Please login for stock availability and lead times.
1+ £220.20
10+ £209.20
CANFORD MDU8 AC MDU 14x IEC out, Powercon loop-out in, red, black RedBlack Stock code: 42-9384
Please login for stock availability and lead times.
1+ £226.40
10+ £215.00
CANFORD MDU8 AC MDU 14x IEC out, Powercon loop-out in, red, grey RedGrey Stock code: 42-9383
Please login for stock availability and lead times.
1+ £225.90
10+ £214.60
CANFORD MDU9 AC MDU 12x Powercon out, 3m fixed lead in, green, black GreenBlack Stock code: 42-9392
Please login for stock availability and lead times.
1+ £251.80
10+ £239.20
CANFORD MDU9 AC MDU 12x Powercon out, 3m fixed lead in, green, grey GreenGrey Stock code: 42-9391
Please login for stock availability and lead times.
1+ £251.60
10+ £239.00
CANFORD MDU9 AC MDU 12x Powercon out, 3m fixed lead in, red, black RedBlack Stock code: 42-9394
Please login for stock availability and lead times.
1+ £272.20
10+ £258.50
CANFORD MDU9 AC MDU 12x Powercon out, 3m fixed lead in, red, grey RedGrey Stock code: 42-9393
Please login for stock availability and lead times.
1+ £271.90
10+ £258.30
CANFORD MDU10 AC MDU 12x Powercon out, Powercon 32amp in, green, black GreenBlack Stock code: 42-9302
Please login for stock availability and lead times.
1+ £244.20
10+ £231.90
CANFORD MDU10 AC MDU 12x Powercon out, Powercon 32amp in, green, grey GreenGrey Stock code: 42-9301
Please login for stock availability and lead times.
1+ £243.90
10+ £231.70
CANFORD MDU10 AC MDU 12x Powercon out, Powercon 32amp in, red, black RedBlack Stock code: 42-9304
Please login for stock availability and lead times.
1+ £264.50
10+ £251.30
CANFORD MDU10 AC MDU 12x Powercon out, Powercon 32amp in, red, grey RedGrey Stock code: 42-9303
Please login for stock availability and lead times.
1+ £264.30
10+ £251.10
CANFORD MDU11 AC MDU Twin 7x IEC out, Twin IEC in, green, black GreenBlack Stock code: 42-8312
Please login for stock availability and lead times.
1+ £218.80
10+ £207.90
CANFORD MDU11 AC MDU Twin 7x IEC out, Twin IEC in, green, grey GreenGrey Stock code: 42-8311
Please login for stock availability and lead times.
1+ £218.80
10+ £207.90
CANFORD MDU11 AC MDU Twin 7x IEC out, Twin IEC in, red, black RedBlack Stock code: 42-8314
Please login for stock availability and lead times.
1+ £218.80
10+ £207.90
CANFORD MDU11 AC MDU Twin 7x IEC out, Twin IEC in, red, grey RedGrey Stock code: 42-8313
Please login for stock availability and lead times.
1+ £218.80
10+ £207.90
CANFORD MDU12 AC MDU Twin 7x IEC out, Twin Powercon in, green, black GreenBlack Stock code: 42-8322
Please login for stock availability and lead times.
1+ £234.40
10+ £222.70
CANFORD MDU12 AC MDU Twin 7x IEC out, Twin Powercon in, green, grey GreenGrey Stock code: 42-8321
Please login for stock availability and lead times.
1+ £234.40
10+ £222.70
CANFORD MDU12 AC MDU Twin 7x IEC out, Twin Powercon in, red, black RedBlack Stock code: 42-8324
Please login for stock availability and lead times.
1+ £234.40
10+ £222.70
CANFORD MDU12 AC MDU Twin 7x IEC out, Twin Powercon in, red, grey RedGrey Stock code: 42-8323
Please login for stock availability and lead times.
1+ £234.40
10+ £222.70
CANFORD MDU13 AC MDU Twin 7x IEC out, Twin 3m fixed lead in, green, black GreenBlack Stock code: 42-8332
Please login for stock availability and lead times.
1+ £260.10
10+ £247.10
CANFORD MDU13 AC MDU Twin 7x IEC out, Twin 3m fixed lead in, green, grey GreenGrey Stock code: 42-8331
Please login for stock availability and lead times.
1+ £260.10
10+ £247.10
CANFORD MDU13 AC MDU Twin 7x IEC out, Twin 3m fixed lead in, red, black RedBlack Stock code: 42-8334
Please login for stock availability and lead times.
1+ £260.10
10+ £247.10
CANFORD MDU13 AC MDU Twin 7x IEC out, Twin 3m fixed lead in, red, grey RedGrey Stock code: 42-8333
Please login for stock availability and lead times.
1+ £260.10
10+ £247.10
CANFORD MDU15 AC MDU 12x Locking IEC out, IEC in, green, black GreenBlack Stock code: 42-8352
Please login for stock availability and lead times.
1+ £223.80
10+ £212.60
CANFORD MDU15 AC MDU 12x Locking IEC out, IEC in, green, grey GreenGrey Stock code: 42-8351
Please login for stock availability and lead times.
1+ £223.50
10+ £212.30
CANFORD MDU15 AC MDU 12x Locking IEC out, IEC in, red, black RedBlack Stock code: 42-8354
Please login for stock availability and lead times.
1+ £244.10
10+ £231.90
CANFORD MDU15 AC MDU 12x Locking IEC out, IEC in, red, grey RedGrey Stock code: 42-8353
Please login for stock availability and lead times.
1+ £243.90
10+ £231.70
CANFORD MDU16 AC MDU 12x Locking IEC out, Powercon in, green, black GreenBlack Stock code: 42-8362
Please login for stock availability and lead times.
1+ £209.50
10+ £199.00
CANFORD MDU16 AC MDU 12x Locking IEC out, Powercon in, green, grey GreenGrey Stock code: 42-8361
Please login for stock availability and lead times.
1+ £209.20
10+ £198.80
CANFORD MDU16 AC MDU 12x Locking IEC out, Powercon in, red, black RedBlack Stock code: 42-8364
Please login for stock availability and lead times.
1+ £229.80
10+ £218.30
CANFORD MDU16 AC MDU 12x Locking IEC out, Powercon in, red, grey RedGrey Stock code: 42-8363
Please login for stock availability and lead times.
1+ £229.60
10+ £218.10
CANFORD MDU17 AC MDU 12x Locking IEC out, 3m fixed lead in, green, black GreenBlack Stock code: 42-8372
Please login for stock availability and lead times.
1+ £199.00
10+ £189.00
CANFORD MDU17 AC MDU 12x Locking IEC out, 3m fixed lead in, green, grey GreenGrey Stock code: 42-8371
Please login for stock availability and lead times.
1+ £198.70
10+ £188.80
CANFORD MDU17 AC MDU 12x Locking IEC out, 3m fixed lead in, red, black RedBlack Stock code: 42-8374
Please login for stock availability and lead times.
1+ £219.30
10+ £208.30
CANFORD MDU17 AC MDU 12x Locking IEC out, 3m fixed lead in, red, grey RedGrey Stock code: 42-8373
Please login for stock availability and lead times.
1+ £219.10
10+ £208.10
