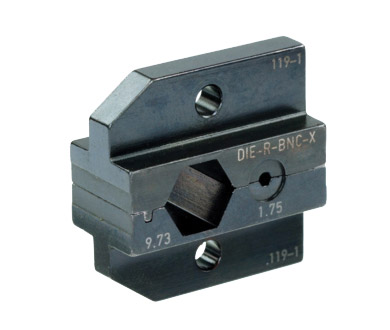

NEUTRIK DIE-R-BNC-X DIE SET For HX-R-BNC crimp tool

Stock code
48-569
Brand
Neutrik
Model number
  • DIE-R-BNC-X
NEUTRIK DIE-R-BNC-X DIE SET For HX-R-BNC crimp tool
NEUTRIK DIE-R-BNC-X DIE SET For HX-R-BNC crimp tool

NEUTRIK CRIMP TOOLS - Co-axial connectors

A range of crimp tools, and die sets, required to assemble Neutrik Rear Twist and Push-Pull series BNC connectors.

Crimp dies are supplied as a pair and must be ordered in addition to the crimp tool.

All die-sets have a 1.6mm pin crimping cavity (except size X which is 1.75 and ZPLUS which is 1.8). Die-sets also have one or more larger cavities for crimping the connector ferrules, making some sets suitable for more than one connector size. Cavities sizes are indicated by the letters at the end of the description.

Note: The Neutrik letter code indicating screen crimp die sizes do not relate to the Canford cable group. See Coaxial connector selection guide for Canford cable groups.

Crimp tool HX-R-BNC

The HX-R-BNC ‘plier’ type tool has a parallel die motion and ratchet action to ensure accurate and complete closure of the dies and a perfect crimp termination.

Crimp die Centre pin crimp Centre pin crimp style Hex crimp cavity 1 Hex crimp cavity 2 Hex crimp cavity 3
DIE-R-BNC-PDC 1.6mm Square 6.47mm 4.53mm 4.06mm
DIE-R-BNCX-PDG 1.07mm Square 6.47mm 5.00mm 4.53mm
DIE-R-BNC-PG 1.6mm Square 6.47mm 5.00mm -
DIE-R-BNC-PJ 1.6mm Square 6.47mm 5.41mm -
DIE-R-BNC-PS 1.6mm Square 6.47mm 7.01mm -
DIE-R-BNC-PU 1.6mm Square 6.47mm 7.36mm -
DIE-R-BNCX-PU 1.07mm Square 6.47mm 7.36mm -
DIE-R-BNC-PY 1.6mm Square 6.47mm 8.23mm -
DIE-R-BNC-UG 1.6mm Square 7.36mm 5.00mm -
DIE-R-BNC-X 1.75mm Hex 9.73mm - -
DIE-R-BNC-ZPLUS 1.8mm Square 10.00mm - -
