TECPRO COMMUNICATION SYSTEM - Breakout cables

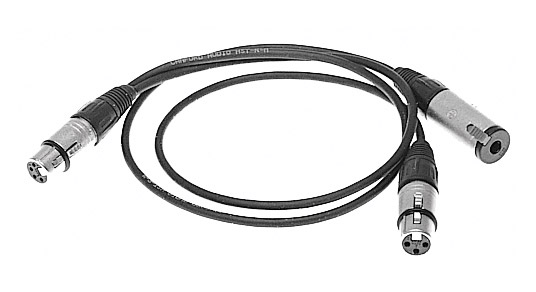

YL916 Headset Outstation 'Y'-lead
This cable enables the connection of an external earpiece/headphones and separate microphone to any Tecpro headset outstation. Typical applications include in-vision where the presenter wears an earpiece and reverse talkback uses a split feed of the presenter’s microphone; alternatively, a headset station is remotely sited and a separate microphone and headphones are used.
|XLR 4 pin female:
|XLR 3 pin female:
||microphone input to outstation (wired for unbalanced use)
|Neutrik in line jack socket:
||for use with mono or stereo headphones (wired tip +ve, ring –ve, sleeve no connection)
Please note we do not recommend the use of cables greater than 5 m with this lead.

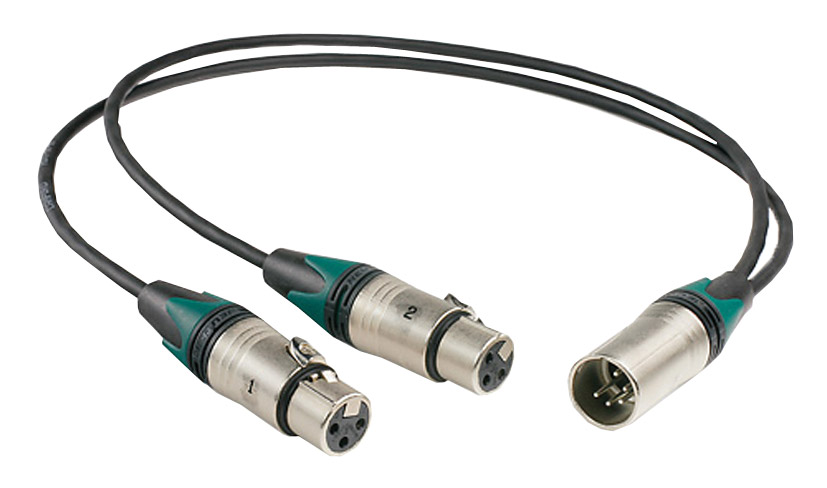

YL971, YL972 Single to Dual Circuit 'Y'-leads -
XLR 5-pin for Tecpro BP525, BP545 beltpacks
There are two standard 'Y'- leads available to enable transfer from separately wired dual circuit systems to systems using 5-pin connectors. Both leads utilise 0.5m HST-R-M cable, YL971 has two 3-pin male XLRs to one 5-pin female XLR, YL972 has two 3-pin female XLRs and one 5-pin male XLR. XLR 5-pin connectors have green glands to identify them as intercom circuit cables.
YL917, YL918 Single to Dual Circuit 'Y'-leads -
XLR 6-pin for Tecpro BP113, BP115, BP117 beltpacks
There are two standard 'Y'- leads available to enable transfer from separately wired dual circuit systems to systems using 6 pin connectors. Both leads utilise 0.5m HST-R-M cable, YL917 has two 3 pin male XLRs and one 6 pin female XLR, YL918 has two 3 pin female XLRs to one 6 pin male XLR.
