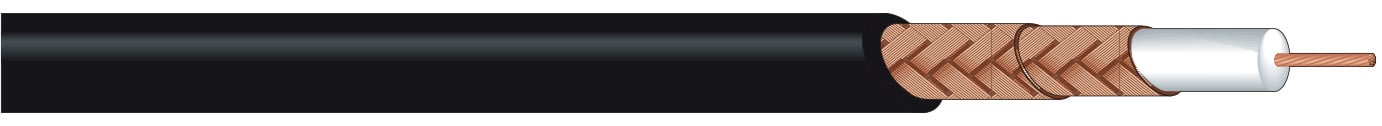

CANARE L-4.5CHWS UHDTV DIGITAL VIDEO CABLE

CANARE L4.5CHWS CABLE Black (reel of 200m)
CANARE L4.5CHWS CABLE Black (reel of 200m)

A flexible and lightweight 75-ohm coaxial cable. Suitable for mobile applications such as, OB vans and live productions. Flexible stranded centre conductor allows for high flexibility and resistance to metal fatigue. To protect against electromagnetic and radio frequency interference, the cables are fitted with a high-density double braided shield. Highly foamed polyethylene insulation minimizes high-frequency signal loss while maintaining maximum cable flexibility. Semi-matt non-reflective durable PVC jacket.

Technical Specification:
Cable size group: Not in Canford scheme
Centre wire: 7/0.34mm (1.02mm 20AWG)
Dielectric: Highly foamed Polyethylene, 4.57mm
Screen 1: Tinned annealed copper braid (1)
Screen 2: Tinned annealed copper braid (2)
Jacket: Highly flexible PVC, 7.2mm
Nominal impedance: 75 ohms
Capacitance (nom.): 53pF/m
Velocity ratio (nom.): 0.77
Weight/100m: 6.6kg
Reel length: 100m
Cut lengths: Not Available

Notes: (1) 93% Coverage, (2) 95% Coverage

Attenuation:
(dB/100m +/- 0.1dB) 10MHz 72MHz 135MHz 270MHz 750MHz 1.3GHz 3GHz
L-4.5CHWS 2.5 6.7 9.3 13.3 16.7 30.8 49.1
Description Price £
Add to basket
CANARE L4.5CHWS CABLE Black (reel of 200m) Black Stock code: 36-952
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £563.00
5+ £541.00
per reel
