CANFORD SDV-HD - HDTV DIGITAL VIDEO CABLE (1.6/7.3)

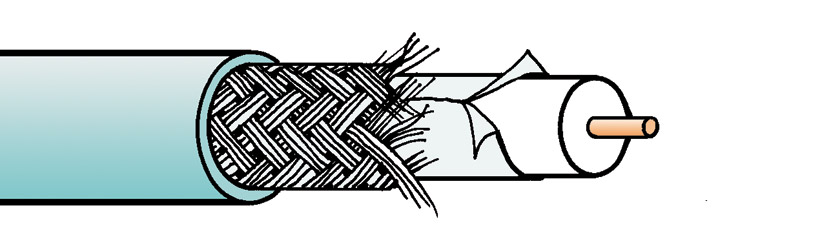

CANFORD SDV-HD CABLE Turquoise
CANFORD SDV-HD CABLE Turquoise

Ultra low-loss coaxial 75 ohm cable specifically for HDTV and serial digital video signals.

Due to the large diameter and rigidity of group Z cables, strain relief bushes are not required.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Z
Inner conductor: 1.63mm plain copper
Dielectric: Gas injected foam high density polyethylene, 7.5mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Screening efficiency: 95%
Construction: Coaxial cable
Jacket: PVC, turquoise
Overall diameter: 10.2mm
Minimum bend radius: 100mm indoor
Impedance: 75 ohms
Capacitance: 56pF/m nominal
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 1.3 3.9 5.3 11.4 16.9 26.4 37.3 45.6 52.6
Weight: 13.6kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre

Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5069 COAX CONNS 10-005-W126-FD BNC 12G UHD Male cable, crimp, 75 ohm, black, group Z
COAX Connectors 48-5079 COAX CONNS 10-005-W126-FD BNC 12G UHD Male cable, crimp, 75 ohm, black, group Z (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-470 CANARE BCP-C71A BNC Male cable, group Z
Canare 48-471 CANARE BCP-C71A BNC Male cable, group Z (pack of 100)
COAX Connectors 48-5049 COAX CONNS 10-005-B36-FD BNC 3G HD Male cable, crimp, 75 ohm, group Z
COAX Connectors 48-5059 COAX CONNS 10-005-B36-FD BNC 3G HD Male cable, crimp, 75 ohm, group Z (pack of 100)
Neutrik 48-618 NEUTRIK NBLC75BVZ17 BNC 3G Male cable, rear twist, group Z
Telegartner 48-789 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Z
Telegartner 48-779 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Z (pack of 100)
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD SDV-HD CABLE Turquoise Turquoise Stock code: 36-566
1025 in stock Need more?
10 cable oddments available
1+ £5.50
100+ £4.40
500+ £4.29
1,000+ £4.13
per metre
