BELDEN 1505A - HDTV AND SERIAL DIGITAL VIDEO CABLE

3 items
BELDEN 1505A - HDTV AND SERIAL DIGITAL VIDEO CABLE
BELDEN 1505A - HDTV AND SERIAL DIGITAL VIDEO CABLE

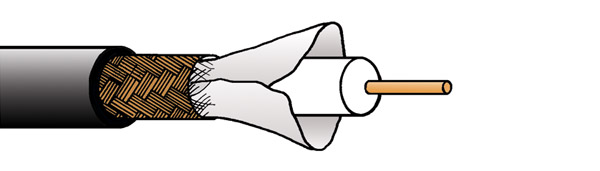

Coaxial 75 ohm cable for digital and analogue video applications. Industry size type RG59/U.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:

Cable size group: Q (with Canare and Neutrik exceptions)
Inner conductor: 1/0.813mm (20AWG) (0.52mm sq.) plain copper
Dielectric: Gas injected foam high density polyethylene, 3.68mm OD
Screen 1: Duofoil®(aluminium/plastic/aluminium) tape longitudinally applied
Screen 2: Tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, black, red and blue (other colours available to special order)
Overall diameter: 5.92mm
Impedance: 75 +/- 1.5% ohms
Capacitance: 53.4pF/m nominal
Velocity of propagation: 83%
Return loss: 23dB nom. 5-850MHz
21dB nom. 851-3000MHz
Attenuation: MHz 1 10 135 180 270 360 540 750 1000
dB/100m 0.98 2.95 8.86 10.17 12.46 14.43 18.04 21.32 24.93
Weight: 4.62kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre.
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6027 CANFORD CONNECT CCBNCQ BNC 12G, crimp, 75 ohm, Group Q
COAX Connectors 48-5062 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q
COAX Connectors 48-5072 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)
Neutrik 48-6374 NEUTRIK NBNC75BLP9X BNC 12G UHD Male cable, rear twist, Canford SDV-I-X-LFH, Belden 1505A, 4505R

BNC Male - 3G

Brand Code Description
COAX Connectors 48-5042 COAX CONNS 10-005-B36-FB BNC 3G HD Male cable, crimp, 75 ohm, group Q
COAX Connectors 48-5052 COAX CONNS 10-005-B36-FB BNC 3G HD Male cable, crimp, 75 ohm, group Q (pack of 100)
Neutrik 48-613 NEUTRIK NBNC75BLP9 BNC 3G Male cable, rear twist, Canare L-4CFB
Neutrik 48-6313 NEUTRIK NBNC75BLP9-D BNC 3G Male cable, rear twist, Canare L-4CFB (pack of 100, disassembled)
Telegartner 48-786 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Q
Telegartner 48-776 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Q (pack of 100)

BNC Male - 75Ohm RF

Brand Code Description
Belden 48-8245 BELDEN FS59BNCU BNC CONNECTOR Compression, group Q

BNC Female, panel mount - 3G

Brand Code Description
Neutrik 48-7993 NEUTRIK NBNB75ILP9 BNC 3G Female panel, isolated, crimp

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5024 COAX CONNS 67-005-B66-FB MICRO BNC 12G UHD Male cable, crimp, group Q
COAX Connectors 48-5034 COAX CONNS 67-005-B66-FB MICRO BNC 12G UHD Male cable, crimp, group Q (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5004 COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q
COAX Connectors 48-5014 COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q (pack of 100)

F Connector

Brand Code Description
Belden 48-8225 BELDEN FSNS59U F CONNECTOR Compression, group Q

RCA Phono

Brand Code Description
Belden 48-8265 BELDEN FSNS59RCAU RCA(PHONO) CONNECTOR, Group Q
Belden 48-8275 BELDEN FSNS59RCAU RCA(PHONO) CONNECTOR, Group Q (pack of 100)
