CANFORD UHDTV DIGITAL VIDEO CABLE Flexible

CANFORD UHDTV DIGITAL VIDEO CABLE Flexible
CANFORD UHDTV DIGITAL VIDEO CABLE Flexible

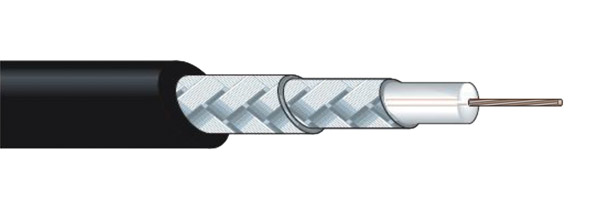

Flexible and durable coaxial cable, suitable for mobile HD and UHD applications. Designed to be flexible and withstand repeated bending, it has a stranded centre conductor, with a high-density, double-braided shield and high density foam dielectric insulation. Used exclusively on Canford microMUSA patchcords.

Technical Specification:
Cable size group: Not in Canford scheme
Inner conductor: 7/0.2mm (0.6mm O.D. 24AWG)
Dielectric: High density foam, 2.6mm O.D.
Screen 1: 0.10mm/8/16, coverage 95% or more
Screen 2: 0.10mm/9/16, coverage 94% or more
Construction: Coaxial cable
Jacket: PVC, 4.2mm OD.
Impedance: 75 ohms
Capacitance: 53 pF/m
Inner conductor resistance: 8.5 ohms/100m
Screen resistance: 1.0 ohms/100m
Attenuation: MHz 10 30 72 88 135 180
dB/100m 4.00 7.00 10.90 12.10 15.10 17.50
MHz 270 750 1300 1500 3000 6000
dB/100m 21.70 37.40 50.50 54.70 81.00 121.90
Weight: 3.2kg/100m
Reel Length: 500m
Cut lengths: Available in any multiple of 1 metre.
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5064 COAX CONNS 10-005-W126-EJ1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Canare L-2.5CHWS
COAX Connectors 48-5074 COAX CONNS 10-005-W126-EJ1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Canare L-2.5CHWS (pk of100)
Neutrik 48-6372 NEUTRIK NBNC75BFG7X BNC 12G UHD Male cable, rear twist, group X

BNC Male - 3G

Brand Code Description
Neutrik 48-611 NEUTRIK NBNC75BFG7 BNC 3G Male cable, rear twist, group X
Neutrik 48-6311 NEUTRIK NBNC75BFG7-D BNC 3G Male cable, rear twist, group X (pack of 100, disassembled)
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD microMUSA patchcord cable, black Black Stock code: 36-720
Assembled to order, available in 1‑2 working days. Need it sooner? Call us
£1.98
per metre
