CANFORD SDV-L - HDTV DIGITAL VIDEO CABLE (1.0/4.8) Low loss

2 items

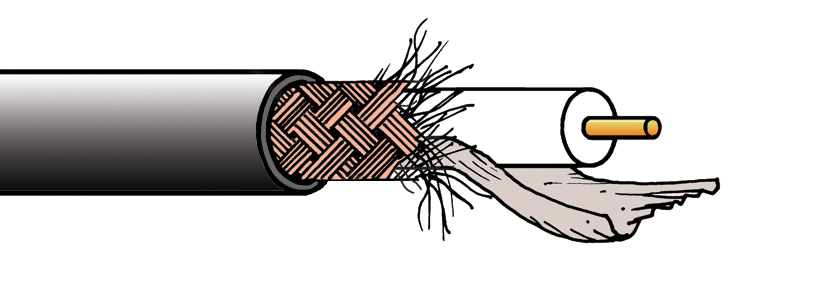

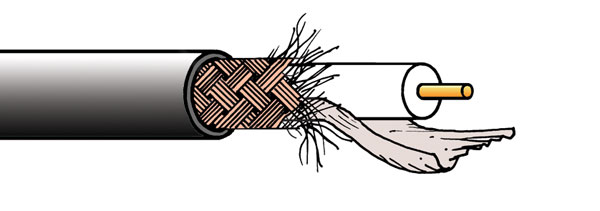

CANFORD SDV-L CABLE Black
CANFORD SDV-L CABLE BlackCANFORD SDV-L CABLE Turquoise

Low-loss coaxial 75 ohm cable specifically for 3GHz HDTV and serial digital video signals.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Y
Inner conductor: 1.0mm plain copper
Dielectric: Gas injected foam high density polyethylene, 4.8mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Screening efficiency: 95%
Construction: Coaxial cable
Jacket: PVC, black, turquoise
Overall diameter: 6.8mm
Minimum bend radius: 35mm indoor, 70mm outdoor
Impedance: 75 ohms +/-1%
Capacitance: 56pF/m
Return loss: 26dB: 50-300MHz
22dB: 300-3000MHz
18dB: 3000-3500MHz
15dB: 3500-5000MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 2.0 6.7 9.2 18.4 26.5 38.3 56.8 69.6 80.3
Weight: 6.9kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6026 CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y
COAX Connectors 48-5063 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors 48-5073 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)
Neutrik 48-6376 NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

BNC Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5082 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors 48-5092 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-458 CANARE BCP-B53 BNC Male cable, group Y
Canare 48-459 CANARE BCP-B53 BNC Male cable, group Y (pack of 100)
COAX Connectors 48-5043 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors 48-5053 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik 48-615 NEUTRIK NBNC75BWS11 BNC 3G Male cable, rear twist, group Y
Neutrik 48-6304 NEUTRIK NBNC75BUU11 BNC 3G Male cable, rear twist, Draka 1.0/4.8AF / group Y
Neutrik 48-6315 NEUTRIK NBNC75BWS11-D BNC 3G Male cable, rear twist, group Y (pack of 100, disassembled)
Telegartner 48-788 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner 48-778 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-714 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y
Telegartner 48-774 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Female, panel mount - 3G

Brand Code Description
Neutrik 48-7991 NEUTRIK NBNB75GUU11 BNC 3G Female panel, grounded, crimp, group Y

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5026 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y
COAX Connectors 48-5036 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5006 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors 48-5016 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)

MUSA - 3G

Brand Code Description
Canford 48-4436 CANFORD MUSA 3G HD Female, cable, group Y

MUSA Metrology grade

Brand Code Description
Canford 48-4486 CANFORD MUSA Metrology grade, silver, female, cable, group Y

F Connector

Brand Code Description
Canare 48-878 CANARE FP-C53A F CONNECTOR Male cable, group Y
Canare 48-879 CANARE FP-C53A F CONNECTOR Male cable, group Y (pack of 100)
Telegartner 48-8282 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y
Telegartner 48-8292 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y (pack of 100)

RCA Phono

Brand Code Description
Canare 43-069 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y
Canare 43-070 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y (bulk pack of 100)
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD SDV-L CABLE Black Black Stock code: 36-520
6063 in stock Need more?
13 cable oddments available
1+ £1.97
100+ £1.58
500+ £1.54
1,000+ £1.48
per metre
CANFORD SDV-L CABLE Turquoise Turquoise Stock code: 36-526
5214 in stock Need more?
23 cable oddments available
1+ £1.97
100+ £1.58
500+ £1.54
1,000+ £1.48
per metre
