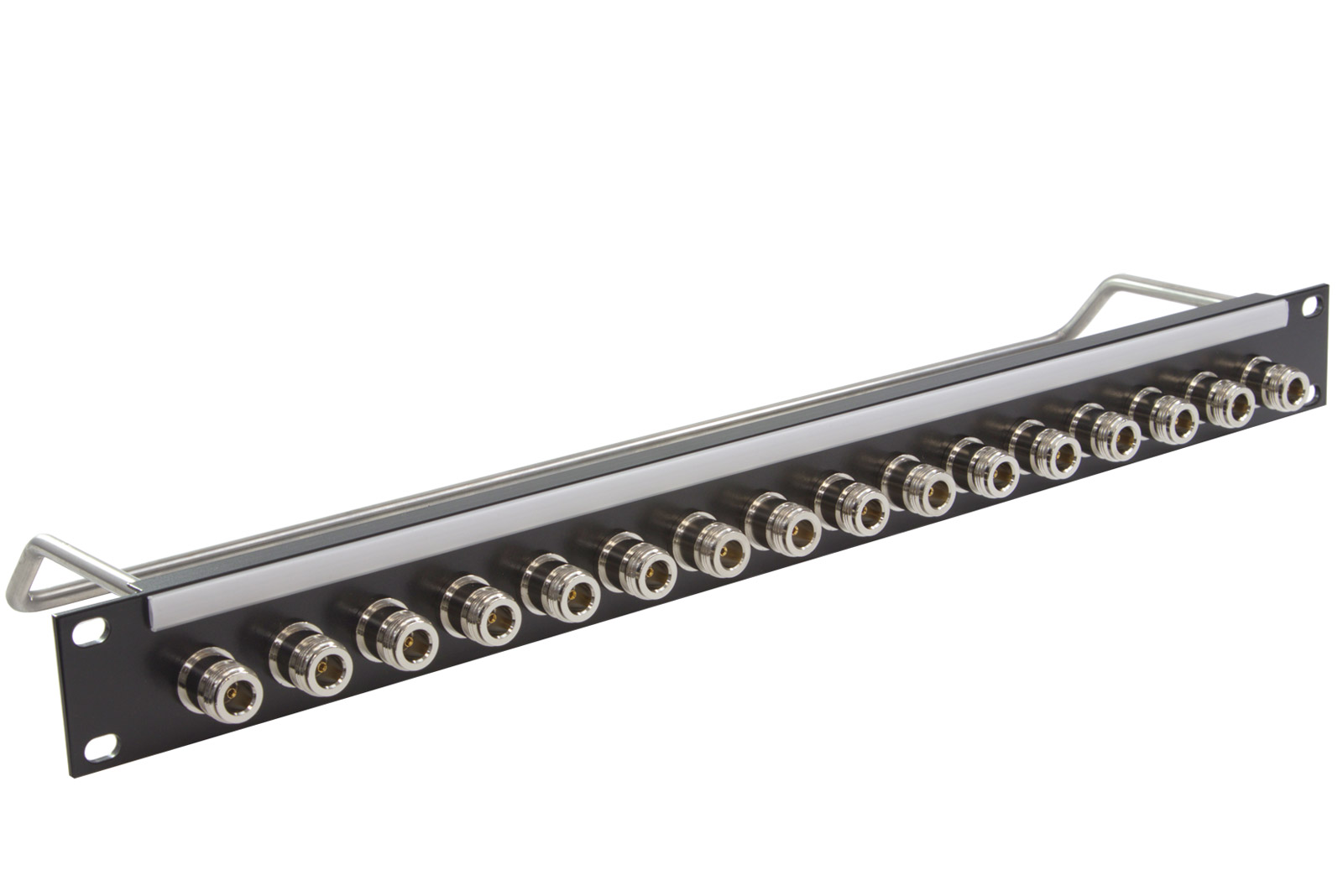

A range of 1U termination panels supplied fully-populated with double-sided N type connectors. Available with 8, 12 or 16 connectors fitted as standard. Typically used for Antennas feed connections and other RF applications.

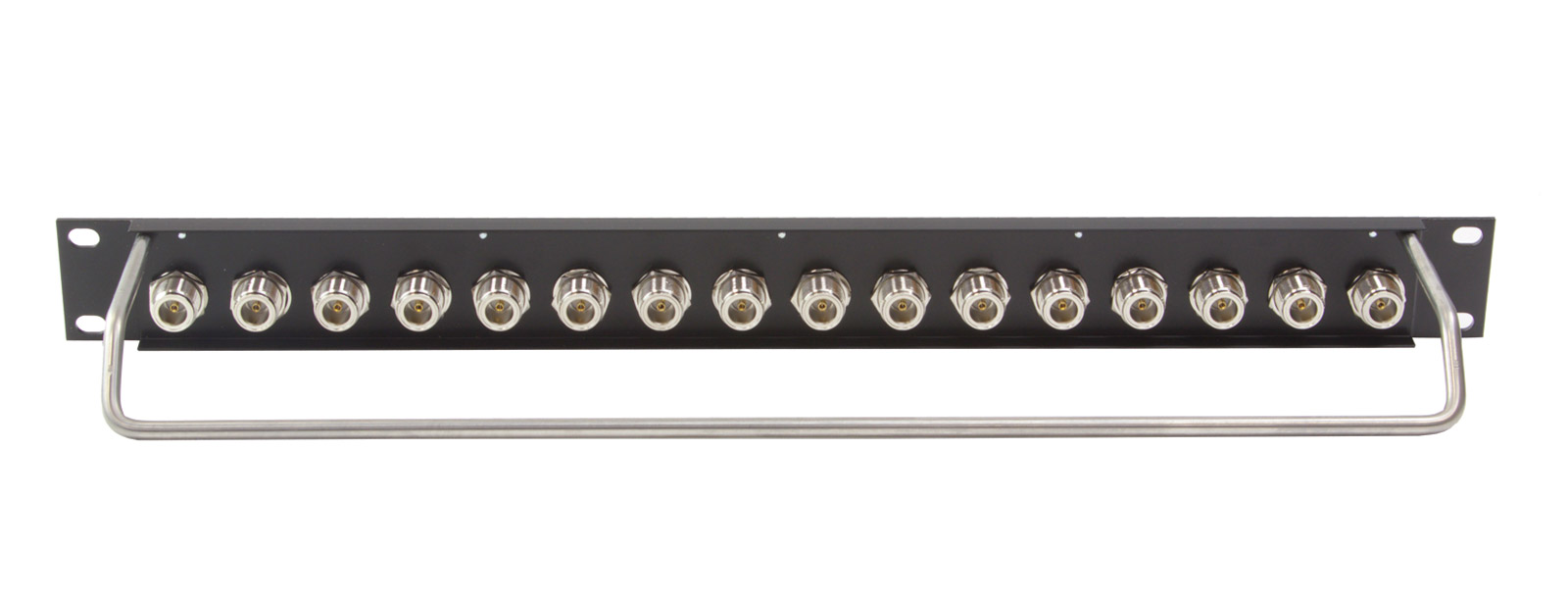

Manufactured from a lightweight, rigid, aluminium extrusion and finished in black, panels are fitted with a cranked lacing-bar for each row of connectors giving easy access to the rear of the connectors. Connectors are all Canford Connect CCND female, single hole, 'back-to-back' or 'bulkhead through-adapters' .
A snap-on cover designation-strip holder is fitted above the connectors to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
