MuxLab controllers have been designed to give the user the ability to gain centralised control over IP devices. They can be managed via the MuxControl AV over IP management software app.
500812 Network controller
MuxLab ProDigital Network Controller is a compact, Linux-based PC that has been designed to give users the ability to control compatible MuxLab products a web interface over Ethernet. The controller, that utilises an Ubuntu operating system, connects to the local area network (LAN) and scans for any connected audio/video over IP products that are also connected. Once the auto-discover function has found the required devices, the user is then able to configure and control the connected units.

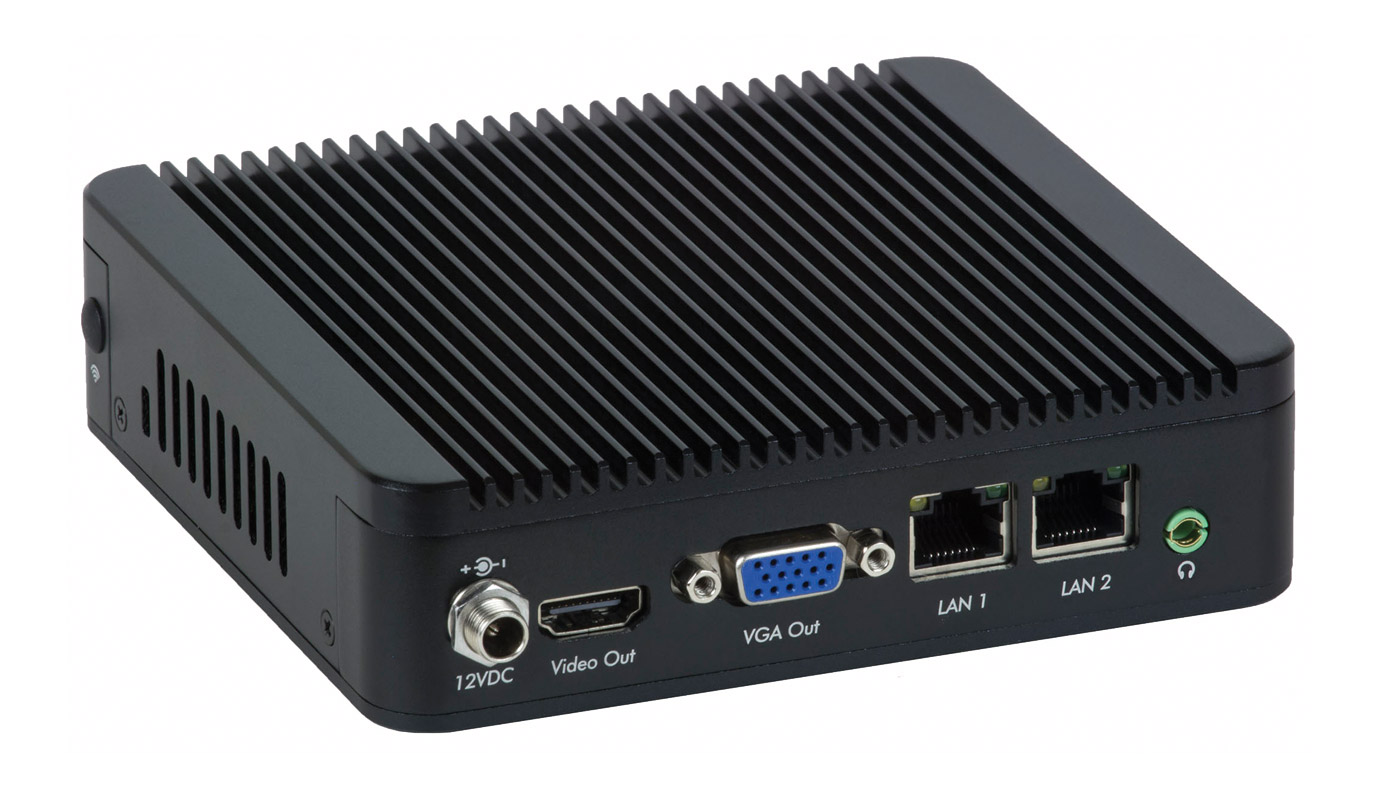

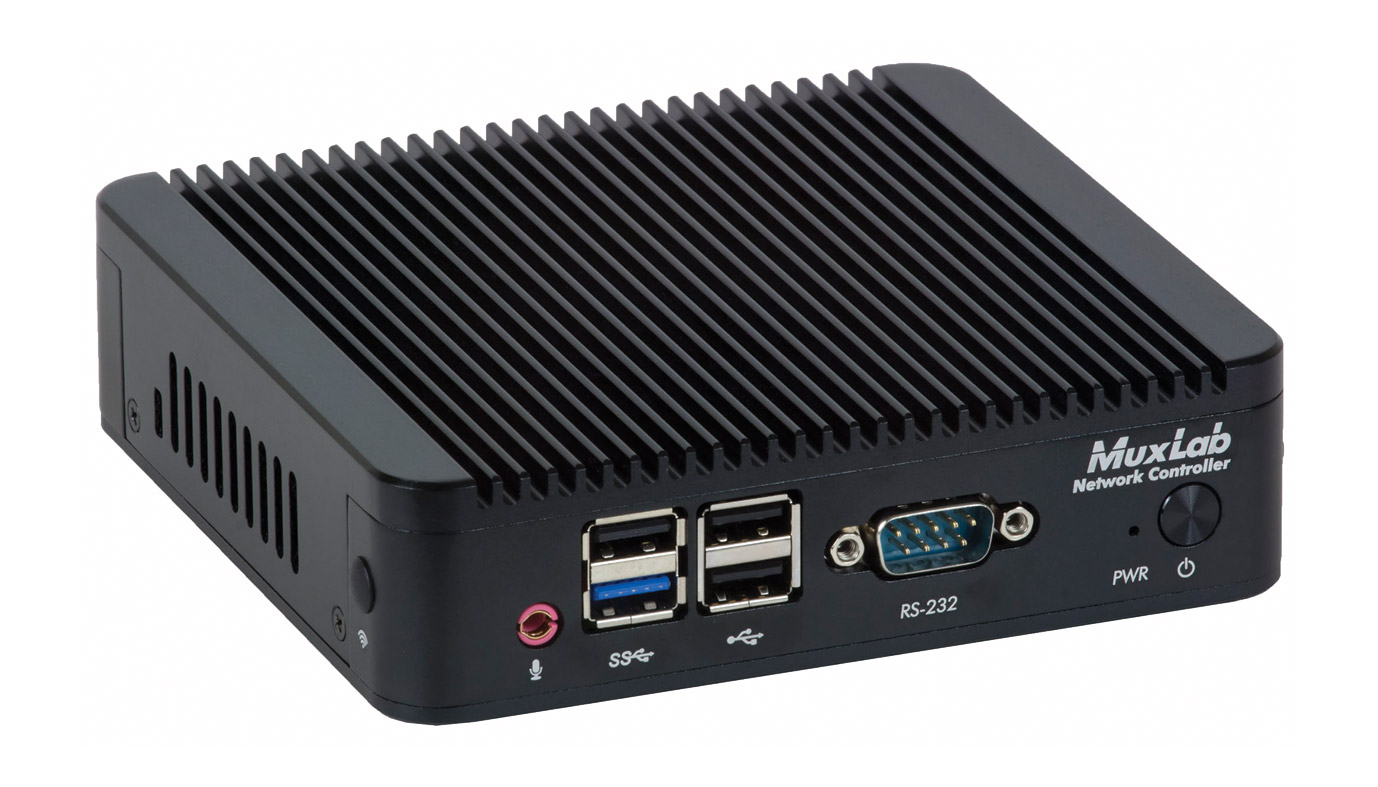

The front facing panel of the processor has a recessed power on/off button, along with an audio input via 3.5mm connector, RS232 port, 3x USB 2.0 ports, and a single SS USB 3.0 port. The rear facing panel houses other connectivity including VGA video output port, a single HDMI video output, 3.5mm jack audio output, and 2x network ports (LAN 1 and LAN 2) on RJ45 connector.
Dimensions: 133 x 127 x 35 (WxDxH)mm. Weight: 0.7kg
500817 Touch Control panel

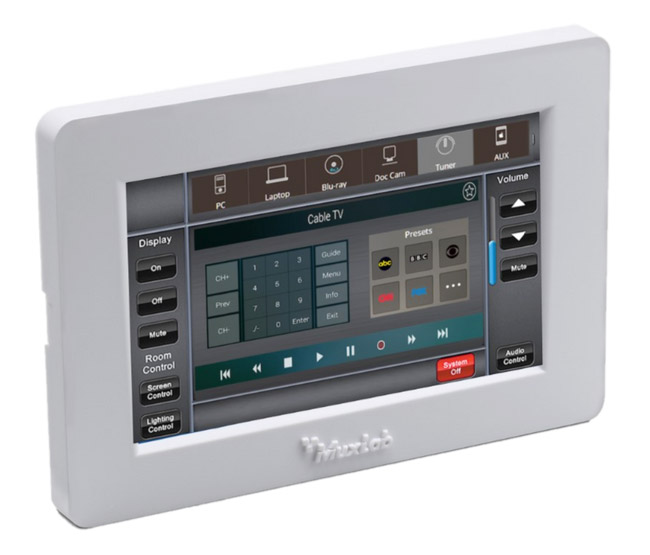

Designed for use in commercial, classroom, and residential AV systems, and boardroom systems, 500817 is a 5-inch touch control panel that allows control over compatible MuxLab devices and third-party products. The device combines the capabilities of an in-wall touch panel and an advanced control processor. The 5-inch high-resolution colour touch screen supports two-way feedback and the addition of various programmable buttons that can be placed on different pages as required. 500817 supports 1x Ethernet port (for TCP/IP, HTTP, UDP, and Telnet), 2x RS-232 ports, 1x RS-485port, 1x infrared port, 2x voltage sense ports, and 2x relay ports for control of end devices.

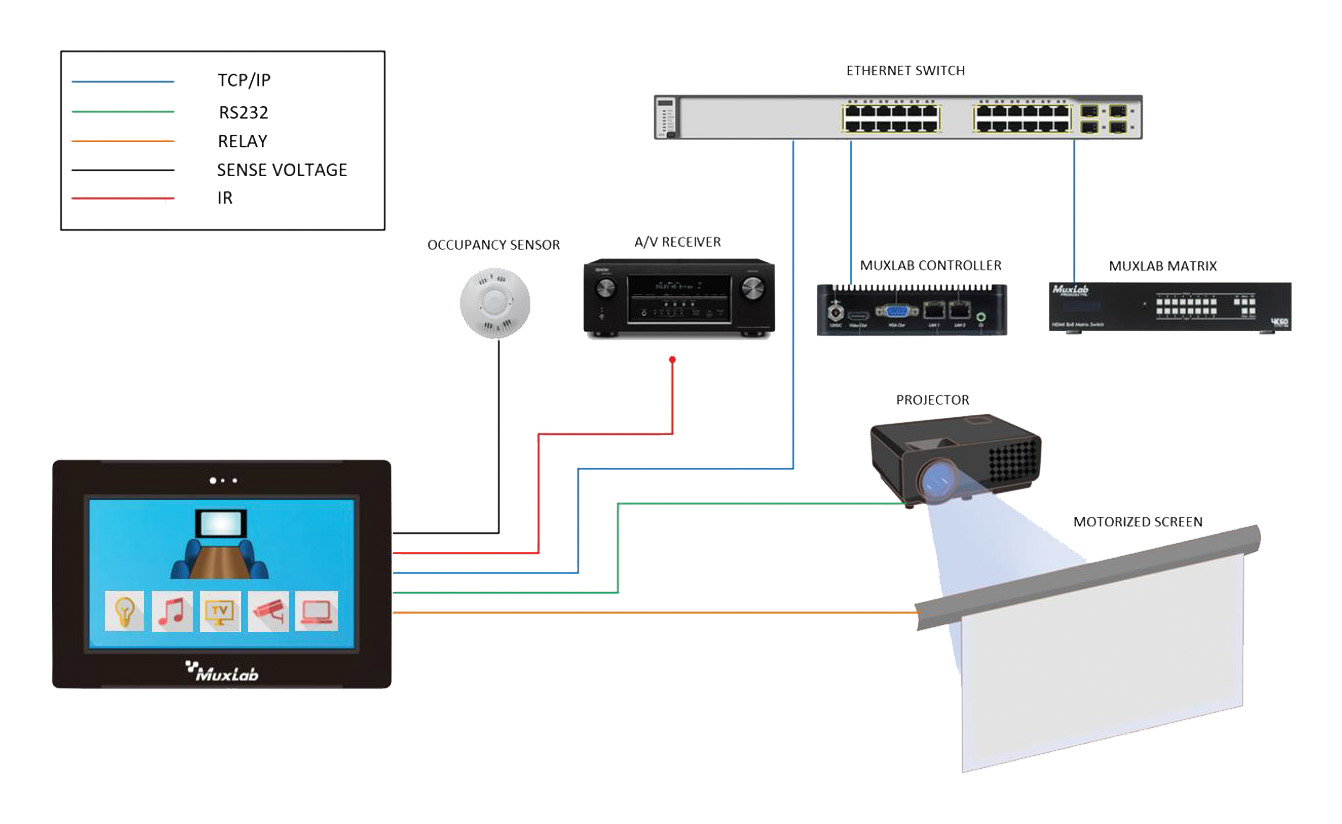

Compatible MuxLab products include AV over IP system via the 500812 Pro Digital Network Controller, MuxLab’s TCP/IP, Telnet andRS-232 managed Matrix Switches, as well as third party devices such as projectors, projector screens, displays, AV sources, and other similar devices. 500817 Touch Control Panel can be programmed, configured, and managed via the web interface.
Available in black (500817) or white (500817-WH) finish.
Output ports: 1x Ethernet for TCP/IP via RJ45, 2x RS232 via 3-pin terminal blocks, 1x RS485 via 3-pin terminal block, 1x infrared emitter via 2-pin terminal block, 2x low voltage relay ports via 2-pin terminal blocks. Input ports: 2x low level detection via 2-pin terminal blocks. Other connections: 1x 2-pin terminal block power input, 1x USB type-B connection for firmware updates.
Dimensions: 145 x 37 x 100 (WxDxH)mm. Weight: 0.34kg

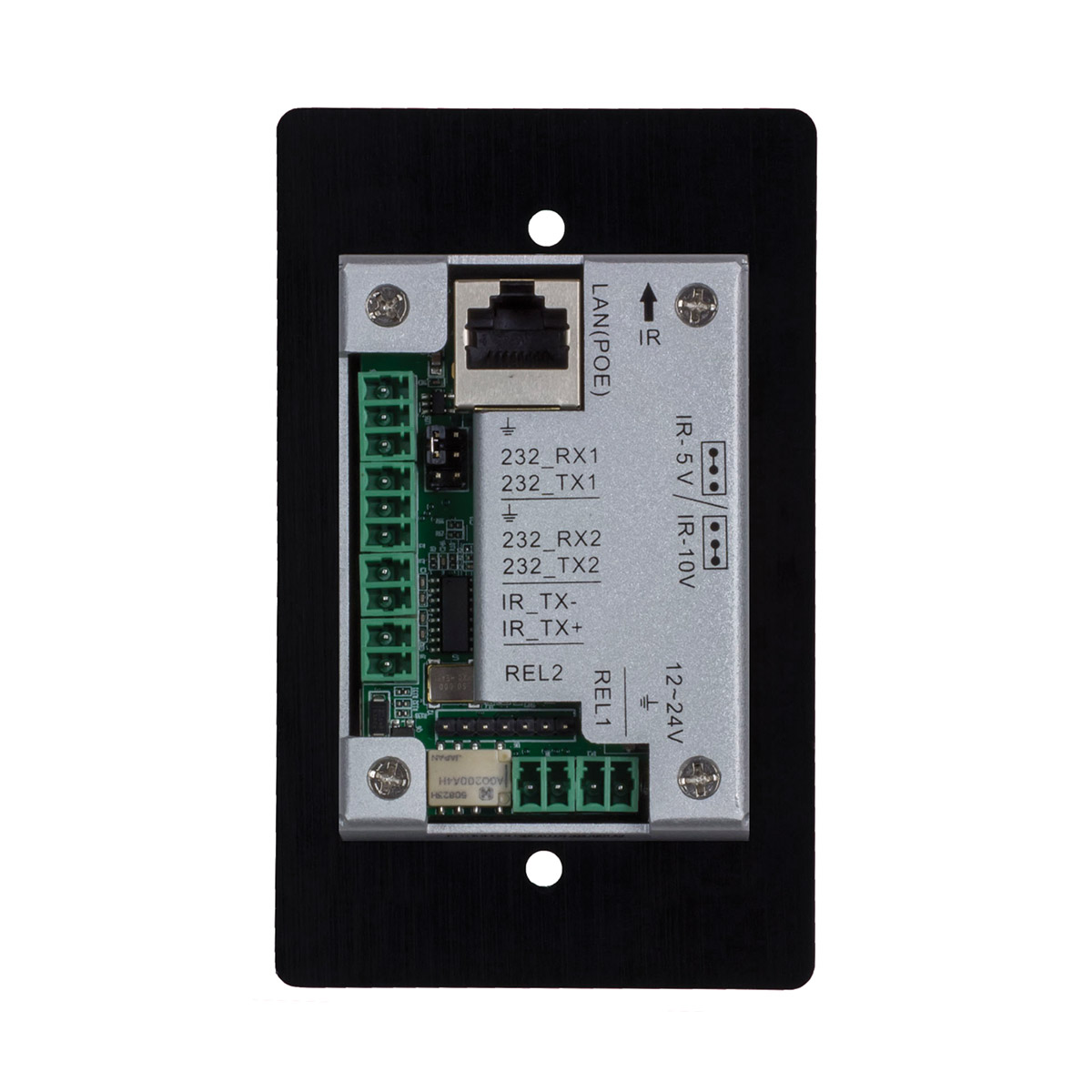

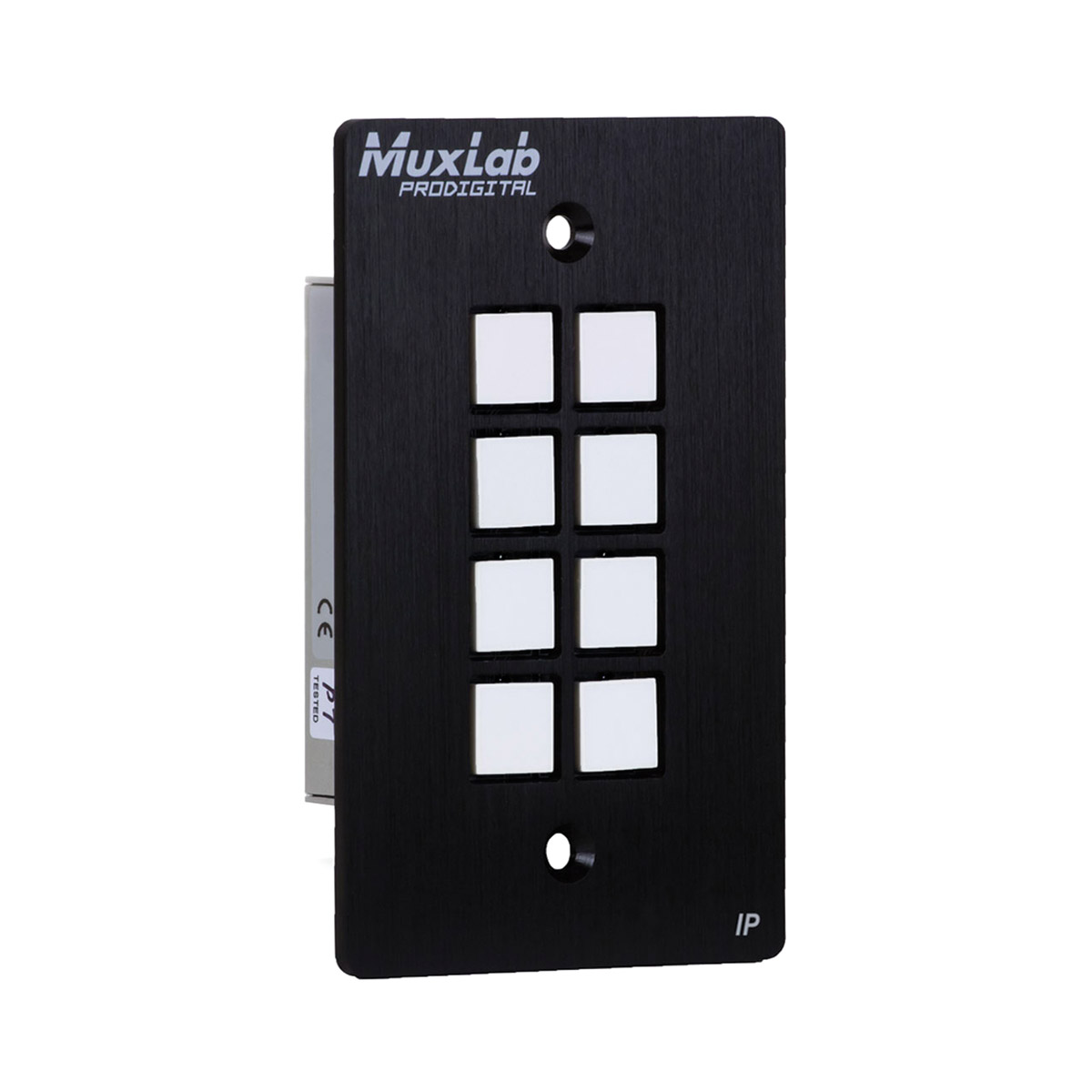

This control panel has been designed for installation in a wall or flat surface such as a table-top. Having eight backlit, individually programmable buttons, 500816-IP allows the user to remotely control MuxLab AV over IP devices when used in conjunction with 500811, along with MuxLab matrix switches. Supporting PoE, the controller supports a single Ethernet port for TCP/IP and Telnet, 2x RS232 ports, 1x infrared port, and 2x relay ports.
Dimensions: 114 x 70 x 36 (WxDxH)mm. Weight: 0.34kg
