RG213/U RF CABLE

2 items

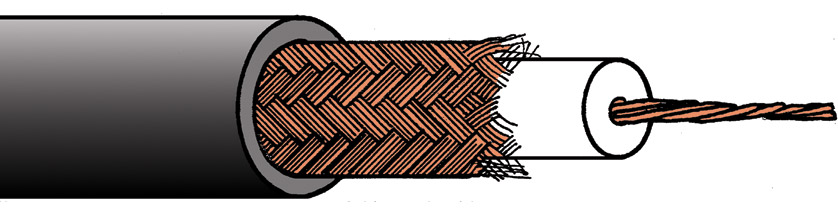

RG213/U CABLE Black
RG213/U CABLE Black

50 ohm cable commonly used for RF distribution applications.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: C
Centre wire: 7/0.75mm bare copper
Dielectric: Polyethylene, 7.25mm OD
Braid: 192/0.18mm bare copper
Braid coverage: 98%
Jacket: PVC or LFH material, 10.3mm O.D., black
Impedance at 2MHz: 50 ohms +/-3
Capacitance (nom.): 100 pf/m
Velocity ratio: (nom.): 0.66
Conductor DC resistance: 6.3 ohms/km maximum at 20°C
Attenuation: MHz 100 200 400 700 1000
dB/100m: 6.9 9.8 14.8 21.3 26.9 (+/-0.1dB)
Weight: 14.4kg/100m
Reel length: 100 metres
Cut lengths: Available in any multiple of 1 metre
Suitable connectors outlined below.

BNC Male 50 Ohm RF (Soldered & Crimped)

Brand Code Description
Telegartner 48-723 TELEGARTNER BNC Male cable, solder, 50 ohm, group C

BNC Female Panel 75 Ohm RF (Soldered)

Brand Code Description
Telegartner 48-743 TELEGARTNER BNC Female panel,solder, 50 ohm, insulated, all groups

N Connector 50 Ohm RF

Brand Code Description
Telegartner 48-801 TELEGARTNER J01020I1070 N TYPE CONNECTOR Male cable, solder, group C
Telegartner 48-807 TELEGARTNER J01021H1076 N TYPE CONNECTOR Female cable, solder, group C
Description Price $
ex. VAT
Add to basket
Delivery
RG213/U CABLE Black Black Stock code: 36-213
1795 in stock Need more?
13 cable oddments available
1+ $3.58
100+ $2.87
500+ $2.79
1,000+ $2.69
per metre
RG213/U CABLE Black, LFH Black Stock code: 36-215
100 in stock Need more?
2 cable oddments available
1+ $9.14
100+ $7.31
500+ $7.13
1,000+ $6.86
per metre
