FORMULA SOUND SHADOW MIXER

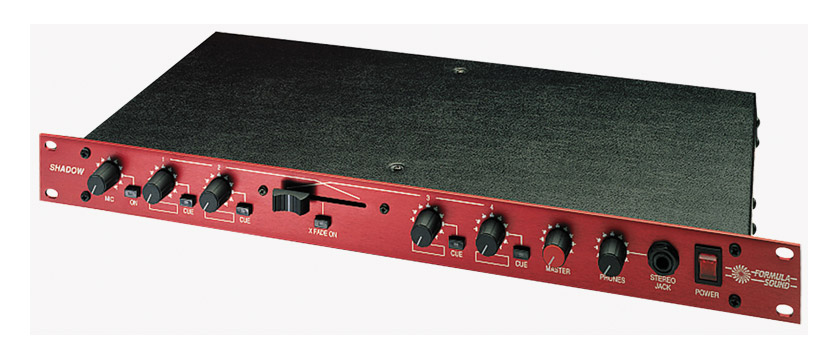

The Shadow is designed as a rack mounting ‘back-up’ mixer for entertainment venues, with enough facilities to keep music playing if a main mixer fails, or requires maintenance, but is also ideal where a high quality basic mixer is required. The 1U rackmounting unit has rotary volume controls for mic input, 4 stereo inputs (two with RIAA equalisation, internally defeatable), master output level and headphones level. A horizontal linear fader crossfades between stereo inputs 1 & 2 and 3 & 4. The mic channel has an on/off switch and each stereo channel has a cue switch. There is also a crossfade on-off and a mains switch. Rear panel presets adjust mic gain, LF and HF EQ, and stereo channel gains. The mic and stereo inputs and main stereo outputs have parallel ‘through’ connectors so the Shadow may be inserted ‘in line’ with the main mixer. When the Shadow is un-powered, internal gold-plated relays bypass it’s electronics, to provide normal signal routing. If the main mixer fails or requires maintenance, the Shadow is switched on and provides the required output.
||<0.01% THD @ 1kHz, +26dBV
|Equivalent input noise:
||–127dBV Microphone input (150R)
||–90dBV Stereo input @ 10dB gain
||±26dBV into 600 ohm load
||Balanced XLR female with relay linked male loop output
||Gold plated phono in and loop, relay linked
||Balanced XLR male and female, relay linked
||482(w) ×200(d) ×44.5(h)mm.
