SHURE WIRELESS SYSTEMS - BLX Series

55 items

Shure BLX wireless radiomic systems have been designed for users wanting to make the move from wired microphones into the wireless microphone market. Systems are available with a variety of handheld, headworn, or lavalier options, and either single or dual channel broadcast. Up to twelve BLX series systems can be used within channels 606-630MHz (channel 38), depending upon region and band congestion.

Shure have implemented a ‘QuickScan’ feature that allows the user to locate the best available frequency with a single button press. Internal micro-processing controls the diversity of the antenna to reduce RF signal dropout.

Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.

Unless otherwise stated, the below equipment is operational on channel 38, 606-630Mhz.

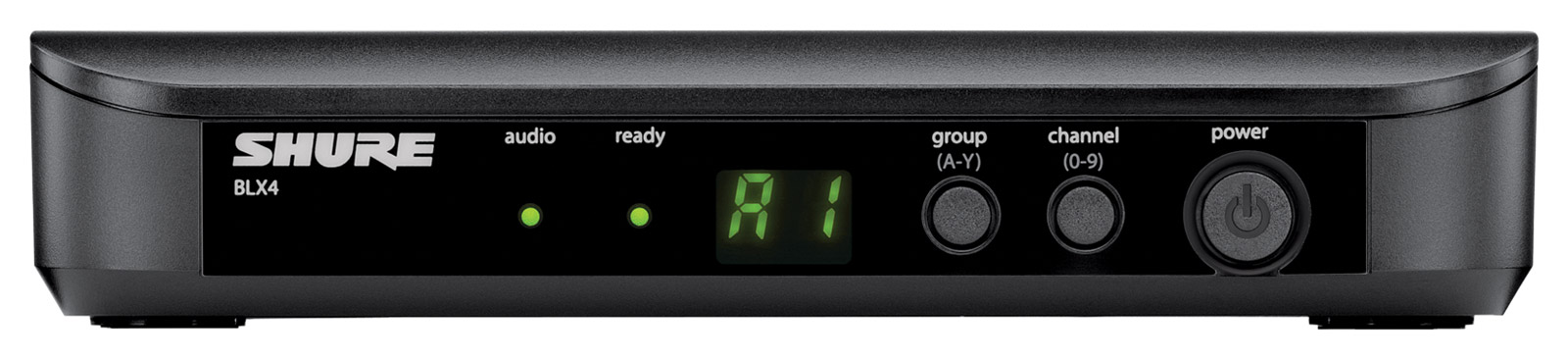

BLX4 Receiver – Fixed

Shure BLX4 wireless receiver is manufactured from moulded ABS plastic and is the most cost effective of the BLX receivers, whilst offering the same ‘one-touch’ channel and group scan features along with internal antenna to avoid damage in transit. The front facing panel of the receiver has a power switch, soft-touch channel and group scan buttons and a two digit LED display showing the channel set. A green LED illuminates when the receiver has locked onto a transmitters frequency and is ready to operate. A second, dual-colour LED illuminates green to signify normal audio levels, and red to signify overload or clipping. The rear panel has 12-15V, 160mA DC input, 3-pin balanced XLR output, and 6.3mm jack output at line level.

Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 40 x 188 x 103mm. Weight: 241g


BLX4R Receiver – Rackmount

Shure BLX4R wireless receiver has many of the features of the BLX4, including channel and group scan buttons, however it is manufactured from moulded ABS plastic and metal, and is designed to be secured into a single 19-inch rack space using the included rack adapter kit. The front facing panel of the receiver hosts the power switch, soft-touch channel and group scan buttons and a LCD display that shows the channel set, RF strength, audio signal level, and antenna operation. A dual-colour LED illustrates the corresponding transmitter’s battery status, with green signifying a run time greater than one hour, and red signifying a run time of less than one hour. The BLX4R also has a control and power lock function to avoid risk of unwanted changes.

The rear panel has 12-15V, 260mA DC input, 3-pin balanced XLR output, 6.3mm jack output at line level, output volume control – adjustable with screwdriver; and two BNC connectors to connect the removable antenna.

Included accessories: Rack mount bracket, long rackmount bracket, link bracket, hardware kit, swivel adapter, thread adapter, 2x antenna, 2x bulkhead BNC adapters, BNC cable, PS24 power supply.

Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 45 x 198 x 163mm. Weight: 998g

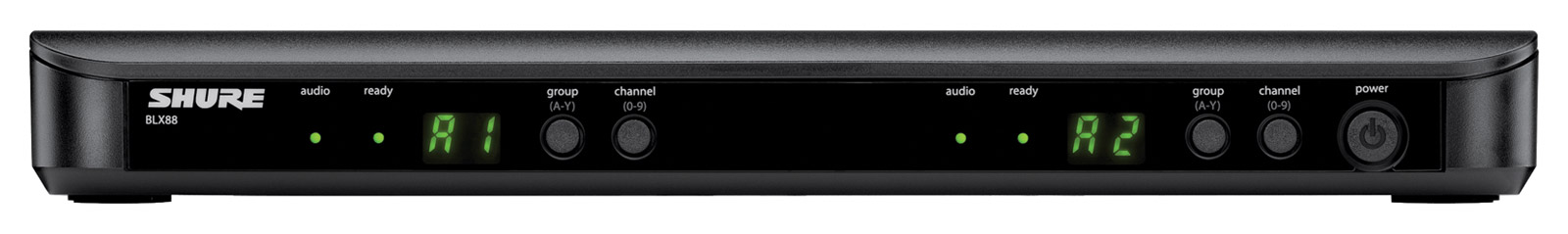

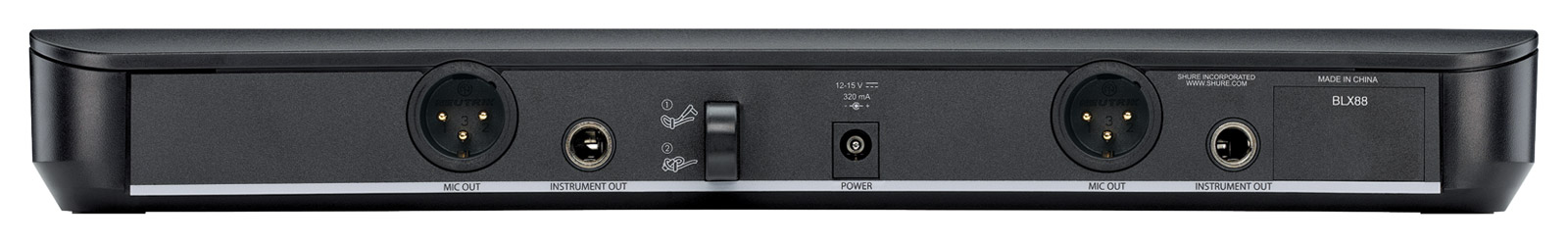

BLX88 Receiver – Dual, fixed

Shure BLX88 is a dual channel wireless receiver that has all the features of the BLX4 duplicated across its two channels. A single power supply input is positioned on the rear facing panel.

Image rejection: 50dB, typical. RF sensitivity: -105dBm, for 12dB SINAD, typical. Dimensions (HxWxD): 40 x 388 x 116mm. Weight: 429g

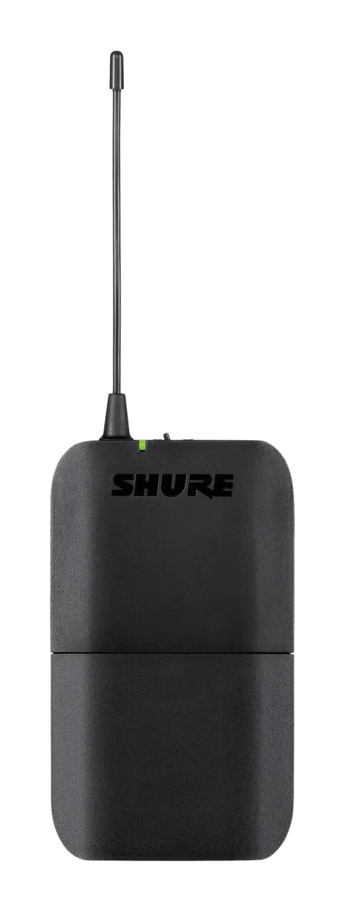

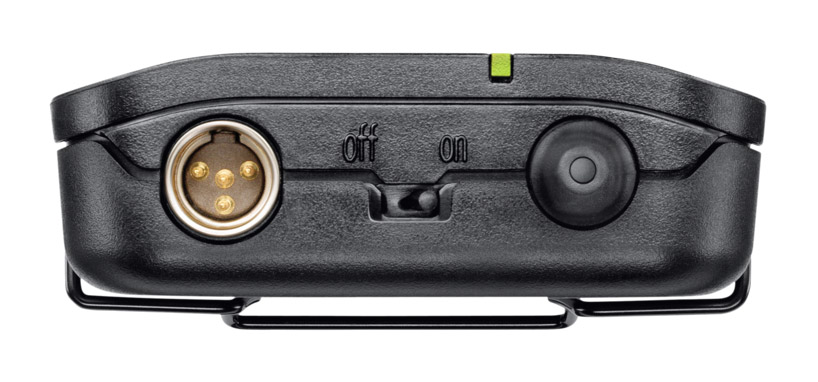

BLX1 Transmitter – Beltpack

Shure BLX1 beltpack transmitter has all the functionality of the BLX2 handheld transmitter, however it is designed to be used with plugin microphones including SM31FH or SM35 headworn microphones, MX153 mic, or CVL lavalier mic. All function buttons are located within the battery compartment, which also uses two AA alkaline battery cells for operation up to 14hours. The upper edge of the beltpack transmitter has a fixed whip antenna, and 4-pin TA4 microphone input.

Gain adjustment range: 26dB. Input impedance: 1000kOhm. Dimensions (HxWxD): 110 x 64 x 21mm. Weight: 75g


BLX2 Transmitter – Handheld

Shure BLX2 handheld transmitter is available with various capsules including SM58, Beta 58A, and PG58. Two AA alkaline battery cells, which are inserted in the battery compartment beneath the microphones screw off lower shaft, provide up to 14hours of continuous use. Also within this compartment are buttons for group and channel selection, and an LED display showing the current channel setting. On the main shaft of the microphone a power button is located beneath a single, multi-coloured LED which illuminates green when ready for use, flashing red when controls are locked, solid red when battery power is less than one hour, and flashing red before shutdown when the batteries required changing.

Dimensions (HxWxD): 224 x 53 x 53mm. Weight: 340g

BLX Wireless Systems - Single

BLX Wireless Systems - Dual

Model Type Transmitter Microphone Receiver
74-5495 BLX188 Instrument 2x BLX1 2x WA302 cable BLX88
74-5519 BLX188/CVL Lavalier 2x BLX1 2x CVL BLX88
74-5521 BLX188/W85 Lavalier 2x BLX1 2x WL185 BLX88
74-5524 BLX188/MX53 Headworn 2x BLX1 2x MX153 BLX88
74-5522 BLX188/SM31 Headworn 2x BLX1 2x SM31 BLX88
74-5523 BLX188/SM35 Headworn 2x BLX1 2x SM35 BLX88
74-5516 BLX288/PG58 Handheld 2x BLX2/PG58 - BLX88
74-5517 BLX288/SM58 Handheld 2x BLX2/SM58 - BLX88
74-5518 BLX288/B58 Handheld 2x BLX2/B58 - BLX88

BLX Wireless Systems - Combination

Model Type Transmitter Microphone Receiver

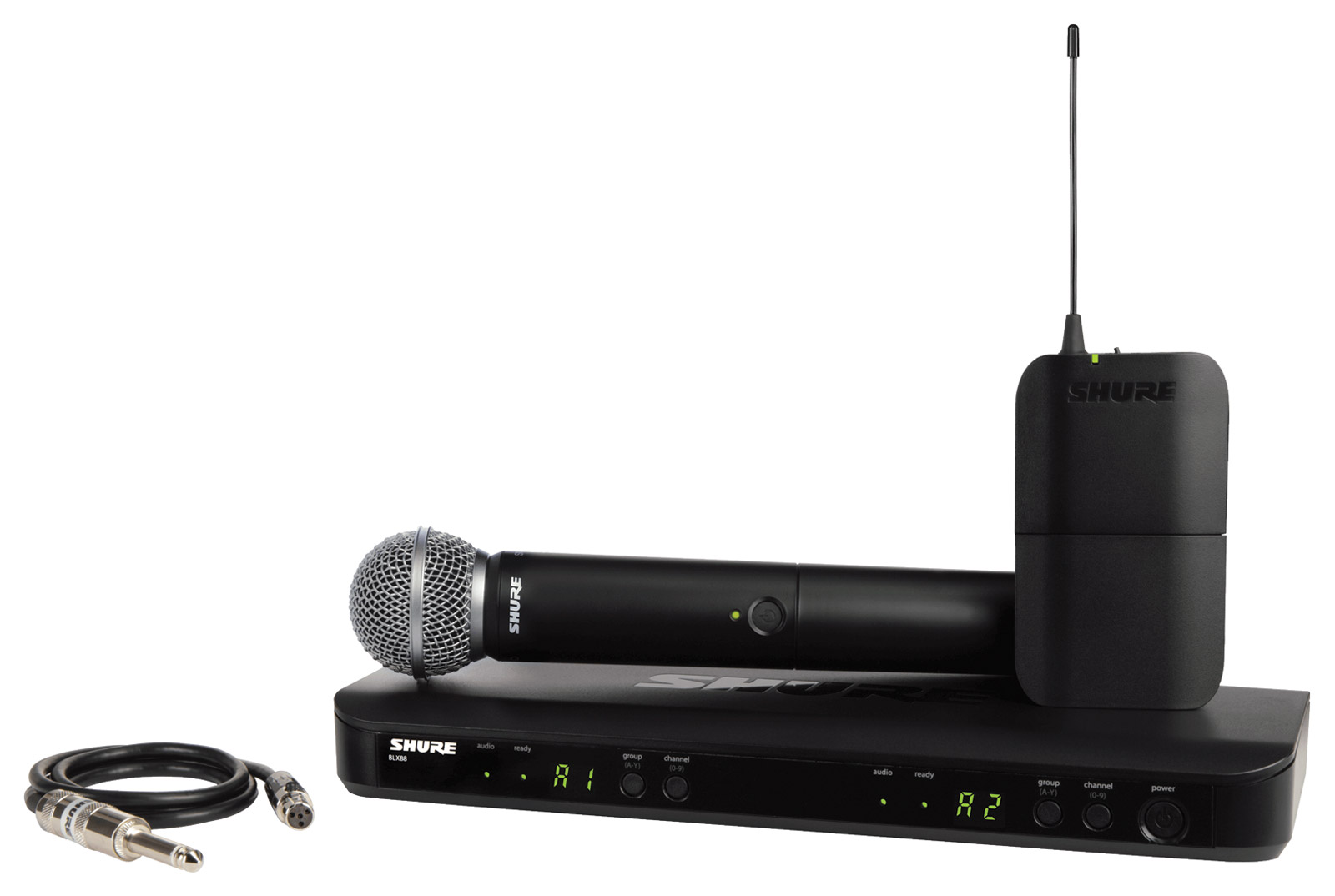

74-5520 BLX1288/SM58 Handheld/Instrument 1x BLX1, 1x BLX2/SM58 1x WA302 cable BLX88

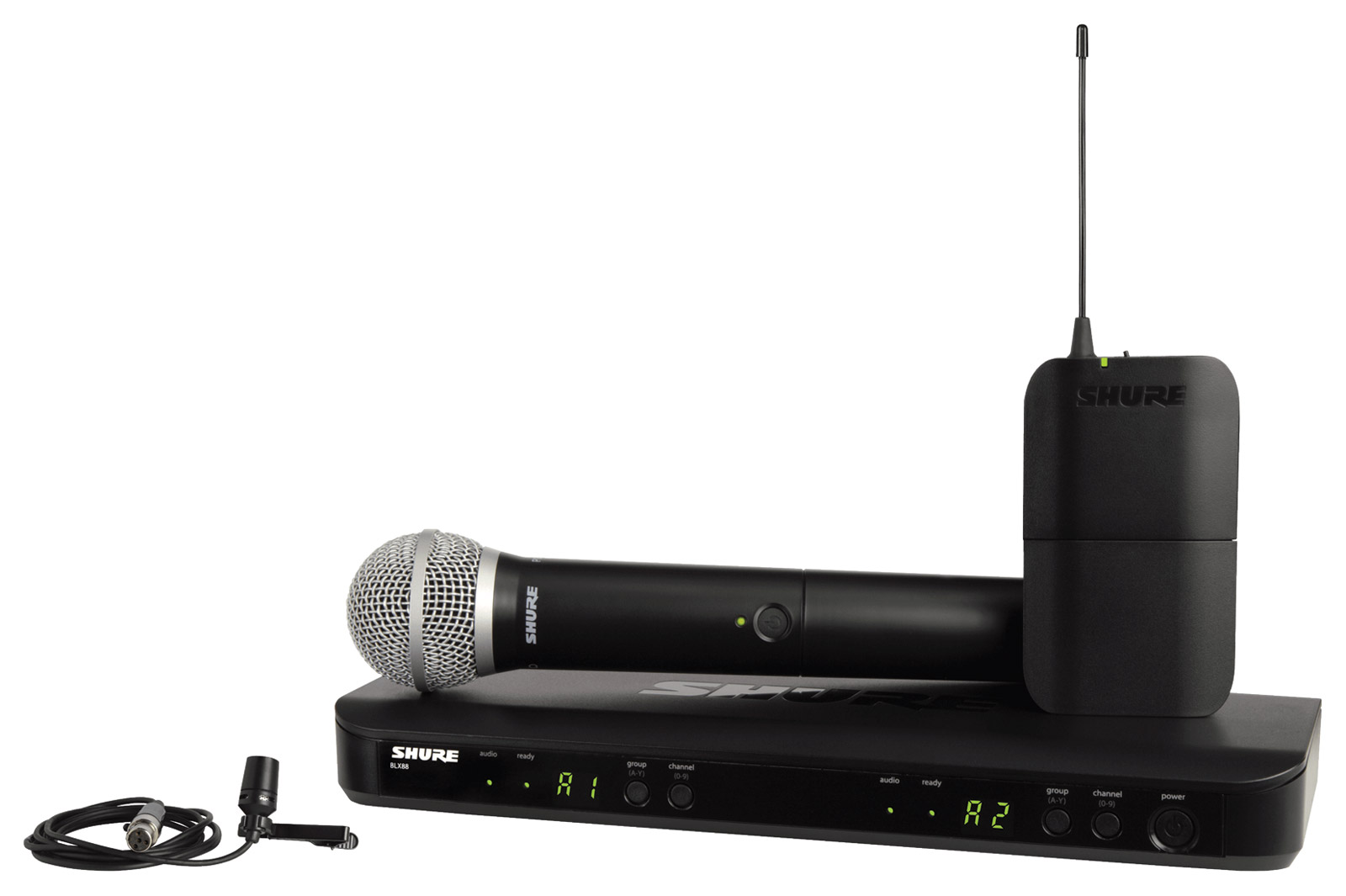

74-5529 BLX1288/CVL Handheld/Lavalier 1x BLX1, 1x BLX2/PG58 CVL BLX88

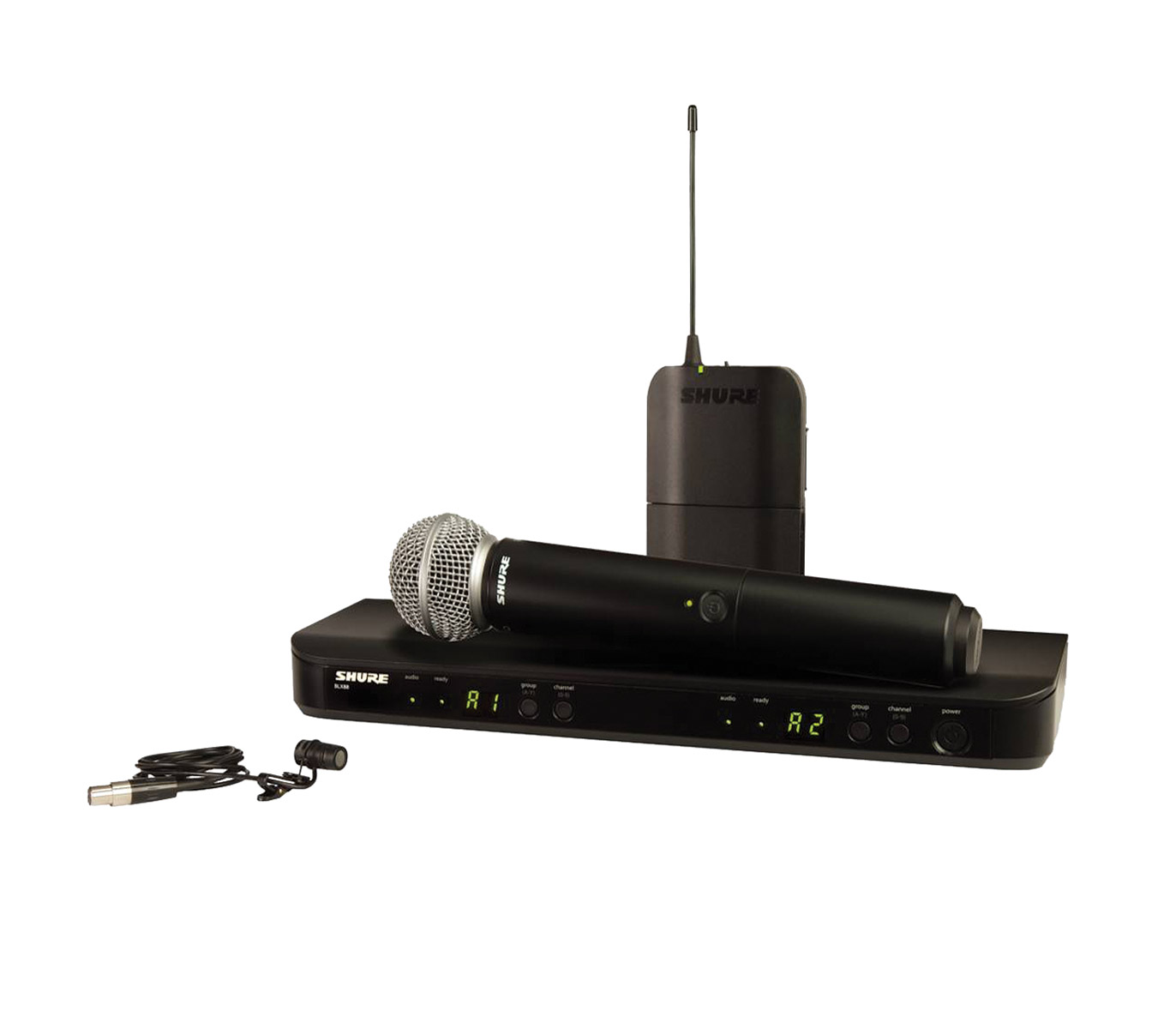

74-5525 BLX1288/W85 Handheld/Lavalier 1x BLX1, 1x BLX2/SM58 WL185 BLX88

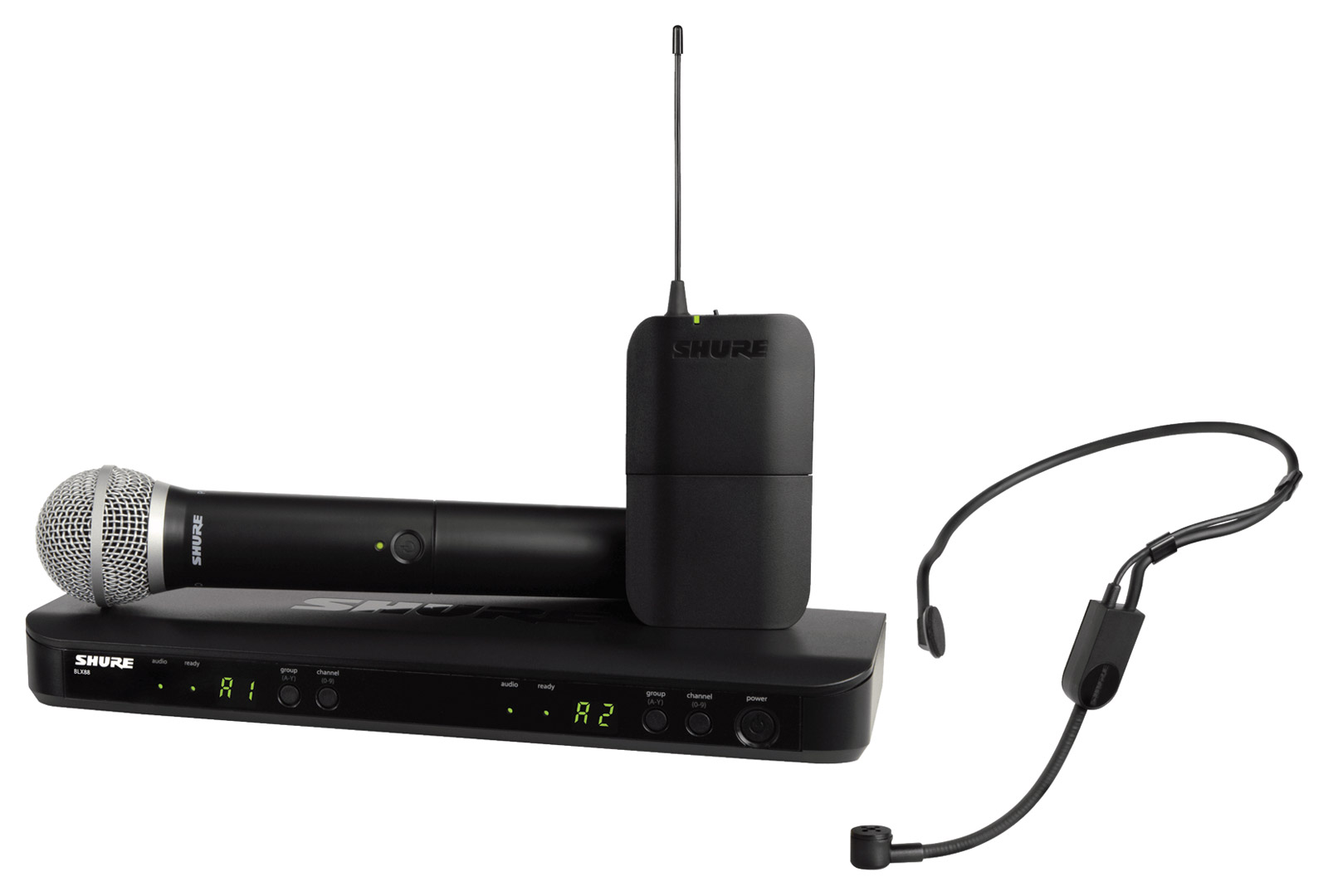

74-5530 BLX1288/P31 Handheld/Headworn 1x BLX1, 1x BLX2/PG58 PGA31 BLX88
74-5528 BLX1288/MX53 Handheld/Headworn 1x BLX1, 1x BLX2/SM58 MX153 BLX88
74-5526 BLX1288/SM31 Handheld/Headworn 1x BLX1, 1x BLX2/SM58 SM31 BLX88
74-5527 BLX1288/SM35 Handheld/Headworn 1x BLX1, 1x BLX2/SM58 SM35 BLX88

Accessories


WA712

Available in blue, pink, red, white, gold, or silver finish, this coloured handle aid identification along with offering alternate cosmetics. WA712 is compatible with BLX2/PG58 handheld transmitters and has a 'simple installation and removal process'.


WA713

Like WA712, WA713 is available in blue, pink, red, white, gold, or silver finish. The coloured handle is compatible with BLX2/SM58 or BLX2/B58 handheld transmitters and has a 'simple installation and removal process'.


WA621

A pack of 5 colour ID caps to fit the antenna of BLX2 handheld transmitter and aid identification. The pack of snap on caps contains 1x blue, 1x green, 1x yellow, 1x white, and 1x red caps.`

  Description Price £
ex. VAT
Add to basket
Delivery
SHURE BLX4 RADIOMIC RECEIVER Fixed, 606-630MHz (K3E) Stock code: 74-5481
Available in 3‑5 working days Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£151.00
SHURE BLX4R RADIOMIC RECEIVER Rackmount, 606-630MHz (K3E) Stock code: 74-5482
Available in Call Ordered on demand, available in Call.
£236.00
SHURE BLX88 RADIOMIC RECEIVER Fixed, dual channel, 606-630MHz (K3E) Stock code: 74-5483
Available in Call Ordered on demand, available in Call.
£271.00
SHURE BLX1 RADIOMIC TRANSMITTER Bodypack, 606-630MHz (K3E) Stock code: 74-5484
Available in Call Ordered on demand, available in Call.
£119.00
SHURE BLX2/PG58 RADIOMIC TRANSMITTER Handheld, PG58 capsule, 606-630MHz (K3E) Stock code: 74-5485
Available in Call Ordered on demand, available in Call.
£116.00
SHURE BLX2/SM58 RADIOMIC TRANSMITTER Handheld, SM58 capsule, 606-630MHz (K3E) Stock code: 74-5486
Available in Call Ordered on demand, available in Call.
£143.00
SHURE BLX2/B58 RADIOMIC TRANSMITTER Handheld, Beta 58A capsule, 606-630MHz (K3E) Stock code: 74-5487
Available in Call Ordered on demand, available in Call.
£220.00
SHURE BLX14 RADIOMIC SYSTEM Instrument, with WA302 Stock code: 74-5489
Available in Call Ordered on demand, available in Call.
£271.00
SHURE BLX14/CVL RADIOMIC SYSTEM Lavalier, CVL mic, 606-630MHz (K3E) Stock code: 74-5506
Available in Call Ordered on demand, available in Call.
£312.00
SHURE BLX14/MX53 RADIOMIC SYSTEM Earworn, MX153 mic, 606-630MHz (K3E) Stock code: 74-5505
Available in Call Ordered on demand, available in Call.
£431.00

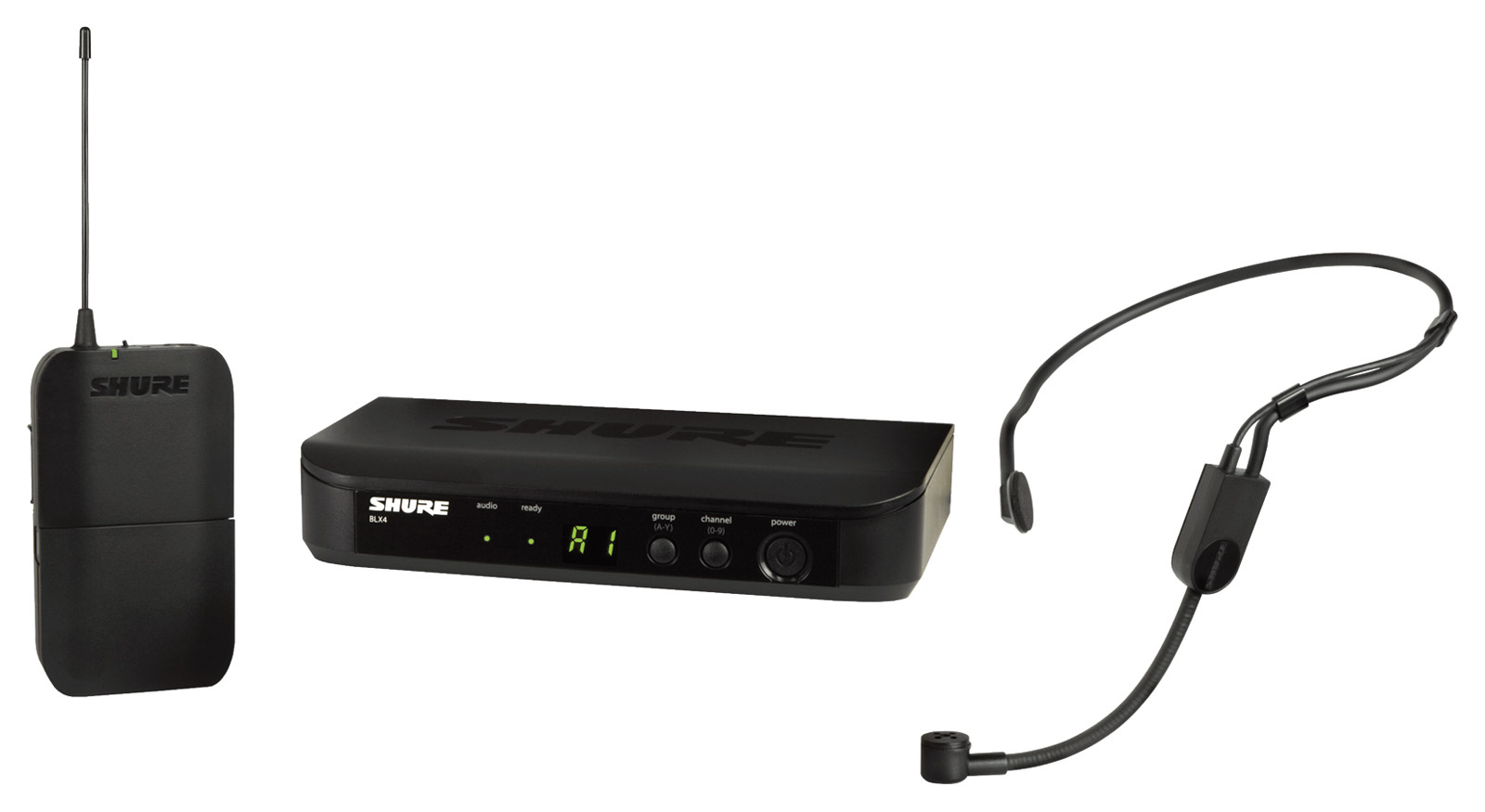

SHURE BLX14/P31 RADIOMIC SYSTEM Headworn, PGA31 mic, 606-630MHz (K3E) Stock code: 74-5491
Available in Call Ordered on demand, available in Call.
£312.00

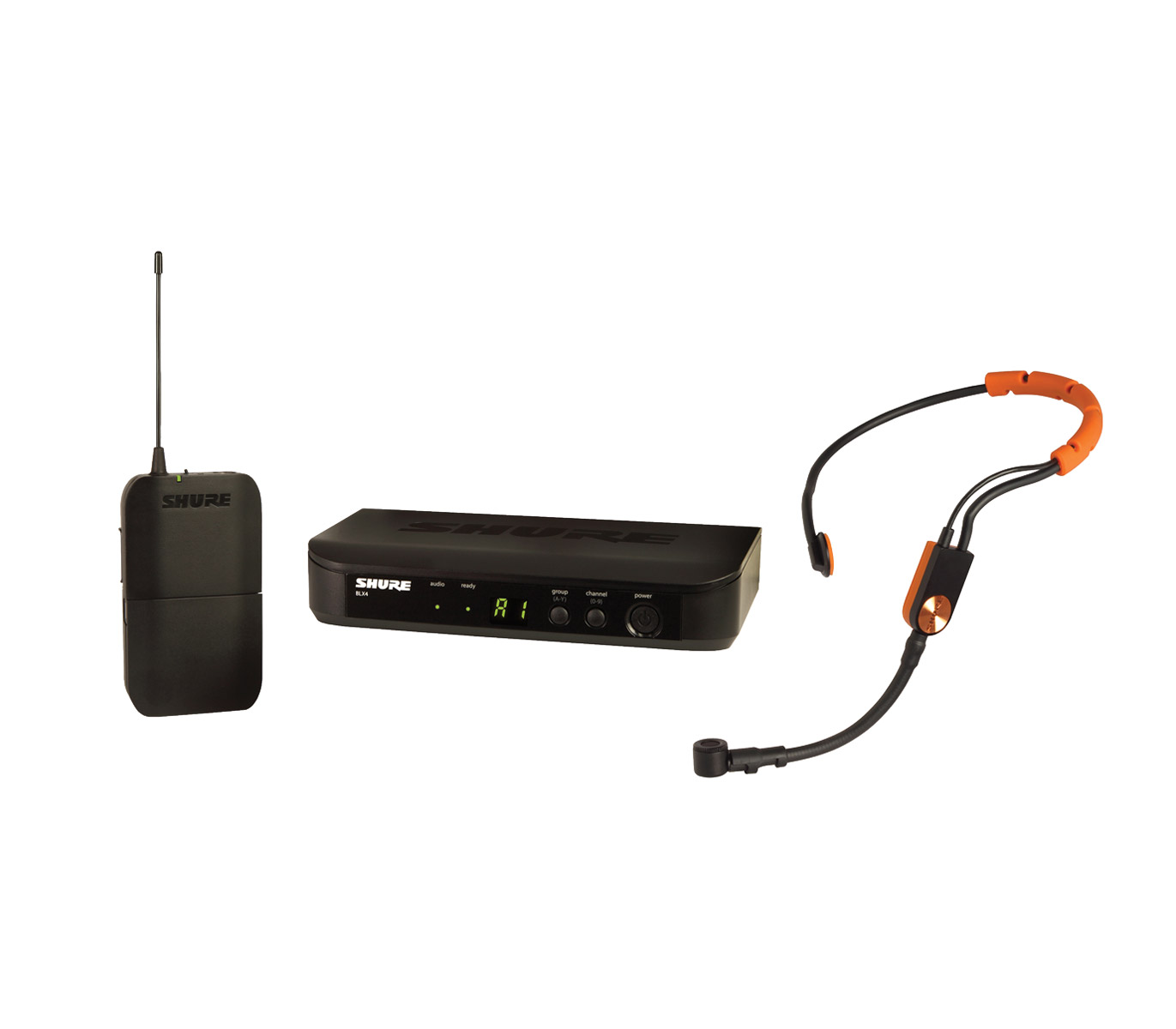

SHURE BLX14/SM31 RADIOMIC SYSTEM Headworn, SM31FH mic, 606-630MHz (K3E) Stock code: 74-5503
Available in Call Ordered on demand, available in Call.
£376.00
SHURE BLX14/SM35 RADIOMIC SYSTEM Headworn, SM35 mic, 606-630MHz (K3E) Stock code: 74-5504
Available in Call Ordered on demand, available in Call.
£383.00
SHURE BLX14/W85 RADIOMIC SYSTEM Lavalier, WL185 mic, 606-630MHz (K3E) Stock code: 74-5507
Available in Call Ordered on demand, available in Call.
£391.00
SHURE BLX14R/CVL RADIOMIC SYSTEM Lavalier, CVL mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5514
Available in Call Ordered on demand, available in Call.
£391.00
SHURE BLX14R/MX53 RADIOMIC SYSTEM Earworn, MX153 mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5513
Available in Call Ordered on demand, available in Call.
£503.00

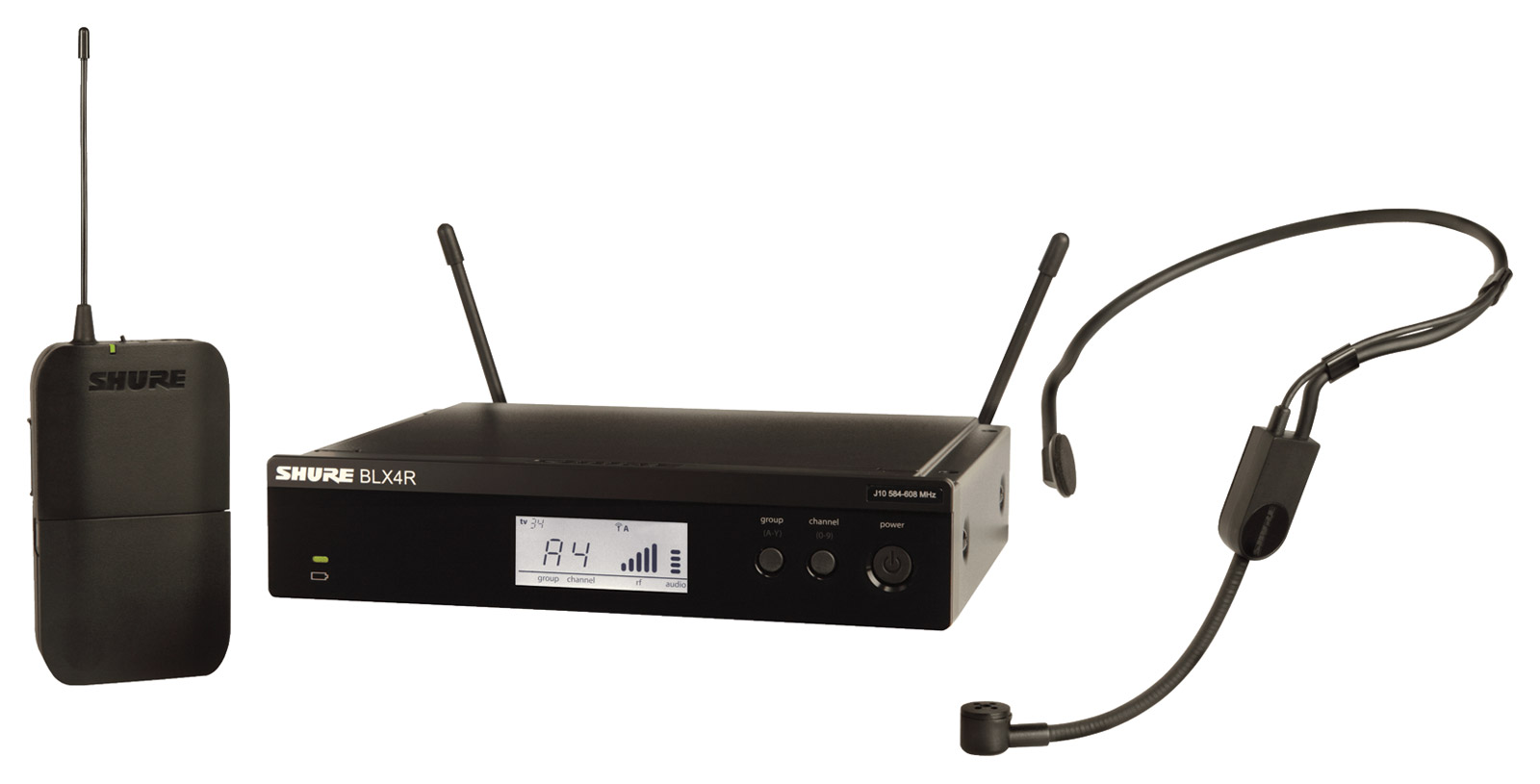

SHURE BLX14R/P31 RADIOMIC SYSTEM Headworn, PGA31 mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5492
Available in Call Ordered on demand, available in Call.
£391.00

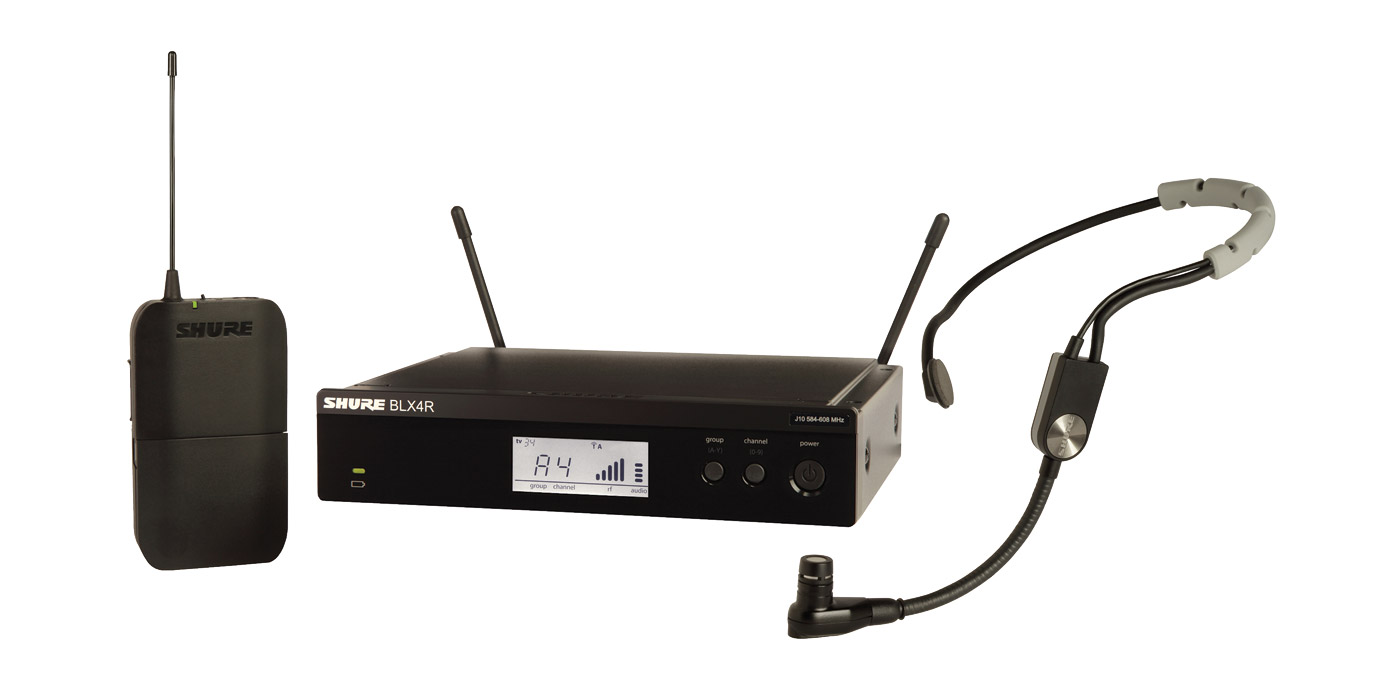

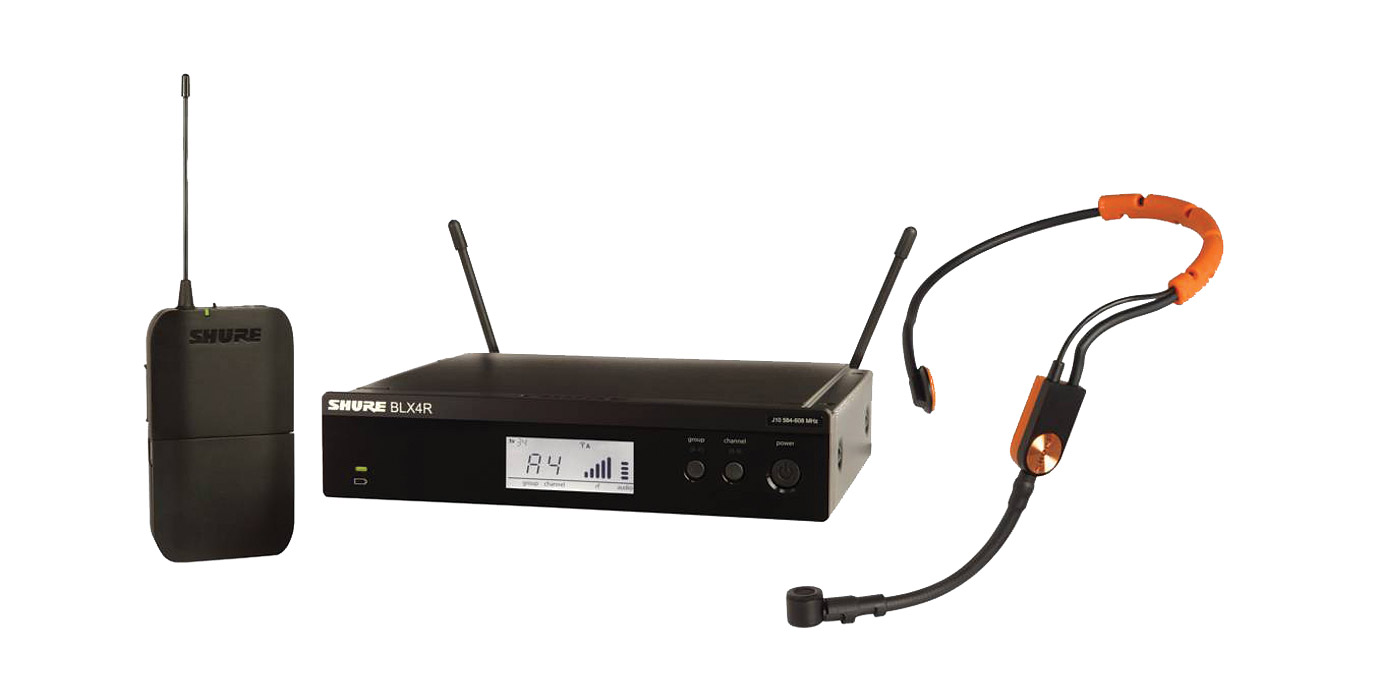

SHURE BLX14R/SM31 RADIOMIC SYSTEM Headworn, SM31FH mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5511
Available in Call Ordered on demand, available in Call.
£455.00
SHURE BLX14R/SM35 RADIOMIC SYSTEM Headworn, SM35 mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5512
Available in Call Ordered on demand, available in Call.
£463.00

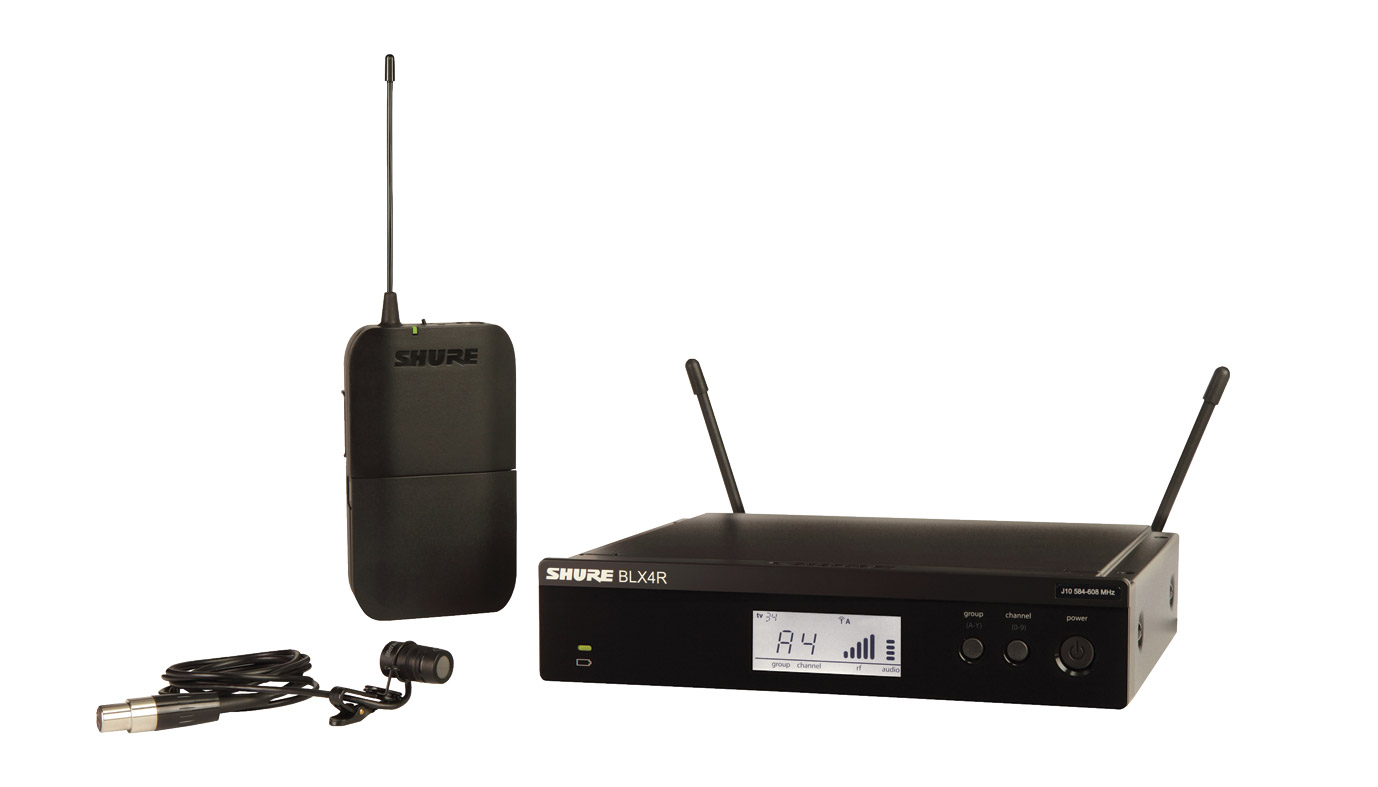

SHURE BLX14R/W85 RADIOMIC SYSTEM Lavalier, WL185 mic, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5515
Available in Call Ordered on demand, available in Call.
£471.00
SHURE BLX24/B58 RADIOMIC SYSTEM Handheld, Beta 58A capsule, 606-630MHz (K3E) Stock code: 74-5502
Available in Call Ordered on demand, available in Call.
£344.00
SHURE BLX24/PG58 RADIOMIC SYSTEM Handheld, PG58 capsule, 606-630MHz (K3E) Stock code: 74-5488
Available in Call Ordered on demand, available in Call.
£248.00
SHURE BLX24/SM58 RADIOMIC SYSTEM Handheld, SM58 capsule, 606-630MHz (K3E) Stock code: 74-5501
Available in Call Ordered on demand, available in Call.
£280.00

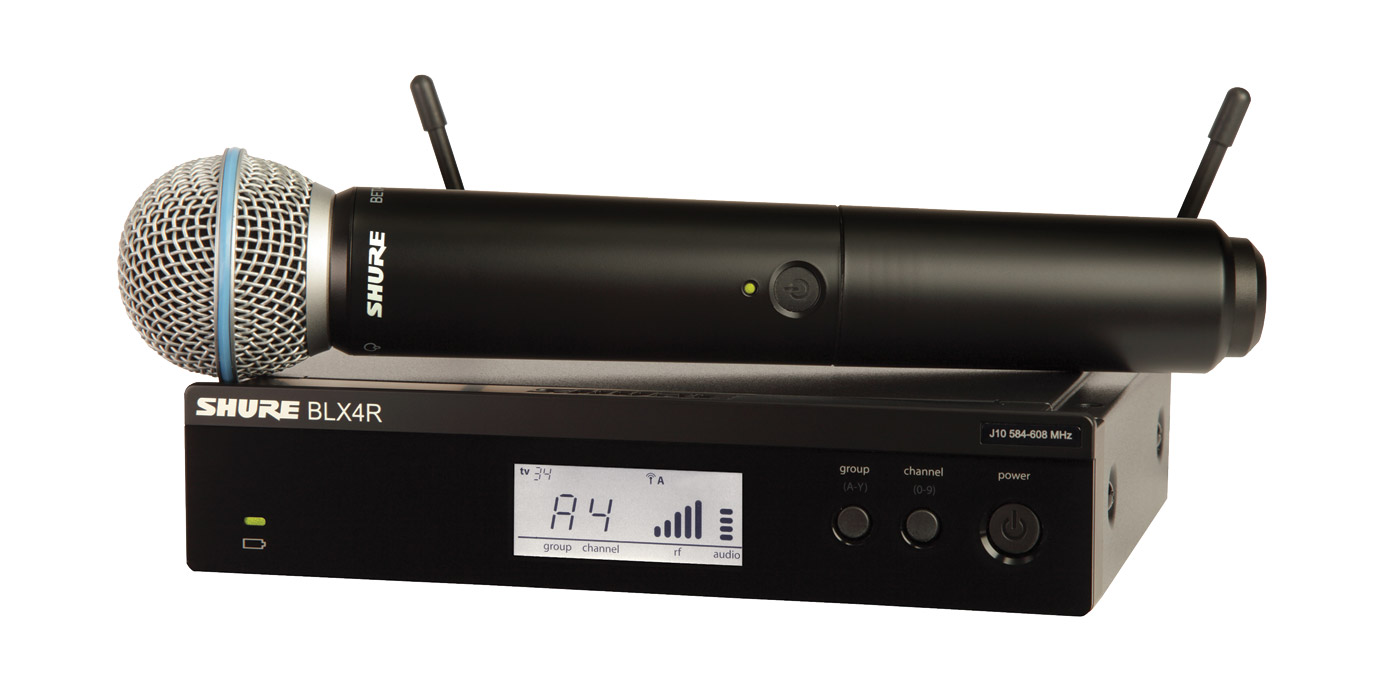

SHURE BLX24R/B58 RADIOMIC SYSTEM Handheld, Beta 58A capsule, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5509
Available in Call Ordered on demand, available in Call.
£423.00
SHURE BLX24R/PG58 RADIOMIC SYSTEM Handheld, PG58 capsule, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5494
Available in Call Ordered on demand, available in Call.
£324.00
SHURE BLX24R/SM58 RADIOMIC SYSTEM Handheld, SM58 capsule, rackmount receiver, 606-630MHz (K3E) Stock code: 74-5508
Available in Call Ordered on demand, available in Call.
£351.00

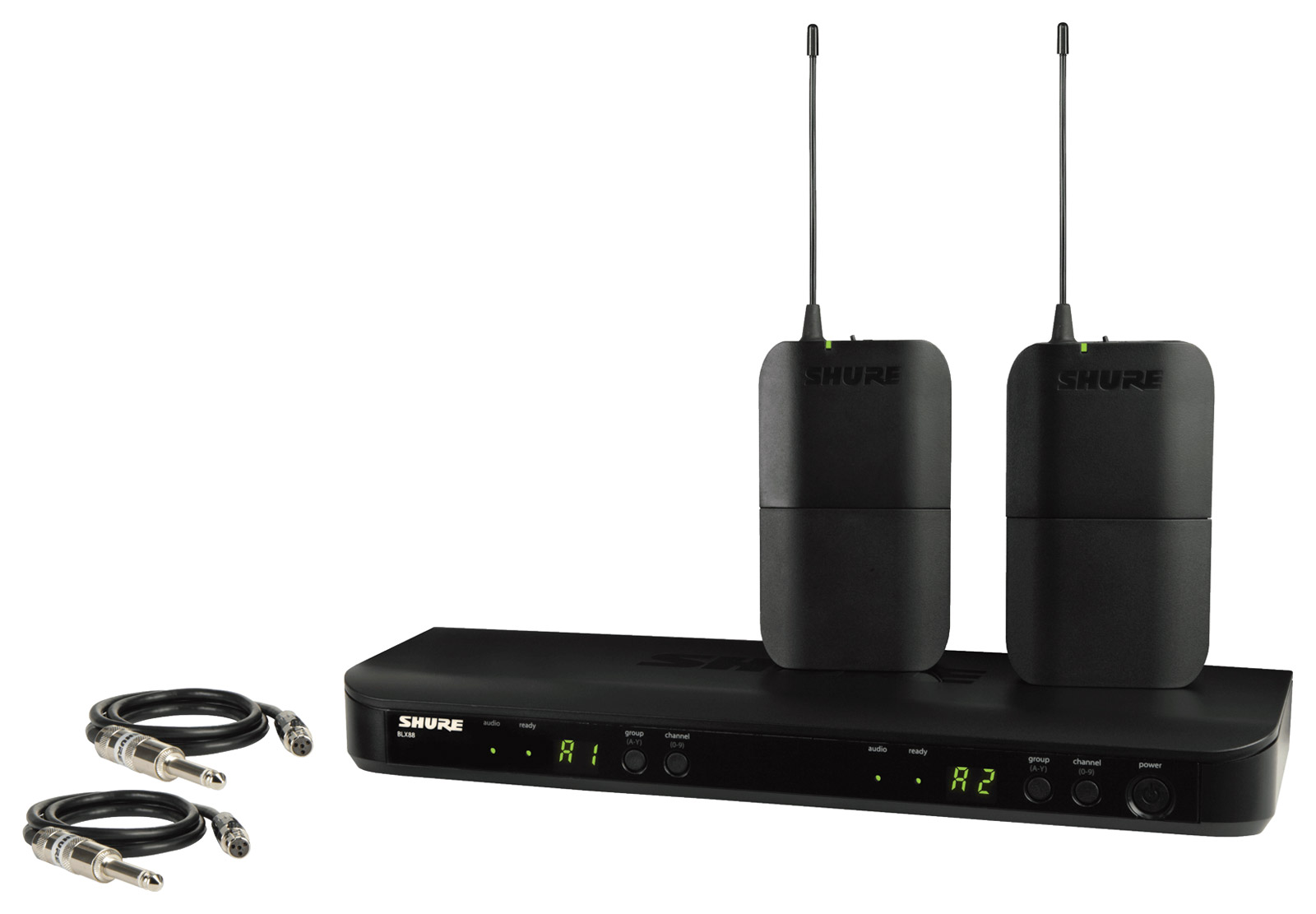

SHURE BLX188 RADIOMIC SYSTEM Dual bodypack transmitters, with 2x WA302, 606-630MHz (K3E) Stock code: 74-5495
Available in Call Ordered on demand, available in Call.
£519.00

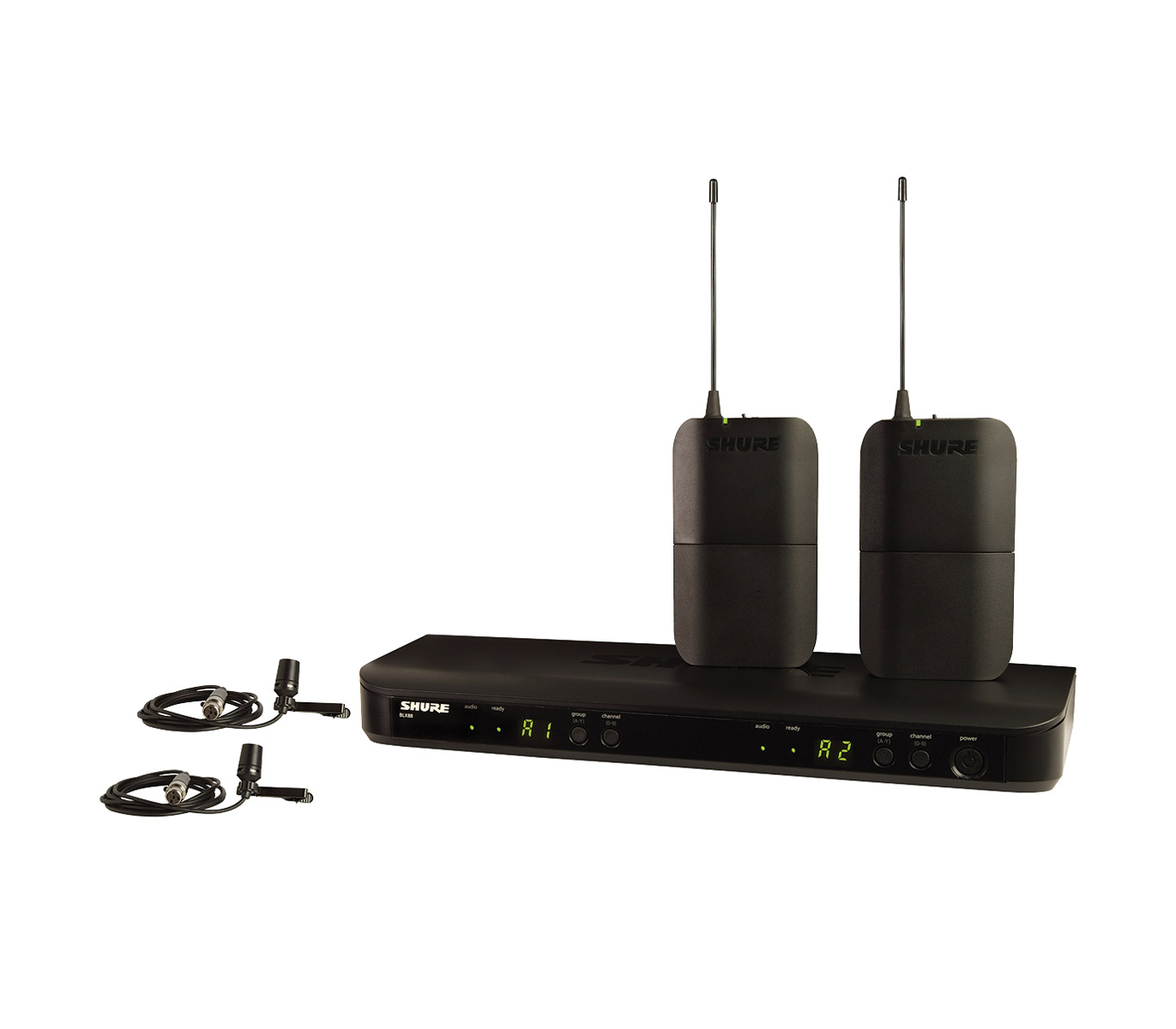

SHURE BLX188/CVL RADIOMIC SYSTEM Dual lavalier, CVL mics, 606-630MHz (K3E) Stock code: 74-5519
Available in Call Ordered on demand, available in Call.
£591.00
SHURE BLX188/MX53 RADIOMIC SYSTEM Dual headworn, MX153 mics, 606-630MHz (K3E) Stock code: 74-5524
Available in Call Ordered on demand, available in Call.
£823.00
SHURE BLX188/SM31 RADIOMIC SYSTEM Dual headworn, SM31 mics, 606-630MHz (K3E) Stock code: 74-5522
Available in Call Ordered on demand, available in Call.
£719.00
SHURE BLX188/SM35 RADIOMIC SYSTEM Dual headworn, SM35 mics, 606-630MHz (K3E) Stock code: 74-5523
Available in Call Ordered on demand, available in Call.
£735.00
SHURE BLX188/W85 RADIOMIC SYSTEM Dual lavalier, WL185 mics, 606-630MHz (K3E) Stock code: 74-5521
Available in Call Ordered on demand, available in Call.
£759.00

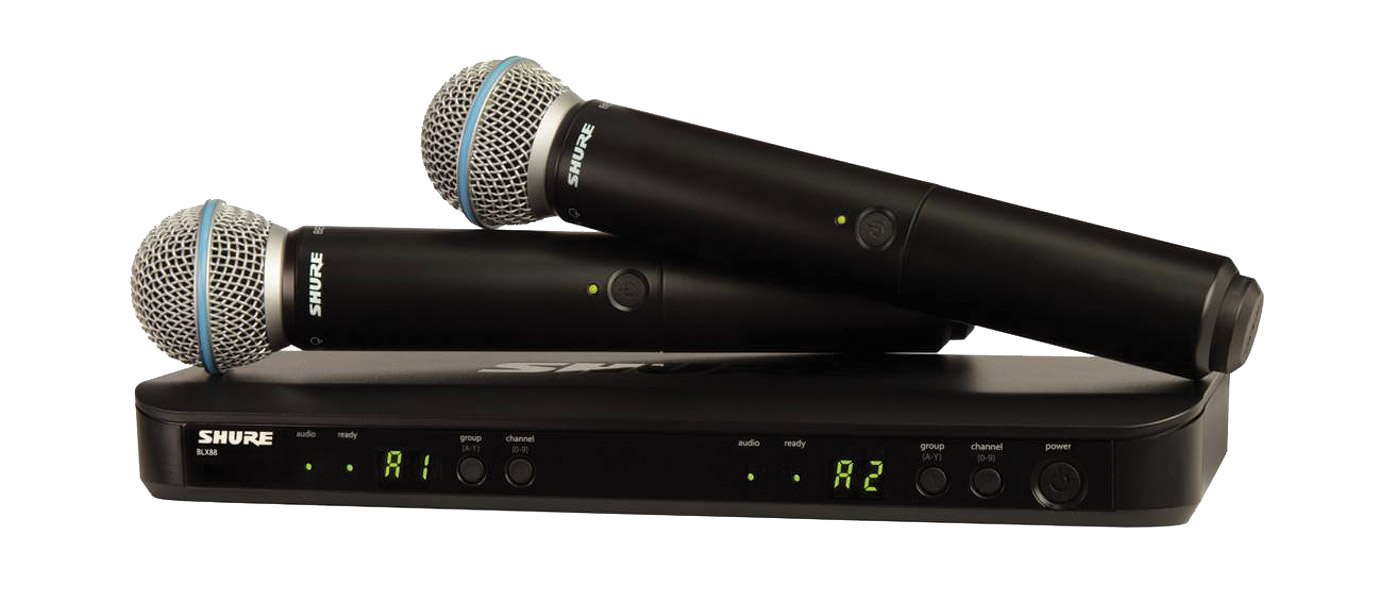

SHURE BLX288/B58 RADIOMIC SYSTEM Dual handheld, Beta 58A capsules, 606-630MHz (K3E) Stock code: 74-5518
Available in Call Ordered on demand, available in Call.
£655.00
SHURE BLX288/PG58 RADIOMIC SYSTEM Dual handheld, PG58 capsules, 606-630MHz (K3E) Stock code: 74-5516
Available in Call Ordered on demand, available in Call.
£471.00
SHURE BLX288/SM58 RADIOMIC SYSTEM Dual handheld, SM58 capsules, 606-630MHz (K3E) Stock code: 74-5517
Available in Call Ordered on demand, available in Call.
£519.00
SHURE BLX1288/CVL RADIOMIC SYSTEM Combo handheld/lavalier, PG58 and CVL, 606-630MHz (K3E) Stock code: 74-5529
Available in Call Ordered on demand, available in Call.
£535.00

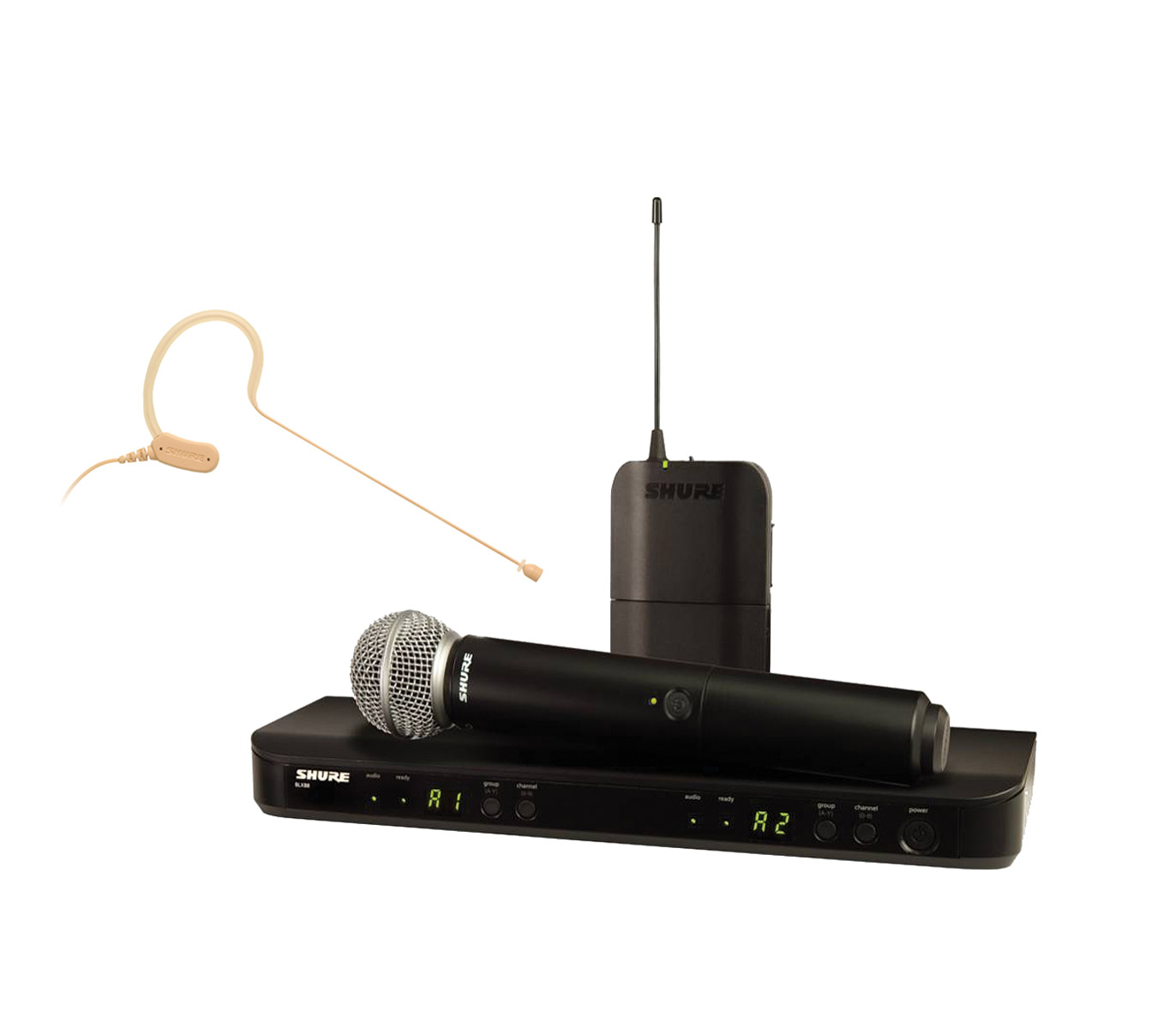

SHURE BLX1288/MX53 RADIOMIC SYSTEM Combo handheld/headworn, SM58 and MX153, 606-630MHz (K3E) Stock code: 74-5528
Available in Call Ordered on demand, available in Call.
£672.00
SHURE BLX1288/P31 RADIOMIC SYSTEM Combo handheld/headworn, PG58 and PGA31, 606-630MHz (K3E) Stock code: 74-5530
Available in Call Ordered on demand, available in Call.
£535.00
SHURE BLX1288/SM31 RADIOMIC SYSTEM Combo handheld/headworn, SM58 and SM31FH, 606-630MHz (K3E) Stock code: 74-5526
Available in Call Ordered on demand, available in Call.
£623.00
SHURE BLX1288/SM35 RADIOMIC SYSTEM Combo handheld/headworn, SM58 and SM35, 606-630MHz (K3E) Stock code: 74-5527
Available in Call Ordered on demand, available in Call.
£631.00
SHURE BLX1288/SM58 RADIOMIC SYSTEM Combo handheld/instrument, SM58 and WA302, 606-630MHz (K3E) Stock code: 74-5520
Available in Call Ordered on demand, available in Call.
£519.00
SHURE BLX1288/W85 RADIOMIC SYSTEM Combo handheld/lavalier, SM58 and WL185, 606-630MHz (K3E) Stock code: 74-5525
Available in Call Ordered on demand, available in Call.
£636.00

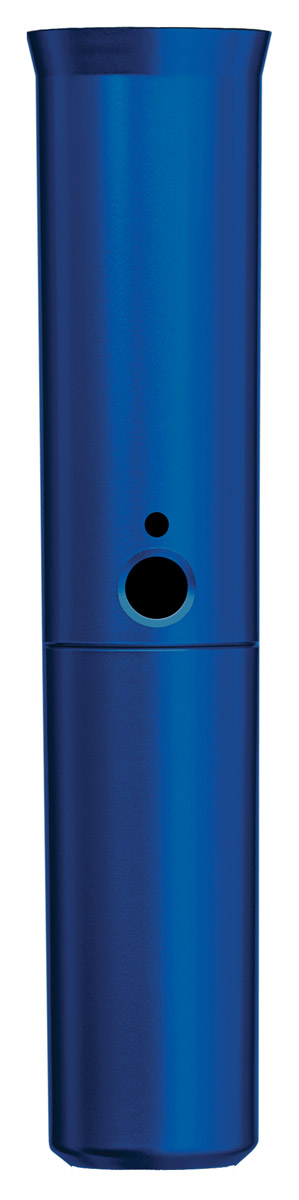

SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, blue Blue Stock code: 74-5433
Available in Call Ordered on demand, available in Call.
£36.00

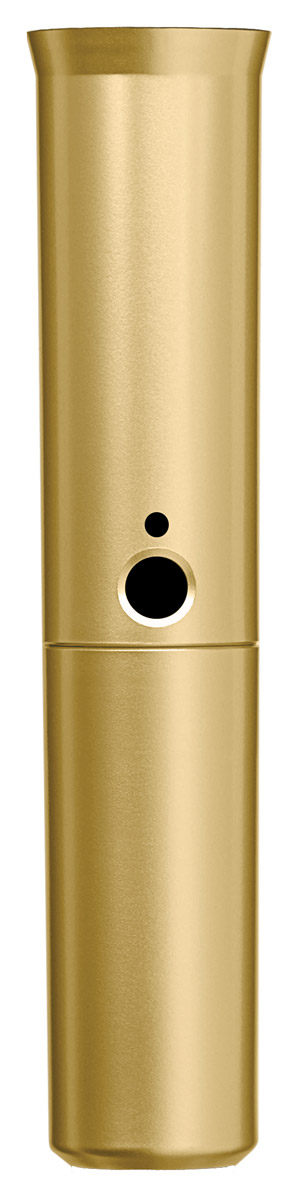

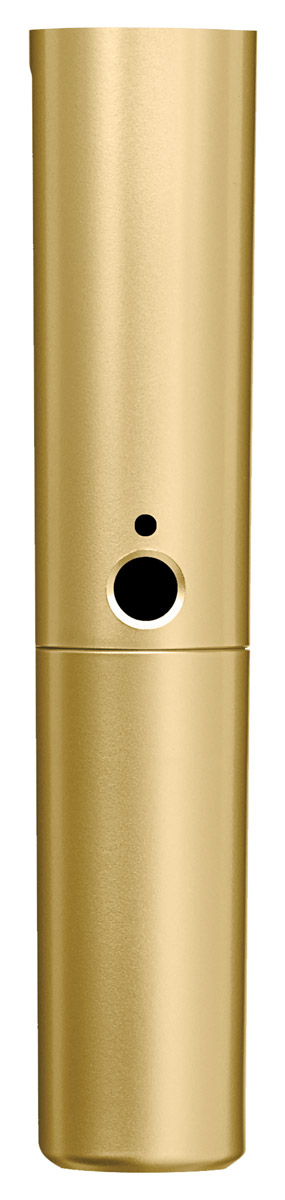

SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, gold Gold Stock code: 74-5434
Available in Call Ordered on demand, available in Call.
£36.00

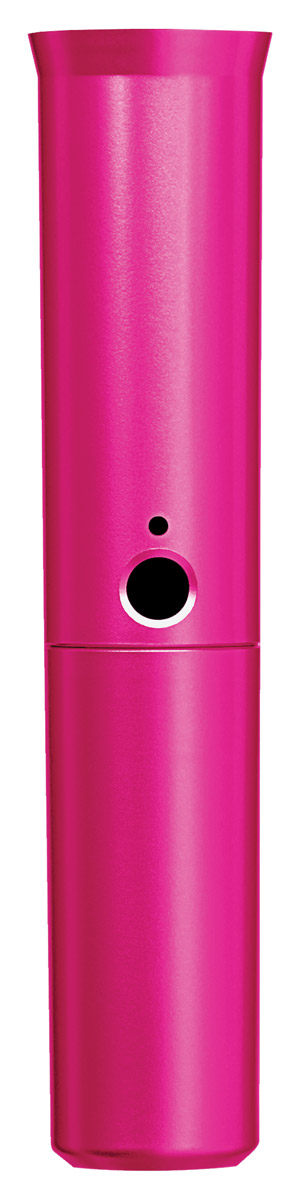

SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, pink Pink Stock code: 74-5435
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, red Red Stock code: 74-5436
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, silver Silver Stock code: 74-5437
Available in Call Ordered on demand, available in Call.
£36.00

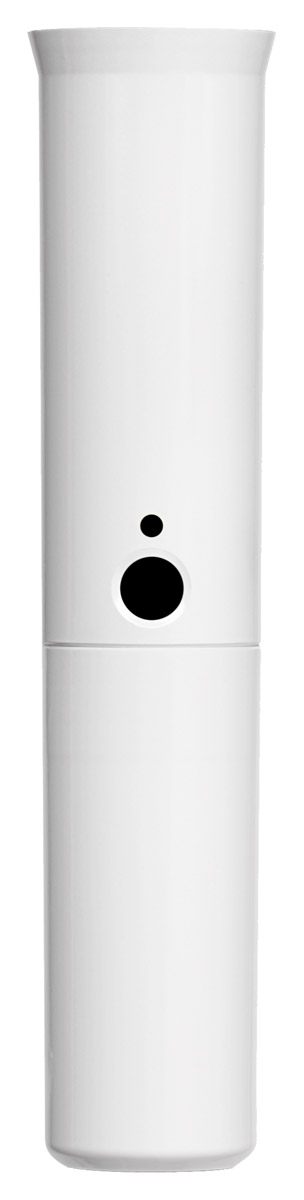

SHURE WA712 HANDLE Coloured, for BLX2/PG58 handheld transmitter, white White Stock code: 74-5438
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, red Red Stock code: 74-5446
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, silver Silver Stock code: 74-5447
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, white White Stock code: 74-5448
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, blue Blue Stock code: 74-5443
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, gold Gold Stock code: 74-5444
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA713 HANDLE Coloured, for BLX2/SM58 or BLX2/B58 handheld transmitter, pink Pink Stock code: 74-5445
Available in Call Ordered on demand, available in Call.
£36.00
SHURE WA621 COLOUR ID CAPS For BLX2 handheld transmitters, white/yellow/red/green/blue, pack of 5 WhiteYellowRedGreenBlue Stock code: 74-5442
Available in Call Ordered on demand, available in Call.
£14.00
per pack
