DOUGHTY SAFETY BONDS AND WIRE ROPE

28 items

For use to secure equipment, avoiding damage to those below should the primary fixing fail. Please note that in many countries there is location-specific safety legislation regulating the mounting of equipment in various environments, particularly public or work-places. If in any doubt whatsoever about suitability of these products for the intended purpose, the user should consult an appropriately qualified authority.

All cables are in accordance with BS 302, DIN 3055/3060. Safe working load (SWL) is given as a static rating.

Galvanised Wire Rope

Available in black or silver finish, these flexible design galvanised wire ropes are available in cut lengths in multiples of 1m. A full reel measures 100m in length. Construction to BS302, DIN3060.

Diameter SWL Silver Black
2mm 60kg T40500 T405001
3mm 100kg T40000 T400001
4mm 175kg T40100 T401001
5mm 275kg T40200 T402001
6mm 400kg T40300 T402001
8mm 650kg T40600 -

Thimbles, see DOUGHTY RIGGING HARDWARE, and cable grips are generally used to aid longevity and fastening of wire rope.

Cable Grips

Plated steel, for use with galvanised wire rope to form loops. Options available to fit 3mm, 4-5mm, 6-7mm, 8mm, and 9-10mm diameter wire rope.

Safety Bonds

Manufactured from flexible galvanised wire rope, these Doughty safety bonds are available in differing lengths, safety weight load capacities, cable diameter, and end type. These safety bonds could also be used for retaining accessories such as small loudspeakers, gel-frames and barn-doors, where the weight of the accessory is minute compared to the SWL of the bond.

Model Diameter Length SWL End one End two
T2849001 3mm 600mm 100kg Soft loop Soft loop
T2852001 4mm 600mm 175kg Soft loop Soft loop
T2860001 6mm 1000mm 400kg Soft loop Soft loop
T22001 3mm 585mm 15kg Soft loop M6 screwgate carbine hook
T220025 3mm 500mm 25kg Soft loop M6 screwgate carbine hook
T22101 3mm 500mm 15kg M6 screwgate carbine hook M6 screwgate carbine hook
T2840001 2mm 500mm 5kg Soft loop M4 spring hook
T2841001 2mm 600mm 20kg Soft loop M6 screwgate carbine hook
T2844001 4mm 600mm 36kg Thimbled loop M8 screwgate carbine hook
T2844501 4mm 1000mm 36kg Thimbled loop M8 screwgate carbine hook

TV Specification Bonds

TV specification bonds are proof-loaded and stamped. “Loop” types are manufactured to BBC TV 168A specification. They consist of a large soft loop, and two thimble ends, one with captive Karabiner. “Straight” types are 700mm long, with two thimble ends, one with captive Karabiner.

Model Diameter SWL Type
T2820001 4mm 50kg Looped
T2830001 5mm 75kg Looped
T2820501 4mm 50kg Straight
T2830501 5mm 75kg Straight
Description Price $
ex. VAT
Add to basket
Delivery

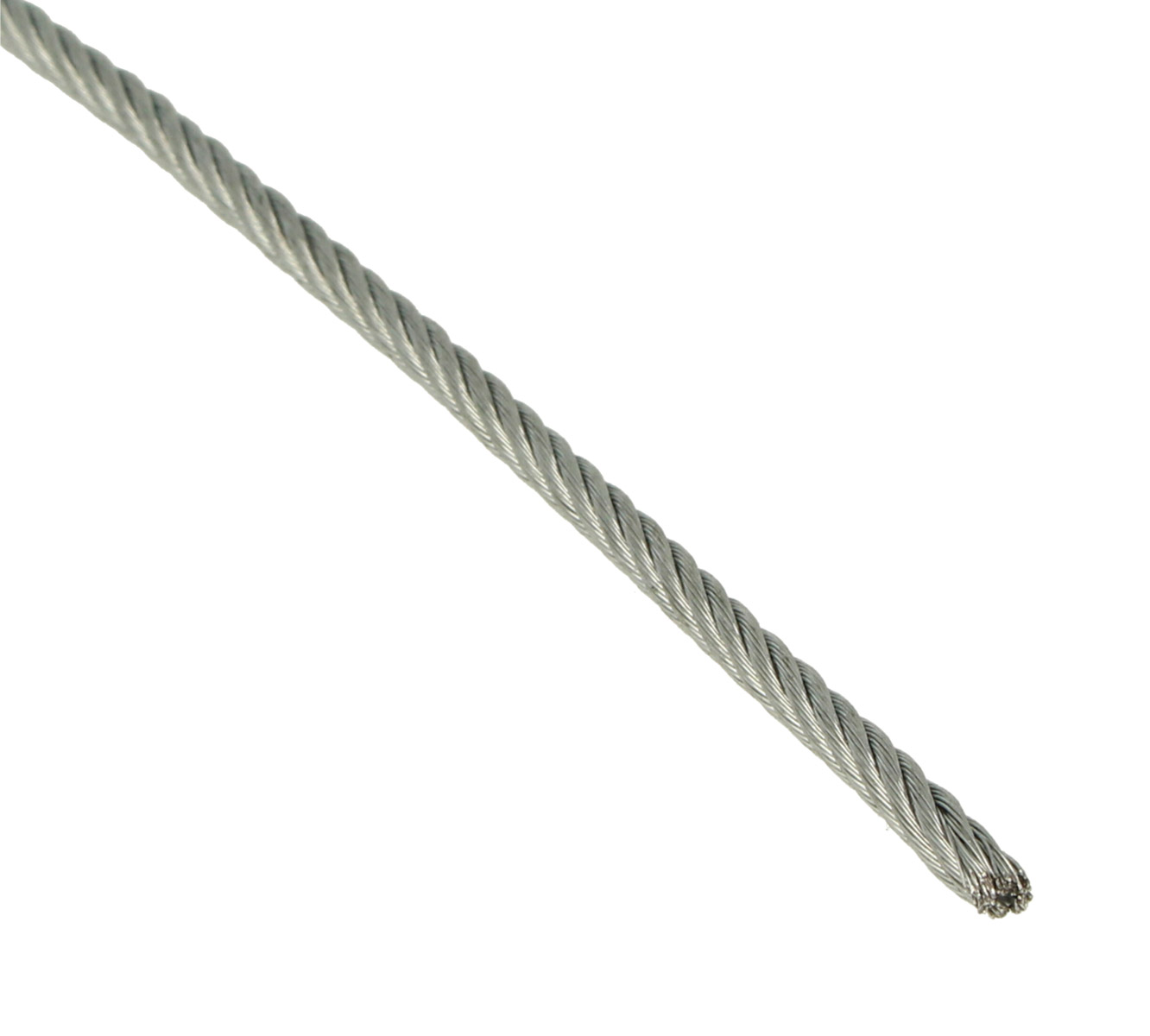

DOUGHTY T40500 GALVANISED WIRE ROPE Flexible, 2mm, silver Silver Stock code: 18-200
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $0.49
10+ $0.46
50+ $0.45
100+ $0.42
per metre
DOUGHTY T40000 GALVANISED WIRE ROPE Flexible, 3mm, silver Silver Stock code: 18-201
105 in stock Need more?
1+ $0.69
10+ $0.67
50+ $0.63
100+ $0.60
per metre
DOUGHTY T40100 GALVANISED WIRE ROPE Flexible, 4mm, silver Silver Stock code: 18-202
75 in stock Need more?
1+ $1.15
10+ $1.10
50+ $1.05
100+ $1.00
per metre
DOUGHTY T40200 GALVANISED WIRE ROPE Flexible, 5mm, silver Silver Stock code: 18-204
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $1.13
10+ $1.08
50+ $1.02
100+ $0.97
per metre
DOUGHTY T40300 GALVANISED WIRE ROPE Flexible, 6mm, silver Silver Stock code: 18-203
46 in stock Need more?
1+ $1.59
10+ $1.51
50+ $1.45
100+ $1.37
per metre
DOUGHTY T40600 GALVANISED WIRE ROPE Flexible, 8mm, silver Silver Stock code: 18-205
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $2.05
10+ $1.96
50+ $1.87
100+ $1.77
per metre
DOUGHTY T405001 GALVANISED WIRE ROPE Flexible, 2mm, black Black Stock code: 18-206
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $1.10
10+ $1.05
50+ $1.00
100+ $0.95
per metre
DOUGHTY T400001 GALVANISED WIRE ROPE Flexible, 3mm, black Black Stock code: 18-207
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $1.23
10+ $1.18
50+ $1.11
100+ $1.06
per metre
DOUGHTY T401001 GALVANISED WIRE ROPE Flexible, 4mm, black Black Stock code: 18-208
50 in stock Need more?
1+ $1.66
10+ $1.59
50+ $1.51
100+ $1.43
per metre
DOUGHTY T402001 GALVANISED WIRE ROPE Flexible, 5mm, black Black Stock code: 18-209
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $2.79
10+ $2.66
50+ $2.53
100+ $2.42
per metre
DOUGHTY T403001 GALVANISED WIRE ROPE Flexible, 6mm, black Black Stock code: 18-210
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $3.40
10+ $3.25
50+ $3.10
100+ $2.94
per metre

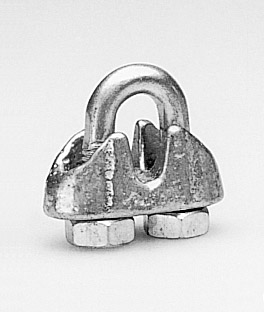

DOUGHTY T38000 CABLE GRIP 3mm, silver Silver Stock code: 18-216
56 in stock Need more?
1+ $0.49
10+ $0.46
DOUGHTY T38100 CABLE GRIP 4-5mm, silver Silver Stock code: 18-217
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
1+ $0.49
10+ $0.46
DOUGHTY T38201 CABLE GRIP 6-7mm, silver Silver Stock code: 18-218
1 in stock Need more?
1+ $1.31
10+ $1.24

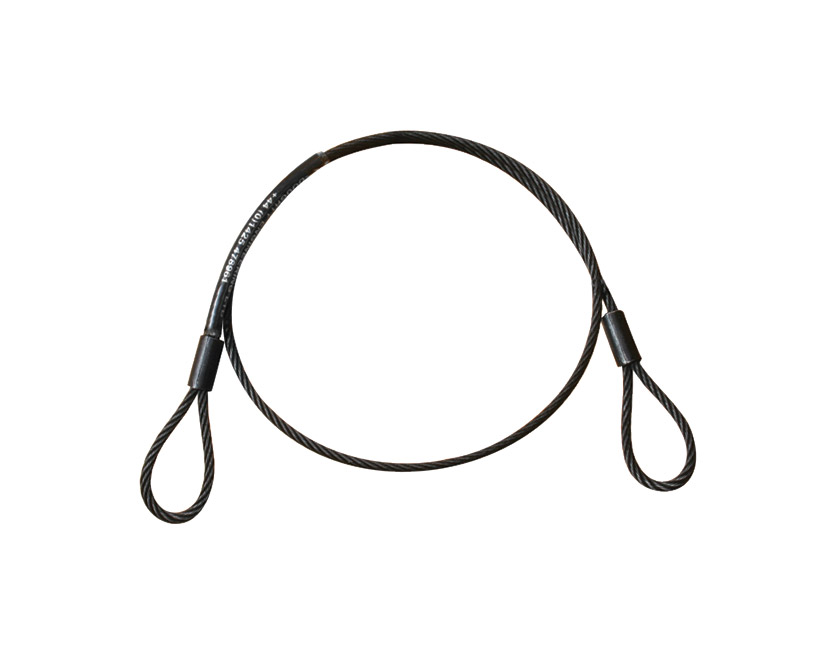

DOUGHTY T2849001 SAFETY BOND 3mm diameter, 600mm. 100kg SWL, black Black Stock code: 18-221
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $5.40
10+ $5.13

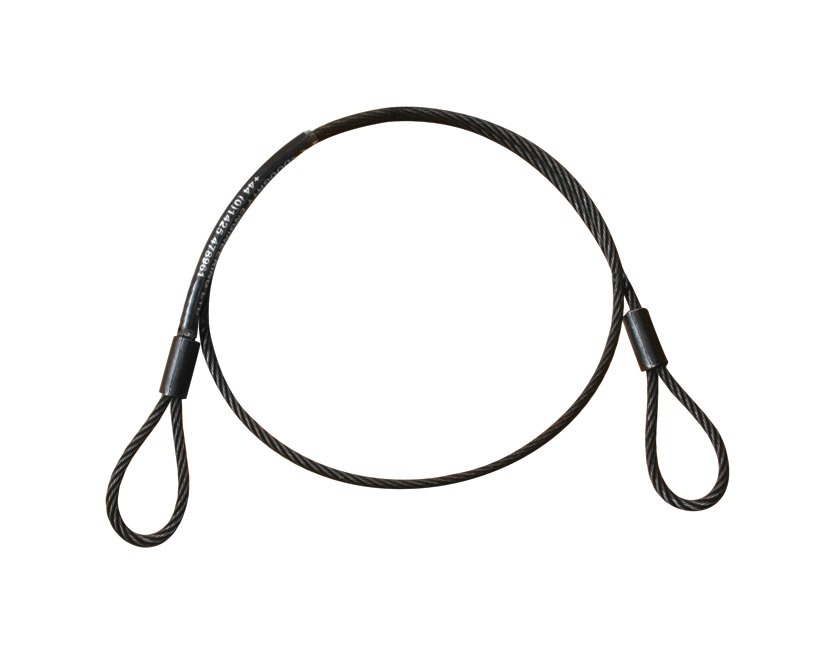

DOUGHTY T2852001 SAFETY BOND 4mm diameter, 600mm, 175kg SWL, black Black Stock code: 18-222
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $9.40
10+ $8.92

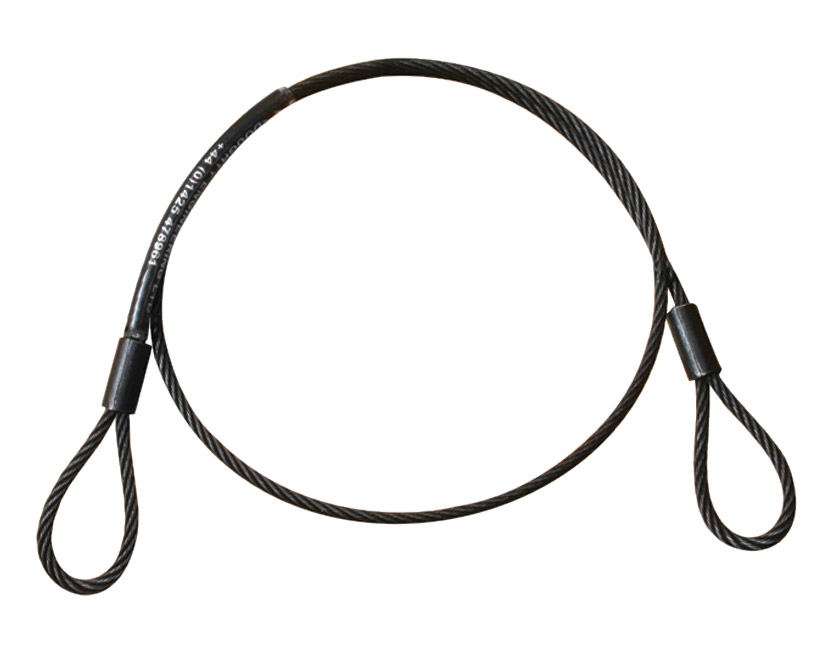

DOUGHTY T2860001 SAFETY BOND 6mm diameter, 1000mm, 400kg SWL, black Black Stock code: 18-223
5 in stock Need more?
1+ $12.98
10+ $12.33

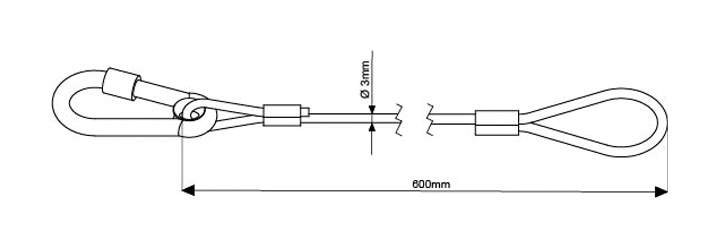

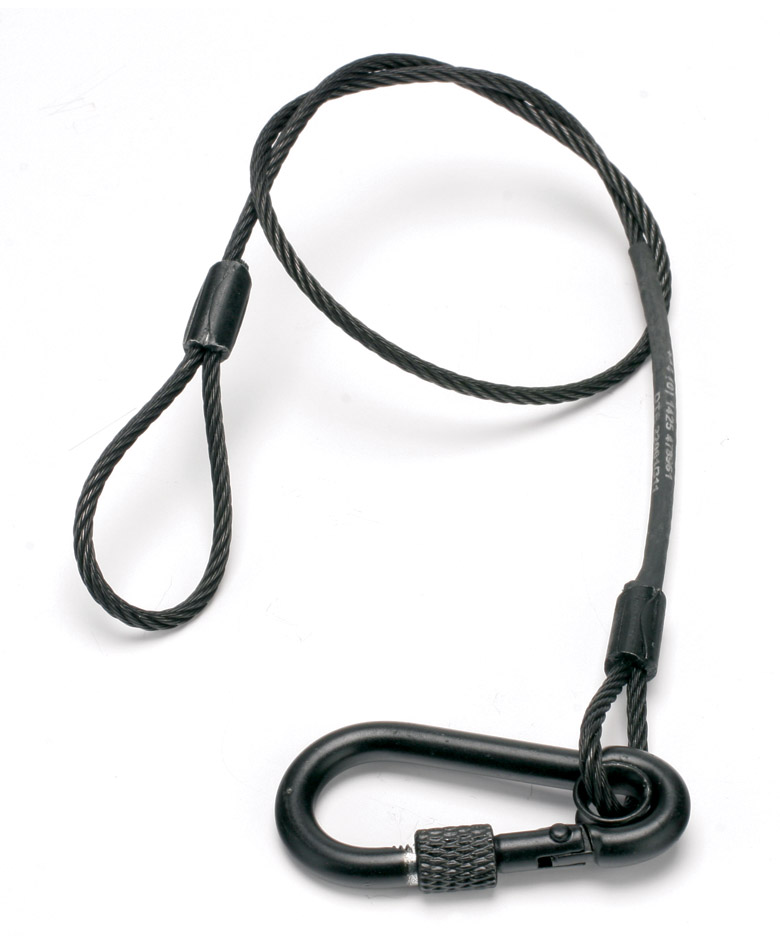

DOUGHTY T22001 SAFETY BOND 3mm diameter, 585mm, 15kg SWL, black Black Stock code: 18-251
11 in stock Need more?
1+ $5.99
10+ $5.70
DOUGHTY T220025 SAFETY BOND 3mm diameter, 500mm, 25kg SWL, black Black Stock code: 18-252
2 in stock Need more?
1+ $8.70
10+ $8.27
DOUGHTY T22101 SAFETY BOND 3mm diameter, 500mm, 15kg SWL, black Black Stock code: 18-253
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $9.01
10+ $8.56

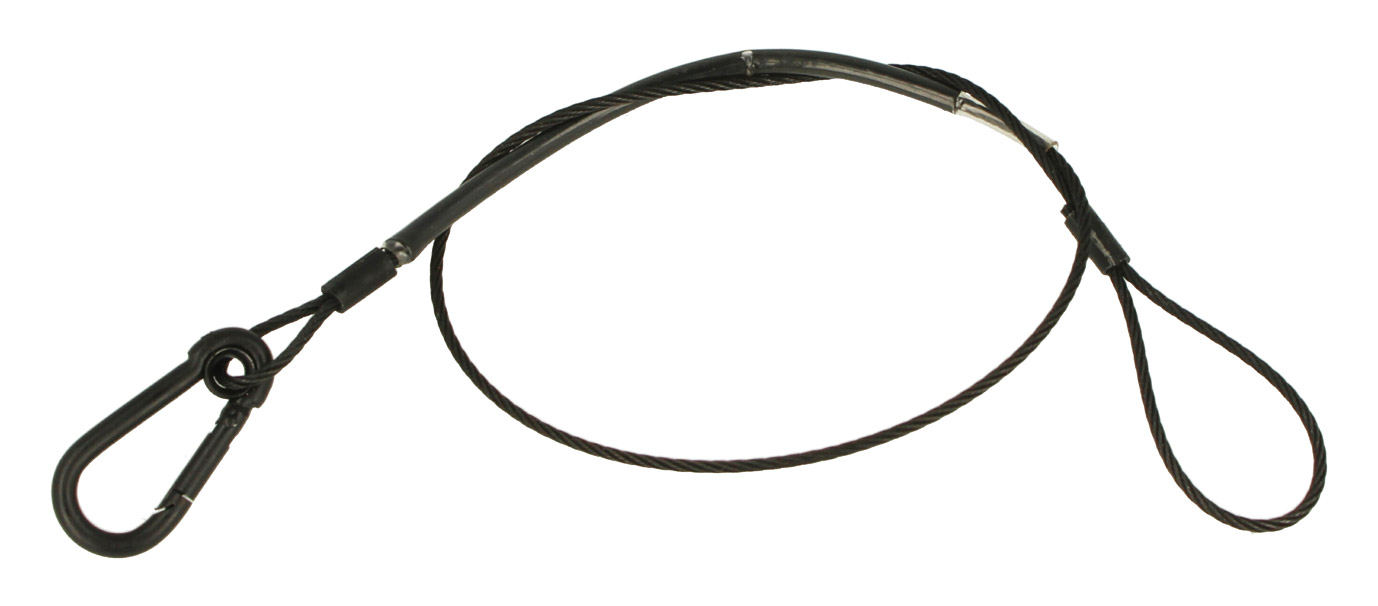

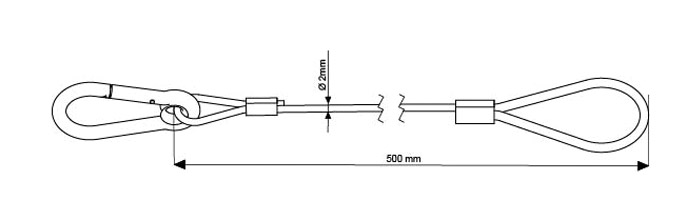

DOUGHTY T2840001 SAFETY BOND 2mm diameter, 500mm, 5kg SWL, black Black Stock code: 18-250
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $9.80
10+ $9.32
DOUGHTY T2841001 SAFETY BOND 2mm diameter, 600mm, 20kg SWL, black Black Stock code: 18-254
2 in stock Need more?
1+ $11.96
10+ $11.35
DOUGHTY T2844001 SAFETY BOND 4mm diameter, 600mm, 36kg SWL, black Black Stock code: 18-261
2 in stock Need more?
1+ $30.18
10+ $28.67
DOUGHTY T2844501 SAFETY BOND 4mm diameter, 1000mm, 36kg SWL, black Black Stock code: 18-262
1 in stock Need more?
1+ $31.74
10+ $30.16
DOUGHTY T2820001 SAFETY BOND TV specification, 4mm diameter, 50kg SWL, looped, black Black Stock code: 18-263
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $34.59
10+ $32.86
DOUGHTY T2830001 SAFETY BOND TV specification, 5mm diameter, 75kg SWL, looped, black Black Stock code: 18-264
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $35.53
10+ $33.75

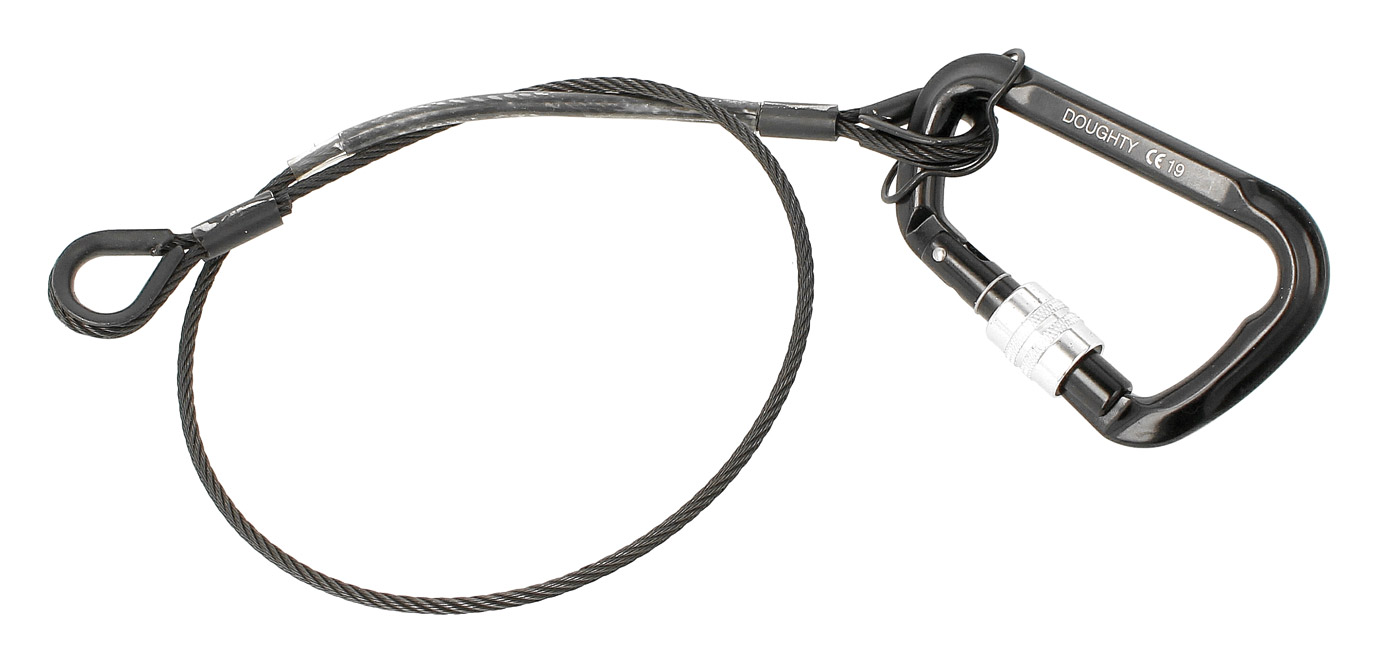

DOUGHTY T2820501 SAFETY BOND TV specification, 4mm diameter, 50kg SWL, straight, black Black Stock code: 18-265
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $36.33
10+ $34.51
DOUGHTY T2830501 SAFETY BOND TV specification, 5mm diameter, 75kg SWL, straight, black Black Stock code: 18-266
8 in stock Need more?
1+ $37.63
10+ $35.75
