The Neutrik True outdoor protection (X1-TOP) series is the newest iteration of Neutrik's heavy duty XLR range, featuring a new boot design the TOP series developed for the increasing demands on intercom systems, particularly in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are IP54 and UL50E rated.

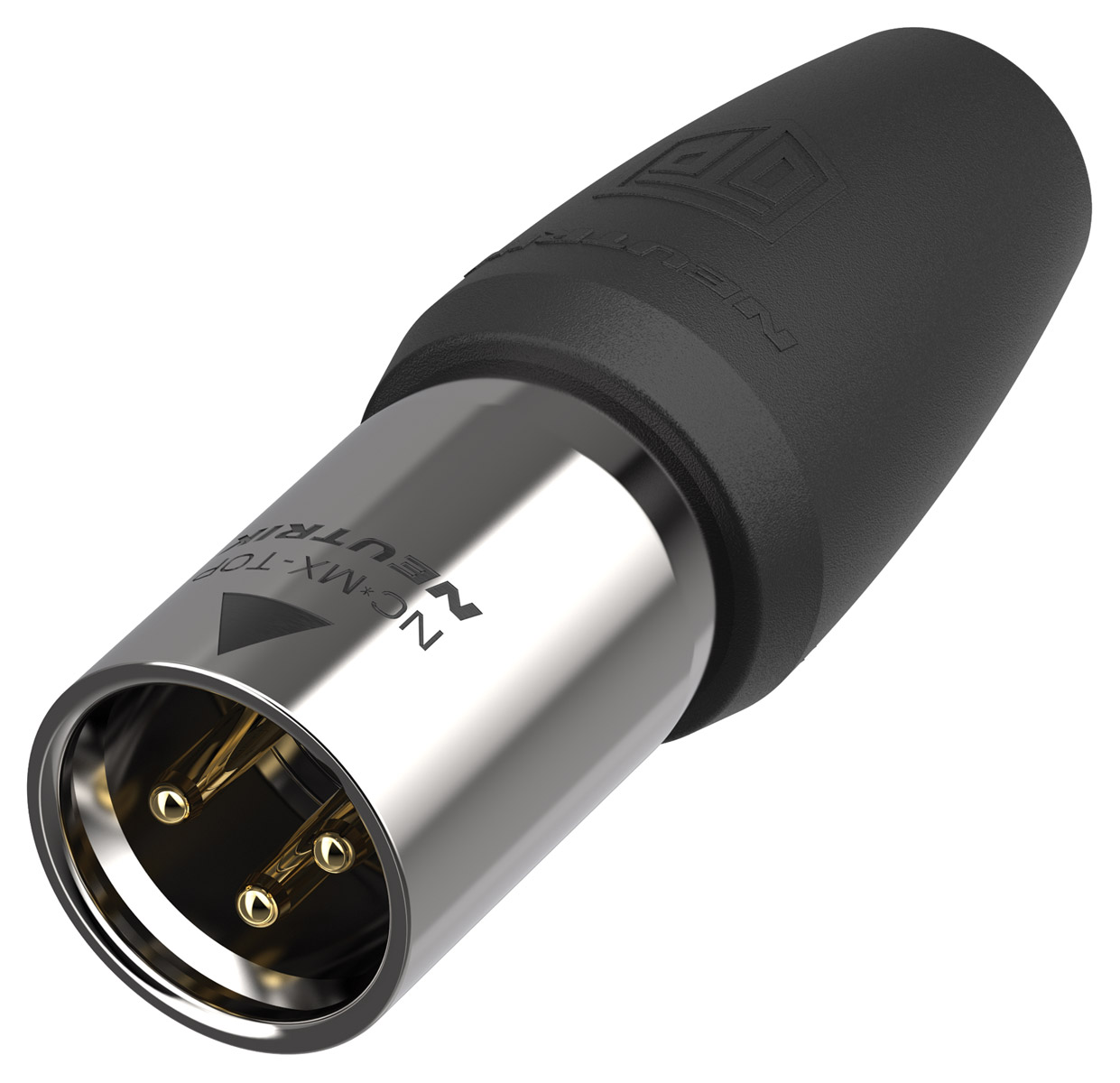

The X1-TOP series is a heavy-duty XLR connector for outdoor applications. The connector is sealed when mated with a related cable or panel connector from the TOP series. They are available in 3 and 5 pin configurations, with gold-plated contacts and are rated to 1000 mating cycles.
Note: The -14 variants are suitable for larger cable diameters, in this instance 8 - 10mm OD.
