Manufacturing news: Strong demand for Canford manufactured Bantam and B-Gauge Jackfields

Canford Bantam and B-Gauge Jackfields are manufactured exclusively with Neutrik Jacks

  • Canford Bantam & B-Gauge Jackfields exclusively with Neutrik Jacks
  • Significant quantity of Jacks in stock ensures fast turnaround
  • Jackfields manufactured to order at Canford's Portland site
  • Professional wiring & termination service available
  • Canford is "the Source" of Bantam & B-Gauge Jackfields

Constructed from a rigid 1U aluminium extrusion with dawn grey, dark grey or black powder coated finish, these two-row jackfields allow a consistent 'Broadcast style' finish to patching and termination panel areas within an installation.

Jacks are 5-point, palladium-contact type with a heavy duty nickel-plated frame and front ring to ensure a long and reliable operational life. Cranked earth-tags on jacks allow bus earthing. Supplied complete with a single, central lacing-bar and a snap-on cover designation strip for each row of jacks. Overall depth 115mm.

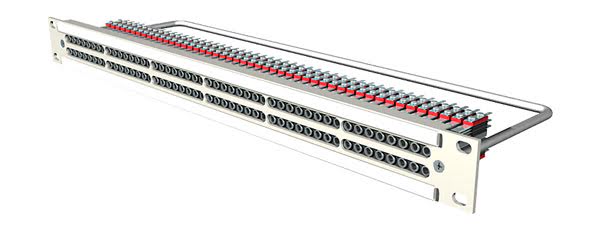

CANFORD BANTAM JACKFIELDS

The Neutrik bantam jacks are set at 'stereo-pitch' (paired) or 'mono-pitch' (equally spaced) in two rows of 48 in a 1U panel. They are arranged in continuous rows of 48, two groups of 24 or six groups of 8 to aid channel identification.

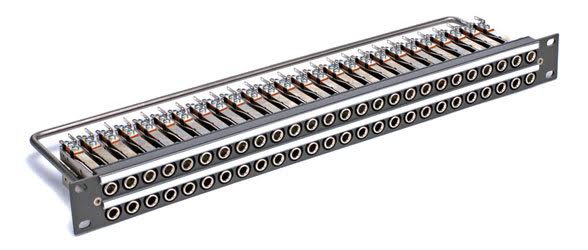

CANFORD B-GAUGE HIGH DENSITY JACKFIELDS

Two-row, high density jackfields are available with 20, 24 or 26, B-gauge (Neutrik) 6.35mm, long-frame jacks per row, set at 'mono-pitch' in a 1U panel.

Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. 5mm of printable height is available on each designation strip.

Other colours are available to special order, minimum order quantities may apply. Please contact Sales for details.



Canford Bantam and B-Gauge Jackfields are typically available in 2-3 weeks Need it more quickly? Contact us custommetal@canford.co.uk
