NEUTRIK NRP1RU-2A RACK PANEL For NA2-IO-DLINE Dante interface

Neutrik DLINE interfaces are end-of-network breakout boxes which allow two channels of audio to be integrated into a Dante network. Simultaneously, they can convert a Dante stream into analogue audio signals.

Designed for harsh stage conditions, the interfaces have a metal casing with lockable Chassis connectors for both audio and network connections. A rubber sleeve offers added protection but can be removed to allow mounting in equipment racks, floor boxes or under tables with optional rack panel or mounting brackets.

Note: This device must only be powered via PoE injectors with compliant handshake functionality (IEEE 802.3af/at/bt). Use of non-compliant PoE injectors may cause permanent damage.

General specifications

Weight: 0.44kg. Dimensions with rubber protection: 164mm x 82mm x 51mm (LxWxH). Dimensions without rubber protection: 151mm x 66mm x 41mm (LxWxH). Ingress protection: IP20. Temperature range: -5 Degrees Celsius to +60 Degrees Celsius. Storage temperature: -40 Degrees Celsius to +150 Degrees Celsius.

Dante specifications

Supported sampling rates: 44.1 / 48 / 88.2 / 96 kHz. Bit depth: 16, 24 and 32 Bit. Latency: Depending on the network configuration, 1ms (standard). Ethernet connection: 100 BASE-TX (PoE support).

Analogue audio input

Input impedance: 6.6 kOhm. Input level (balanced): 24 dBu max. Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB). Dynamic range: > 100 dB. Signal-to-noise ratio: >108 dB. THD + noise: 0.01% at +4 dBu, A-weighting. Crosstalk: =110 dB at 20 kHz.

Analogue audio output

Output impedance: < 150 Ohm. Output level (balanced): 24 dBu max. Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB). Dynamic range: > 100 dB. Signal-to-noise ratio: > 108 dB. THD + noise: < 0.01% at +4 dBu, A-weighting. Crosstalk: =100 dB at 20 kHz.

NA-MB-KIT Mounting brackets

This bracket set is used to mount the interfaces inside a floor box or below tables. A stepless angle from -90 to +90 degrees can be set. Fixing included.

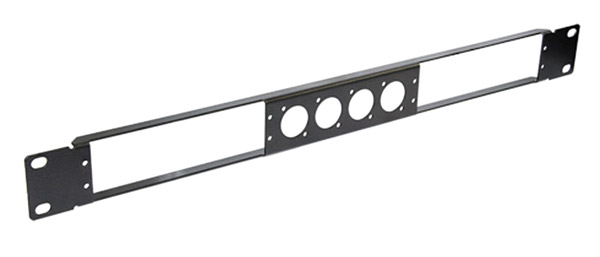

NRP1RU-2A Rack panel

This 1U panel facilitates the mounting of up to two interfaces within a rack. Four additional D-series cut-outs are provided, for the assembly of audio or network feedthroughs. Can be mounted from the front or rear face. A blank plate is provided to cover one cut-out if only one interface is used.
