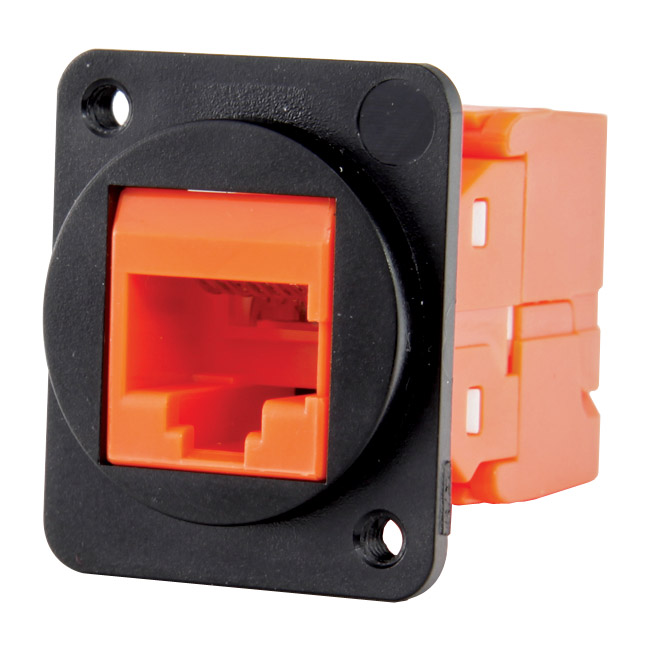

TUK D-SERIES KEYSTONE RJ45 IDC SOCKET Cat6 tool-less, orange

TUK D-SERIES KEYSTONE CONNECTORS

A range of connectors in 'Keystone' format, mounted in plastic mouldings which fit the Neutrik 'D' series cut-out, and designed to visually match the Canford 'Universal' series connectors. They are suitable for use with Canford Universal Connection Panels, connector plates, stageboxes or any application where a 'D' series cut-out is available.

The 'Keystone' format of modular connectors is generally associated with RJ45 data and RJ12 telephony connectors, but many other types of connector can be offered in the same style housing. Some types are available with coloured bodies for circuit identification. The D-series style mounting plate is always black.

Details of the modules available are in the list below.

RJ45 types are available as 'back-to-back' female-female couplers, or as tool-less or Krone-style sockets. 'Tool-less' sockets have IDC termination with butterfly-style levers to close the housing and make the termination. They are unshielded unless indicated in the description.

Fibre types are available with generic, unshuttered connectors.

The BNC 'true 75ohm' type uses a 3G HD BNC from Coax Connectors.

The mounting holes are tapped with an M3 thread, so nuts are not required for fixing. Mounting screws are not included, these should be purchased as required to match the panel or plate into which the connectors are being fitted.

Optional accessories: M3 x 10mm Pozidrive mounting-screws, pan head (Pan) or countersunk head (Csk), zinc-plated clear-passivated (ZCP), or chemical black (CH/BLK). Other screw styles and sizes are also available. See Mounting Hardware - Universal Series Connectors and see Nuts, Screws, Bolts, Selftap Screws.

'Universal Connection System' is a series designation originated by Canford Audio.
