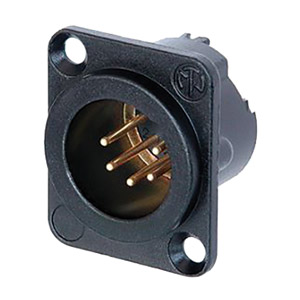

NEUTRIK NC5MD-LX-B XLR Male panel connector, black shell, gold contacts

Stock code
41-157
Brand
Neutrik
Model number
  • NC5MD-LX-B
Colour
  • BlackBlack
  • GoldGold
NEUTRIK NC5MD-LX-B XLR Male panel connector, black shell, gold contacts
NEUTRIK NC5MD-LX-B XLR Male panel connector, black shell, gold contacts

NEUTRIK XLR PANEL CONNECTORS - D-LX series

The new D-LX series is the next generation development from the long-established D-L series, and features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. They have a universal metal-bodied housing, dimensionally common to most Neutrik connector ranges, which allows simpler metalworking and more flexibility of use.

They are available in 3, 4, 5, 6, 7 and 10-pin configurations, with nickel or black plated shells, and silver or gold plated contacts with solder cups. There are separate duplex ground contacts to the mating connector shell and front panel, with the option of a solder connection to pin1. The panel cutout diameter is 24mm, and the connectors can be mounted front or rear of panel. Standard connectors have countersunk clearance mounting holes to accept M3 bolts. The special 'M3' version of the connector has an M3 tapped thread, for speed of mounting (for rear-of-panel mounting only).

The different types are denoted by suffixes:

B Black shell, gold plated contacts
BAG Black shell, silver plated contacts
HE Velour-chromium shell, gold contacts
M3 Tapped M3 mounting holes
-0 Without latch, this has a retention spring instead

SCDR - Rear Cover

This soft plastic cover fits the rear end of several D-size chassis connectors. It is used to protect the gap between connector and cable. The protection cover works with all common wires, cables and fibres, simply cut off the cover end to the required diameter.

  Description Price £
ex. VAT
Add to basket
Delivery
NEUTRIK NC3FD-LX XLR Female panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-131
160 in stock Need more?
1+ £4.38
10+ £3.99
50+ £3.77
100+ £3.33
NEUTRIK NC3FD-LX-0 XLR Female panel connector, nickel shell, silver contacts, no latch NickelSilver Stock code: 41-132
1 in stock Need more?
1+ £4.28
10+ £3.89
50+ £3.68
100+ £3.25
NEUTRIK NC3FD-LX-M3 XLR Female panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-133
331 in stock Need more?
1+ £4.54
10+ £4.13
50+ £3.90
100+ £3.45
NEUTRIK NC3FD-LX-B XLR Female panel connector, black shell, gold contacts BlackGold Stock code: 41-134
293 in stock Need more?
1+ £5.36
10+ £4.88
50+ £4.61
100+ £4.07
NEUTRIK NC3FD-LX-BAG XLR Female panel connector, black shell, silver contacts BlackSilver Stock code: 41-135
51 in stock Need more?
1+ £4.54
10+ £4.13
50+ £3.90
100+ £3.45
NEUTRIK NC3FD-LX-HE XLR Female panel connector, velour-chromium shell, silver contacts Velour-ChromiumSilver Stock code: 41-121
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC3MD-LX XLR Male panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-136
Temporarily out of stock but available to backorder, expected: 04/07/2024.
1+ £4.00
10+ £3.64
50+ £3.44
100+ £3.04
NEUTRIK NC3MD-LX-M3 XLR Male panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-137
17 in stock Need more?
1+ £4.16
10+ £3.79
50+ £3.58
100+ £3.16
NEUTRIK NC3MD-LX-B XLR Male panel connector, black shell, gold contacts BlackGold Stock code: 41-138
Temporarily out of stock but available to backorder, expected: 24/05/2024 (overdue).
1+ £4.62
10+ £4.20
50+ £3.97
100+ £3.51
NEUTRIK NC3MD-LX-BAG XLR Male panel connector, black shell, silver contacts BlackSilver Stock code: 41-139
Temporarily out of stock but available to backorder, expected: 04/06/2024.
1+ £4.32
10+ £3.93
50+ £3.72
100+ £3.28
NEUTRIK NC3MD-LX-HE XLR Male panel connector, velour-chromium shell, silver contacts Velour-ChromiumSilver Stock code: 41-122
Ordered on demand, available in Call.
1+ £6.58
10+ £5.99
50+ £5.66
100+ £5.00
NEUTRIK NC4FD-LX XLR Female panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-141
10 in stock Need more?
1+ £6.34
10+ £5.77
50+ £5.45
100+ £4.82
NEUTRIK NC4FD-LX-0 XLR Female panel connector, nickel shell, silver contacts, no latch NickelSilver Stock code: 41-149
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC4FD-LX-M3 XLR Female panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-142
Temporarily out of stock but available to backorder, expected: 18/06/2024.
1+ £6.54
10+ £5.95
50+ £5.62
100+ £4.97
NEUTRIK NC4FD-LX-B XLR Female panel connector, black shell, gold contacts BlackGold Stock code: 41-143
99 in stock Need more?
1+ £7.52
10+ £6.84
50+ £6.47
100+ £5.72
NEUTRIK NC4FD-LX-BAG XLR Female panel connector, black shell, silver contacts BlackSilver Stock code: 41-144
Ordered on demand, available in Call.
1+ £6.94
10+ £6.32
50+ £5.97
100+ £5.27
NEUTRIK NC4MD-LX XLR Male panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-145
39 in stock Need more?
1+ £5.14
10+ £4.68
50+ £4.42
100+ £3.91
NEUTRIK NC4MD-LX-M3 XLR Male panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-146
79 in stock Need more?
1+ £6.12
10+ £5.57
50+ £5.26
100+ £4.65
NEUTRIK NC4MD-LX-B XLR Male panel connector, black shell, gold contacts BlackGold Stock code: 41-147
2 in stock Need more?
1+ £6.18
10+ £5.62
50+ £5.31
100+ £4.70
NEUTRIK NC4MD-LX-BAG XLR Male panel connector, black shell, silver contacts BlackSilver Stock code: 41-148
Ordered on demand, available in Call.
1+ £5.96
10+ £5.42
50+ £5.13
100+ £4.53
NEUTRIK NC5FD-LX XLR Female panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-151
Temporarily out of stock but available to backorder, expected: 04/06/2024.
1+ £9.76
10+ £8.88
50+ £8.39
100+ £7.42
NEUTRIK NC5FD-LX-M3 XLR Female panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-152
67 in stock Need more?
1+ £9.86
10+ £8.97
50+ £8.48
100+ £7.49
NEUTRIK NC5FD-LX-B XLR Female panel connector, black shell, gold contacts BlackGold Stock code: 41-153
23 in stock Need more?
1+ £12.00
10+ £10.92
50+ £10.32
100+ £9.12
NEUTRIK NC5FD-LX-BAG XLR Female panel connector, black shell, silver contacts BlackSilver Stock code: 41-154
99 in stock Need more?
1+ £10.26
10+ £9.34
50+ £8.82
100+ £7.80
NEUTRIK NC5MD-LX XLR Male panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-155
Temporarily out of stock but available to backorder, expected: 24/05/2024 (overdue).
1+ £7.62
10+ £6.93
50+ £6.55
100+ £5.79
NEUTRIK NC5MD-LX-M3 XLR Male panel connector, nickel shell, silver contacts, M3 holes NickelSilver Stock code: 41-156
62 in stock Need more?
1+ £7.78
10+ £7.08
50+ £6.69
100+ £5.91
NEUTRIK NC5MD-LX-B XLR Male panel connector, black shell, gold contacts BlackGold Stock code: 41-157
10 in stock Need more?
1+ £8.44
10+ £7.68
50+ £7.26
100+ £6.41
NEUTRIK NC5MD-LX-BAG XLR Male panel connector, black shell, silver contacts BlackSilver Stock code: 41-158
72 in stock Need more?
1+ £7.84
10+ £7.13
50+ £6.74
100+ £5.96
NEUTRIK NC6FD-LX XLR Female panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-161
Temporarily out of stock but available to backorder, expected in 1‑2 months. Need it sooner? Call us
1+ £13.76
10+ £12.52
50+ £11.83
100+ £10.46
NEUTRIK NC6FD-LX-B XLR Female panel connector, black shell, gold contacts BlackGold Stock code: 41-162
Ordered on demand, available in Call.
1+ £16.80
10+ £15.29
50+ £14.45
100+ £12.77
NEUTRIK NC6MD-LX XLR Male panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-163
16 in stock Need more?
1+ £11.04
10+ £10.05
50+ £9.49
100+ £8.39
NEUTRIK NC6MD-LX-B XLR Male panel connector, black shell, gold contacts BlackGold Stock code: 41-164
Ordered on demand, available in Call.
1+ £11.82
10+ £10.76
50+ £10.17
100+ £8.98
NEUTRIK NC7FD-LX XLR Female panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-171
Ordered on demand, available in Call.
1+ £16.72
10+ £15.22
50+ £14.38
100+ £12.71
NEUTRIK NC7FD-LX-B XLR Female panel connector, black shell, gold contacts BlackGold Stock code: 41-172
Ordered on demand, available in Call.
1+ £19.94
10+ £18.15
50+ £17.15
100+ £15.15
NEUTRIK NC7MD-LX XLR Male panel connector, nickel shell, silver contacts NickelSilver Stock code: 41-173
23 in stock Need more?
1+ £13.86
10+ £12.61
50+ £11.92
100+ £10.53
NEUTRIK NC7MD-LX-B XLR Male panel connector, black shell, gold contacts BlackGold Stock code: 41-174
Ordered on demand, available in Call.
1+ £16.46
10+ £14.98
50+ £14.16
100+ £12.51
NEUTRIK NC10MD-LX-B Male panel connector, black shell, gold contacts BlackGold Stock code: 41-178
13 in stock Need more?
1+ £17.76
10+ £16.16
50+ £15.27
100+ £13.50
NEUTRIK NC10FD-LX-B Female panel connector, black shell, gold contacts BlackGold Stock code: 41-179
1 in stock Need more?
1+ £21.56
10+ £19.62
50+ £18.54
100+ £16.39
NEUTRIK SCDR Insulating cover for D-series panel connectors, black Black Stock code: 46-4022
Temporarily out of stock but available to backorder, expected: 07/06/2024.
1+ £1.84
10+ £1.67
50+ £1.58
100+ £1.40
