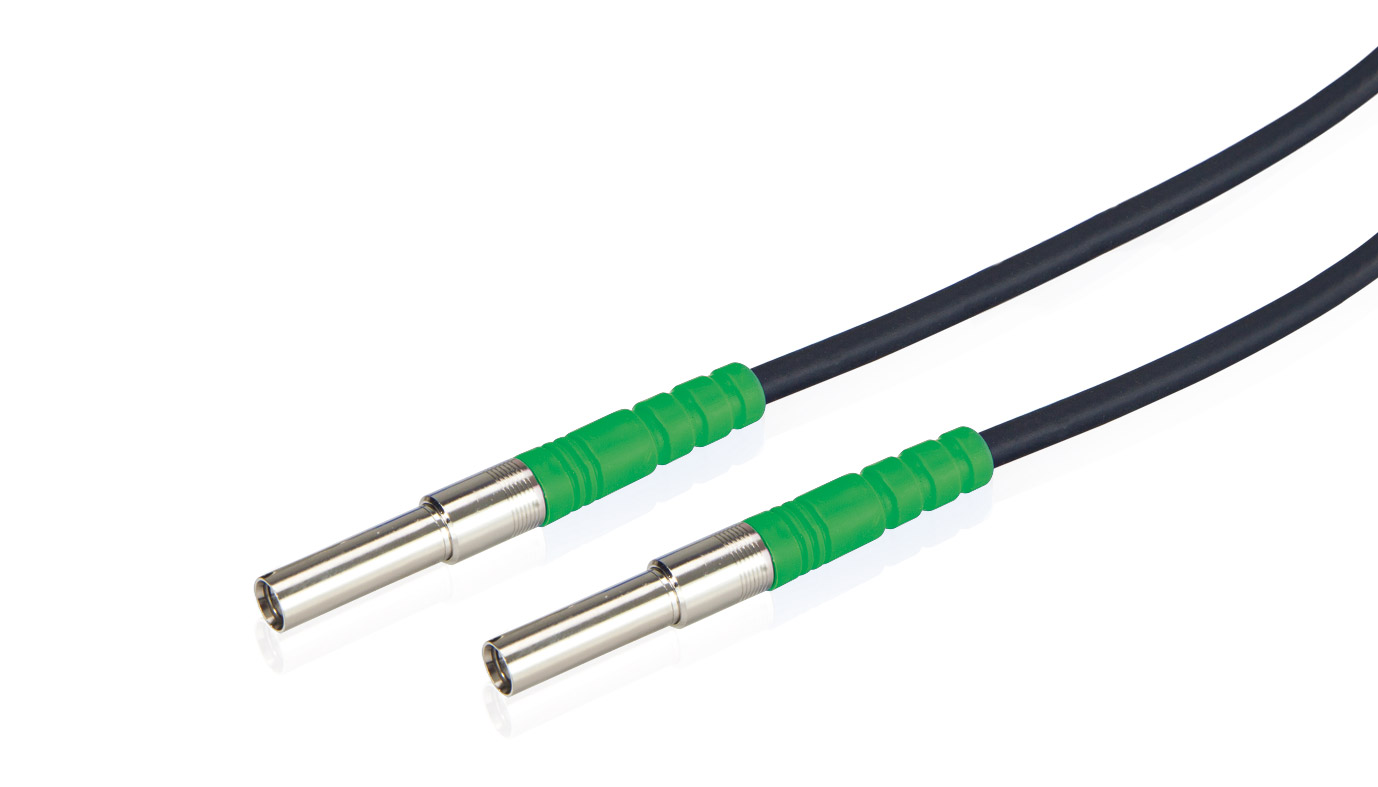

CANFORD microMUSA 12G UHD PATCHCORD 900mm, Green

Stock code
45-5935
Brand
Canford
GTIN
5056704719873
Colour
  • GreenGreen
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Green
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Green

Order

VAT / Delivery
£17.86
each (ex. VAT)
10+ £17.41
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
Canford 2 year warranty
RoHS Compliant

CANFORD microMUSA PATCHCORDS - 12G 4K UHD

Developed for use with our exclusive range of microMUSA video patch panels these microMUSA patchcords are intended for 12G 4K ultra high definition (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.

These patchcords are manufactured to the new microMUSA specification for Canford by Coax Connectors, and not only perform beyond the required 4K standard but also offer the highest possible density with a maximum of 48 patches possible in a single 1U panel. Additionally, all connectors incorporate a unique positive location feature (“detent”) that indicates when the patchchord is fully mated into the panel whilst additionally providing resistance to disconnection through vibration as found in some environments such as OB vehicles. Though designed and made to the same very high standards as our industry standard 3G MUSA connectors this range is not compatible with the existing Canford 3G MUSA range.

Like the original 3G MUSA system, the microMUSA is a non-normalised system and therefore U-links or patchcords are required to make the circuit.

These patchcords are manufactured using Canford branded 12G 4K UHD video coaxial cable which is designed to be both very flexible and withstand repeated bending. The MicroMUSA connectors are nickel-plated with gold plated centre contacts providing a smooth mating action.

Colour coding is by means of factory fitted strain relief bushes in ten different colours. The cable is black.

Available as standard in 300mm, 450mm, 600mm, 900mm, 1200mm, 1500mm, 1800mm, 2m, and 5m lengths.

Related products:

For suitable patchpanels, see CANFORD microMUSA VIDEO PATCH PANELS - 12G 4K UHD - Standard Density, High Density, Very High Density.
For suitable U-links, see CANFORD microMUSA U-LINKS - 12G 4K UHD.

Manufactured by Canford.

  Description Price £
ex. VAT 		Add to basket
Delivery
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Black Black Stock code: 45-5900
240 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Brown Brown Stock code: 45-5901
1 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Red Red Stock code: 45-5902
24 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Orange Orange Stock code: 45-5903
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Yellow Yellow Stock code: 45-5904
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Green Green Stock code: 45-5905
1 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Blue Blue Stock code: 45-5906
1 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Violet Violet Stock code: 45-5907
55 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Grey Grey Stock code: 45-5908
1 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 300mm, White White Stock code: 45-5909
2 in stock Need more?
1+ £17.10
10+ £16.67
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Black Black Stock code: 45-5910
162 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Brown Brown Stock code: 45-5911
2 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Red Red Stock code: 45-5912
Temporarily out of stock but available to backorder, expected: 19/04/2024.
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Orange Orange Stock code: 45-5913
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Yellow Yellow Stock code: 45-5914
2 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Green Green Stock code: 45-5915
3 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Blue Blue Stock code: 45-5916
12 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Violet Violet Stock code: 45-5917
45 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, Grey Grey Stock code: 45-5918
2 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 450mm, White White Stock code: 45-5919
2 in stock Need more?
1+ £17.34
10+ £16.91
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Black Black Stock code: 45-5920
269 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Brown Brown Stock code: 45-5921
2 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Red Red Stock code: 45-5922
4 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Orange Orange Stock code: 45-5923
2 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Yellow Yellow Stock code: 45-5924
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Green Green Stock code: 45-5925
2 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Blue Blue Stock code: 45-5926
4 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Violet Violet Stock code: 45-5927
10 in stock Need more?
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, Grey Grey Stock code: 45-5928
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 600mm, White White Stock code: 45-5929
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.58
10+ £17.14
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Black Black Stock code: 45-5930
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Brown Brown Stock code: 45-5931
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Red Red Stock code: 45-5932
2 in stock Need more?
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Orange Orange Stock code: 45-5933
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Yellow Yellow Stock code: 45-5934
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Green Green Stock code: 45-5935
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Blue Blue Stock code: 45-5936
3 in stock Need more?
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Violet Violet Stock code: 45-5937
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, Grey Grey Stock code: 45-5938
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 900mm, White White Stock code: 45-5939
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £17.86
10+ £17.41
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Black Black Stock code: 45-5940
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Brown Brown Stock code: 45-5941
1 in stock Need more?
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Red Red Stock code: 45-5942
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Orange Orange Stock code: 45-5943
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Yellow Yellow Stock code: 45-5944
2 in stock Need more?
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Green Green Stock code: 45-5945
2 in stock Need more?
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Blue Blue Stock code: 45-5946
2 in stock Need more?
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Violet Violet Stock code: 45-5947
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, Grey Grey Stock code: 45-5948
1 in stock Need more?
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1200mm, White White Stock code: 45-5949
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.17
10+ £17.72
CANFORD microMUSA 12G UHD PATCHCORD 1500mm, Black Black Stock code: 45-5950
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £18.81
10+ £18.34
CANFORD microMUSA 12G UHD PATCHCORD 1800mm, Black Black Stock code: 45-5960
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £19.31
10+ £18.83
CANFORD microMUSA 12G UHD PATCHCORD 2m, Black Black Stock code: 45-5970
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £19.76
10+ £19.27
CANFORD microMUSA 12G UHD PATCHCORD 5m, Black Black Stock code: 45-5980
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
1+ £25.66
10+ £25.02
