CANFORD XLS 1.5 CABLE 2 core, Red

Stock code
34-252
Brand
Canford
Model number
  • XLS 1.5
GTIN
5056704724587
Colour
  • RedRed
CANFORD XLS 1.5 CABLE 2 core, Red
CANFORD XLS 1.5 CABLE 2 core, RedCANFORD XLS 1.5 CABLE 2 core, Red

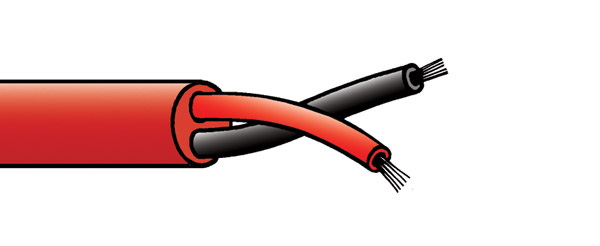

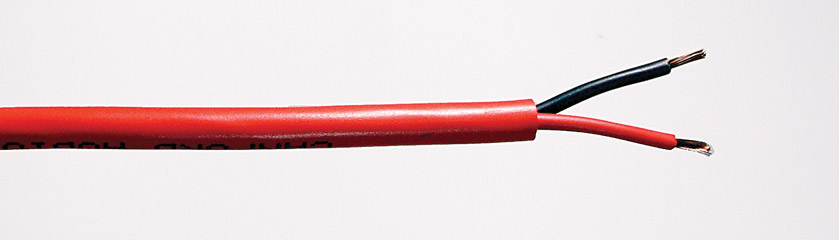

CANFORD XLS - EXTERIOR LOUDSPEAKER CABLE

Economical 2-core 0.75mm² and 1.5mm² cables designed specifically for exterior use, for both low impedance and 100 volt line loudspeaker systems. The construction is similar to a 2-core mains cable, in that the jacket is “fully filled” (as opposed to a tube), to give a little more strength in suspended applications. The cores are twisted, and are colour coded red and black. The outer jacket is arctic grade PVC, to aid flexibility in cold weather.

Technical Specification:

Voltage rating: 300V AC
Conductors: 24/0.2mm, (0.75mm²) or 30/0.25mm (1.5mm²) plain copper wire
Insulation: PVC, red, black
Lay-up: Cores twisted together, lay length approx 100mm
Overall jacket: Arctic PVC, red, 6.2mm (XLS 0.75) or 7.9mm (XLS 1.5) O.D.
Weight: 5.6kg/100m (XLS 0.75), 9.5kg/100m (XLS 1.5)
Reel lengths: 500m
Cut lengths: Available in any multiple of 1 metre
