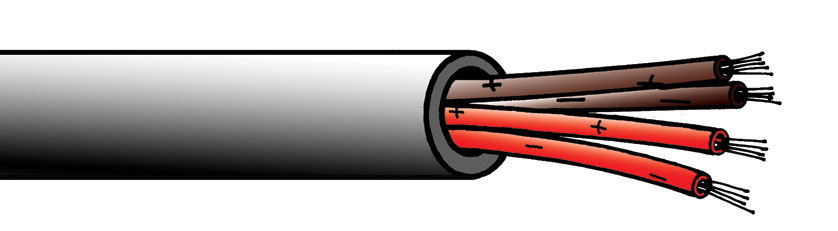

Two, four and eight-core 4mm sq. cross-section extra-flexible multicore cable for loudspeaker wiring. Core pairs are colour coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing. Cores are laid together specifically to suit the contact configuration of the Neutrik ‘Speakon’ loudspeaker connectors, for ease of termination.
Cores are colour coded and printed as follows:
||PVC, radial thickness 0.6mm, OD 4.2mm, coloured and marked as above
||2, 4 or 8 cores printed black and laid together
||Soft PVC, matt black
||MCS-HD 2-core 11.0mm, MCS-HD 4-core 13.0mm, MCS-HD 8-core 16.50mm
||MCS-HD 2-core 21.0kg/100m, MCS-HD 4-core 30.0kg/100m, MCS-HD 8-core 57.0kg/100m
||Available in any multiple of 1 metre
Manufactured to Canford design.
