BELDEN 70048 SERIES - LOUDSPEAKER CABLE Low Fire Hazard, 4.0mm sq. conductors, Dca, Cca and B2ca rated

BELDEN 70048 CABLE 2-core 4 sq mm loudspeaker, LFH Dca (s2 d2 a1), black

Two core 4.0mm sq. cross section loudspeaker cables, complying to the CPR Euroclass requirements up to B2ca. Oxygen free bare copper stranded conductors offer high conductivity with Low Fire Hazard (‘LSOH’) insulation and outer jacket.

Technical Specification:
Conductors: 56/0.30mm (4.0mm sq,), Oxygen free bare copper
Insulation: Low Smoke Zero Halogen material, OD 3.3mm

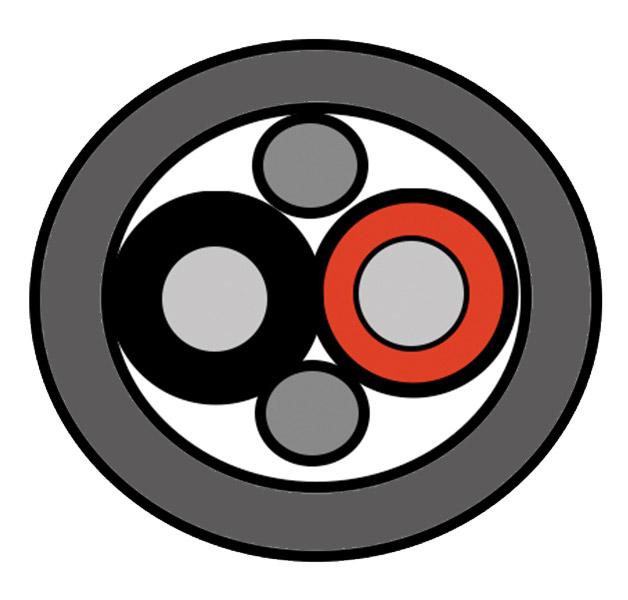

Lay-up: 2 cores, red & black, laid together with two fillers
Outer jacket: Low Smoke Zero Halogen material, matt black
Overall diameter: 8.6mm,
CPR Class: 60-70048 (Dca-s2,d2,a1), 60-70048LW (Cca-s1,d1,a1), 60-70048LV (B2ca-s1,d1,a1)
Weight: 60-70048 (13.78kg/100m), 60-70048LW (14.0kg/100m), 60-70048LV (14.14kg/100m)
Reel lengths: 500m
Cut lengths: Available in any multiple of 1 metre
  Description Price £
ex. VAT
Add to basket
Delivery
BELDEN 70048 CABLE 2-core 4 sq mm loudspeaker, LFH Dca (s2 d2 a1), black Black Stock code: 60-70048
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £8.58
100+ £6.86
500+ £6.69
1,000+ £6.44
per metre
BELDEN 70048LW CABLE 2-core 4 sq mm loudspeaker, LFH Cca (s1 d1 a1), black Black Stock code: 60-70048LW
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £9.45
100+ £7.56
500+ £7.37
1,000+ £7.09
per metre
BELDEN 70048LV CABLE 2-core 4 sq mm loudspeaker, LFH B2ca (s1 d1 a1), black Black Stock code: 60-70048LV
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £10.40
100+ £8.32
500+ £8.11
1,000+ £7.80
per metre
