CANFORD MCS-HD-LFH - MULTICORE SPEAKER CABLE Low Fire Hazard - 4mm sq. conductors

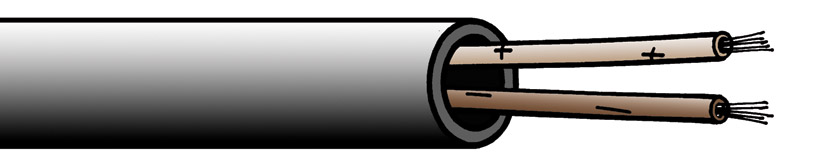

CANFORD MCS-HD-LFH CABLE 2 core, Eca

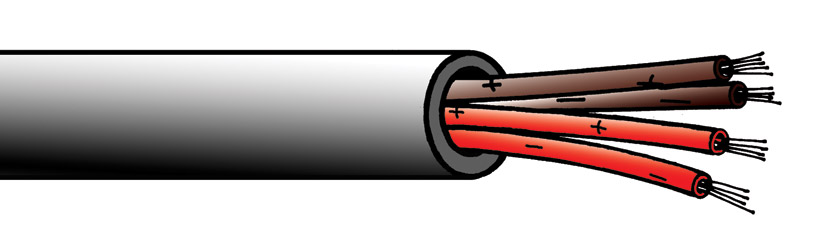

CANFORD MCS-HD-LFH CABLE 2 core, EcaCANFORD MCS-HD-LFH CABLE 4 core, Eca

Two and four-core, 4mm sq. cross section multicore cables for fixed installation loudspeaker wiring when Low Fire Hazard ('LSOH') designs are specified. Core pairs are colour-coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing.

Cores are colour coded and printed as follows:

Core no./Neutrik pin no.: 1+ 1- 2+ 2- 3+ 3- 4+ 4-
Colour: Brown Brown Red Red Orange Orange Yellow Yellow
Marking: + - + - + - + -
Technical Specification:
Conductors: 56/0.3mm (4mm sq.)
Insulation: LFH material, radial thickness 0.6mm, OD 4.2mm, coloured and marked as above
Lay-up: 2 or 4 cores printed black and laid together
Outer jacket: LFH material, matt black
Overall diameter: MCS-HD-LFH 2-core 11.0mm, MCS-HD-LFH 4-core 13.0mm
CPR class: Eca
Weight: MCS-HD-LFH 2-core 21.0kg/100m, MCS-HD-LFH 4-core 30.0kg/100m
Reel lengths: 500m
Cut lengths: Available in any multiple of 1 metre
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD MCS-HD-LFH CABLE 2 core, Eca Stock code: 33-271
Please login for stock availability and lead times.
1+ £3.67
100+ £2.94
500+ £2.86
1,000+ £2.75
per metre
CANFORD MCS-HD-LFH CABLE 4 core, Eca Stock code: 33-471
Please login for stock availability and lead times.
1+ £7.27
100+ £5.82
500+ £5.67
1,000+ £5.45
per metre
