CANARE L-5.5CUHD CABLE Black (reel of 200m)

Stock code
36-942
Brand
Canare
Model number
  • L-5.5CUHD
Colour
  • BlackBlack
CANARE L-5.5CUHD CABLE Black (reel of 200m)
CANARE L-5.5CUHD CABLE Black (reel of 200m)

Order

/
£537.00
per reel (ex. VAT)
5+ £516.00
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us

CANARE L-CUHD UHDTV DIGITAL VIDEO CABLES

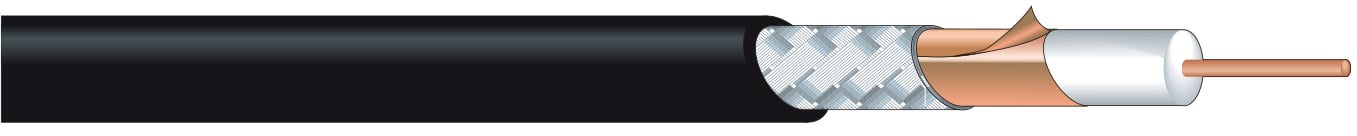

A 75-ohm flexible and reliable coaxial cable, designed for 12G-SDI and 4K-UHD video transmissions. Suitable for UHDTV applications. Copper foil and high-density tinned copper braiding offer protection from outside radio frequency and electromagnetic interference. Highly foamed multi-layer polyethylene insulation allows for 12G-SDI transmission to run up to 100 meters. Copper central conductor allows for long lasting installations to maintain optimal signal transmission. Flame retardant non reflective semi-matt PVC jacket.

L-3.3CUHD L-5.5CUHD
Cable size group: Not in Canford scheme Not in Canford scheme
Centre wire: 0.75mm 1.35mm
Dielectric Multi-layer polyethylene, 3.3mm Multi-layer polyethylene, 5.55mm
Screen 1: Copper Foil (1) Copper Foil (1)
Screen 2: Tinned Copper Braid Tinned Copper Braid
Jacket: Flame retardant PVC, 5.5mm Flame retardant PVC, 7.7mm
Nominal impedance: 75 ohms 75 ohms
Capacitance (nom.): 55 pF/m 52 pF/m
Velocity ratio (nom.): 0.82 0.83
Weight/100m: 4.1kg 7.1kg
Reel length: 200m 200m
Cut lengths: Not Available Not Available

Notes: (1) 100% Coverage

Attenuation:
(dB/100m +/- 0.1dB) 10MHz 135MHz 270MHz 750MHz 1.3GHz 3GHz 6GHz
L-3.3CUHD 2.8 9.8 13.9 23.4 30.9 47.7 68.5
L-5.5CUHD 1.5 5.3 7.5 12.9 17.1 26.8 39.1
