NEUTRIK NC3FBH2 XLR Female PC mounting horizontal

Stock code
40-212
Brand
Neutrik
Model number
  • NC3FBH2

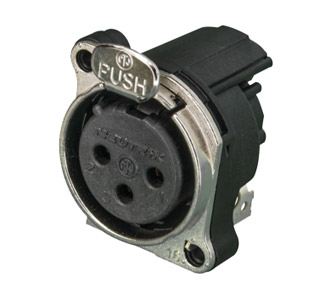

NEUTRIK NC3FBH2 XLR Female PC mounting horizontal

Image may be provided for illustrative purposes only, please refer to the product description.

NEUTRIK NC3FBH2 XLR Female PC mounting horizontal

NEUTRIK XLR PANEL CONNECTORS - B series

Metal bodied XLR panel connectors from Neutrik, these have the smallest size and highest packing density (23mm between centres, except HL and HR type 25.5mm). The B series offers low cost ultra-basic metal shell connectors, available in nickel or black (-B suffix) finishes. Female and male connectors have the same panel cutout and mountings, and all connectors have hard gold plated contacts with wiping-action design. Panel fastening of these connectors, which are not compatible with any other Neutrik design (due to the need to optimise packing density), is by M2.5 self-tapping screws with tri-rondular threads; available with countersunk (40-928, 40-929) or pan (40-931) heads.

There are a total of 4 orientations of the PCB pins in this series. Lateral types mount the PCB on one side, either left or right. These could be used, for example, on mixer channel modules.

V Vertical PCB, i.e. straight pins.
H Horizontal PCB, i.e. angled pins.
HL Lateral PCB, left side.
HR Lateral PCB, right side.
Y IDC connection.

Further options exist for the female connectors, denoted by suffix numbers and letters:

[no suffix] No panel or shell ground contact
1 Pin 1 directly connected to panel and shell ground
2 Pin 1 isolated from panel and shell ground, separate ground contact to shell & panel
-B Black shell, gold plated pins
-0 No latch, fitted instead with retention spring

Further options exist for the male connector, denoted by suffix numbers and letters:

[no suffix] Pin 1 isolated from panel and shell ground, separate ground contact to shell & panel
-B Black shell, gold plated pins

Note: For 4-pin and 5-pin connectors, see Neutrik XLR Panel Connectors: BA series.

  Description Price £
ex. VAT
Add to basket
Delivery
NEUTRIK NC3MBV XLR Male PC mounting vertical Stock code: 40-250
45 in stock Need more?
1+ £2.26
10+ £2.06
50+ £1.94
100+ £1.72
NEUTRIK NC3MBH XLR Male PC mounting horizontal Stock code: 40-260
32 in stock Need more?
1+ £2.26
10+ £2.06
50+ £1.94
100+ £1.72
NEUTRIK NC3MBHL XLR Male PC mounting lateral Stock code: 40-270
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.40
10+ £2.18
50+ £2.06
100+ £1.82
NEUTRIK NC3FBV1 XLR Female PC mounting vertical Stock code: 40-201
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.58
10+ £2.35
50+ £2.22
100+ £1.96
NEUTRIK NC3FBV2 XLR Female PC mounting vertical Stock code: 40-202
91 in stock Need more?
1+ £2.54
10+ £2.31
50+ £2.18
100+ £1.93
NEUTRIK NC3FBH1 XLR Female PC mounting horizontal Stock code: 40-211
49 in stock Need more?
1+ £2.42
10+ £2.20
50+ £2.08
100+ £1.84
NEUTRIK NC3FBH1-0 XLR Female PC mounting horizontal Stock code: 40-213
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.44
10+ £2.22
50+ £2.10
100+ £1.85
NEUTRIK NC3FBH2 XLR Female PC mounting horizontal Stock code: 40-212
1478 in stock Need more?
1+ £2.54
10+ £2.31
50+ £2.18
100+ £1.93
NEUTRIK NC3FBHL1 XLR Female PC mounting lateral Stock code: 40-221
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.62
10+ £2.38
50+ £2.25
100+ £1.99
NEUTRIK NC3MBV-B XLR Male PC mounting vertical Stock code: 41-250
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC3MBH-B XLR Male PC mounting horizontal Stock code: 41-260
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.44
10+ £2.22
50+ £2.10
100+ £1.85
NEUTRIK NC3MBY-B XLR Male panel, IDC Stock code: 41-290
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC3FBV1-B XLR Female PC mounting vertical Stock code: 41-201
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC3FBV2-B XLR Female PC mounting vertical Stock code: 41-202
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC3FBH1-B XLR Female PC mounting horizontal Stock code: 41-211
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.72
10+ £2.48
50+ £2.34
100+ £2.07
NEUTRIK NC3FBH2-B XLR Female PC mounting horizontal Stock code: 41-212
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £2.78
10+ £2.53
50+ £2.39
100+ £2.11
NEUTRIK NC3FBH1-0-B XLR Female PC mounting horizontal Stock code: 41-213
174 in stock Discontinued, available only while stocks last.
£2.38
Clearance
£1.75
NEUTRIK XLR FIXING SCREWS For B series, pan, black (pack of 100) Black Stock code: 40-931
13 in stock Need more?
1+ £9.60
5+ £9.02
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, black (pack of 100) Black Stock code: 40-929
4 in stock Need more?
1+ £4.64
5+ £4.36
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, nickel (pack of 100) Nickel Stock code: 40-928
Assembled to order, available in 2‑3 weeks. Need it sooner? Call us
1+ £6.32
5+ £5.94
per pack
