MOGAMI 2901 CABLE, Black

Stock code
30-900
Brand
Mogami
Model number
  • 2901
Colour
  • BlackBlack

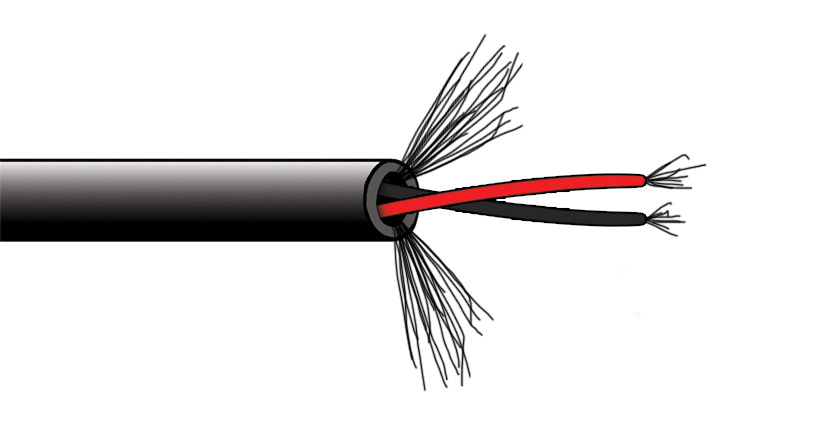

MOGAMI 2901 CABLE, Black
MOGAMI 2901 CABLE, Black

MOGAMI LAVALIER MIC CABLE

A series of ultra-miniature lavalier cable from Mogami.

Mogami 2697 is a balanced, ultra-miniature (2.5mm diameter), extra-flexible, helical screened microphone cable, specifically designed for use with lavalier microphones.

Mogami 2368 cable has the same structure as 2697 cable except for an unbalanced configuration. It therefore also has a slightly smaller diameter of 2mm.

Mogami 2901 has been designed to have a greater tensile strength and longer flex life, however this sacrifices some sound quality, and creates 'a slightly more difficult soldering job' due to the copper-tin alloy conductor.

All other Mogami cables are available to special order.

Technical Specification:
2368 2901 2697
Type: Unbalanced Balanced Balanced
Number of conductors 1 2 2
Conductors: 16/0.08 (0.08mm2) 43/0.04 (0.054mm2) 16/0.08 (0.08mm²)
Insulation: PVC, white Polyester, red/black PVC, red/white
Filler thread: - Fiber -
Shield: Served shield Double served shield Served shield
Screen: 40/0.08mm 36/0.08mm, 40/0.08mm 60/0.08mm
Overall jacket: 2.0mm, soft PVC, black 2.16mm OD, soft PVC, black 2.5mm OD, soft PVC, black
Tensile Strength 205N 176N 294N
Weight (per 1m): 7.5g 8.52g 12.5g
Weight (per reel): 1.5kg 2.6kg 1.8kg
Reel length: 200m 305m 200m

The cables listed in this group are available in cut lengths in any multiple of 1 metre.

  Description Price £
ex. VAT
Add to basket
Delivery
MOGAMI 2368 CABLE, Black Black Stock code: 30-930
469 in stock Need more?
1+ £0.69
100+ £0.55
500+ £0.54
1,000+ £0.52
per metre
MOGAMI 2901 CABLE, Black Black Stock code: 30-900
150 in stock Need more?
1+ £1.75
100+ £1.40
500+ £1.37
1,000+ £1.31
per metre
MOGAMI 2697 CABLE, Black Black Stock code: 30-910
Out of stock but available to backorder, expected: 12/07/2024.
1+ £1.14
100+ £0.91
500+ £0.89
1,000+ £0.86
per metre
