Neutrik

41-056

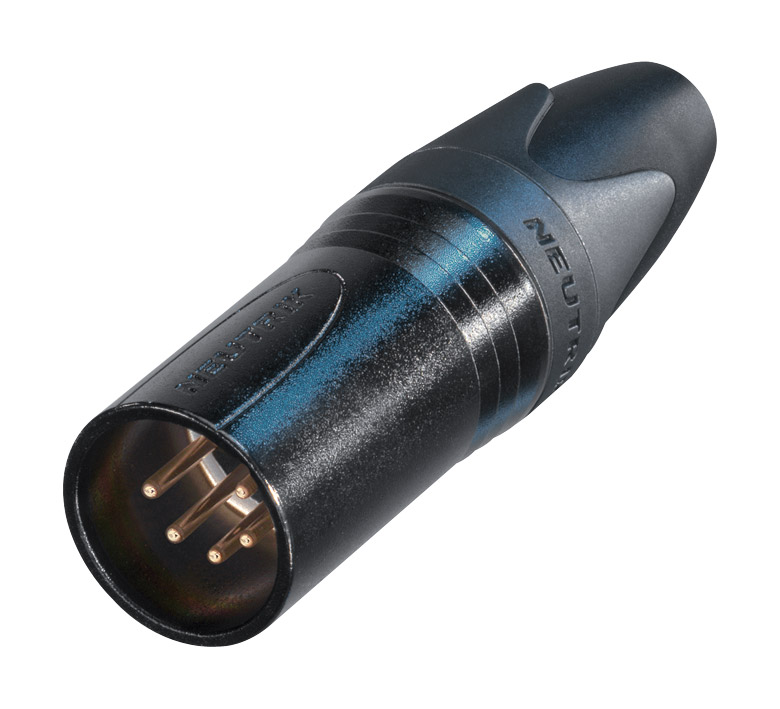

NEUTRIK NC5MXX-B XLR Male cable connector, black shell, gold-plated contactsBlack

Neutrik NC5MXX-B

NEUTRIK NC5MXX-B XLR Male cable connector, black shell, gold-plated contacts

NEUTRIK XLR CABLE CONNECTORS - XX series

The Neutrik XX series is the successor to the 'industry standard' X series XLR cable connector, and offers several new features. It is available in 3, 4, 5, 6 and 7 pin configurations, with silver or gold plated contacts and nickel or black housings.

They are easy to assemble, with only four parts and no screws. The contact block is hard plastic (polyamide), and is inserted from the rear of the shell. The female contacts are a unique cage design, with seven independent contact springs for low contact resistance and high integrity, and incorporate a solder barrier to prevent solder running into the contact mating area. The female connector has an improved solid metal latch which is larger and easier to handle, plus a new feature of additional ground spring contacts for better shell ground continuity. The male has an improved locking recess for more secure mating retention. The Neutrik chuck design gives secure clamping onto all cables 3.5mm - 8.0mm diameter, and now provides a higher resistance to pull-out. An improved ratchet lock helps prevent accidental opening of the strain relief while in use. Glands with polyurethane strain reliefs give high protection to the cable against bending stresses. For larger cables, up to 10.0mm diameter, an alternative version with a larger chuck and special gland is available - see Neutrik XLR Cable Connectors - XX-14 series.

Glands with moulded coloured flashes for identification (BXX series) are available - see Neutrik XLR Cable Connector Glands - XX series. Colour coding rings are also available - see Neutrik XLR Cable Connector Rings - XX series.

Ordering note

Type codes with no suffix denote nickel plated shell, with silver-plated contacts (standard type). Type codes with BAG suffix denote black shell, with silver-plated contacts. Type codes with B suffix denote black shell, with gold plated contacts.

Type codes with WOB suffix denotes that the connector is supplied without a gland, which should be ordered separately as required.

XX series connectors are normally supplied unassembled, in individual plastic bags, however the 3-pin types are also available in bulk packs of 100, for speed of assembly.

  Description Price (£) Add to basket
NEUTRIK NC3FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code:
2483 in stock.
1+ £3.52
10+ £3.20
50+ £3.03
100+ £2.68
NEUTRIK NC3MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code:
2982 in stock.
1+ £2.96
10+ £2.69
50+ £2.55
100+ £2.25
NEUTRIK NC3FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code:
1118 in stock.
1+ £3.74
10+ £3.40
50+ £3.22
100+ £2.84
NEUTRIK NC3MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code:
142 in stock.
1+ £3.38
10+ £3.08
50+ £2.91
100+ £2.57
NEUTRIK NC3FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code:
411 in stock.
1+ £4.58
10+ £4.17
50+ £3.94
100+ £3.48
NEUTRIK NC3MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code:
715 in stock.
1+ £3.72
10+ £3.39
50+ £3.20
100+ £2.83
NEUTRIK NC4FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code:
569 in stock.
1+ £5.50
10+ £5.01
50+ £4.73
100+ £4.18
NEUTRIK NC4MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code:
520 in stock.
1+ £4.12
10+ £3.75
50+ £3.54
100+ £3.13
NEUTRIK NC4FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code:
147 in stock.
1+ £6.04
10+ £5.50
50+ £5.19
100+ £4.59
NEUTRIK NC4MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code:
22 in stock.
1+ £4.46
10+ £4.06
50+ £3.84
100+ £3.39
NEUTRIK NC4FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code:
329 in stock.
1+ £6.62
10+ £6.02
50+ £5.69
100+ £5.03
NEUTRIK NC4MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code:
411 in stock.
1+ £5.00
10+ £4.55
50+ £4.30
100+ £3.80
NEUTRIK NC5FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code:
352 in stock.
1+ £8.12
10+ £7.39
50+ £6.98
100+ £6.17
NEUTRIK NC5MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code:
545 in stock.
1+ £6.76
10+ £6.15
50+ £5.81
100+ £5.14
NEUTRIK NC5FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code:
108 in stock.
1+ £8.46
10+ £7.70
50+ £7.28
100+ £6.43
NEUTRIK NC5MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code:
100 in stock.
1+ £7.00
10+ £6.37
50+ £6.02
100+ £5.32
NEUTRIK NC5FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code:
268 in stock.
1+ £9.68
10+ £8.81
50+ £8.32
100+ £7.36
NEUTRIK NC5MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-056
97 in stock.
1+ £7.96
10+ £7.24
50+ £6.85
100+ £6.05
NEUTRIK NC6FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code:
37 in stock.
1+ £9.96
10+ £9.06
50+ £8.57
100+ £7.57
NEUTRIK NC6MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code:
65 in stock.
1+ £8.48
10+ £7.72
50+ £7.29
100+ £6.44
NEUTRIK NC6FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code:
29 in stock.
1+ £10.18
10+ £9.26
50+ £8.75
100+ £7.74
NEUTRIK NC6MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code:
2 in stock.
1+ £8.86
10+ £8.06
50+ £7.62
100+ £6.73
NEUTRIK NC6FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code:
2 in stock.
1+ £12.34
10+ £11.23
50+ £10.61
100+ £9.38
NEUTRIK NC6MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code:
4 in stock.
1+ £9.62
10+ £8.75
50+ £8.27
100+ £7.31
NEUTRIK NC7FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code:
26 in stock.
1+ £11.44
10+ £10.41
50+ £9.84
100+ £8.69
NEUTRIK NC7MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code:
55 in stock.
1+ £10.10
10+ £9.19
50+ £8.69
100+ £7.68
NEUTRIK NC7FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code:
Ordered on demand.
1+ £12.00
10+ £10.92
50+ £10.32
100+ £9.12
NEUTRIK NC7MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code:
7 in stock.
1+ £10.44
10+ £9.50
50+ £8.98
100+ £7.93
NEUTRIK NC7FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code:
Ordered on demand.
1+ £15.64
10+ £14.23
50+ £13.45
100+ £11.89
NEUTRIK NC7MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code:
3 in stock.
1+ £11.56
10+ £10.52
50+ £9.94
100+ £8.79
NEUTRIK NC3FXX-WOB XLR Female cable connector, without gland   Stock code:
12 in stock.
1+ £2.96
10+ £2.69
50+ £2.55
100+ £2.25
NEUTRIK NC3MXX-WOB XLR Male cable connector, without gland   Stock code:
110 in stock.
1+ £2.36
10+ £2.15
50+ £2.03
100+ £1.79
NEUTRIK NC3FXX-D XLR Female cable connector (pack of 100, disassembled)   Stock code:
36 in stock.
1+ £252.00
5+ £236.80
per pack
NEUTRIK NC3MXX-D XLR Male cable connector (pack of 100, disassembled)   Stock code:
39 in stock.
1+ £213.80
5+ £200.90
per pack
NEUTRIK NC3FXX-BAG-D XLR Female cable connector (pack of 100, disassembled)   Stock code:
2 in stock.
1+ £269.00
5+ £252.90
per pack
NEUTRIK NC3MXX-BAG-D XLR Male cable connector (pack of 100, disassembled)   Stock code:
1 in stock.
1+ £225.70
5+ £212.10
per pack
NEUTRIK NC3FXX-B-D XLR Female cable connector (pack of 100, disassembled)   Stock code:
Ordered on demand, cancellations may incur charges.
1+ £333.80
5+ £313.70
per pack
NEUTRIK NC3MXX-B-D XLR Male cable connector (pack of 100, disassembled)   Stock code:
Ordered on demand, cancellations may incur charges.
1+ £257.00
5+ £241.60
per pack
