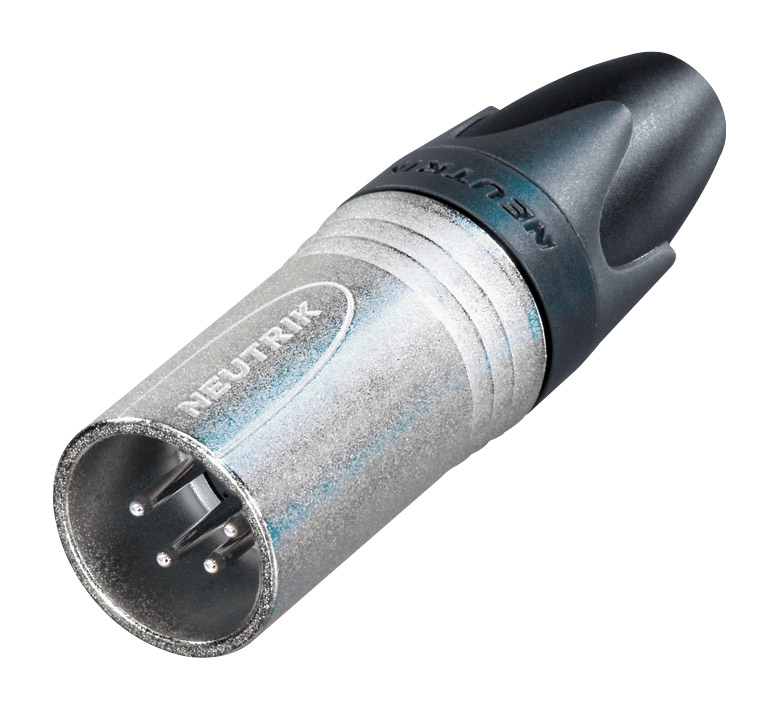

NEUTRIK NC4MXX XLR Male cable connector, nickel shell, silver-plated contacts

Stock code
41-042
Brand
Neutrik
Model number
  • NC4MXX
Colour
  • NickelNickel
NEUTRIK NC4MXX XLR Male cable connector, nickel shell, silver-plated contacts
NEUTRIK NC4MXX XLR Male cable connector, nickel shell, silver-plated contacts

NEUTRIK XLR CABLE CONNECTORS - XX series

The Neutrik XX series is the successor to the 'industry standard' X series XLR cable connector, and offers several new features. It is available in 3, 4, 5, 6 and 7 pin configurations, with silver or gold plated contacts and nickel or black housings. Note that the black shell finish is non-conductive; for applications where the XLR shell needs to be conductive, please use the nickel plated versions.

They are easy to assemble, with only four parts and no screws. The contact block is hard plastic (polyamide), and is inserted from the rear of the shell. The female contacts are a unique cage design, with seven independent contact springs for low contact resistance and high integrity, and incorporate a solder barrier to prevent solder running into the contact mating area. The female connector has an improved solid metal latch which is larger and easier to handle, plus a new feature of additional ground spring contacts for better shell ground continuity. The male has an improved locking recess for more secure mating retention. The Neutrik chuck design gives secure clamping onto all cables 3.5mm - 8.0mm diameter, and now provides a higher resistance to pull-out. An improved ratchet lock helps prevent accidental opening of the strain relief while in use. Glands with polyurethane strain reliefs give high protection to the cable against bending stresses. For larger cables, up to 10.0mm diameter, an alternative version with a larger chuck and special gland is available - see Neutrik XLR Cable Connectors - XX-14 series.

Glands with moulded coloured flashes for identification (BXX series) are available - see Neutrik XLR Cable Connector Glands - XX series. Colour coding rings are also available - see Neutrik XLR Cable Connector Rings - XX series.

Ordering note

Type codes with no suffix denote nickel plated shell, with silver-plated contacts (standard type). Type codes with BAG suffix denote black shell, with silver-plated contacts. Type codes with B suffix denote black shell, with gold plated contacts. Note that the black shell finish is non-conductive; for applications where the XLR shell needs to be conductive, please use the nickel plated versions.

Type codes with WOB suffix denotes that the connector is supplied without a gland, which should be ordered separately as required.

XX series connectors are normally supplied unassembled, in individual plastic bags, however the 3-pin types are also available in bulk packs of 100, for speed of assembly.

  Description Price £
ex. VAT
Add to basket
Delivery
NEUTRIK NC3FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-031
257 in stock Need more?
1+ £4.06
10+ £3.69
50+ £3.49
100+ £3.09
NEUTRIK NC3MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-032
66 in stock Need more?
1+ £3.42
10+ £3.11
50+ £2.94
100+ £2.60
NEUTRIK NC3FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code: 41-033
620 in stock Need more?
1+ £4.32
10+ £3.93
50+ £3.72
100+ £3.28
NEUTRIK NC3MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code: 41-034
144 in stock Need more?
1+ £3.90
10+ £3.55
50+ £3.35
100+ £2.96
NEUTRIK NC3FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code: 41-035
191 in stock Need more?
1+ £5.30
10+ £4.82
50+ £4.56
100+ £4.03
NEUTRIK NC3MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-036
Temporarily out of stock but available to backorder, expected: 11/06/2024.
1+ £4.30
10+ £3.91
50+ £3.70
100+ £3.27
NEUTRIK NC4FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-041
273 in stock Need more?
1+ £6.34
10+ £5.77
50+ £5.45
100+ £4.82
NEUTRIK NC4MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-042
153 in stock Need more?
1+ £4.76
10+ £4.33
50+ £4.09
100+ £3.62
NEUTRIK NC4FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code: 41-043
66 in stock Need more?
1+ £6.98
10+ £6.35
50+ £6.00
100+ £5.30
NEUTRIK NC4MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code: 41-044
80 in stock Need more?
1+ £5.14
10+ £4.68
50+ £4.42
100+ £3.91
NEUTRIK NC4FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code: 41-045
50 in stock Need more?
1+ £7.66
10+ £6.97
50+ £6.59
100+ £5.82
NEUTRIK NC4MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-046
51 in stock Need more?
1+ £5.78
10+ £5.26
50+ £4.97
100+ £4.39
NEUTRIK NC5FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-051
291 in stock Need more?
1+ £8.74
10+ £7.95
50+ £7.52
100+ £6.64
NEUTRIK NC5MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-052
188 in stock Need more?
1+ £6.22
10+ £5.66
50+ £5.35
100+ £4.73
NEUTRIK NC5FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code: 41-053
105 in stock Need more?
1+ £9.04
10+ £8.23
50+ £7.77
100+ £6.87
NEUTRIK NC5MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code: 41-054
75 in stock Need more?
1+ £6.78
10+ £6.17
50+ £5.83
100+ £5.15
NEUTRIK NC5FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code: 41-055
26 in stock Need more?
1+ £10.36
10+ £9.43
50+ £8.91
100+ £7.87
NEUTRIK NC5MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-056
Temporarily out of stock but available to backorder, expected: 04/06/2024.
1+ £7.10
10+ £6.46
50+ £6.11
100+ £5.40
NEUTRIK NC6FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-061
83 in stock Need more?
1+ £9.68
10+ £8.81
50+ £8.32
100+ £7.36
NEUTRIK NC6MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-062
48 in stock Need more?
1+ £6.84
10+ £6.22
50+ £5.88
100+ £5.20
NEUTRIK NC6FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code: 41-063
Temporarily out of stock but available to backorder, expected: 04/06/2024.
1+ £10.06
10+ £9.15
50+ £8.65
100+ £7.65
NEUTRIK NC6MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code: 41-064
Temporarily out of stock but available to backorder, expected: 04/06/2024.
1+ £7.38
10+ £6.72
50+ £6.35
100+ £5.61
NEUTRIK NC6FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code: 41-065
1 in stock Need more?
1+ £9.36
10+ £8.52
50+ £8.05
100+ £7.11
NEUTRIK NC6MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-066
14 in stock Need more?
1+ £7.42
10+ £6.75
50+ £6.38
100+ £5.64
NEUTRIK NC7FXX XLR Female cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-071
100 in stock Need more?
1+ £13.22
10+ £12.03
50+ £11.37
100+ £10.05
NEUTRIK NC7MXX XLR Male cable connector, nickel shell, silver-plated contacts Nickel Stock code: 41-072
21 in stock Need more?
1+ £9.18
10+ £8.35
50+ £7.89
100+ £6.98
NEUTRIK NC7FXX-BAG XLR Female cable connector, black shell, silver-plated contacts Black Stock code: 41-073
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC7MXX-BAG XLR Male cable connector, black shell, silver-plated contacts Black Stock code: 41-074
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK NC7FXX-B XLR Female cable connector, black shell, gold-plated contacts Black Stock code: 41-075
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £14.88
10+ £13.54
50+ £12.80
100+ £11.31
NEUTRIK NC7MXX-B XLR Male cable connector, black shell, gold-plated contacts Black Stock code: 41-076
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £10.54
10+ £9.59
50+ £9.06
100+ £8.01
NEUTRIK NC3FXX-WOB XLR Female cable connector, without gland Stock code: 41-037
2138 in stock Need more?
1+ £3.44
10+ £3.13
50+ £2.96
100+ £2.61
NEUTRIK NC3MXX-WOB XLR Male cable connector, without gland Stock code: 41-038
1551 in stock Need more?
1+ £2.74
10+ £2.49
50+ £2.36
100+ £2.08
NEUTRIK NC3FXX-D XLR Female cable connector (pack of 100, disassembled) Stock code: 41-011
1 in stock Need more?
0+ £323.70
5+ £304.30
per pack
NEUTRIK NC3MXX-D XLR Male cable connector (pack of 100, disassembled) Stock code: 41-012
Temporarily out of stock but available to backorder, expected: 24/05/2024 (overdue).
0+ £270.50
5+ £254.30
per pack
NEUTRIK NC3FXX-BAG-D XLR Female cable connector (pack of 100, disassembled) Stock code: 41-013
Temporarily out of stock but available to backorder, expected: 18/06/2024.
0+ £310.90
5+ £292.20
per pack
NEUTRIK NC3MXX-BAG-D XLR Male cable connector (pack of 100, disassembled) Stock code: 41-014
Temporarily out of stock but available to backorder, expected in Call.
0+ £260.80
5+ £245.20
per pack
NEUTRIK NC3FXX-B-D XLR Female cable connector (pack of 100, disassembled) Stock code: 41-015
Temporarily out of stock but available to backorder, expected: 18/06/2024.
0+ £385.70
5+ £362.50
per pack
NEUTRIK NC3MXX-B-D XLR Male cable connector (pack of 100, disassembled) Stock code: 41-016
1 in stock Need more?
0+ £297.00
5+ £279.20
per pack
NEUTRIK NC5MXX-D XLR Male cable connector (pack of 100, disassembled) Stock code: 41-112
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
1+ £448.40
5+ £421.50
per pack
NEUTRIK NC5FXX-D XLR Female cable connector (pack of 100, disassembled) Stock code: 41-111
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £618.00
5+ £581.00
per pack
