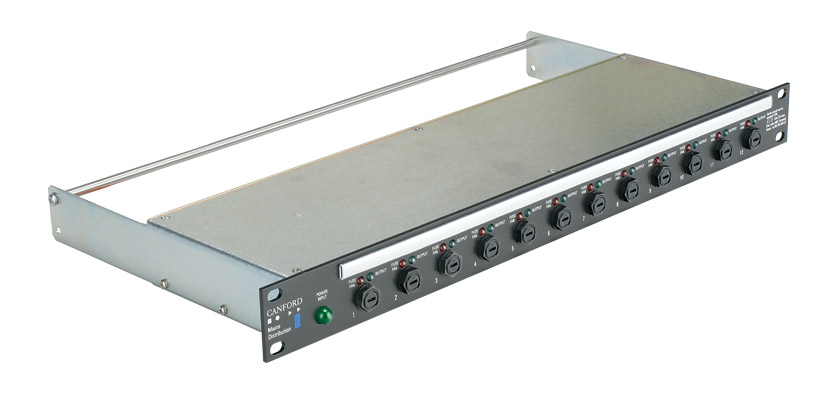

This range of twelve-way, Powercon outlet, AC mains power distribution panels with a 32 amp, Powercon locking inlet is housed in a compact 1U rackmount case. All versions have on the front panel an un-switched neon power present indicator, fuse and dual LED indication of power status for each of the output channels. Inlet and outlets are on the rear panel.
The fuses on the front panel have adjacent green and red LEDs. Green illuminated indicates that the circuit is powered correctly. Red illuminated (and green off) indicates that the fuse has failed.
All outputs are numbered front and rear for easy identification and a designation- strip holder with snap-on cover is fitted on the front panel. The paper strips supplied may be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.
Spare designation-strip inserts (not suitable for printers) 45-3082 and spare clear covers 45-3092 are available.
The front panel has an un-switched neon indicator, independent outlet fuses with status indicators.
The rear panel has a 32 amp, Powercon locking inlet and twelve Powercon outlet connectors. An earth stud is fitted.
All types are available finished in Dawn Grey or Black front panels, with either red or green ‘input power present’ neon indicator on the front panel.
A single-rod lacing-bar is fitted, which can be moved to an alternative fixing position if desired.
Mating connectors are NOT included and should be ordered separately as required.
Input connectors: Neutrik Powercon 32A type NAC3FC-HC, stock code 42-026.
Output connectors: Neutrik Powercon type NAC3FCB, stock code 42-022.
Moulded mains leads: A large range are offered, see AC Mains Power Leads.
Locking, moulded, mains leads: Patented, locking IEC leads, see AC Mains Power Leads - IEC-Lock.
Additional lacing bar kit.
|Maximum outlet load:
||10A per outlet
|Maximum total load:
||10A (T) HBC ceramic, to BS EN 60127
|Maximum in-rush current:
||100A (MDU-S versions)
Dimensions and weight:
All types are 1U, 19-inch rack mounting, 44 x 483 (h x w) mm.
