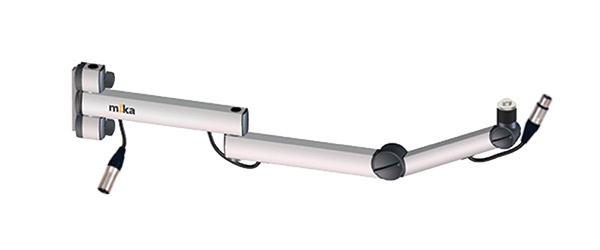

YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, silver

Stock code
53-1020
Brand
Yellowtec
Model number
  • YT3207-XLR
  • m!ka MIC ARM TV
  • MIC ARM TV
Colour
  • SilverSilver
YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, silver
How to choose the right m!ka Microphone ArmYELLOWTEC m!ka MIC ARM TV Terminated with XLRs, silver

YELLOWTEC m!ka MIC ARMS

Yellowtec m!ka series is a stylish, integrated system for mounting and positioning microphones in studio and workstation applications, giving an elegant visual appearance for all the 'desktop furniture' in a studio.

Mic Arms


m!ka Mic Arm

m!ka microphone arms are internally wired as standard, and use an elegant, single-tube design with articulated joints and internal springs, which may be adjusted with one hand. Two different reaches are offered, along with option of two finishes, black and natural aluminium. The microphone arms support microphones up to 2kg and can be mounted directly to surfaces using either a flush bracket or G-clamp, or raised higher by using the support pole.

Versions with OnAir LED incorporate a dual colour red/white LED ring adjacent to the microphone clamp to enable a 'mic live' or 'on air' indication to be given to the presenter. The colour can be toggled by reversing the polarity of the drive voltage. The arm is internally wired with a combination cable, a screened pair plus control pair in overall jacket, and requires 12-24V DC for operation. An OnAir version of the XS Mic Arm (535mm) is also available for those requiring a lesser reach.

m!ka Mic Arms are available with unterminated cable or fitted with XLR connectors. Note: Terminated versions without OnAir LED are terminated with 3-pin female XLR at the top and a 3-pin male XLR at the base, whereas terminated versions of those Mic Arms with OnAir LED are terminated with a 3-pin female XLR at the top and a 5-pin male XLR at the base.

Available versions
Model Silver Black Termination OnAir LED Maximum Reach
MIC ARM XS YT3105-XLR YT3505-XLR XLR Yes 535mm
MIC ARM XS YT3105 YT3505 None Yes 535mm
MIC ARM M YT3201 YT3601 None No 787mm
MIC ARM M YT3201-XLR YT3601-XLR XLR No 787mm
MIC ARM M YT3205 YT3605 None Yes 787mm
MIC ARM M YT3205-XLR YT3605-XLR XLR Yes 787mm
MIC ARM XL YT3301 YT3701 None No 1075mm
MIC ARM XL YT3301-XLR YT3701-XLR XLR No 1075mm
MIC ARM XL YT3305 YT3705 None Yes 1075mm
MIC ARM XL YT3305-XLR YT3705-XLR XLR Yes 1075mm

m!ka Mic Arm TV

These horizontal microphone arms have been designed specifically for those who wish to leave their field of vision free these are particularly useful in TV broadcast studios. They have three sections with the second and third sections connected with a vertical adjustment joint. The section closest to the microphone is 200mm in length, the middle section is 250mm in length, and the third section is 230mm in length. They are available in aluminium or black finish.

Versions with OnAir LED incorporate a dual colour red/white LED ring adjacent to the microphone clamp to enable a 'mic live' or 'on air' indication to be given to the presenter. The colour can be toggled by reversing the polarity of the drive voltage. The arm is internally wired with a combination cable, a screened pair plus control pair in overall jacket, and requires 12-24V DC for operation.

The basic units have bare cable ends for the user to fit connectors, but they are also available with a 3-pin female XLR at the top and a 3-pin male XLR at the base. They support microphones up to 1.5kg.

m!ka Mic Arm TV are available with unterminated cable or fitted with XLR connectors. Note: Terminated versions without OnAir LED are terminated with 3-pin female XLR at the top and a 3-pin male XLR at the base, whereas terminated versions of those Mic Arms with OnAir LED are terminated with a 3-pin female XLR at the top and a 5-pin male XLR at the base.

Available versions
Silver Black Termination OnAir LED
YT3207 YT3206 None No
YT3207-XLR YT3206-XLR XLR No
YT3209 YT3208 None Yes
YT3209-XLR YT3208-XLR XLR Yes

Mic Arm Mounting Hardware and Accessories

There are a number of mounting brackets available for direct connection to m!ka microphone arms:


Table Clamp (YT3210)

For mounting directly to the side edge of a table surface up to 70mm in thickness.


Table Through Mount (YT3215)

For fixing through a desktop up to 25mm in thickness.


Table Mount (YT3216)

For mounting to a desktop surface via three screws.


Bushing (YT3211)

An alternative to the YT3215 table through mount. This requires a larger diameter hole in the desktop surface of up to 45mm in thickness.


Pole Adapter (YT3213)

An aluminium coloured adapter to connect a m!ka Mic Arm to a m!ka System Pole; a black version, YT3613, is also available.


Wall Bracket (YT3214)

This can be used for mounting a m!ka Mic Arm directly to a wall or other sturdy vertical surface.


5/8" Mic Arm Adapter MKII

These 5/8-inch microphone swivel adapters are compatible with existing m!ka microphone arms, with the YT3350 option including a dual colour red/white OnAir indication LED for upgrading existing On Air microphone arms.

Desktop Controllers


hush, hush+

Yellowtec hush and hush+ are desktop controllers that are compatible with Yellowtec OnAir signalling including the On Air Mic Arm and litt pole LEDs. The controllers allow for easy control over status LED signals, and also microphone signal with the hush+. The plug and play concept allows fast handling.

Yellowtec hush is inserted into the chain between 5-pin XLR connector at the bottom end of your m!ka Mic Arm and mixing console. With hush, the microphone signal is looped through unprocessed; with the hush+ the microphone signal is processed via the integrated preamp with gain from 12dB to 75dB at -129dB input referred noise. hush+ also offers microphone mute, whilst high pass filter and phantom power status is controllable via Yellowtec's hush App.

Five different modes, including hush Remote, GPIs, USB-HID or MIDI (USB/Ext.) allows control in a number of situations and setups.

Available options
YT3901 hush with USB cable
YT3900 hush+ with USB cable
YT3903 hush bundled with YT3904 hush Remote and 2x USB cables
YT3902 hush+ bundled with YT3904 hush Remote and 2x USB cables

Optional accessories: YT3904 Hush Remote.

Dimensions (HxWxD): 45 x 127 x 185mm. Weight: 0.5kg

The range of the m!ka microphone arms can be extended using poles, see YELLOWTEC m!ka SYSTEM POLES.
A variety of can be purchased to compliment the arms, see YELLOWTEC ACCESSORIES.

  Description Price £
ex. VAT
Add to basket
Delivery
YELLOWTEC m!ka MIC ARM XS Unterminated, 535mm, with OnAir LED ring, silver Silver Stock code: 53-076
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£360.00
YELLOWTEC m!ka MIC ARM XS Terminated with XLRs, 535mm, with OnAir LED ring, silver Silver Stock code: 53-078
Assembled to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£414.50
YELLOWTEC m!ka MIC ARM XS Unterminated, 535mm, with OnAir LED ring, black Black Stock code: 53-1011
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£360.00
YELLOWTEC m!ka MIC ARM XS Terminated with XLRs, 535mm, with OnAir LED ring, black Black Stock code: 53-1012
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£405.60
YELLOWTEC m!ka MIC ARM M Unterminated, 787mm, silver Silver Stock code: 53-062
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£280.00
YELLOWTEC m!ka MIC ARM M Terminated with XLRs, 787mm, silver Silver Stock code: 53-064
2 in stock Need more?
£320.80
YELLOWTEC m!ka MIC ARM M Unterminated, 787mm, black Black Stock code: 53-061
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£280.00
YELLOWTEC m!ka MIC ARM M Terminated with XLRs, 787mm, black Black Stock code: 53-063
1 in stock Need more?
£321.20
YELLOWTEC m!ka MIC ARM M Unterminated, 787mm, with OnAir LED ring, silver Silver Stock code: 53-072
1 in stock Need more?
£375.00
YELLOWTEC m!ka MIC ARM M Terminated with XLRs, 787mm, with OnAir LED ring, silver Silver Stock code: 53-074
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£430.50
YELLOWTEC m!ka MIC ARM M Unterminated, 787mm, with OnAir LED ring, black Black Stock code: 53-071
Ordered on demand, available in 1‑2 working days. Need it sooner? Call us
£375.00
YELLOWTEC m!ka MIC ARM M Terminated with XLRs, 787mm, with OnAir LED ring, black Black Stock code: 53-073
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£431.10
YELLOWTEC m!ka MIC ARM XL Unterminated, 1075mm, silver Silver Stock code: 53-1013
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£375.00
YELLOWTEC m!ka MIC ARM XL Terminated with XLRs, 1075mm, silver Silver Stock code: 53-1014
Assembled to order, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
£419.20
YELLOWTEC m!ka MIC ARM XL Unterminated, 1075mm, black Black Stock code: 53-1015
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£375.00
YELLOWTEC m!ka MIC ARM XL Terminated with XLRs, 1075mm, black Black Stock code: 53-1016
Assembled to order, cancellations may incur charges, available in 1‑2 months. Need it sooner? Call us
£419.70
YELLOWTEC m!ka MIC ARM XL Unterminated, 1075mm, with OnAir LED ring, silver Silver Stock code: 53-077
Ordered on demand, cancellations may incur charges, available in 1‑2 working days. Need it sooner? Call us
£445.00
YELLOWTEC m!ka MIC ARM XL Terminated with XLRs, 1075mm, with OnAir LED ring, silver Silver Stock code: 53-079
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£505.00
YELLOWTEC m!ka MIC ARM XL Unterminated, 1075mm, with OnAir LED ring, black Black Stock code: 53-1017
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£445.00
YELLOWTEC m!ka MIC ARM XL Terminated with XLRs, 1075mm, with OnAir LED ring, black Black Stock code: 53-1018
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£496.30
YELLOWTEC m!ka MIC ARM TV Unterminated, silver Silver Stock code: 53-1019
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£365.00
YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, silver Silver Stock code: 53-1020
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£408.60
YELLOWTEC m!ka MIC ARM TV Unterminated, black Black Stock code: 53-1021
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£365.00
YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, black Black Stock code: 53-1022
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£409.00
YELLOWTEC m!ka MIC ARM TV Unterminated, with OnAir LED ring, silver Silver Stock code: 53-1023
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£420.00
YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, with OnAir LED ring, silver Silver Stock code: 53-1024
Assembled to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£469.10
YELLOWTEC m!ka MIC ARM TV Unterminated, with OnAir LED ring, black Black Stock code: 53-1025
Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
£420.00
YELLOWTEC m!ka MIC ARM TV Terminated with XLRs, with OnAir LED ring, black Black Stock code: 53-1026
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£469.60
YELLOWTEC hush ONAIR CONTROLLER BUNDLE Including Hush Remote Stock code: 53-1051
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£470.00
YELLOWTEC hush+ ONAIR CONTROLLER BUNDLE Including Hush Remote Stock code: 53-1052
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£755.00
YELLOWTEC hush ONAIR CONTROLLER Mic thru, for OnAir m!ka Mic Arms/litt LED segment Stock code: 53-1053
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£380.00
YELLOWTEC hush+ ONAIR CONTROLLER Mic thru/mute/preamp, for OnAir m!ka Mic Arms/litt LED segment Stock code: 53-1054
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£670.00
YELLOWTEC hush REMOTE OnAir LED on/off control Stock code: 53-1055
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£95.00
YELLOWTEC m!ka TABLE CLAMP Mic arm mount, black Black Stock code: 53-066
1 in stock Need more?
£50.00
YELLOWTEC m!ka TABLE THROUGH MOUNT Mic arm mount, black Black Stock code: 53-1027
1 in stock Need more?
£84.00
YELLOWTEC m!ka TABLE MOUNT Mic arm mount, black Black Stock code: 53-1028
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£88.00
YELLOWTEC m!ka BUSHING Surface mounting bracket, stainless steel Stainless Steel Stock code: 53-065
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
£80.00
YELLOWTEC m!ka POLE ADAPTER Mic arm adapter, silver Silver Stock code: 53-075
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£98.00
YELLOWTEC m!ka POLE ADAPTER Mic arm adapter, black Black Stock code: 53-1029
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
£98.00
YELLOWTEC m!ka WALL BRACKET For mic arm, silver Silver Stock code: 53-1030
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£98.00
YELLOWTEC m!ka 5/8 Stock code: 53-1031
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£76.00
YELLOWTEC m!ka 5/8 Stock code: 53-1032
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£50.00
YELLOWTEC m!ka CABLE CLAMP For MMS pole, pack of 6 Stock code: 53-1034
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£30.00
YELLOWTEC m!ka YELLOW SPACER, pack of 10 Stock code: 53-1035
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£30.00
YELLOWTEC m!ka PLASTIC SLEEVE Pack of 10 Stock code: 53-1036
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£24.00
