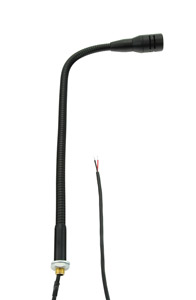

CANFORD GOOSENECK MICROPHONE 400PB Black

Stock code
53-191
Brand
Canford
Model number
  • 400PB
GTIN
5056704728004
Colour
  • BlackBlack
CANFORD GOOSENECK MICROPHONE 400PB Black
CANFORD GOOSENECK MICROPHONE 400PB Black

CANFORD DYNAMIC GOOSENECK MICROPHONES

This range uses a high quality 200 ohm dynamic capsule in an attractive satin nickel or black finish robust metal housing, with foam windshield insert. The range is particularly suited to communications and paging applications, having a response with a peak in the middle of the speech band and good back-to-front rejection ratio. The gooseneck itself is in a matching finish, and is available in a variety of versions for panel mounting or plug in use. The type numbers are designated as follows:

First figure: Overall length of gooseneck in mm (approx).
–P suffix: Panel mounting through 10mm hole, nut and washer supplied. Wired complete with 2 metres cable.
–X suffix: Fitted with XLR 3 pin male connector at base of goose neck supplied wired.
–S suffix: Surface mounting, with plate at base with 3 countersunk screw mounting holes. Wired complete with 2 metres cable, there is provision to run wiring out through side of plate for neat surface cable runs, or through base for concealed wiring
–B suffix: Black finish.

Technical Specification (typical values):

Impedance: 200 ohms
Sensitivity: 0.3mV/µBar (-70dBv)
Frequency range: 100Hz-7kHz (+8dB peak around 4 kHz)
Polar response: Cardioid
Front-to-back rejection: 16dB (1kHz)
Head diameter: 26mm
