RODE MICROPHONES - Miniature lavalier, clip-on, pin-mount

19 items

This selection of Rode miniature lavalier (tie-clip) microphones have been designed to provide broadcast quality audio in a variety of situations including studio and location work.

The mics, with omni-directional condenser capsules, can be connected to a variety of branded wireless systems, cameras, and portable recorders by using the applicable MiCon connector.


Lavalier - Condenser, omni-directional, MiCon connector

Rode Lavalier is a 2.54mm omni-directional condenser capsule housed in a black casing designed for film, television, and house of worship use. A frequency response of 60Hz to 18kHz and the included mini-furry windshield help retain voice nuances in adverse conditions. The 1.2 metre black Kevlar reinforced detachable cable has a sub-miniature screw to connect to any one of the MiCon series connectors. Connectors are not included and should be ordered separately, see below.

Included accessories: Minifur-Lav artificial fur windshield, Lav-Clip mounting clip, WS-Lav pop filter, Anti-Trauma case, and spanner.

Capsule size: 2.54mm. Frequency range: 60Hz to 18kHz. Output impedance: 3000ohms. Maximum SPL: 110dB. Sensitivity: -33.5dB. Weight 1g. Dimensions: 12 x 4.5 x 4.5mm (h x w x d).


Lavalier II - Condenser, omni-directional, 3.5mm locking jack

Rode Lavalier II has been designed for 'the most demanding applications' including film, television, and field recording. A frequency range of 20Hz to 20kHz with almost flat response allows the user to capture 'broadcast-grade' audio from an omnidirectional polar pattern. Lavalier II is compatible with Rode Wireless GO, Rode Wireless GO II, Rode AI-Micro, and RODELink series wireless.

Included accessories: Pop filter, mic clip, mini furry windshield, set of coloured ID rings, and zip case.

Capsule size: 6mm. Frequency range: 20Hz to 20kHz. Output impedance: 2000ohms. Signal to noise ratio: 66dB. Maximum SPL: 106dB, RMS 1% THD; 120dB, RMS 10% THD. Sensitivity: -37dB, 1V/Pa, +/- 3dB. Dynamic range: 78dB. Power requirements: 1.8V to 5V plugin power. Dimensions (LxWxH): 1200 x 10 x 5mm, microphone; 21 x 20 x 8mm, clip. Weight: 9g, microphone; 2g, clip.

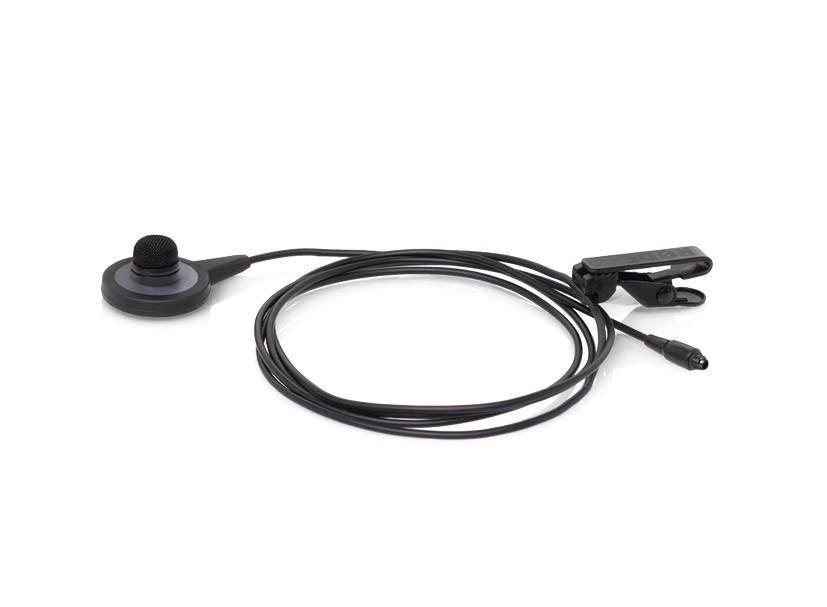

Pinmic - Condenser, omni-directional, MiCon connector

This has many of the characteristics of the 'Lavalier' microphone, including the 2.54mm omni-directional condenser capsule and the 60Hz - 18kHz frequency response. The 9mm deep, and 11mm diameter capsule head comes with a black housing that can be switched for an included paintable silver mesh. A pin-through design where the microphone's back plate is hidden behind the fabric, makes it easier to conceal than a lapel style microphone. Mounts through fabric up to 1.5mm thick. 'DeadMouse-Pin' fur windshield reduces unwanted noise caused by wind and adverse conditions. The 1.2 metre black Kevlar reinforced cable has a sub-miniature screw to connect to any one of the MiCon series connectors. Connectors are not included and should be ordered separately, see below.

Included accessories: Clip1 MiCon cable clip, 1x unpainted mesh head, Anti-Trauma case, tool kit, DeadMouse-Pin fur windshield.

Capsule size: 2.54mm. Frequency range: 60Hz to 18kHz. Output impedance: 3000ohms. Maximum SPL: 110dB. Maximum output level: 189.0mV. Sensitivity: -33.5dB. Weight 10g. Dimensions: 16 x 22 x 33mm (h x w x d).


Pinmic Long - Condenser, omni-directional, MiCon connector

Has all the characteristics of the PinMic, however it has a longer pin and therefore it is suitable for thicker fabrics up to 3.5mm thick.

Specifications and accessories are as for the Pinmic above.

Mounts and Windshields

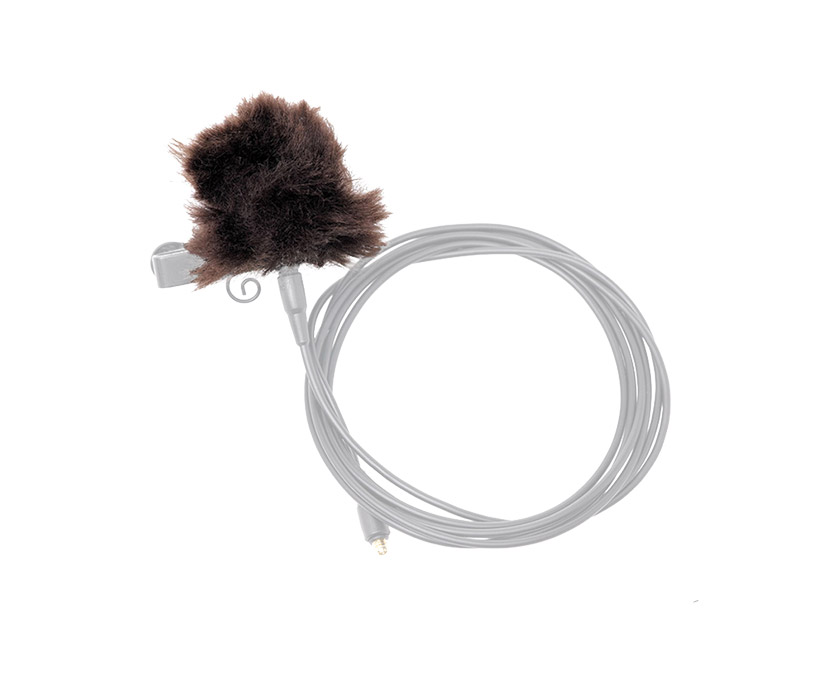

MiniFur-Lav

Designed to give the lapel microphone protection from windy conditions when on location the Minifur-Lav is manufactured from synthetic fur and compatible with the Rode Lavalier, smartLav and smartLav+, a handy accessory for outdoor use. Supplied in pack of three. Dimensions: 26 x 44 x 44mm (h x w x d). Weight: 1g.


InvisiLav

Available as pack of three (74-2412) or pack of ten (74-2411) InvisiLav has been designed to help the user conceal the positioning of their Lavalier or smartLav microphone by allowing adhesion to skin or fabric. Two mounting points allow for a redundant microphone if required, and the soft, medical grade, skin safe, material absorbs noise and vibration giving a cleaner audio signal. Dimensions: 18 x 25 x 6mm (h x w x d). Weight: 5g.

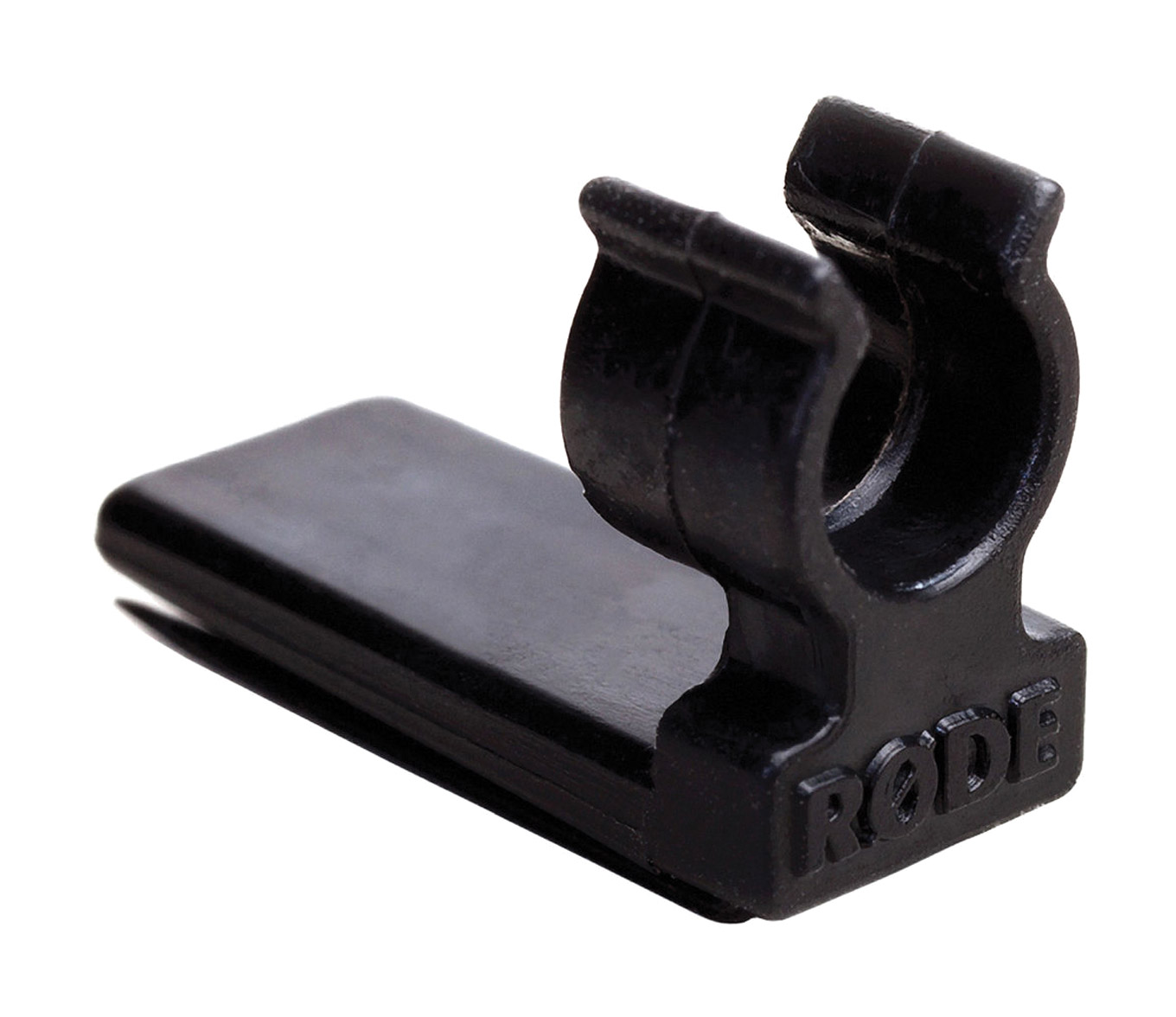

Vampire Clip

A 'dual-toothed' clothing pin designed as an accessory for Rode Lavalier, smartLav, smartLav+, and Lavalier GO. Supplied as single piece measuring 16 x 7 x 12mm (HxWxD), and weighing 1g. Colour: Black.


Lav-Clip

An alligator style lavalier microphone clip, also known as CLIP2, that has been designed as a spare or accessory for Rode Lavalier, smartLav, smartLav+, and Lavalier GO. Supplied as a pack of three with each clip measuring 24 x 11 x 27mm (HxWxD) and weighing 3g.

Micon Extension Cables and Connectors

Made with Kevlar-reinforced cable to extend the reach of the captive cable of the Lavalier, PinMic, or PinMic Long microphones. these are terminated with MiCon-compatible, sub-miniature screw and socket connectors, 1.5mm in diameter. They are offered in 1.2 and 3 metre lengths and various colours.


Micon-1 Connector - Jack, 3.5mm, 3-pole with locking ring - Sennheiser transmitter

An optional adapter to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to a Sennheiser wireless transmitter with locking 3.5mm TRS jack socket. Dimensions: 39 x 10 x 10mm (h x w x d). Weight: 10g.


Micon-2 Connector - Jack, 3.5mm, 3-pole - Stereo devices

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to a standard 3.5mm TRS jack with a power supply of 1V minimum. Dimensions: 37 x 10 x 10mm (h x w x d). weight: 8g.


Micon-3 Connector - TA4F, 4-pin mini (XLR) - Shure transmitter

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to select Shure transmitters with TA4F four-pin mini connector. Dimensions: 36 x 13.65 x 10.4mm (h x w x d). Weight: 10g.


Micon-4 Connector - 4-pin female with locking ring - Audio-Technica transmitter

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to an Audio Technica UniPak body-pack wireless transmitter with a locking 4-pin female connector. Dimensions: 36 x 11.6 x 11.6mm (h x w x d). Weight: 13g.


Micon-5 Connector - XLR, 3-pin, male - Standard microphone input

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to a standard, 3-pin XLR, female input with phantom power. Dimensions: 61.8 x 30.1 x 21mm (h x w x d). Weight: 50g.


Micon-8 Connector - Jack, 3.5mm, 3-pole with locking ring - Sony transmitter

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to a Sony UWP transmitter with a locking 3.5mm jack. Dimensions: 39 x 10 x 10mm (h x w x d). Weight: 10g.


Micon-11 Connector - Jack, 3.5mm TTRS - Smart phones

An optional connector designed to connect the Rode HS1 headset and Lavalier, PinMic, or PinMic Long microphones to a device with 3.5mm TTRS jack socket such as an iPhone, iPad, and select Android devices. Dimensions: 1200 x 9 x 9mm (h x w x d). Weight: 7g.

  Description Price £
ex. VAT
Add to basket
Delivery
RODE LAVALIER MICROPHONE Lapel, condenser, omni-directional, MiCon connection Stock code: 74-2413
No longer manufactured. See the product page for suggested alternatives.
RODE LAVALIER II MICROPHONE Lapel, condenser, omni-directional, locking 3.5mm jack Stock code: 74-2436
Available in Call Ordered on demand, available in Call.
£87.50
RODE PINMIC MICROPHONE Lapel, condenser, omni-directional, 1.5mm Stock code: 74-2426
No longer manufactured. Please contact Technical Support for alternatives.
RODE PINMIC LONG MICROPHONE Lapel, condenser, omni-directional, 3.5mm Stock code: 74-2427
No longer manufactured. Please contact Technical Support for alternatives.
RODE MINIFUR-LAV MICROPHONE COVER High wind, for Lavalier or smartLav microphone Stock code: 74-2425
Available in Call Ordered on demand, available in Call.
£15.00
RODE INVISILAV MICROPHONE MOUNT Self adhesive, skinsafe, for Lavalier GO/smartLav, pack of 3 Stock code: 74-2412
Available in Call Ordered on demand, available in Call.
£17.50
RODE INVISILAV MICROPHONE MOUNT Self adhesive, skinsafe, for Lavalier GO/smartLav, pack of 10 Stock code: 74-2411
Available in Call Ordered on demand, available in Call.
£40.31
RODE VAMPIRE CLIP MICROPHONE MOUNT Clothing pin, double toothed, for Lavalier/smartLav, black Black Stock code: 74-2430
Available in Call Ordered on demand, available in Call.
£10.83
RODE LAV-CLIP MICROPHONE MOUNT Alligator clip, for Lavalier GO/smartLav, black, pack of 3 Black Stock code: 74-2420
Available in Call Ordered on demand, available in Call.
£24.17
RODE MICON CABLE Extension, for Lavalier, PinMic, or PinMic Long, 1.2metre, black Black Stock code: 74-2414
Available in Call Ordered on demand, available in Call.
£31.67
RODE MICON CABLE Extension, for Lavalier, PinMic, or PinMic Long, 1.2metre, pink Pink Stock code: 74-2415
Available in Call Ordered on demand, available in Call.
£29.17
RODE MICON CABLE Extension, for Lavalier, PinMic, or PinMic Long, 3m, black Black Stock code: 74-2416
Available in Call Ordered on demand, available in Call.
£38.33
RODE MICON-1 CONNECTOR For Lavalier, PinMic, or PinMic Long, locking TRS jack, for Sennheiser Tx Stock code: 74-2417
Available in Call Ordered on demand, available in Call.
£13.74
RODE MICON-2 CONNECTOR For Lavalier, PinMic, or PinMic Long, 3.5mm TRS jack, for stereo devices Stock code: 74-2419
Available in Call Ordered on demand, available in Call.
£15.00
RODE MICON-3 CONNECTOR For Lavalier, PinMic, or PinMic Long, TA4F 4-pin mini connector, for Shure Tx Stock code: 74-2421
Available in Call Ordered on demand, available in Call.
£17.50
RODE MICON-4 CONNECTOR For Lavalier, PinMic, or PinMic Long, 4-pin connector, for Audio Technica Tx Stock code: 74-2422
Available in Call Ordered on demand, available in Call.
£26.67
RODE MICON-5 CONNECTOR For Lavalier, PinMic, or PinMic Long, 3-pin XLRM plug Stock code: 74-2423
Available in Call Ordered on demand, available in Call.
£26.67
RODE MICON-8 CONNECTOR For Lavalier, PinMic, or PinMic Long, locking 3.5mm TRS jack, for Sony Tx Stock code: 74-2424
Available in Call Ordered on demand, available in Call.
£14.17
RODE MICON-11 CONNECTOR For Lavalier, PinMic, or PinMic Long, 3.5mm TTRS jack, for smartphones Stock code: 74-2418
Available in Call Ordered on demand, available in Call.
£17.50
