SIGNET PRO5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2
SIGNET PRO5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2SIGNET PRO5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2SIGNET PRO5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2

Signet’s PDA and PRO series of phase-shifting induction loop amplifiers have been designed and manufactured in the UK to suit areas up to 1000 square metres such as meeting rooms, offices, churches, classrooms, or theatres. This series of AFILS loop amplifiers are also available as wallmount amplifiers, see SIGNET AFILS LOOP AMPLIFIER SYSTEMS - Phase shifting, wallmount

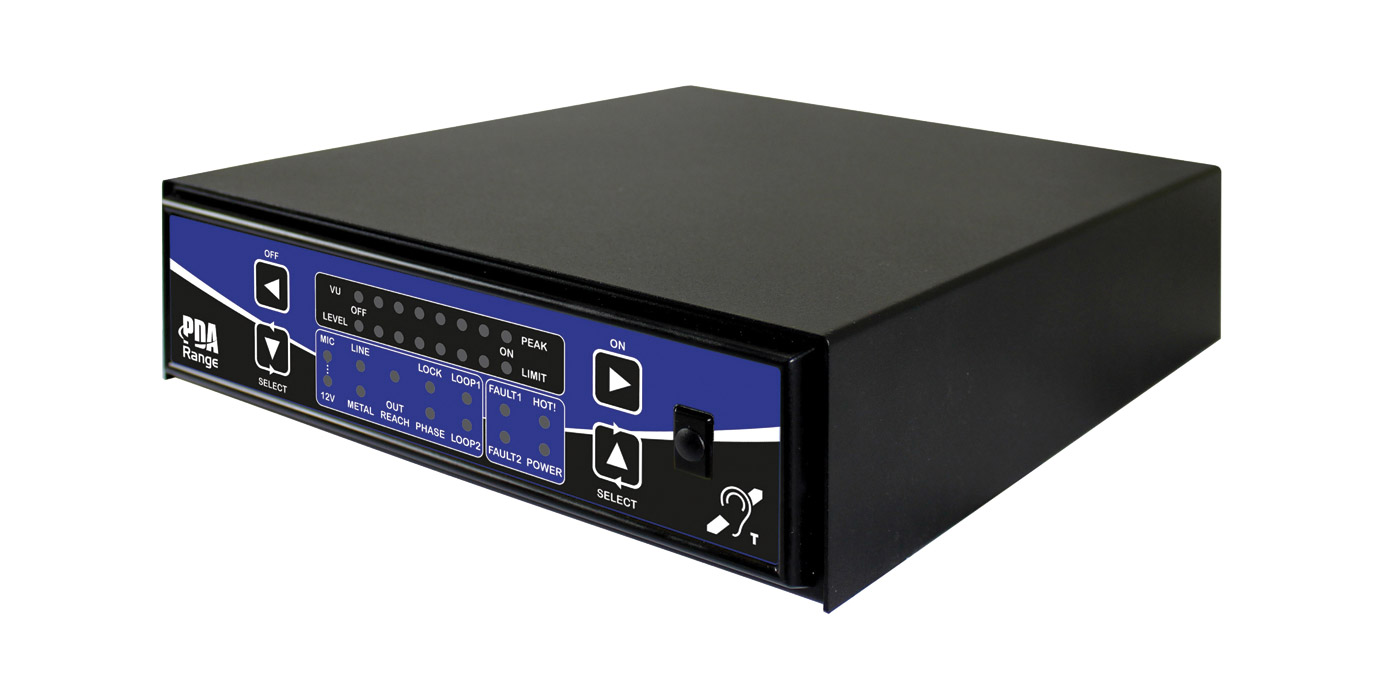

PDA5/DD, PDA7/DD, PDA11/DD - LED interface

PDA5, PDA7, and PDA11 constant current amplifiers feature phase-shifting technology to give consistent coverage with low chance of dead spots, and minimal overspill. An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Model coverage
PDA5/DD 2x 3.25 Amp 200m2 (approx. 14 x 14m)
PDA7/DD 2x 5 Amp 500m2 (approx. 22 x 22m)
PDA11/DD 2x 7.5 Amp 1000m2 (approx. 31 x 31m)

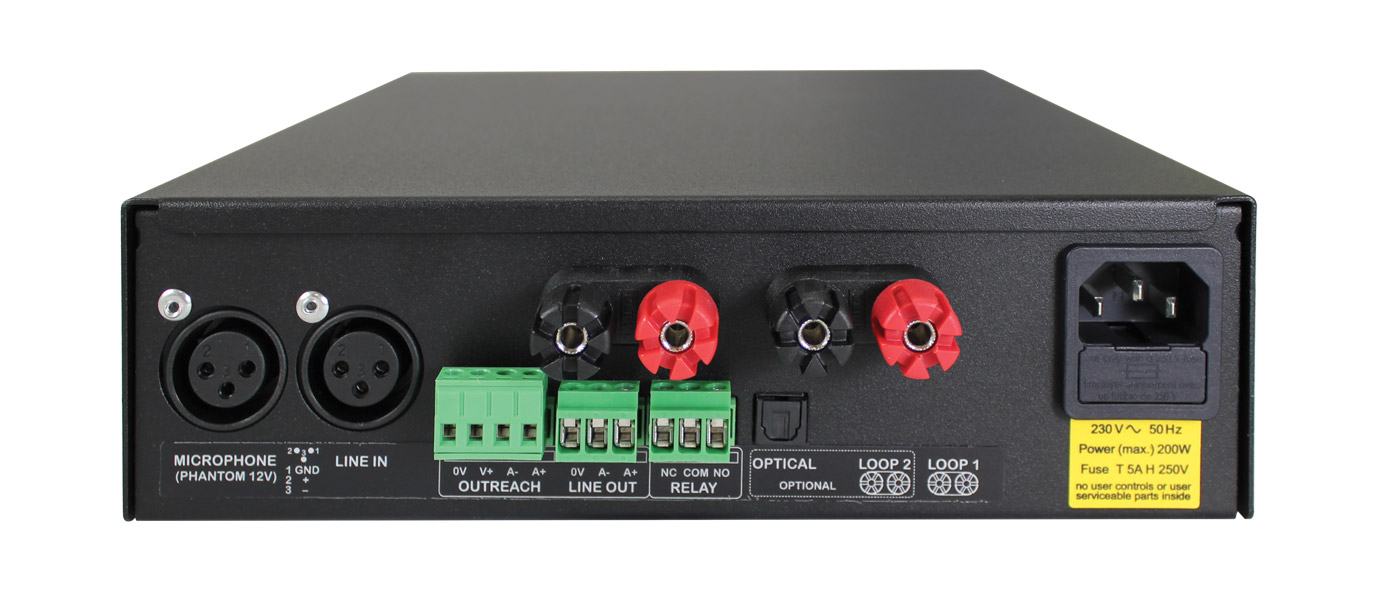

All models have the same front panel functionality, and rear panel connectivity including 2x selectable mic/line inputs on 3-pin XLR, 1x outreach input via 4-way Phoenix connector for connection to up to ten compatible outreach plates, see SIGNET AFILS LOOP AMPLIFIER SYSTEMS - Accessories - Outreach Plates; loop output on 4-way binding posts, and line output on 3-way Phoenix connector. There is also a 3-way Phoenix connector for fault relay, and a single mains IEC connector is also positioned on the rear panel.

Input sensitivity: -20dBU typical, line; -42dBU typical, mic. Outreach input sensitivity: 0dBU. Outreach input impedance: >10k. Outreach power: 24V DC, 100mA max. Loop output voltage: 14V. Line output: 775mV. Metal compensation: up to 10dB. Frequency response: 100Hz – 5kHz, -3dB. Distortion: Less than 1%. Signal to noise: Better than -65dB. AGC range: 10dB, 3dB change in output voltage current. AGC ratio: 20:1. IP rating: IP40. Dimensions (HxWxD): 67 x 218 x 280mm. Weight: 2.38kg.

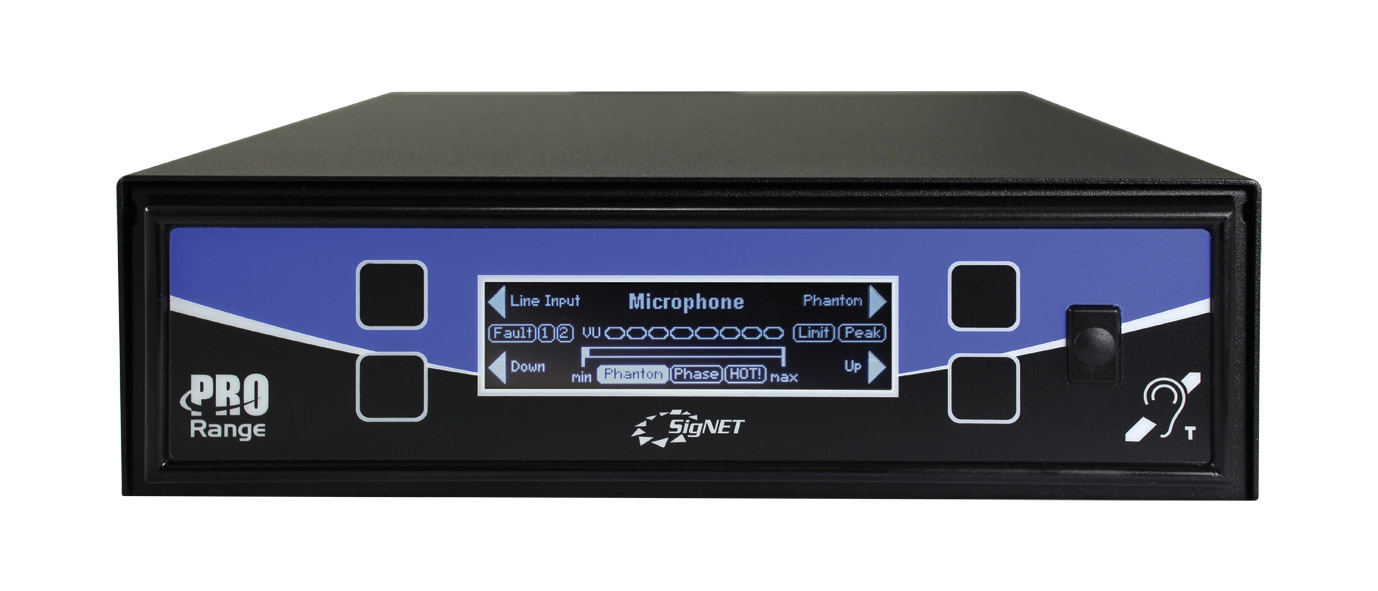

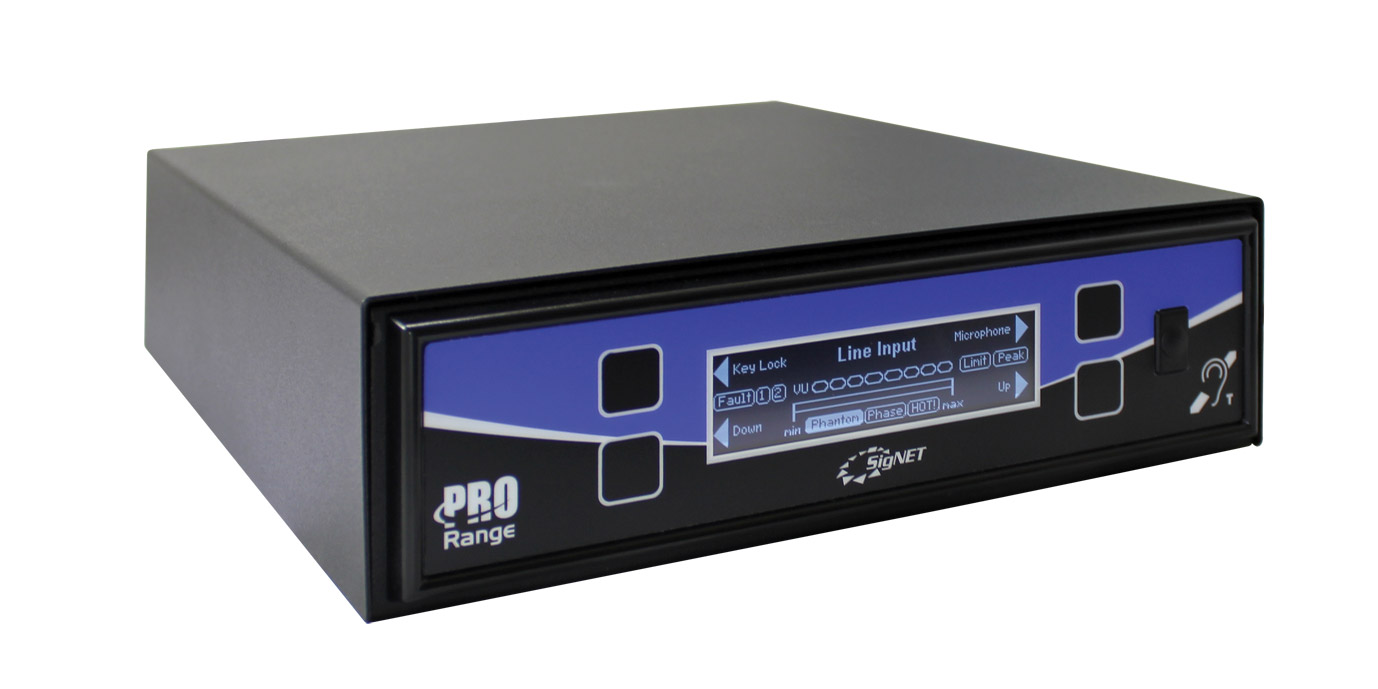

PRO5/DD, PRO7/DD, PRO11/DD - OLED display

PRO5, PRO7, and PRO11 have the same functionality as the PDA5, PDA7, and PDA11 amplifiers above, however in place of the LED interface is an OLED display giving more in-depth information, ease of setup, and fault and diagnostics feedback. PRO/DD models also include a ‘Toslink’ optical input for connection to devices such as TV or sound bar.

Model coverage
PRO5/DD 2x 3.25 Amp 200m2 (approx. 14 x 14m)
PRO7/DD 2x 5 Amp 500m2 (approx. 22 x 22m)
PRO11/DD 2x 7.5 Amp 1000m2 (approx. 31 x 31m)
  Description Price £
ex. VAT
Add to basket
Delivery
SIGNET PDA5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2 Stock code: 93-8221
Please login for stock availability and lead times.
£438.70
SIGNET PDA7/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 500m2 Stock code: 93-8222
Please login for stock availability and lead times.
£474.20
SIGNET PDA11/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 1000m2 Stock code: 93-8223
Please login for stock availability and lead times.
£591.00
SIGNET PRO5/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 200m2 Stock code: 93-8231
Please login for stock availability and lead times.
£525.00
SIGNET PRO7/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 500m2 Stock code: 93-8232
Please login for stock availability and lead times.
£560.00
SIGNET PRO11/DD INDUCTION LOOP AMPLIFIER Phase-shifting, desktop, for areas up to 1000m2 Stock code: 93-8233
Please login for stock availability and lead times.
£677.00
SIGNET PDA/RM3 RACK MOUNT Kit for PDA amplifier Stock code: 93-8219
Please login for stock availability and lead times.
£45.77
