Miniature microphones for theatres, broadcast and conference applications and miniature vibration pickups for acoustic guitar and other string instruments on stage and in the studio

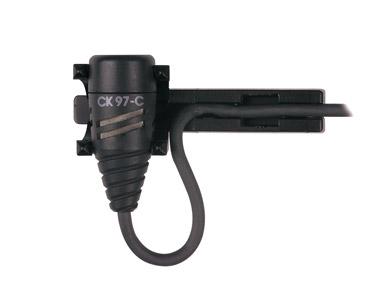

CK97 C/L - Cardioid lavalier
The CK97 C/L is a reference lavalier microphone designed for live use in houses of worship, lectures and theatres. Its integrated condenser capsule gives a constant cardioid pattern, with a 125 degree pickup angle, and allows high gain before feedback along with ambient pickup rejection. The attached H31 metal microphone clip allows the user to inconspicuously secure the microphone to jacket lapel or costume. The 1.10m attached cable is terminated with a three-pin mini-XLR connector to connect to compatible AKG wireless microphone transmitter belt-packs.
Response: 15Hz-18kHz. Sensitivity: 40mV/Pa. Dimensions: 25 x 11mm (height x diameter). Cable length: 1.1m. Termination: 3-pin mini-XLR (TA3F). Weight: 6g without cable.
Included accessories: 1x H31 microphone clip, 1x W97 windscreen, 1x zip bag.
C417 L, C417 PP - Omnidirectional lavalier
The C417 is a professional lavalier microphone with omnidirectional polar pattern. Its broadband, flat audio reproduction is 'ideal for all types of broadcast and theatrical applications' with an 'extremely open and natural' sound. Due to the small housing, it can be 'inconspicuously and securely attached to jackets and costumes'. The C417 is available in two versions, both with captive cables.
The C417 PP has a phantom power adapter integrated with a 3-pin male XLR connector; the C417L has a 1.5m cable with a miniature three-pin female XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.
Response: 20Hz-20kHz. Sensitivity: 7mV/Pa. Phantom power: 9-52V DC for C417 PP only. Dimensions: 15 x 7.5 (length x diameter) mm. Weight: 8g without cable.
Included accessories: Attachment clip, tie pin, windscreen and microphone bag.
C411 L, C411 PP - Pick-up - String instruments
The C411 is a miniature vibration pickup for 'acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument 'clearly and without coloration'. The pickup can be attached on or near the bridge with the included 'nonmarking, solvent-free adhesive pad' without 'changing the balance of the instrument', due to the low weight. The C411 is available in two versions, each with a captive cable.
The C411 PP has a phantom power adapter integrated with a 3-pin male XLR connector; the C411 L has a 1.5m cable with a miniature three-pin female XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.
Response: 10Hz-18kHz. Sensitivity: 2mV/Pa. Phantom power: 9-52V DC for C411 PP only. Dimensions: 3 x 20(depth x diameter) mm plate;.9.7 x 14.2 x 26.7(l x w x h) mm Weight: 18g without cable.
Included accessories: Adhesive compound, microphone bag.
